Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

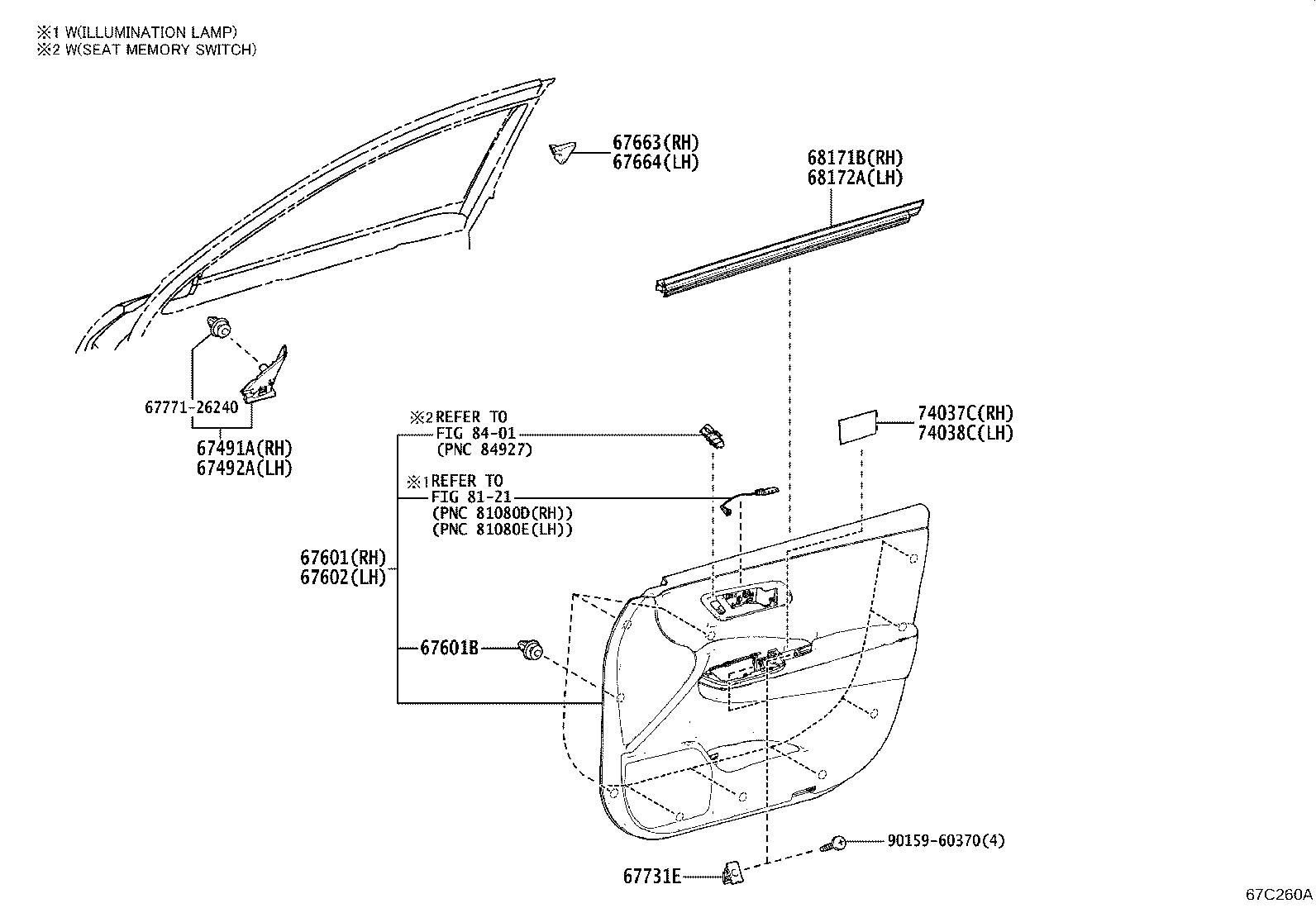

Front Door Panel & Glass
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67663 | Garnish, Door Frame, Upper RH |
| 67664 | Garnish, Door Frame, Upper LH |
| 67731E | Spacer, Side Trim, NO.1 |
| 67811 | Pad, Front Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67831D | Clip(FOR FRONT DOOR SERVICE HOLE COVER) |
| 67832 | Cover, Front Door Service Hole, LH |
| 67833D | Cover, Front Door Service Hole, NO.2 RH |
| 67834 | Cover, Front Door Service Hole, NO.2 LH |
| 67837A | Seal, Front Door Vent, RH |
| 67838A | Seal, Front Door Vent, LH |
| 67851D | Seal, Front Door Rear Outside, RH |
| 67852D | Seal, Front Door Rear Outside, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67865G | Weatherstrip, Front Door, NO.3 RH |
| 67866F | Weatherstrip, Front Door, NO.3 LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869E | Clip, Front Door Weatherstrip |
| 67869J | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610 | Check Assy, Front Door |
| 74037C | Cover Sub-assy, Door Armrest, RH |
| 74038C | Cover Sub-assy, Door Armrest, LH |
| 75929 | Tape, Black Out Front Door, Inner Upper RH |
| 75939 | Tape, Black Out Front Door, Inner Upper LH |
| 75968 | Tape, Black Out Front Door, Inner Rear RH |
| 75969 | Tape, Black Out Front Door, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
