Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

82 part groups · 23 illustrations

Illustrations

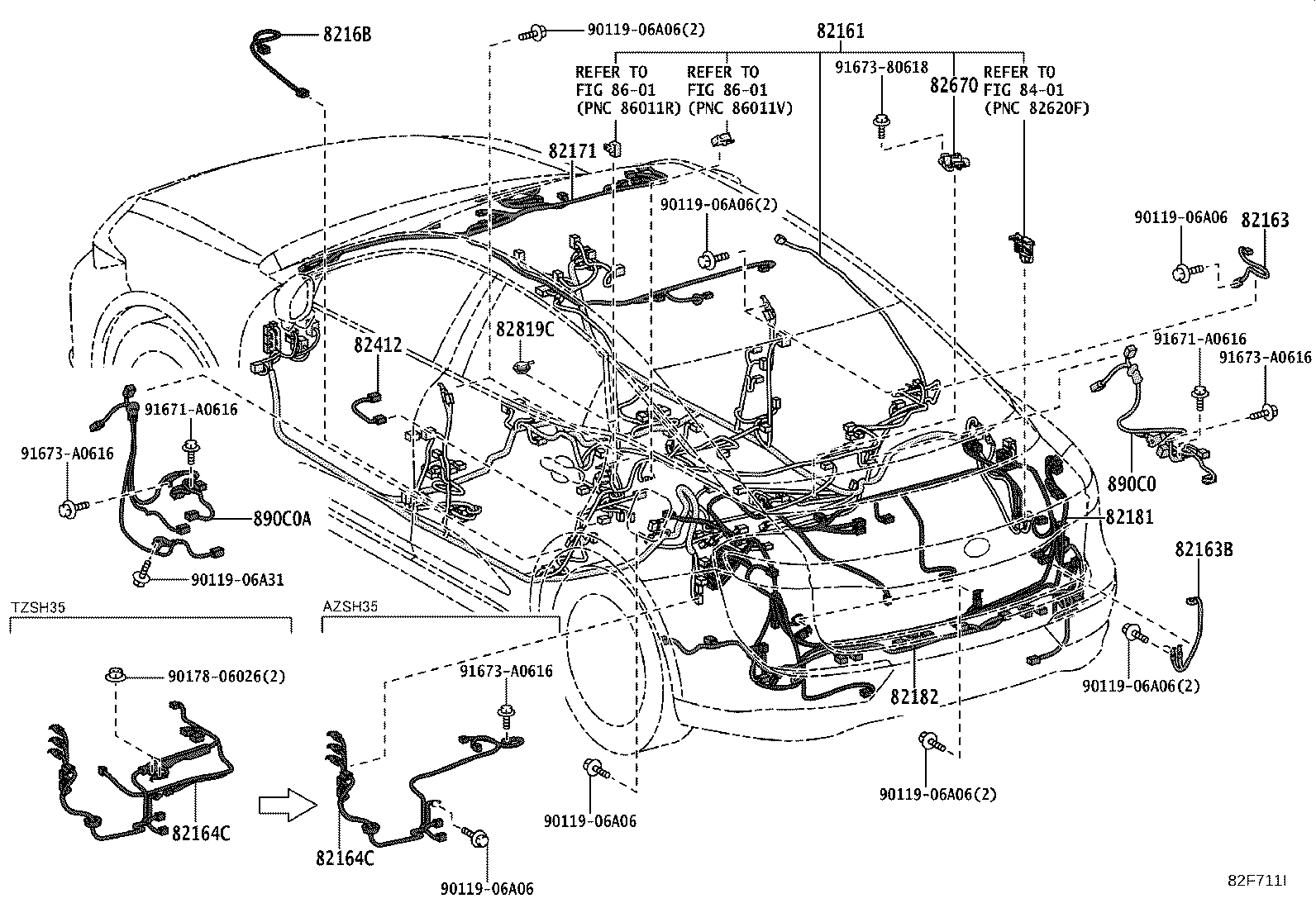

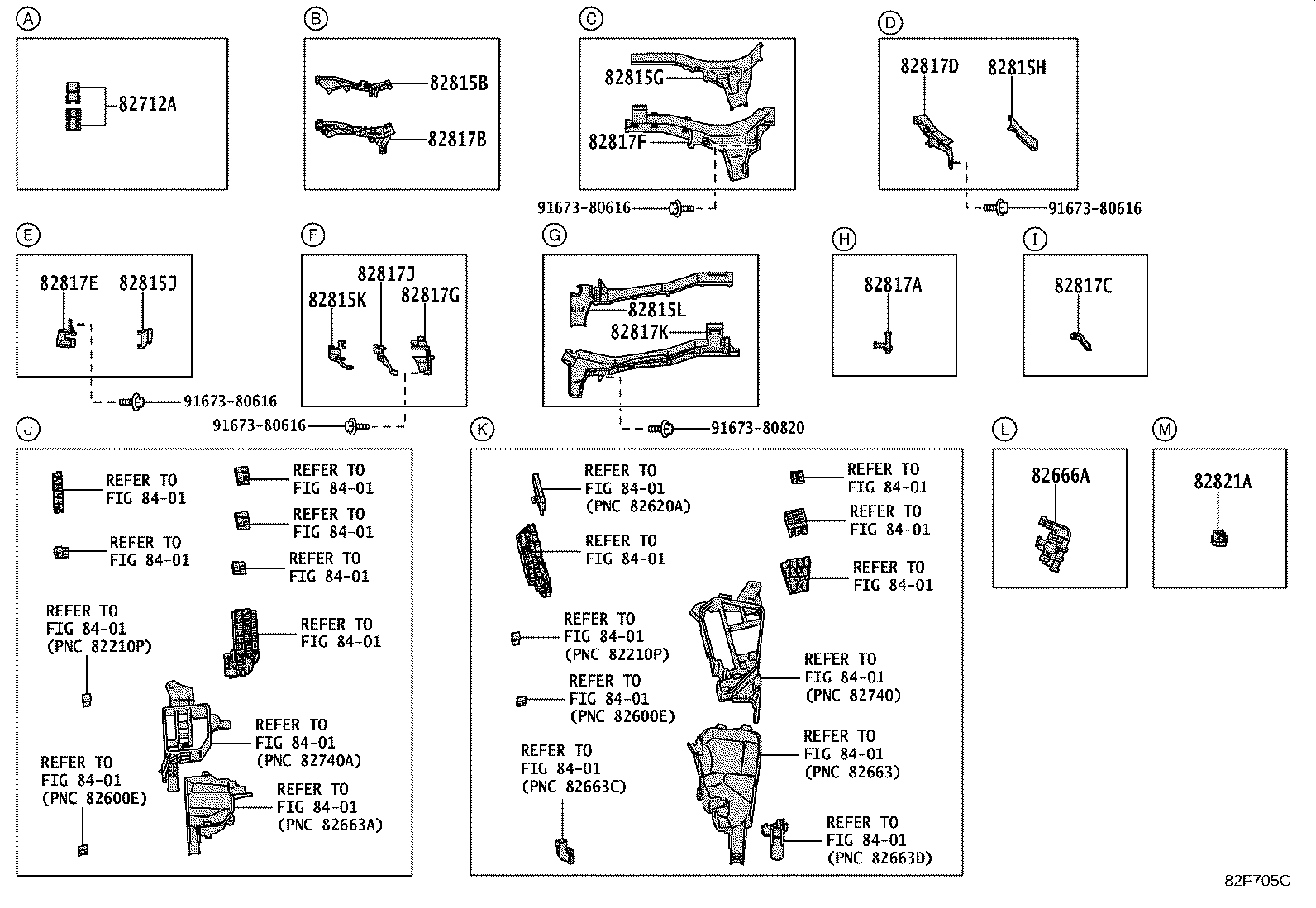

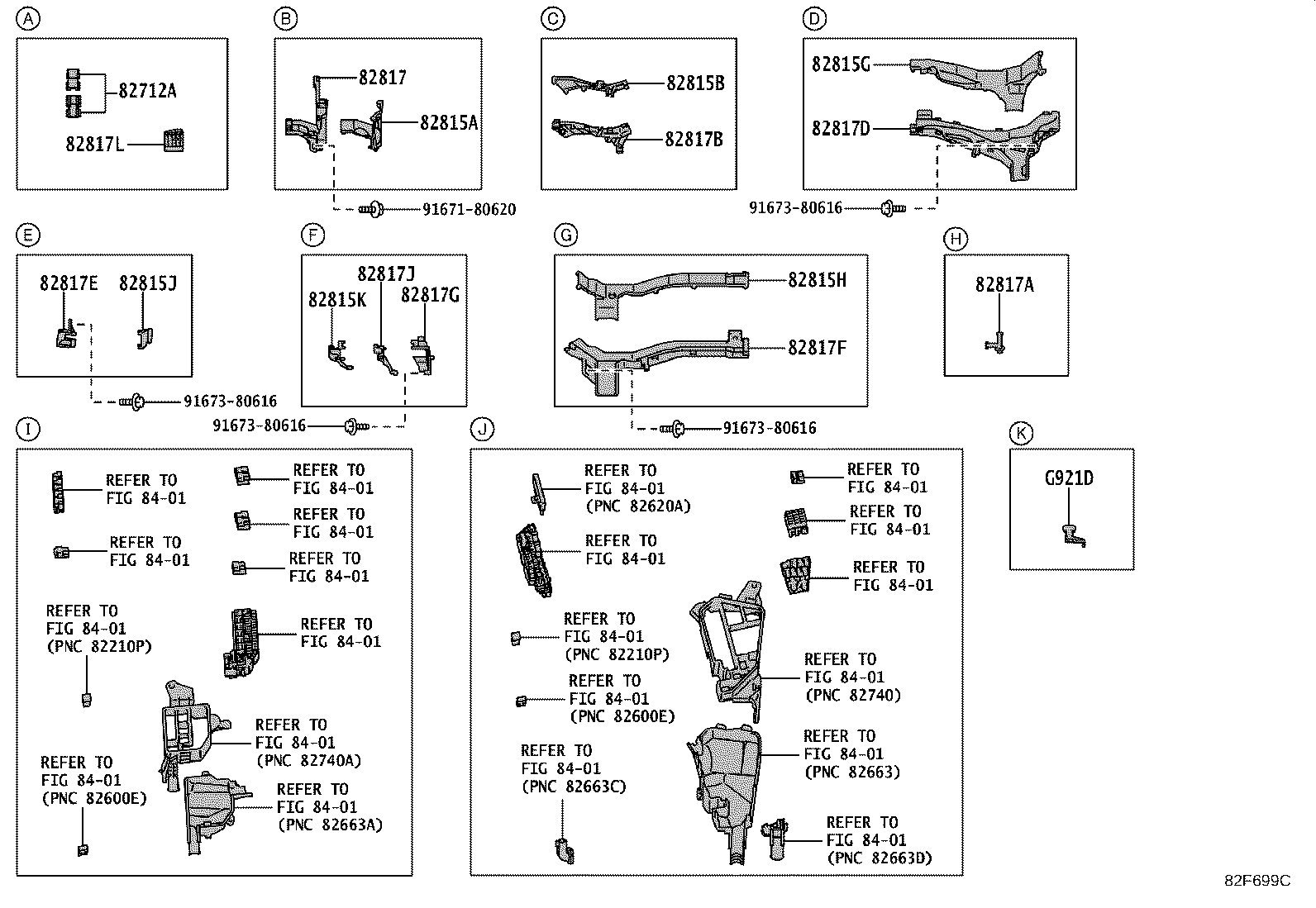

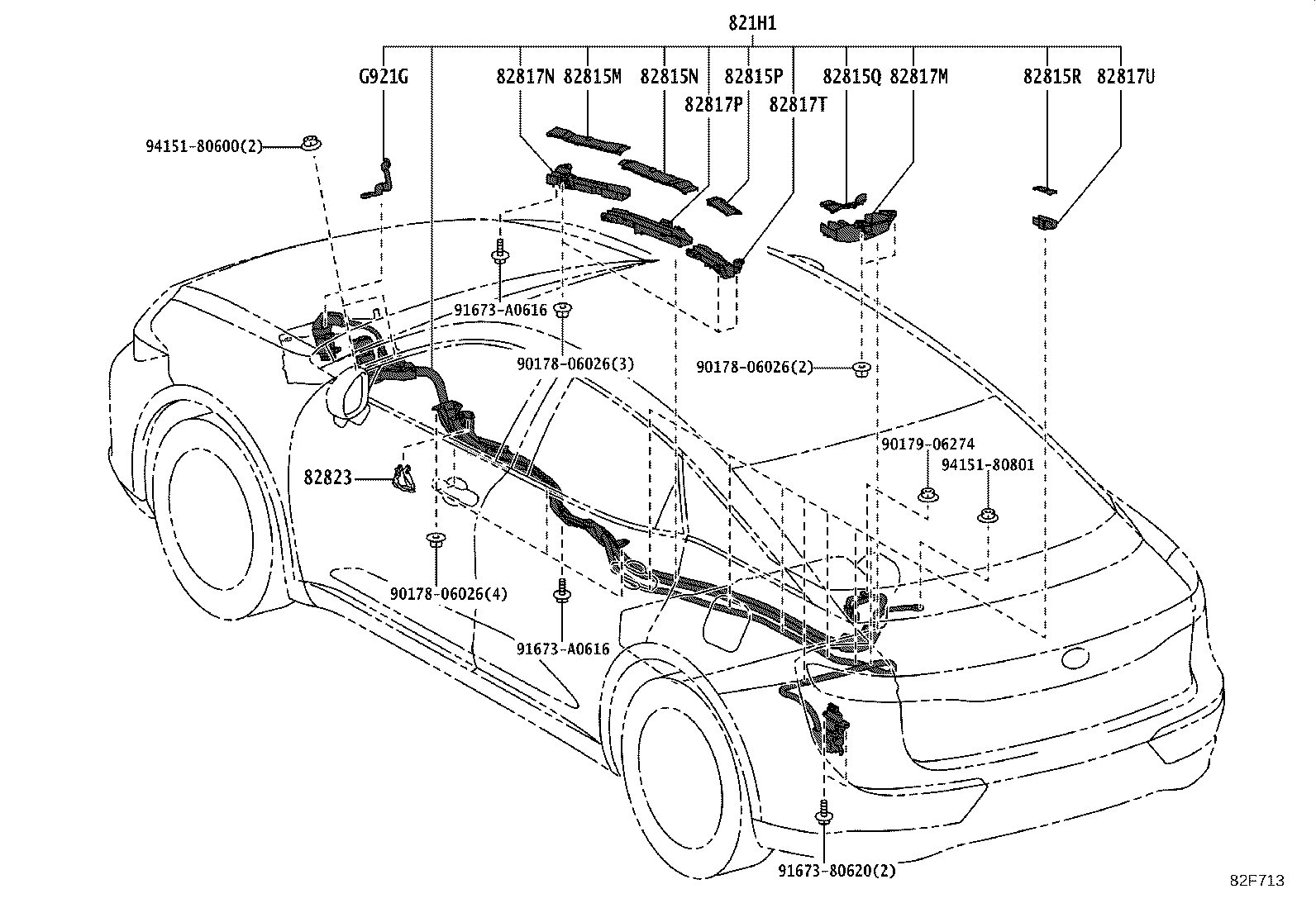

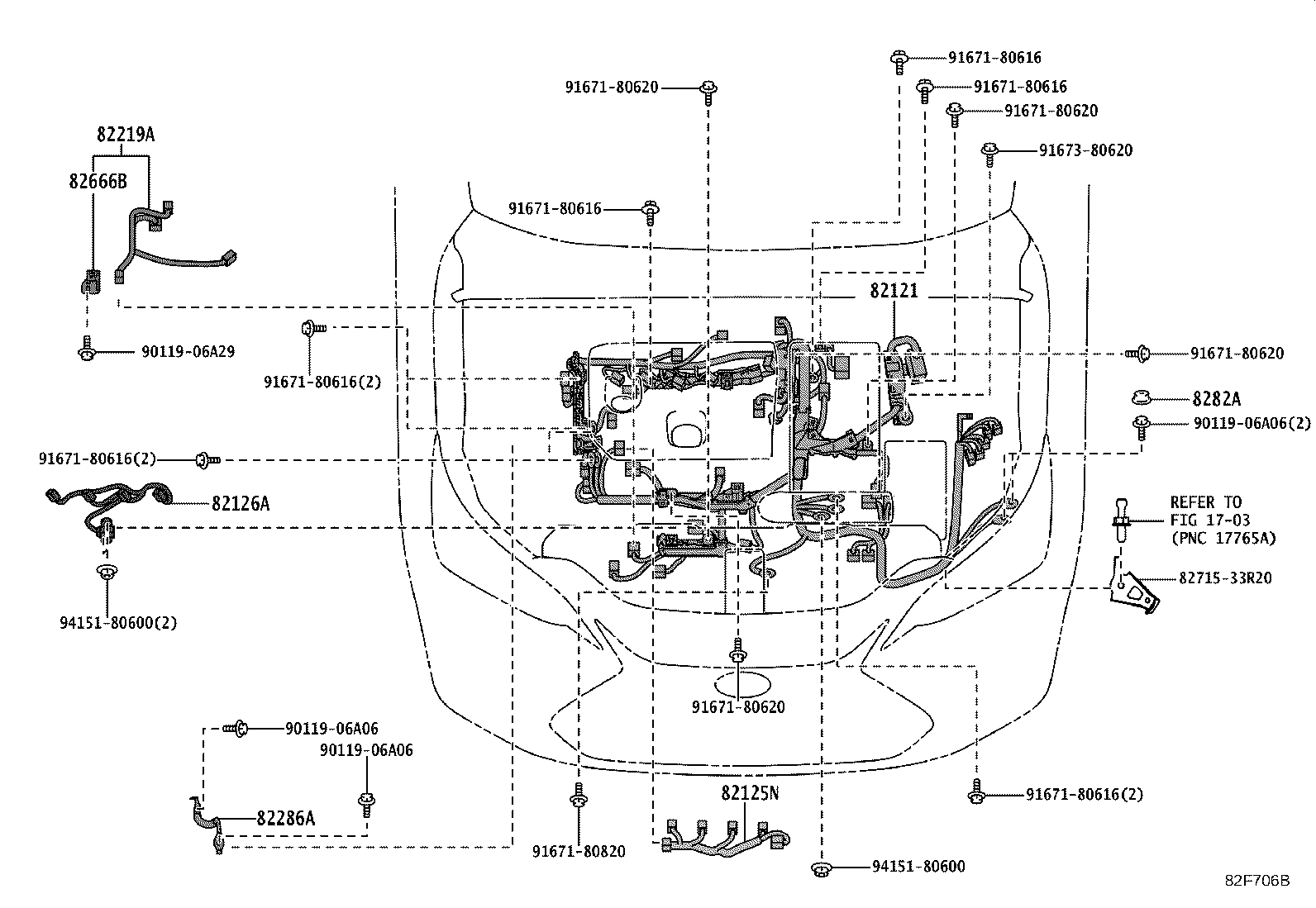

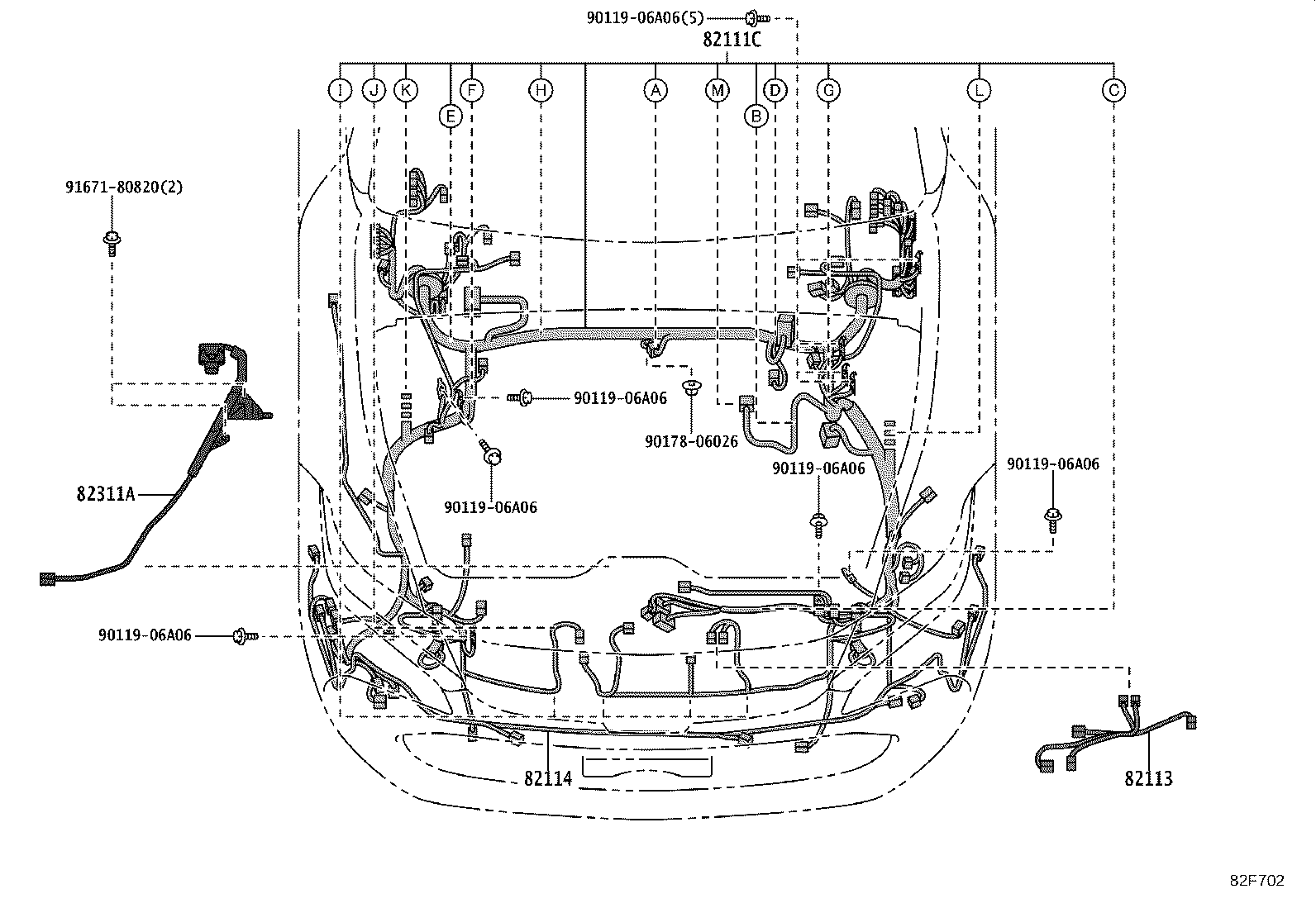

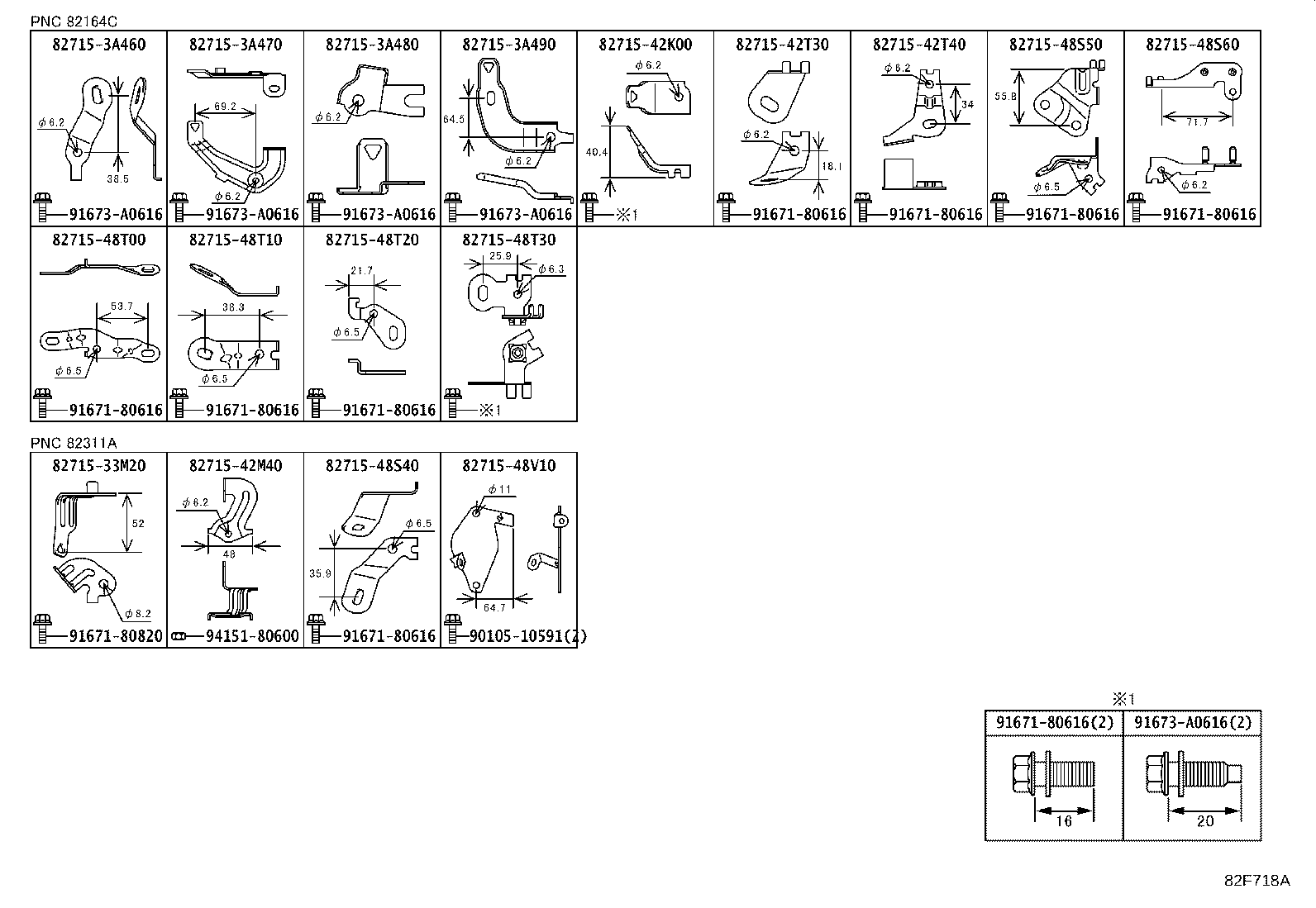

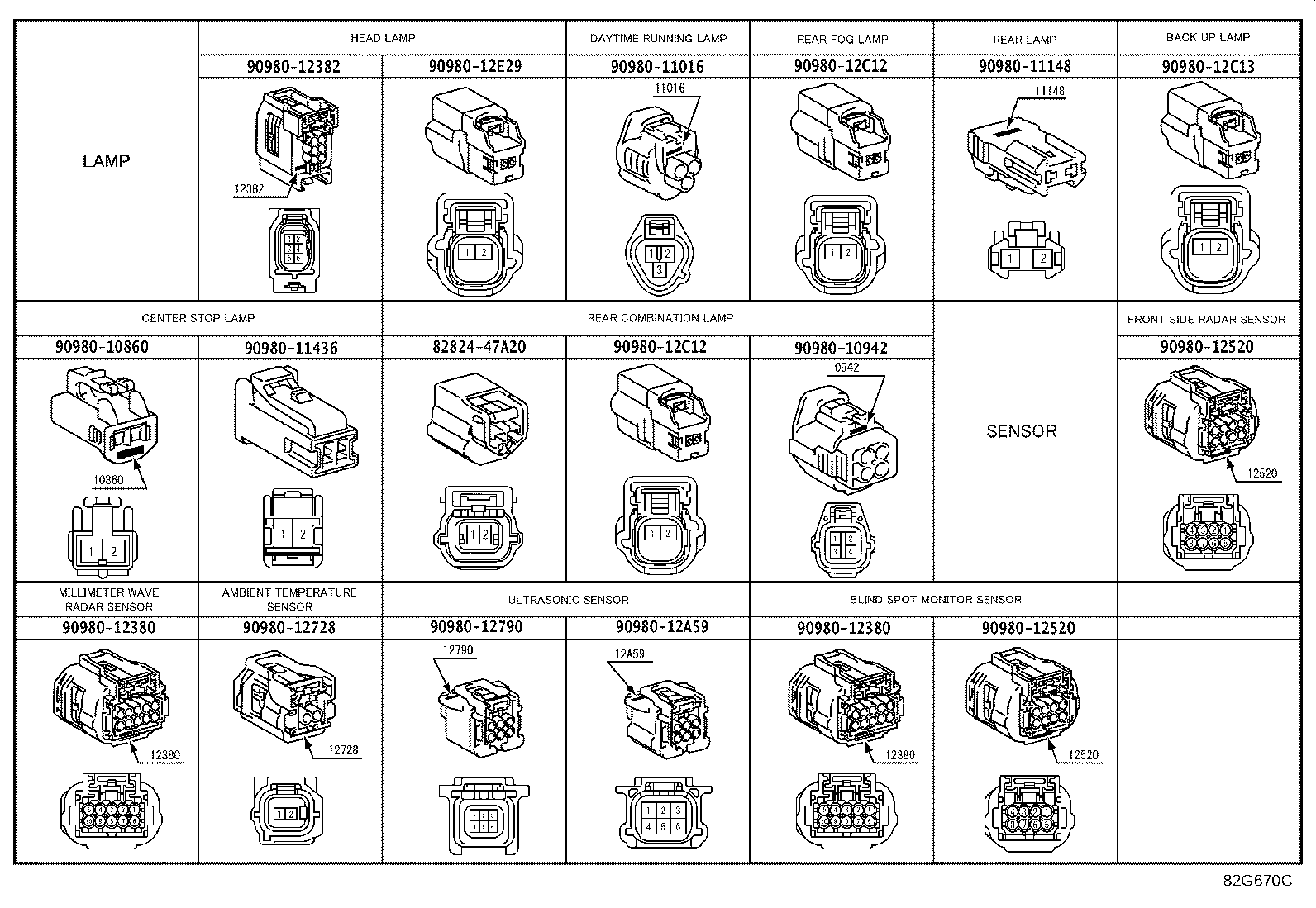

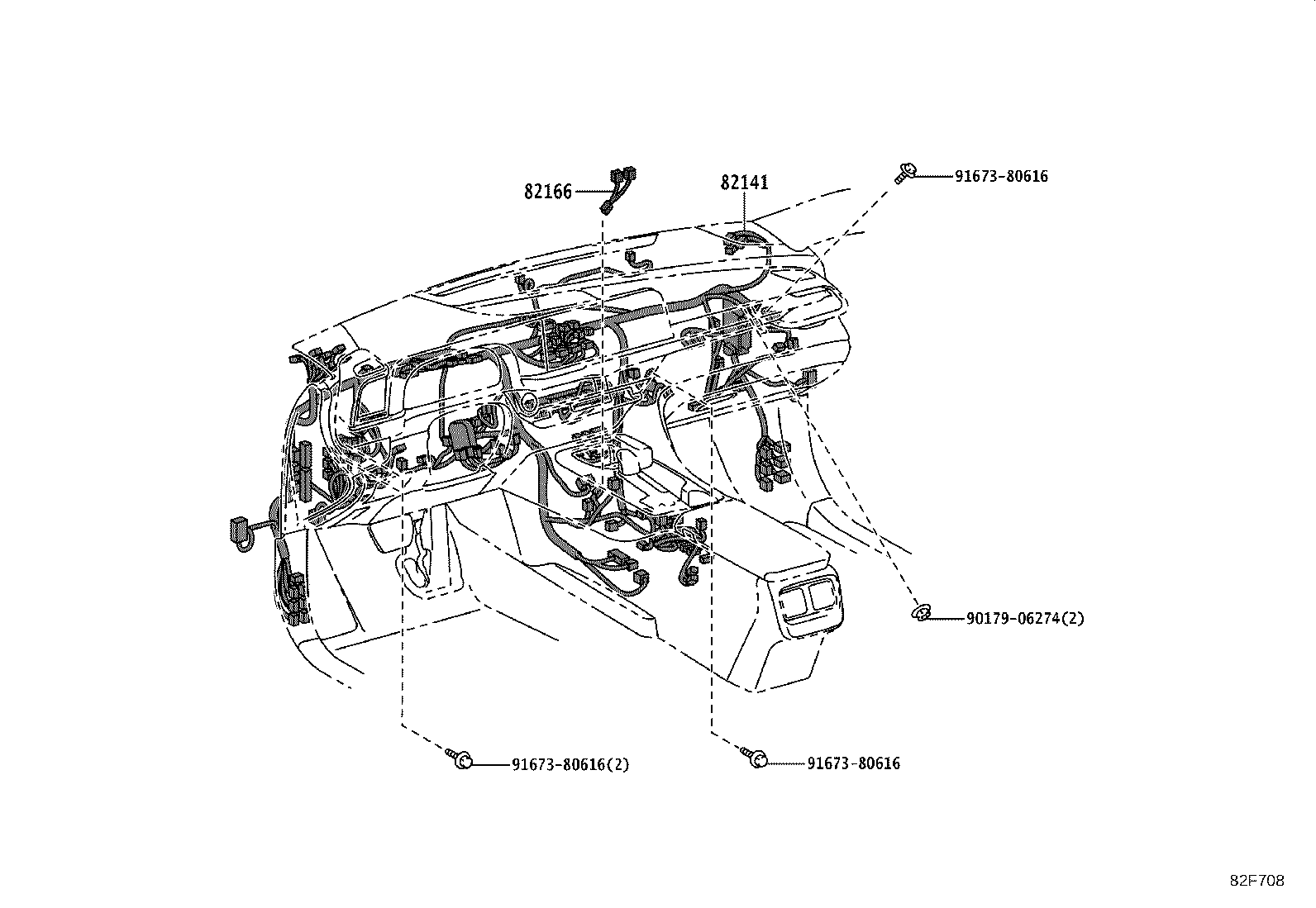

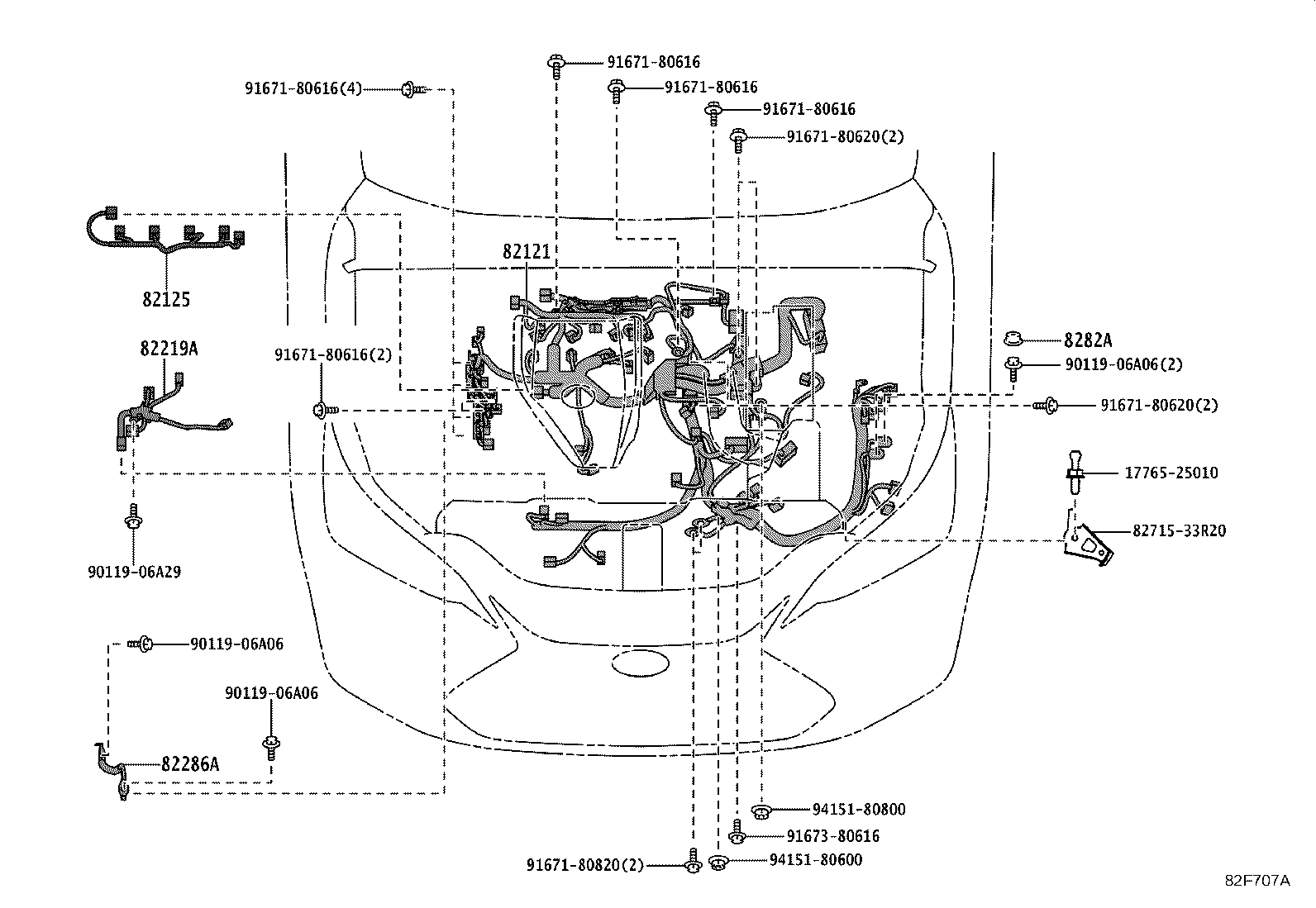

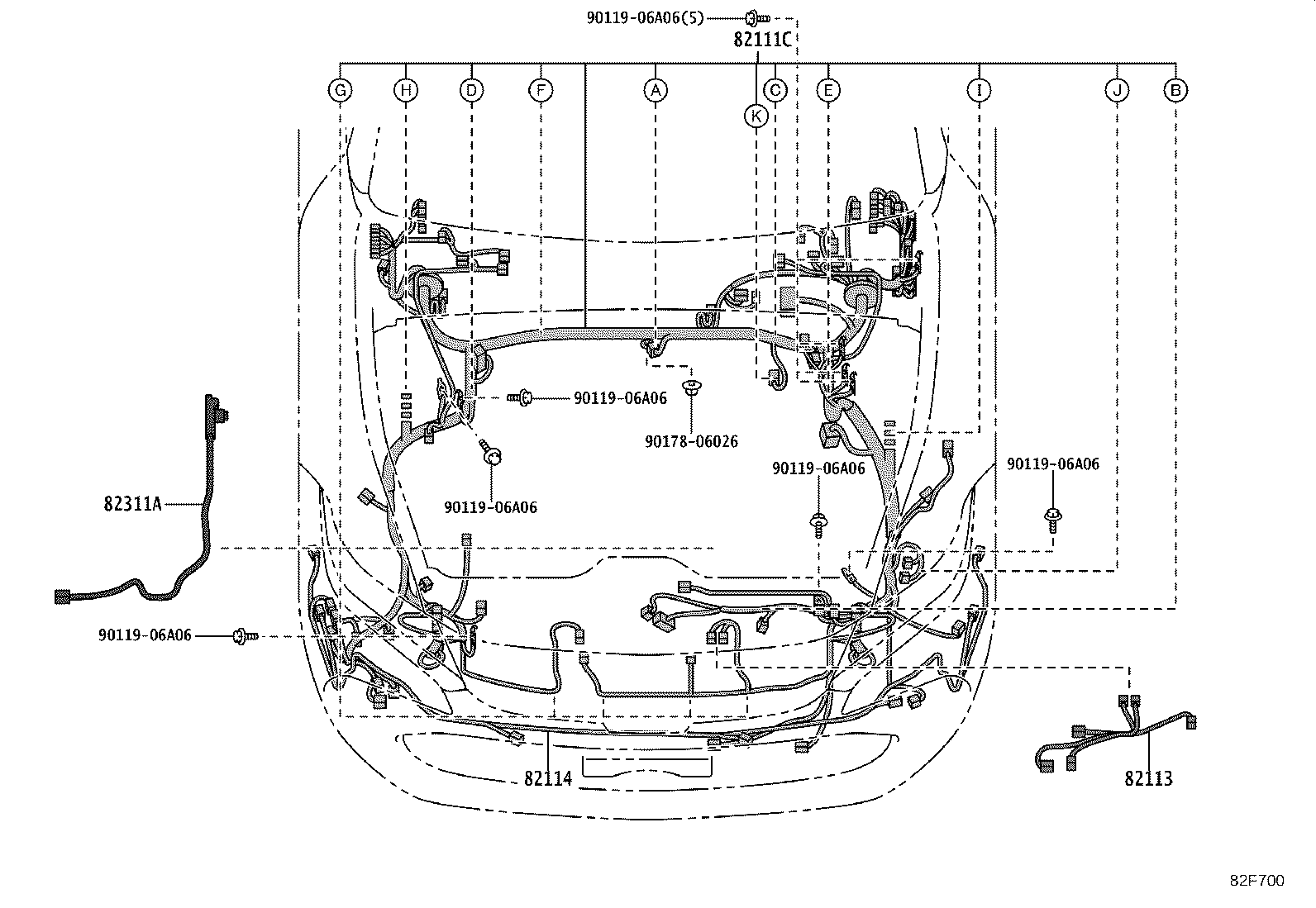

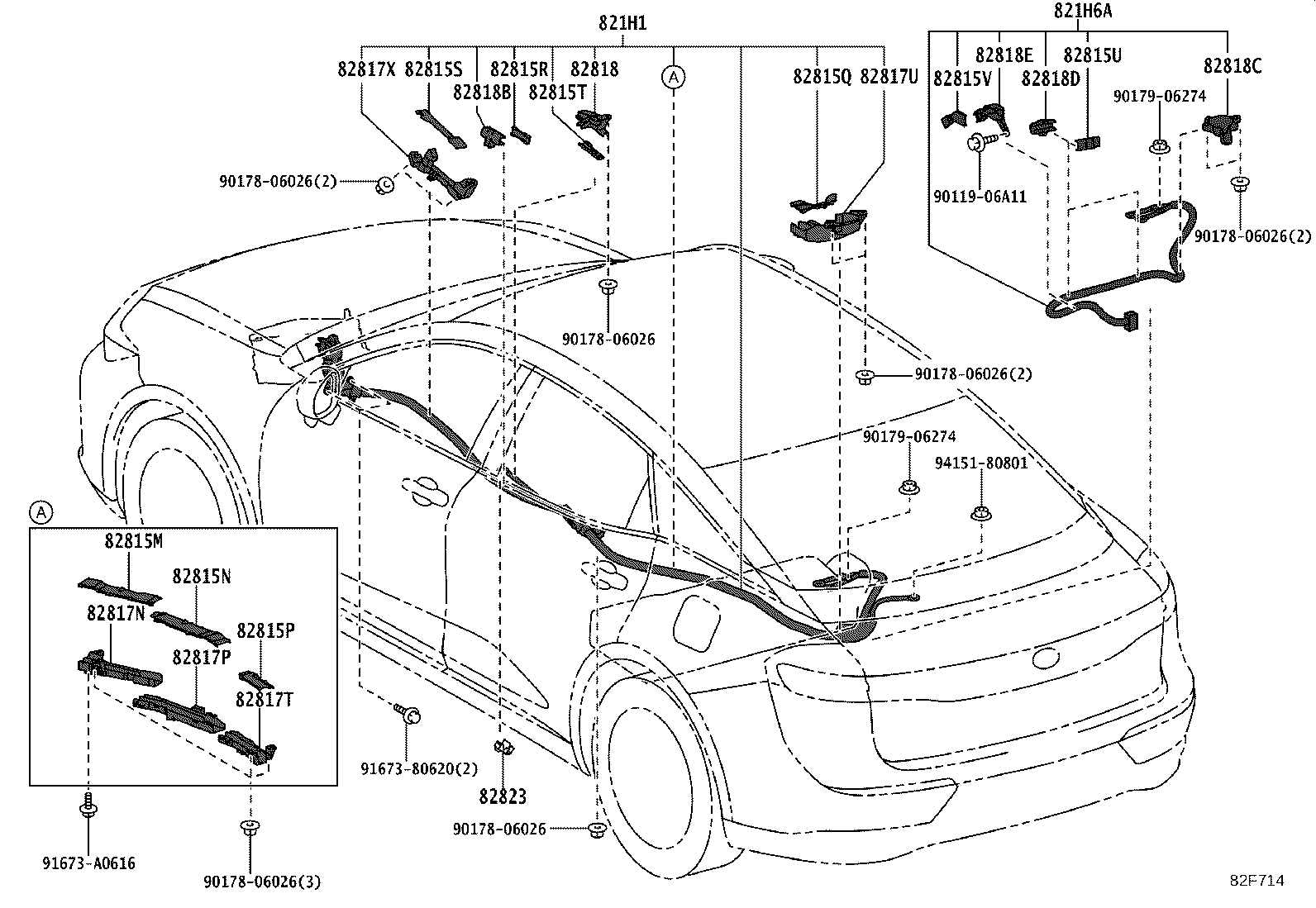

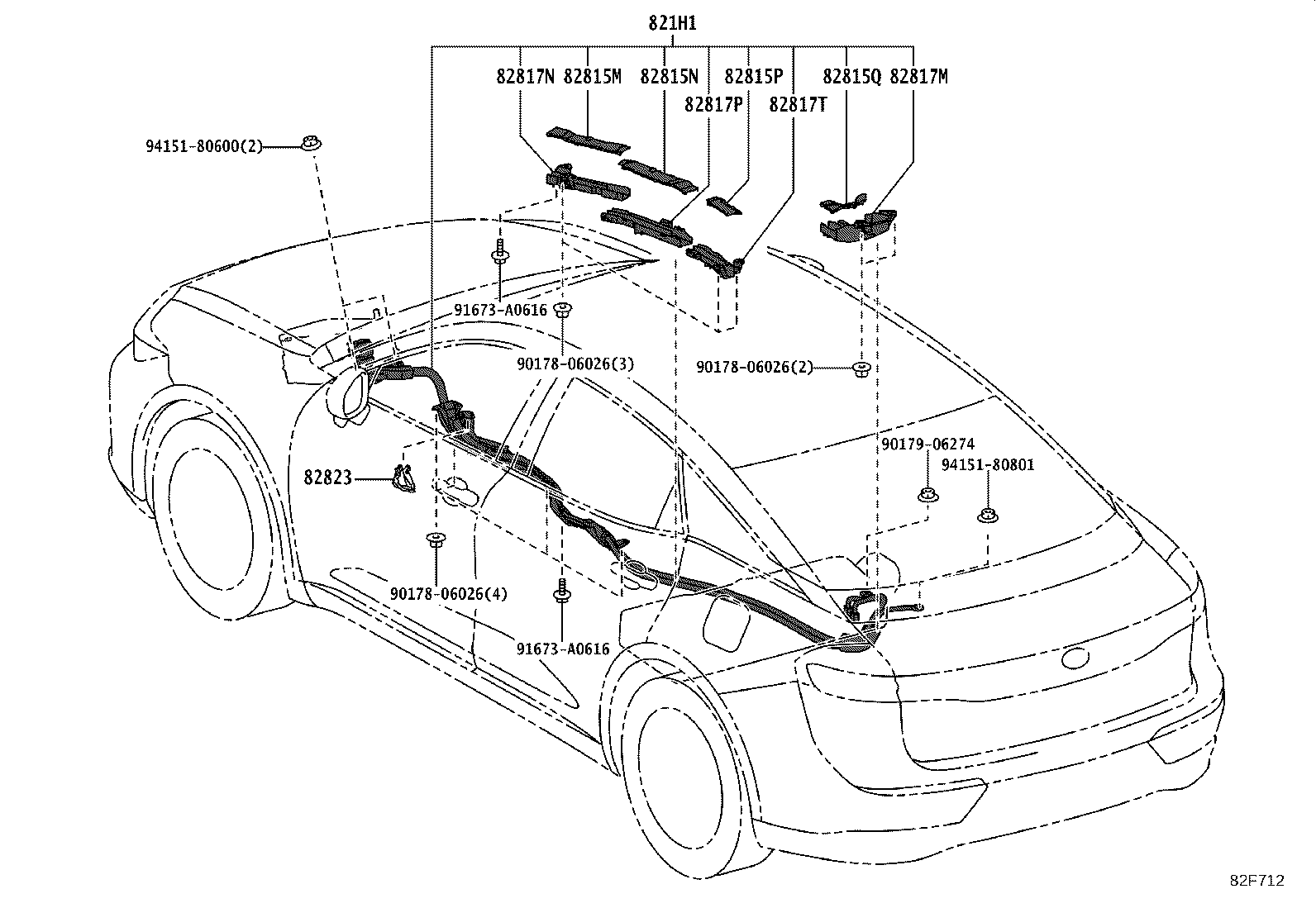

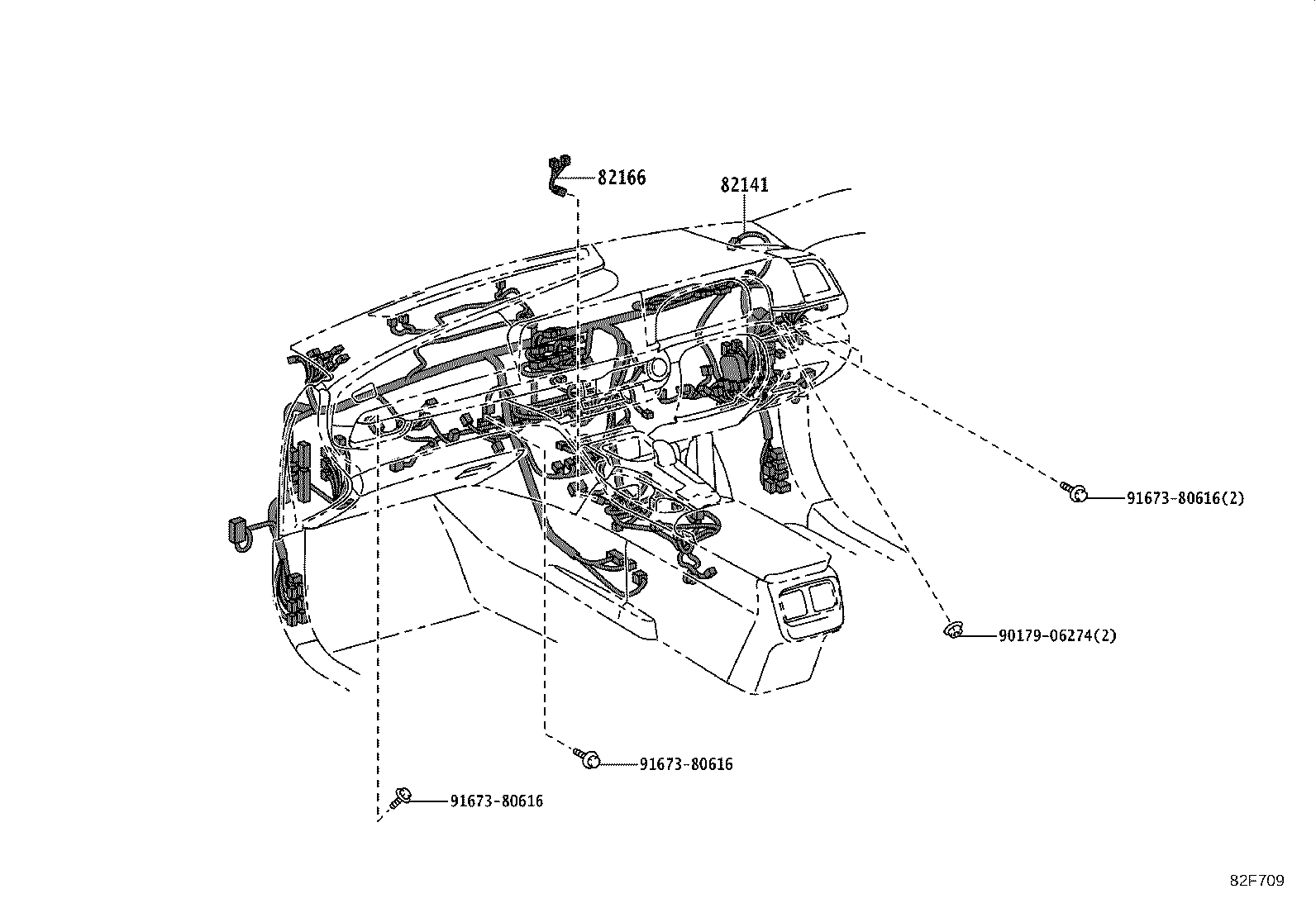

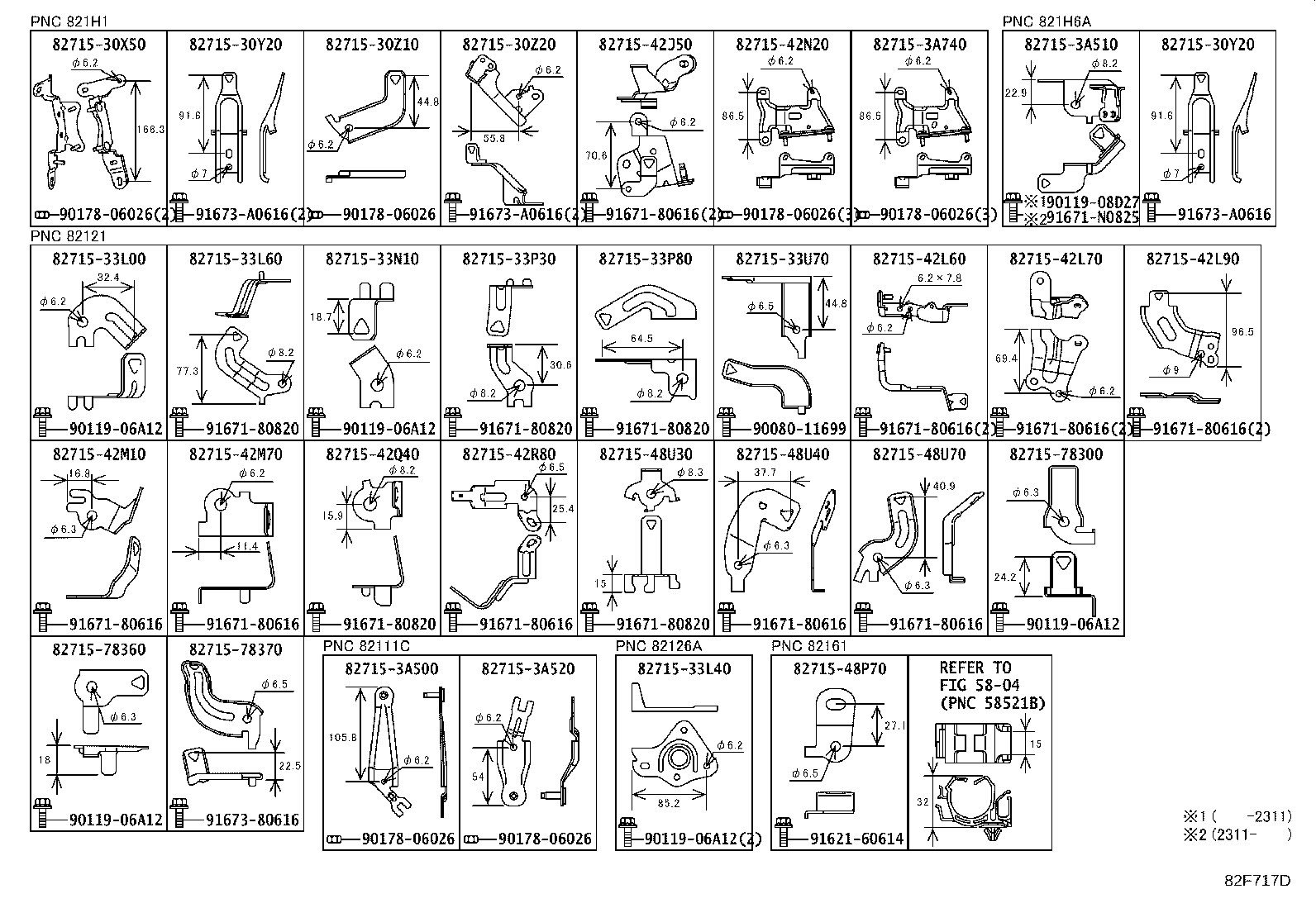

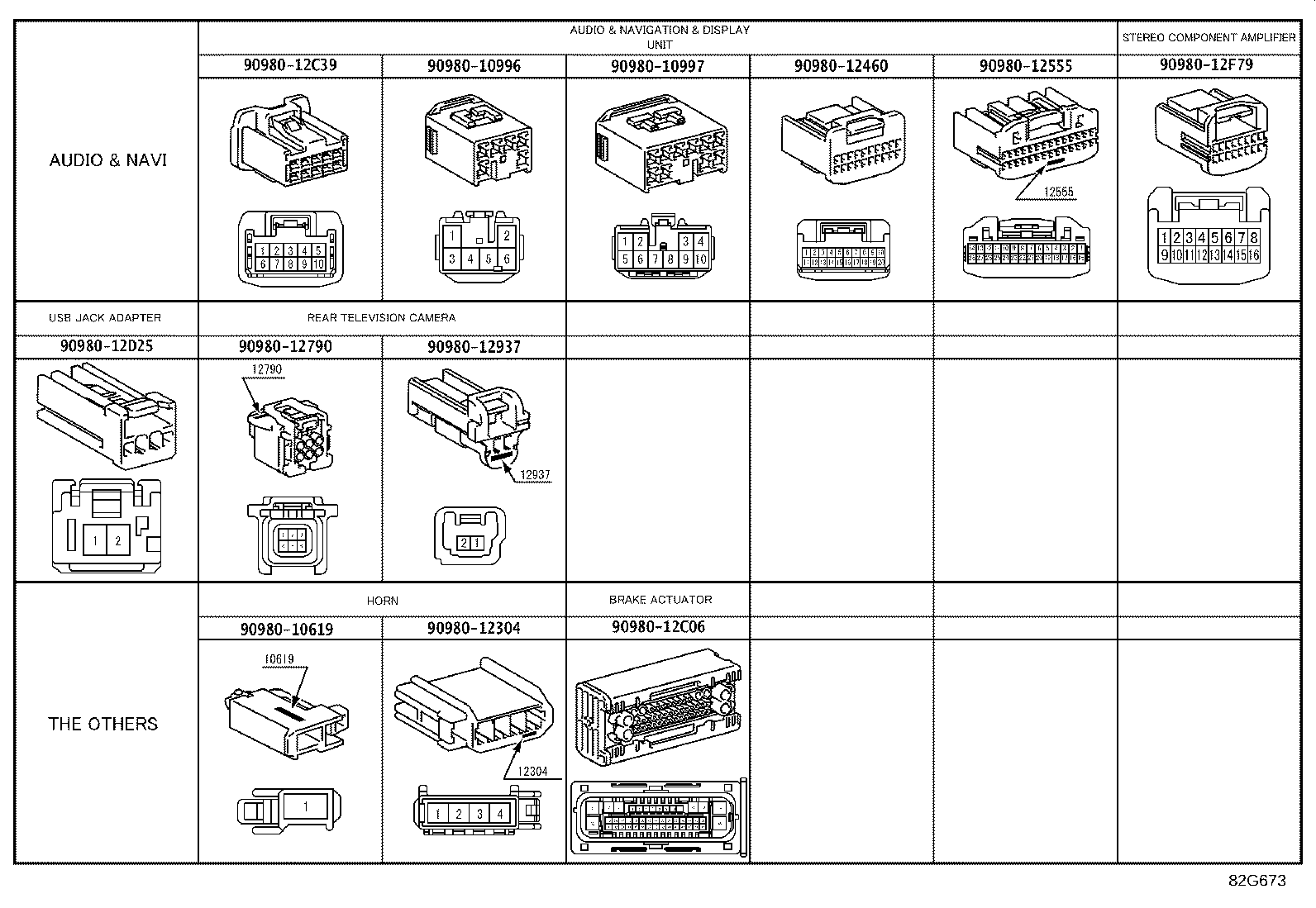

Figure 82F698 82F698 2023-01 → — Figure 82F699C 82F699C 2023-01 → — Figure 82F700 82F700 2023-01 → — Figure 82F701C 82F701C 2023-01 → — Figure 82F702 82F702 2023-01 → — Figure 82F703C 82F703C 2023-01 → — Figure 82F704 82F704 2023-01 → — Figure 82F705C 82F705C 2023-01 → — Figure 82F706B 82F706B 2023-01 → — Figure 82F707A 82F707A 2023-01 → — Figure 82F708 82F708 2023-01 → — Figure 82F709 82F709 2023-01 → — Figure 82F710 82F710 2023-01 → — Figure 82F711I 82F711I 2023-01 → — Figure 82F712 82F712 2023-01 → — Figure 82F713 82F713 2023-01 → — Figure 82F714 82F714 2023-01 → — Figure 82F715 82F715 2023-01 → — Figure 82F716 82F716 2023-01 → — Figure 82F717D 82F717D 2023-01 → — Figure 82F718A 82F718A 2023-01 → — Figure 82G670C 82G670C 2023-01 → — Figure 82G673 82G673 2023-01 → —

Part groups

PNCDescription
82090A Wire Assy, Extension

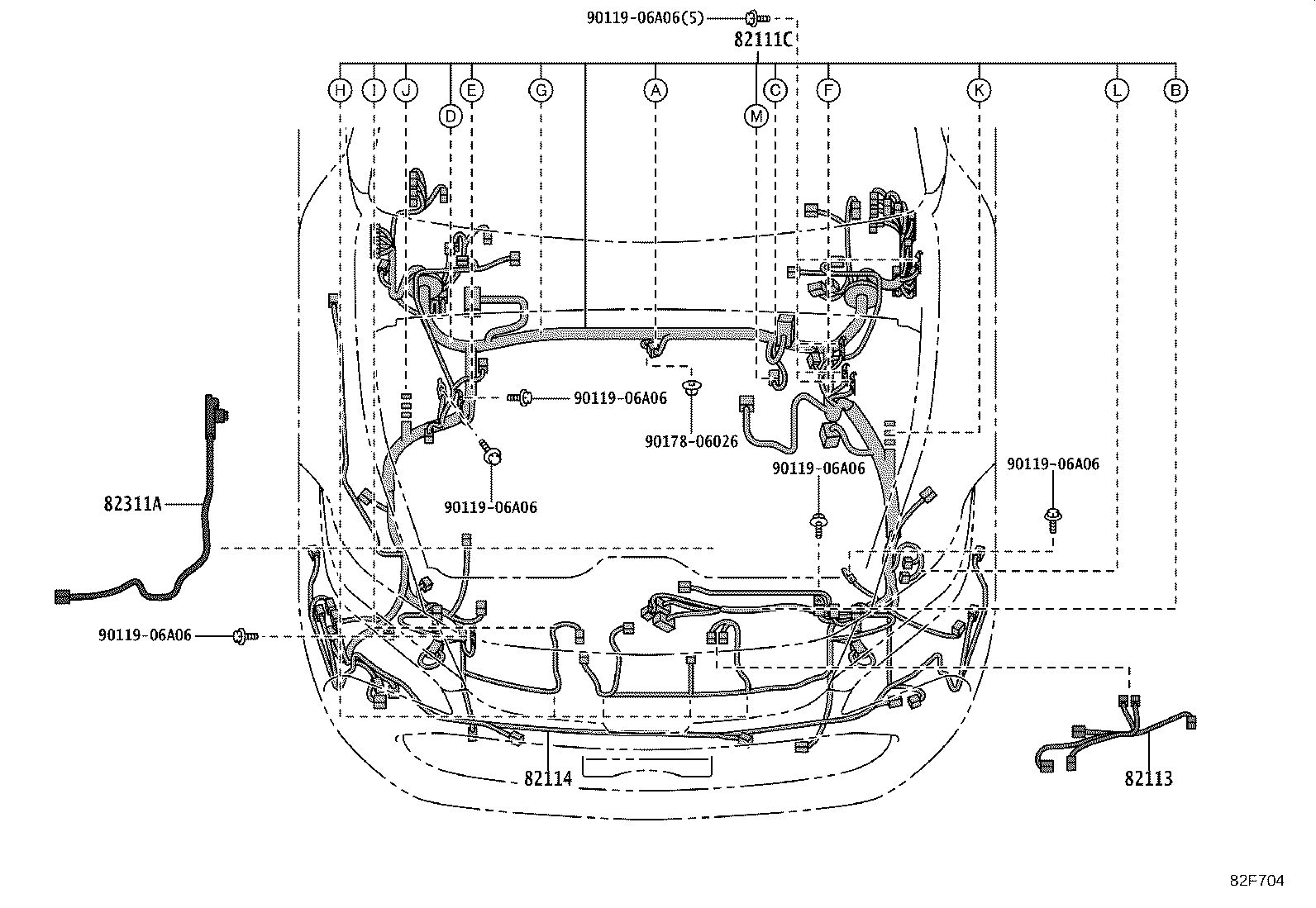

82111C Wire, Front Compartment, Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82125 Wire, Transmission
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82141 Wire, Instrument Panel

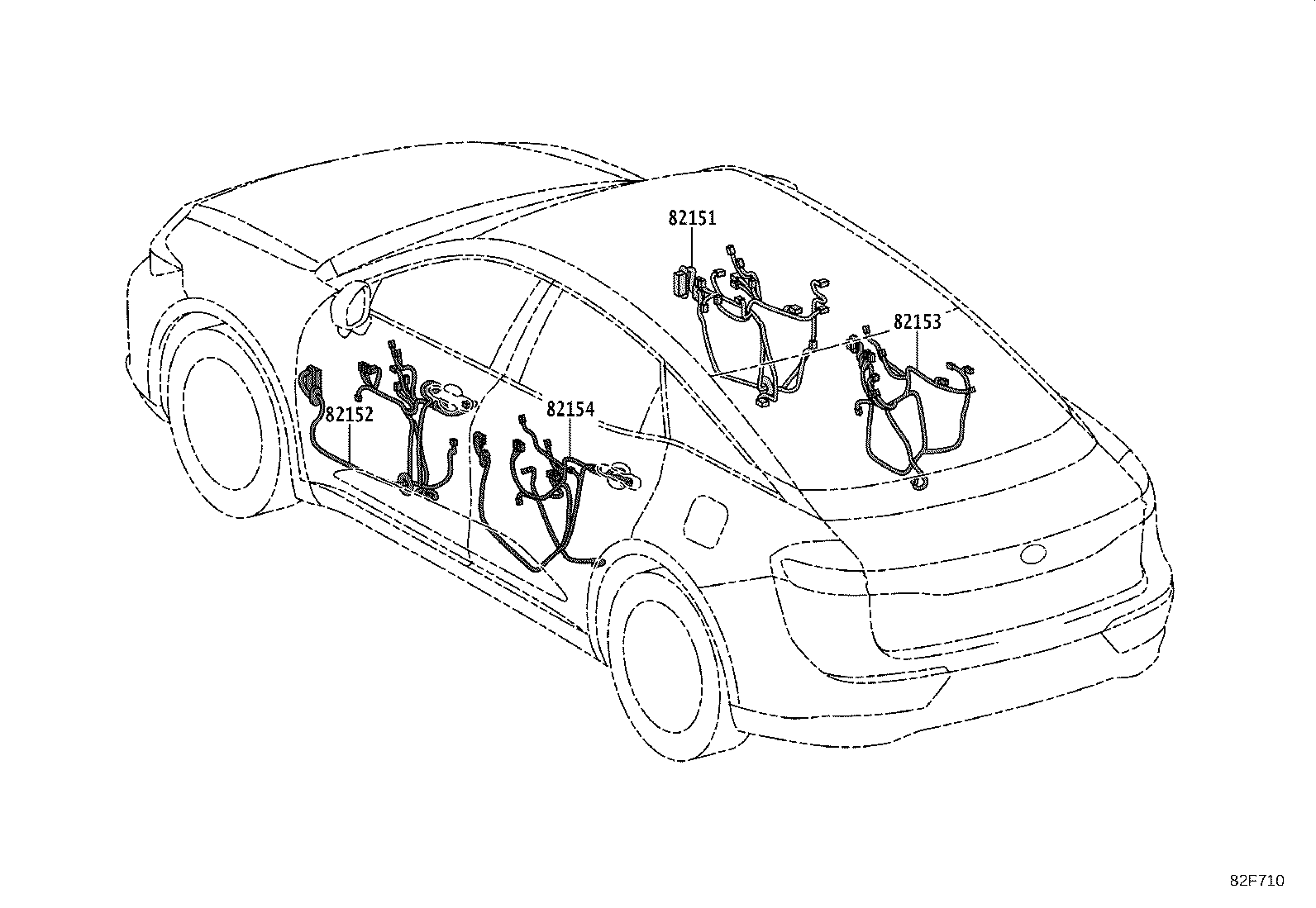

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4
82166 Wire, Console Box
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2

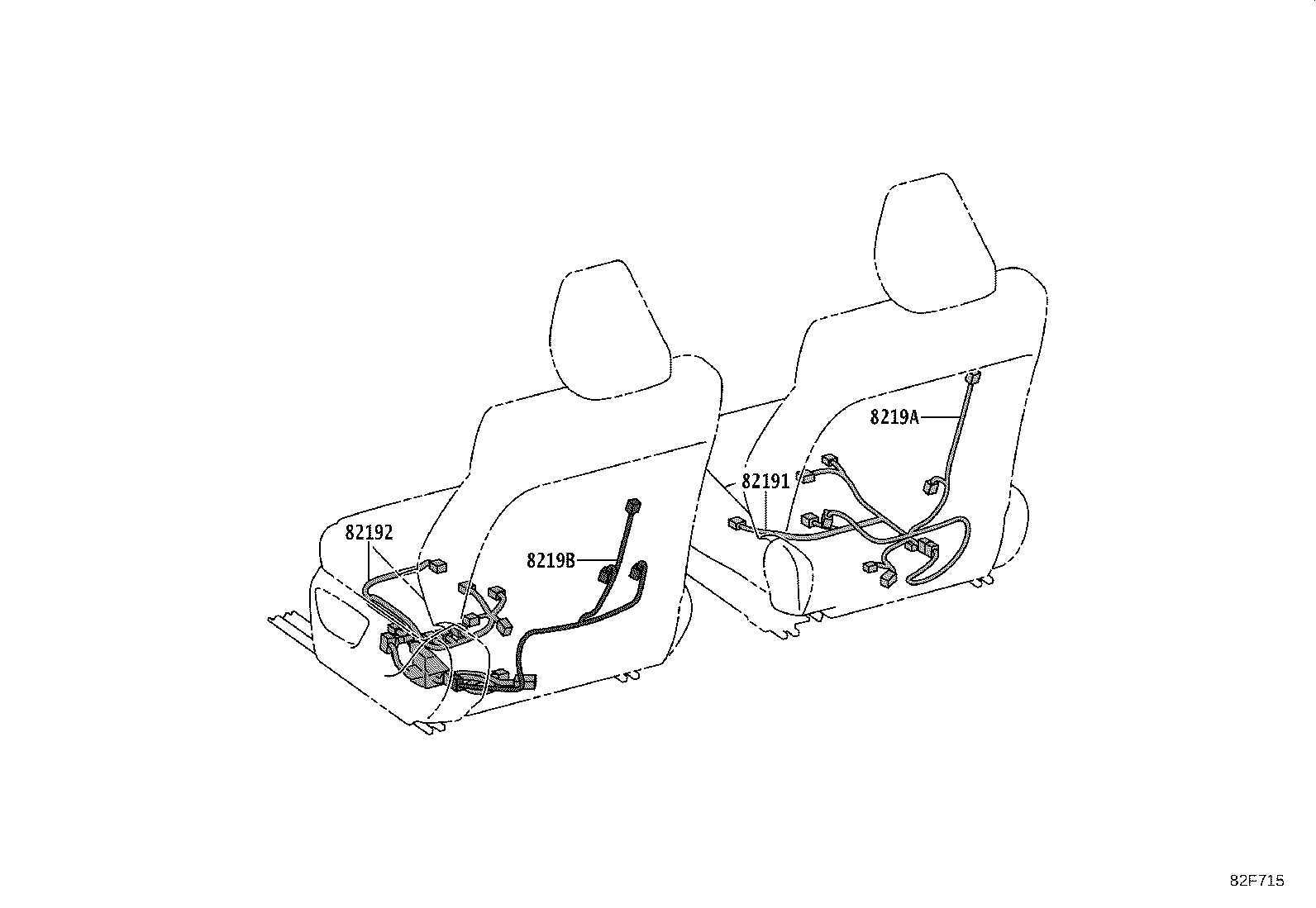

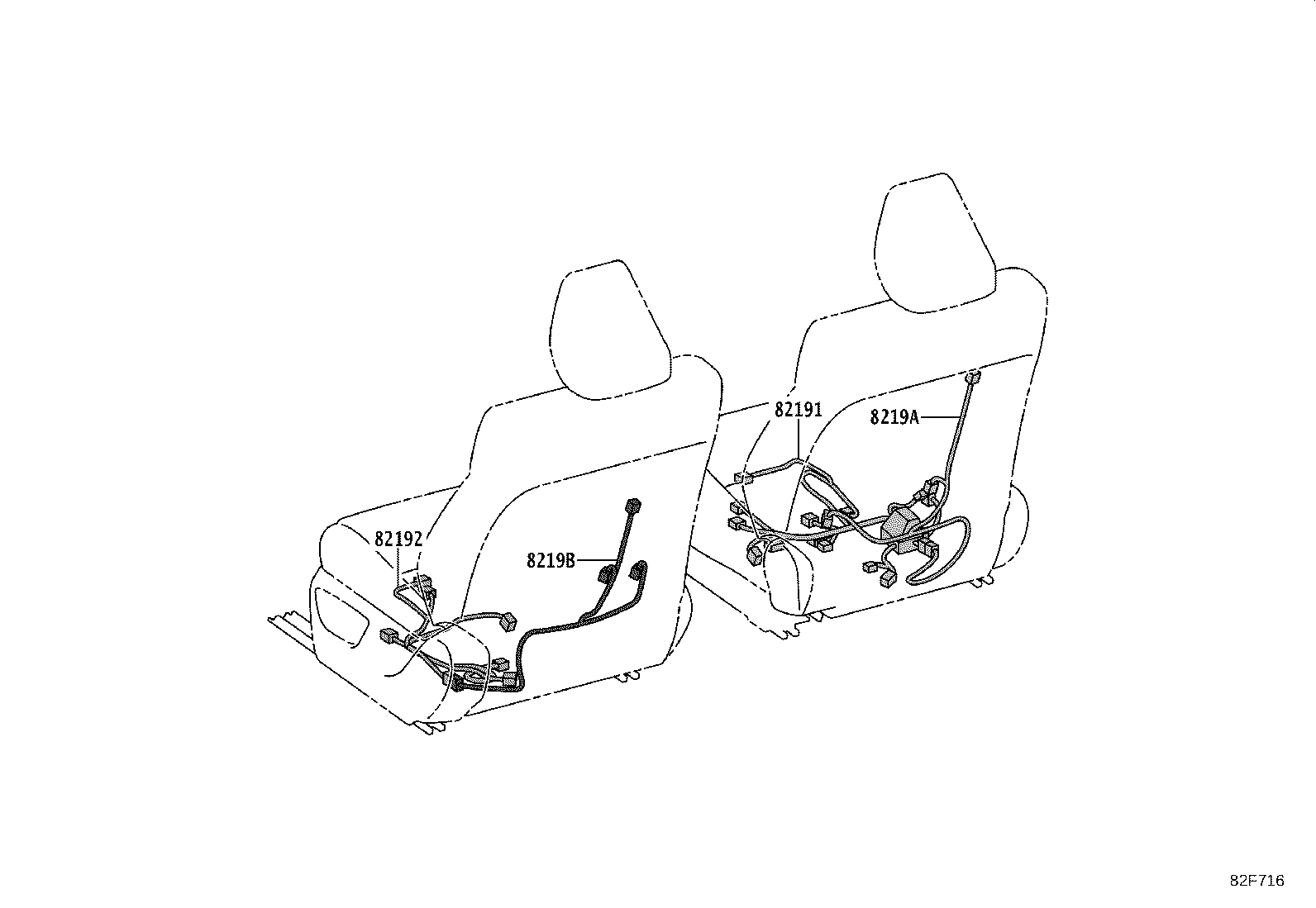

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H6A Wire, Floor Under, NO.2
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82311A Wire, Air Conditioner
82412 Wire, Fuel Gage
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82670 Block Assy, Junction, NO.1

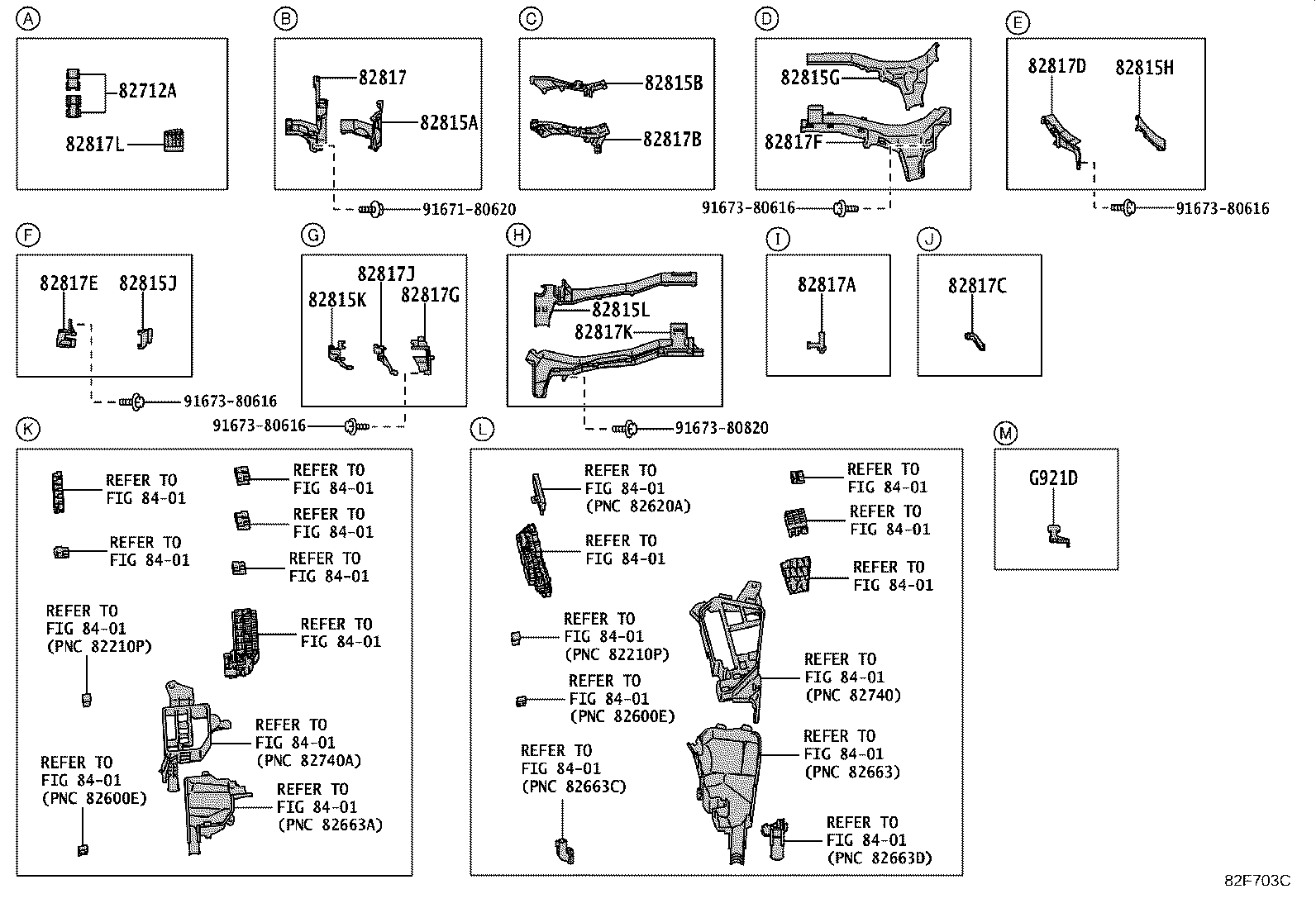

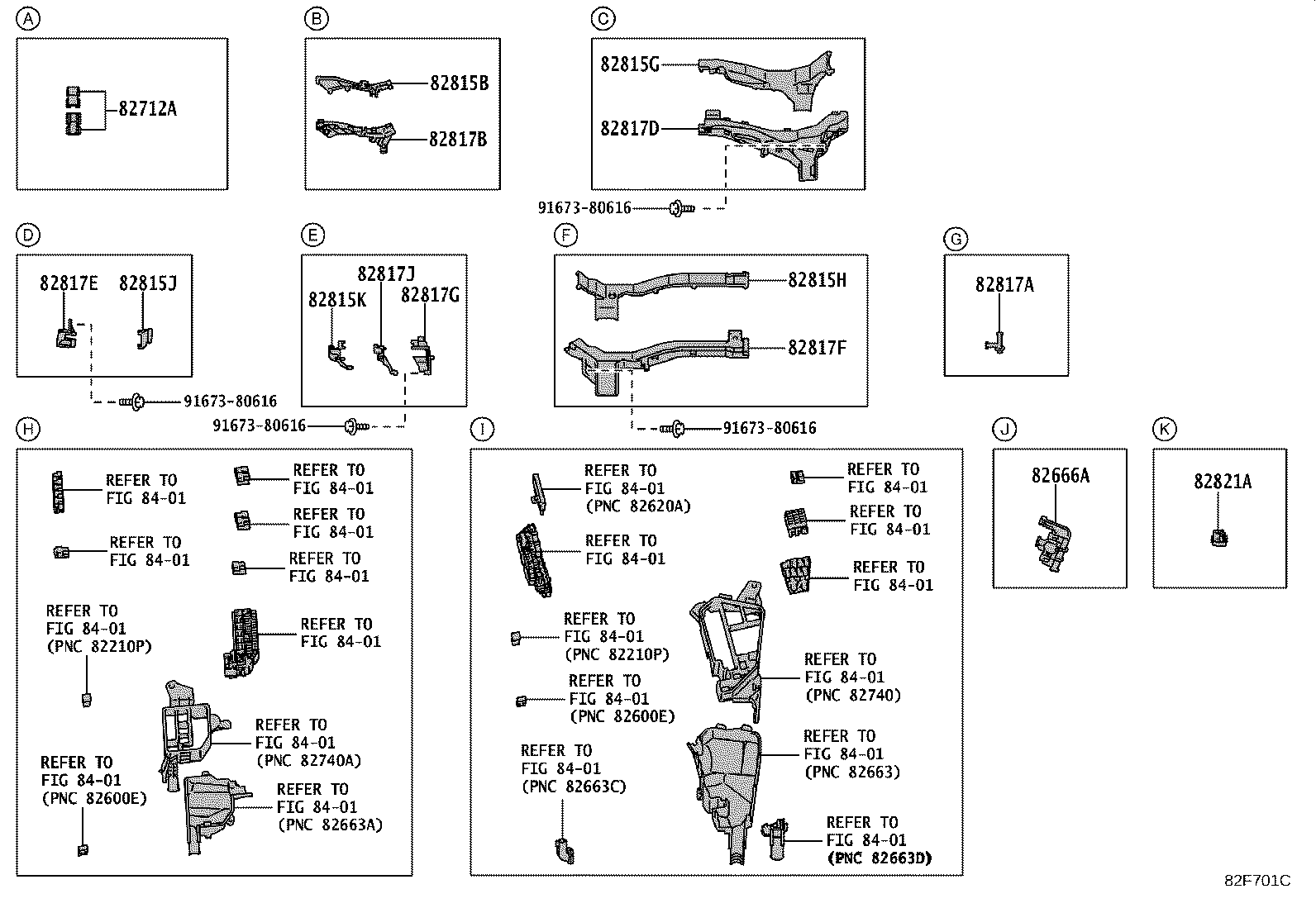

82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82819C Grommet, Wiring Harness
82821A Cover, Connector
82823 Cap, Terminal, NO.1
8282A Cap, Earth Bolt, NO.1
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
