Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

12 part groups · 4 illustrations

Illustrations

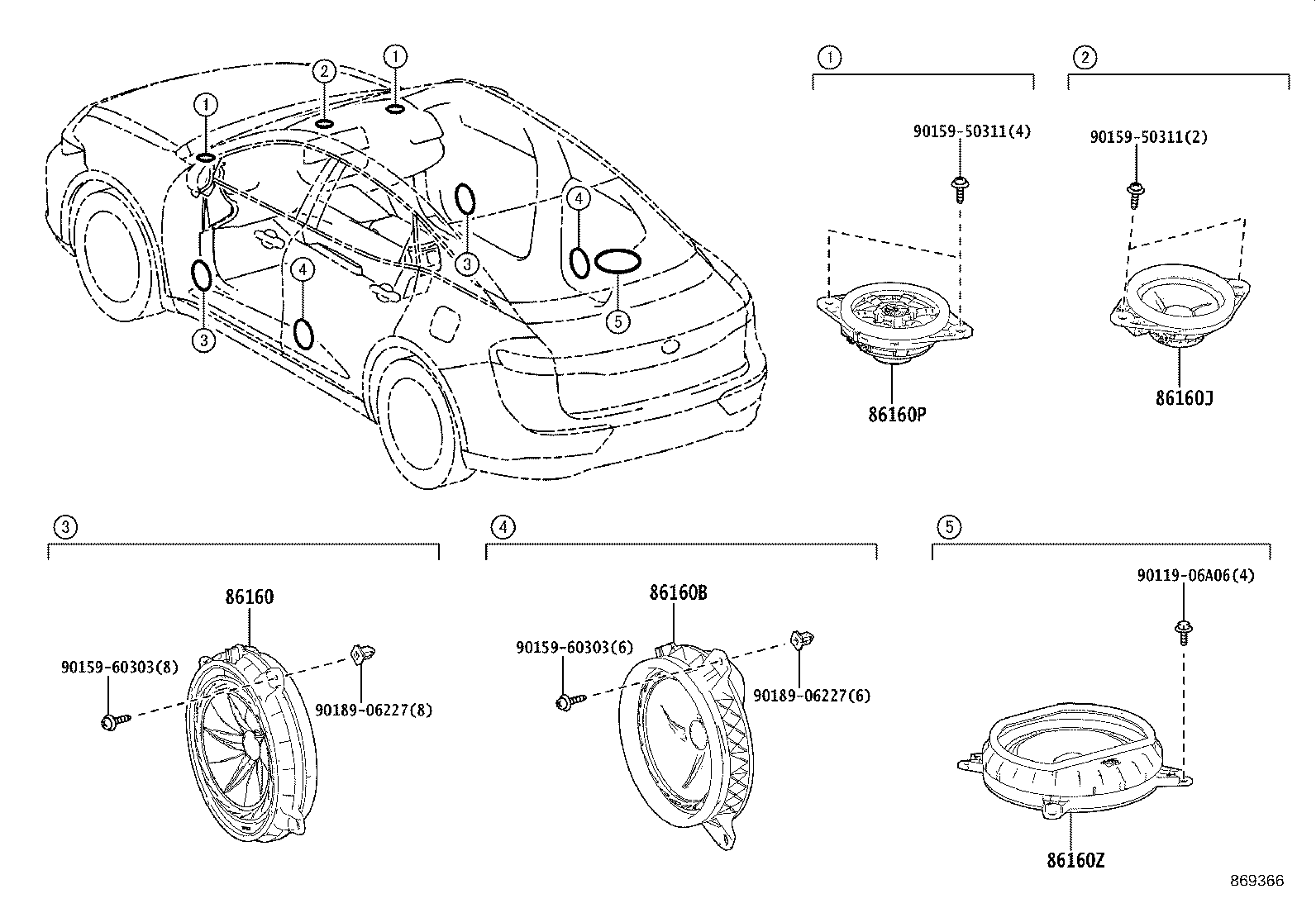

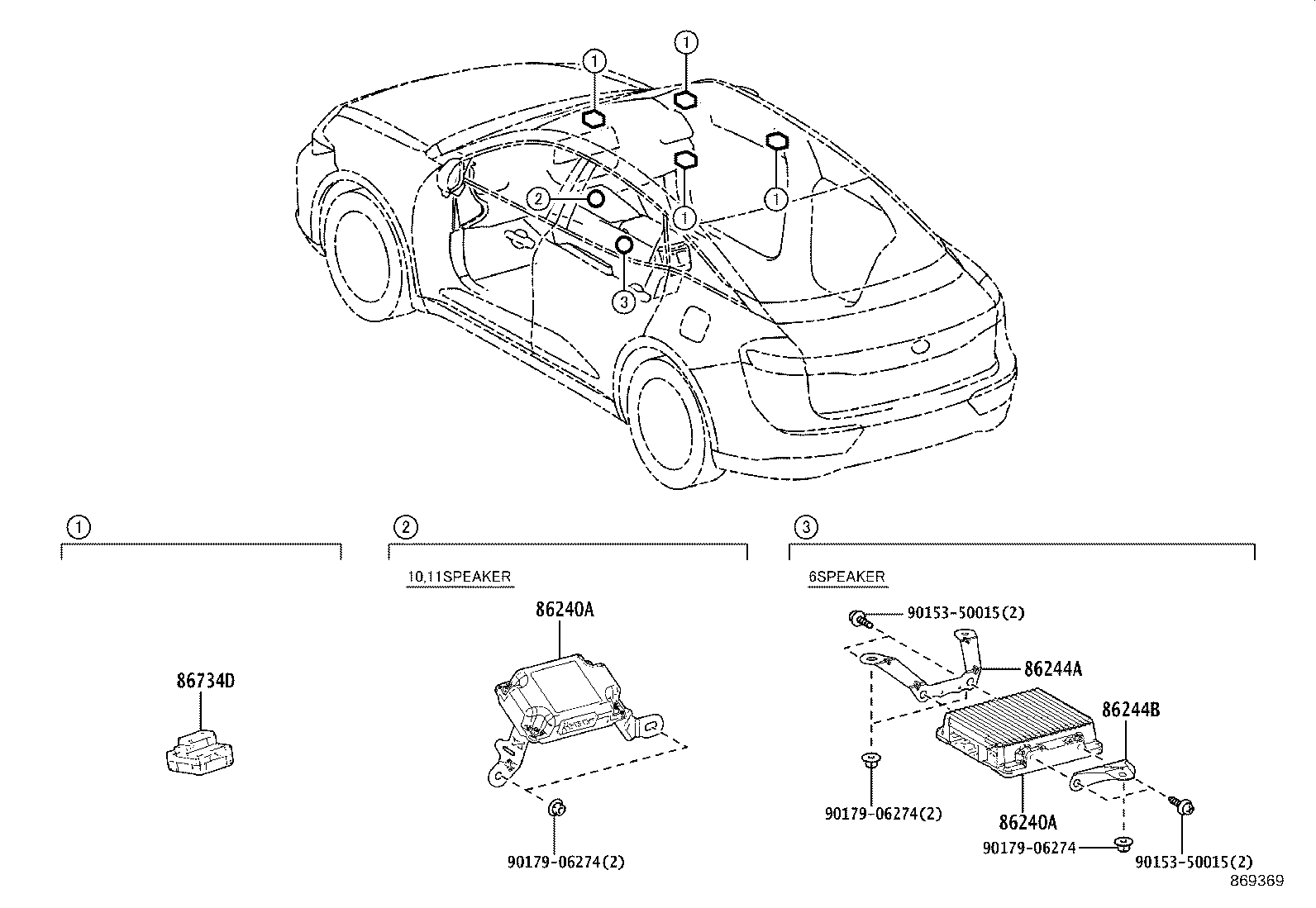

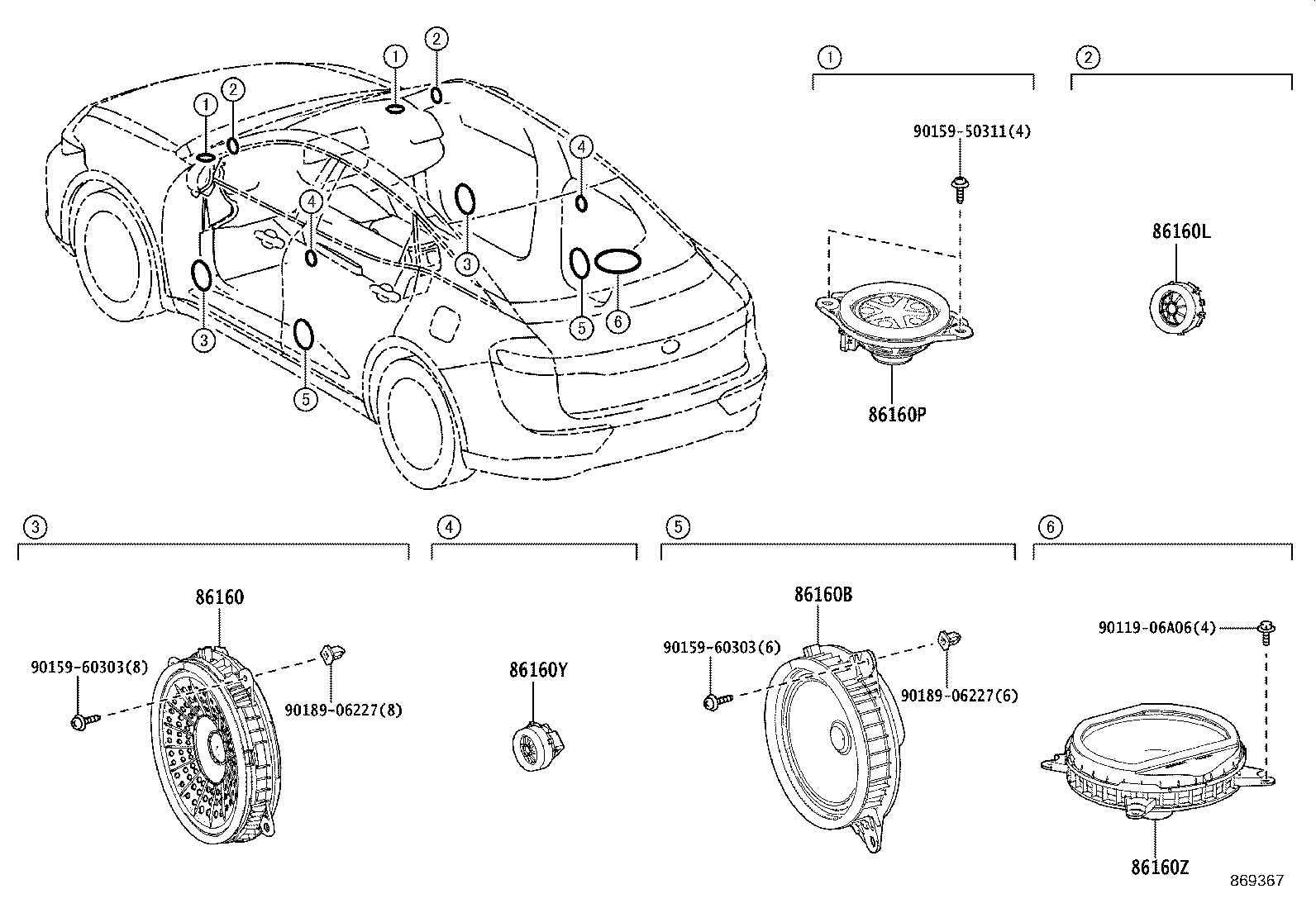

Figure 869365 869365 2023-01 → — Figure 869366 869366 2023-01 → — Figure 869367 869367 2023-01 → — Figure 869369 869369 2023-01 → —

Part groups

PNCDescription
86150H Speaker Assy, W/Bracket
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86240A Equalizer Assy,Stereo Component
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
86734D Microphone, Active Noise Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
