Toyota Crown

2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 6 illustrations

Illustrations

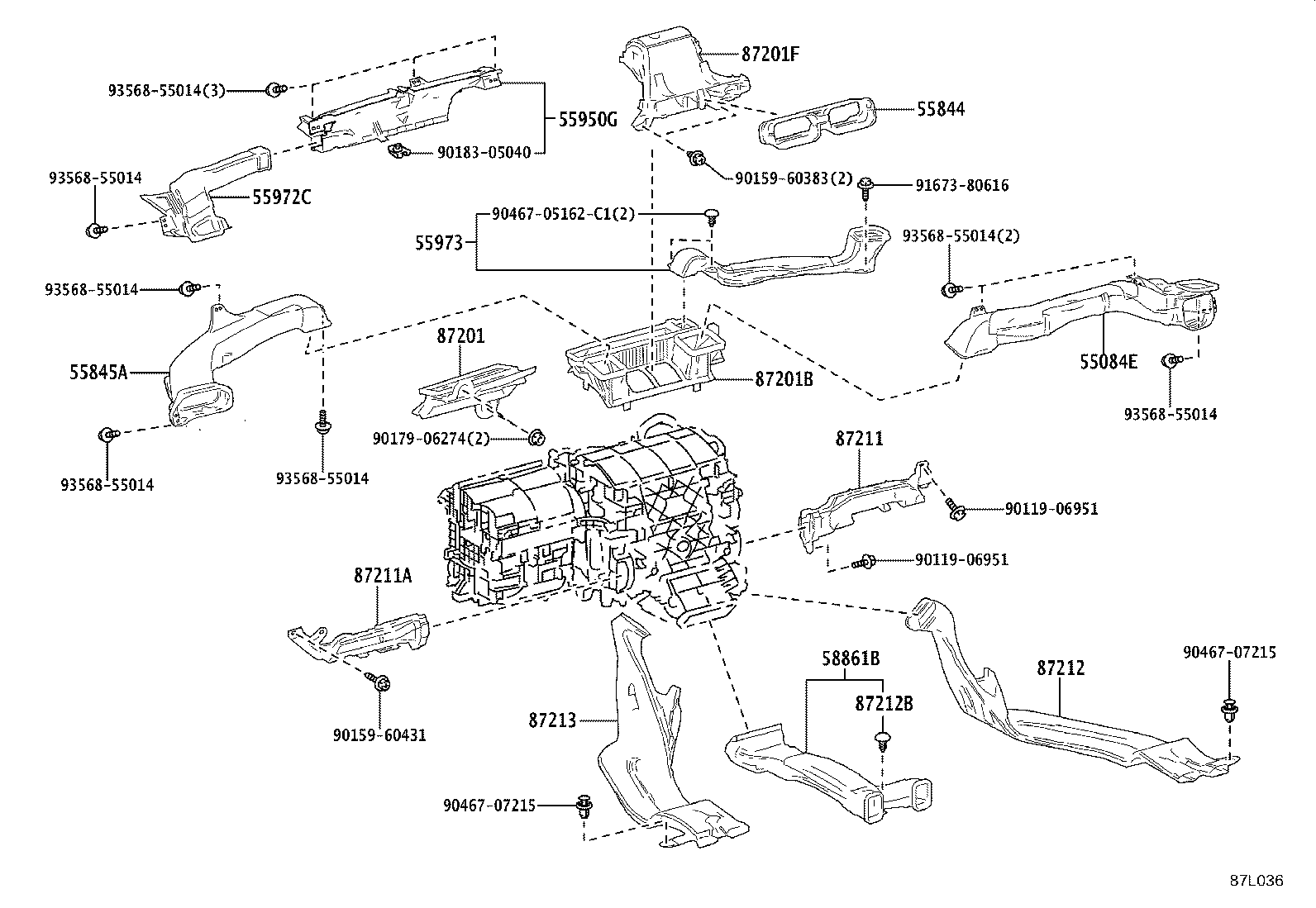

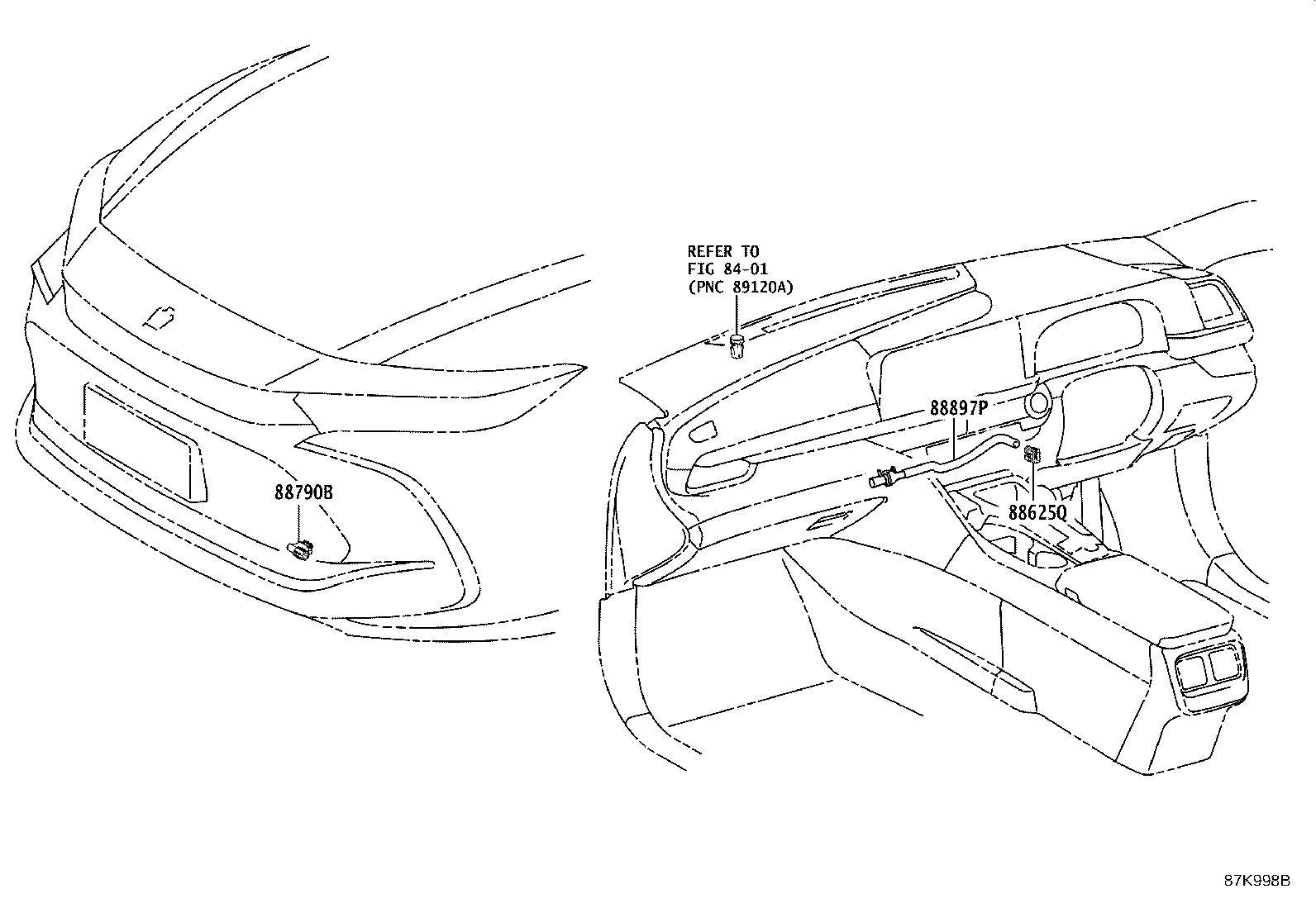

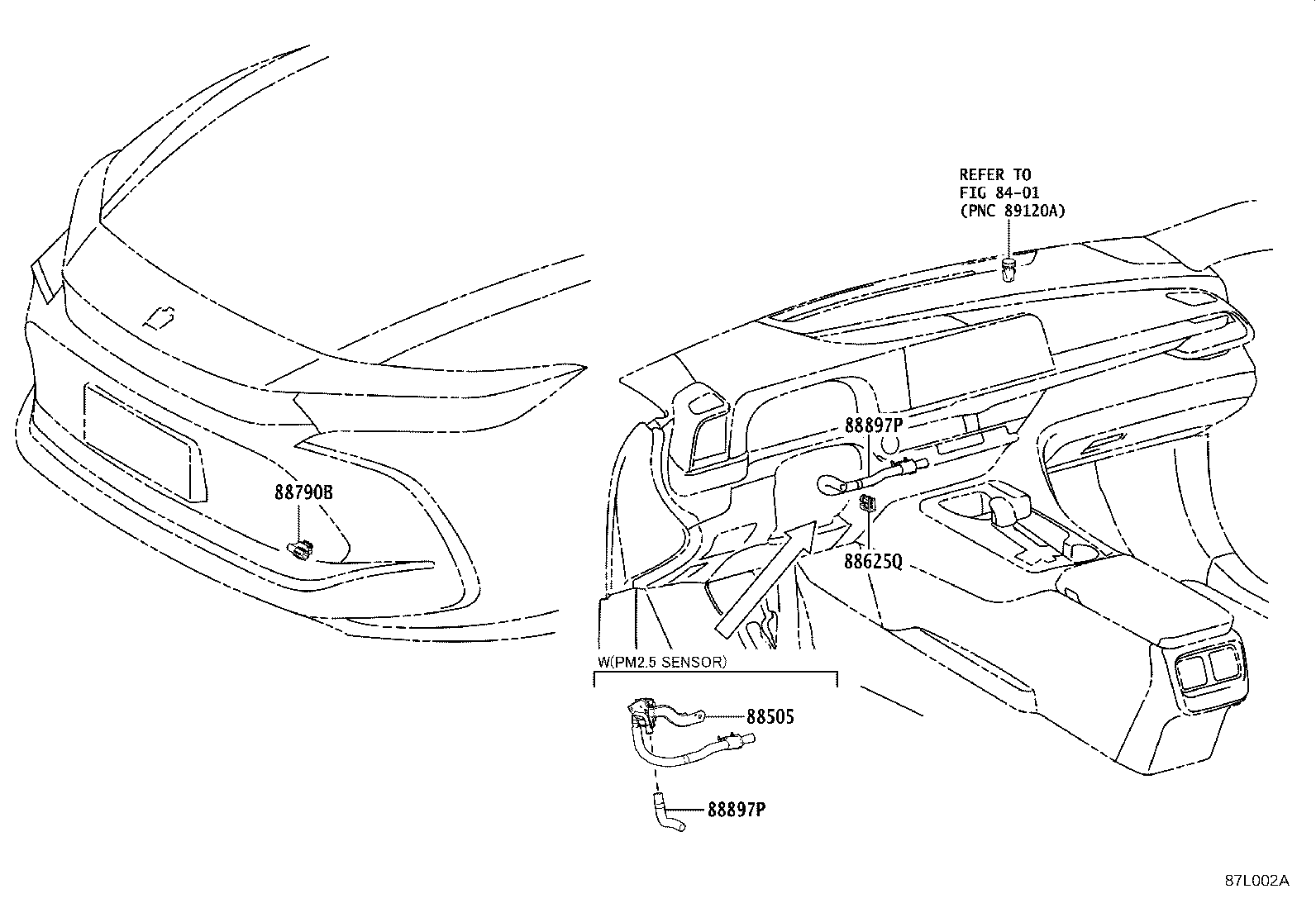

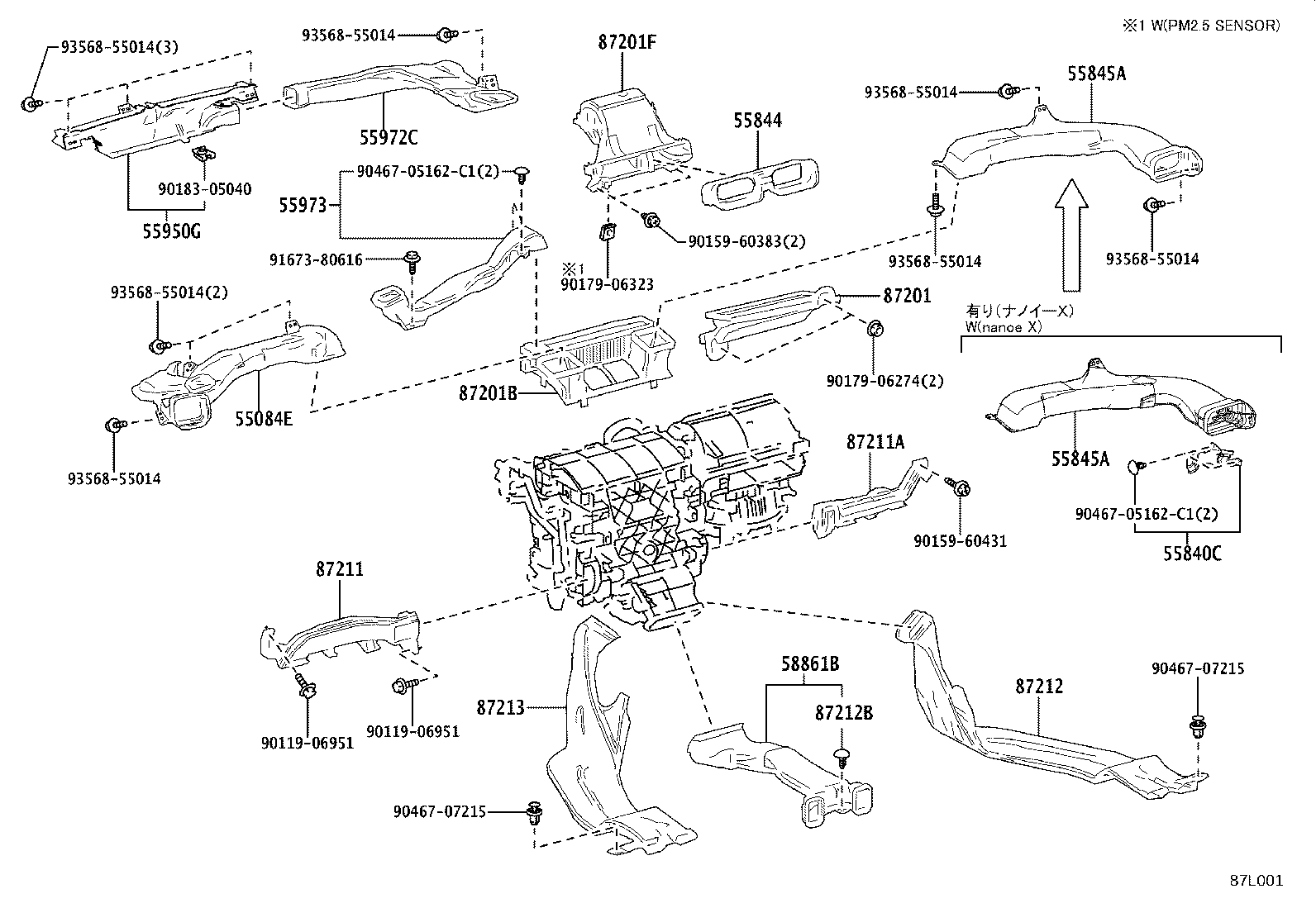

Figure 87K999 87K999 2023-01 → — Figure 87K996 87K996 2023-01 → — Figure 87L001 87L001 2023-01 → — Figure 87L036 87L036 2023-01 → — Figure 87L002A 87L002A 2023-01 → — Figure 87K998B 87K998B 2023-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55840C Duct Assy, Heater TO Register, NO.6
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55972C Duct, Side Defroster Nozzle, NO.2
55973 Duct, Side Defroster Nozzle, NO.3
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87213 Duct, Air, Rear NO.2
88505 Duct Sub-assy,Air Conditioner
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
