Toyota Crown
2023-01 → present · chassis AZSH3#,TZSH35 · catalogue 3312F0 · General
Supported model
Data version 2022-12

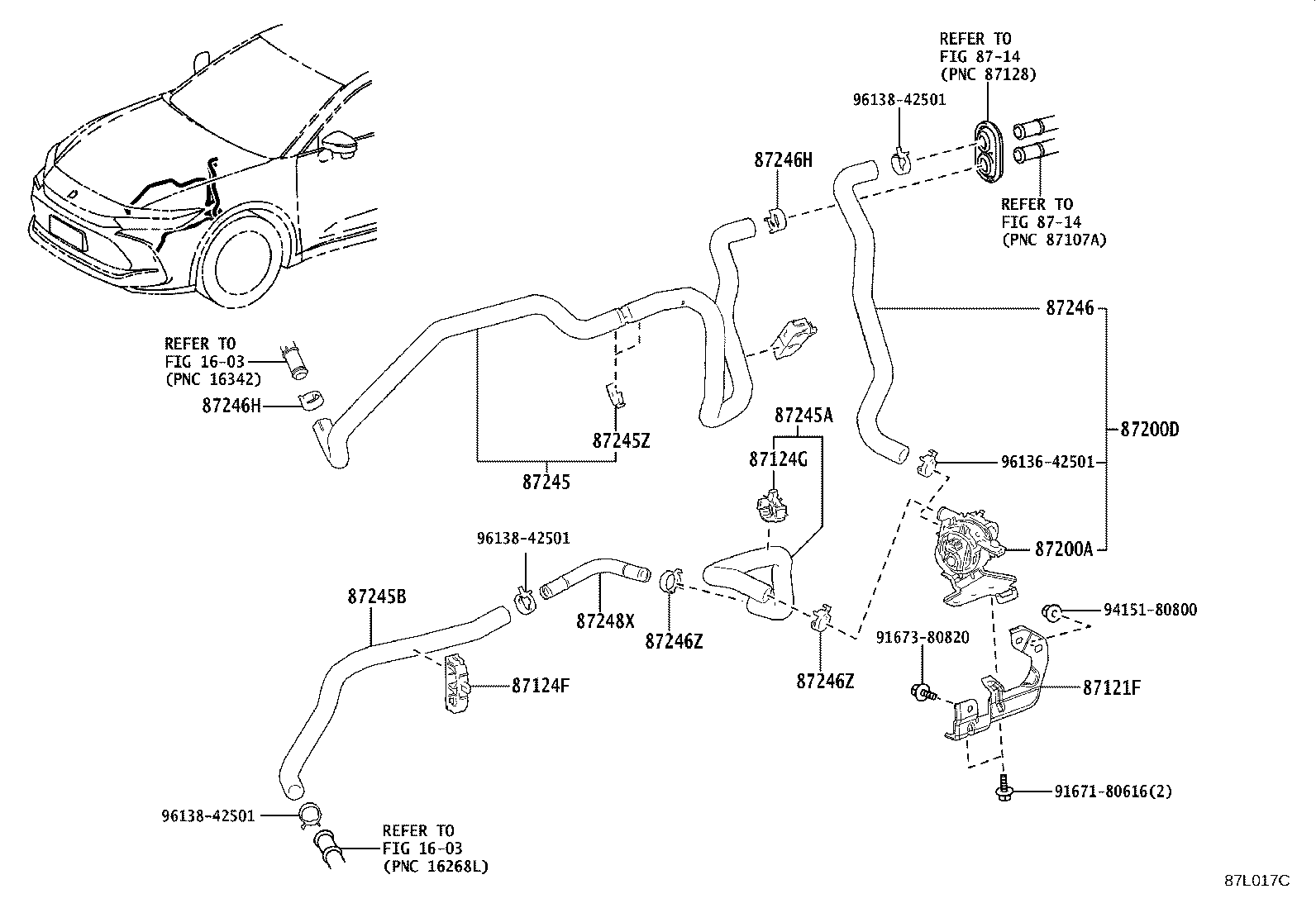

Heating & Air Conditioning - Water Piping
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87121F | Bracket, Heater |
| 87124F | Clamp, Heater Hose, NO.1 |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87200A | Pump Assy, Water(FOR HEATER) |
| 87200D | Accessory Assy, Heater |
| 87245 | Hose, Heater Water, Inlet |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246 | Hose, Heater Water, Outlet |
| 87246H | Clip OR Clamp(FOR HEATER WATER HOSE) |
| 87246Z | Clip |
| 87248X | Pipe, Heater Water |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
