Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

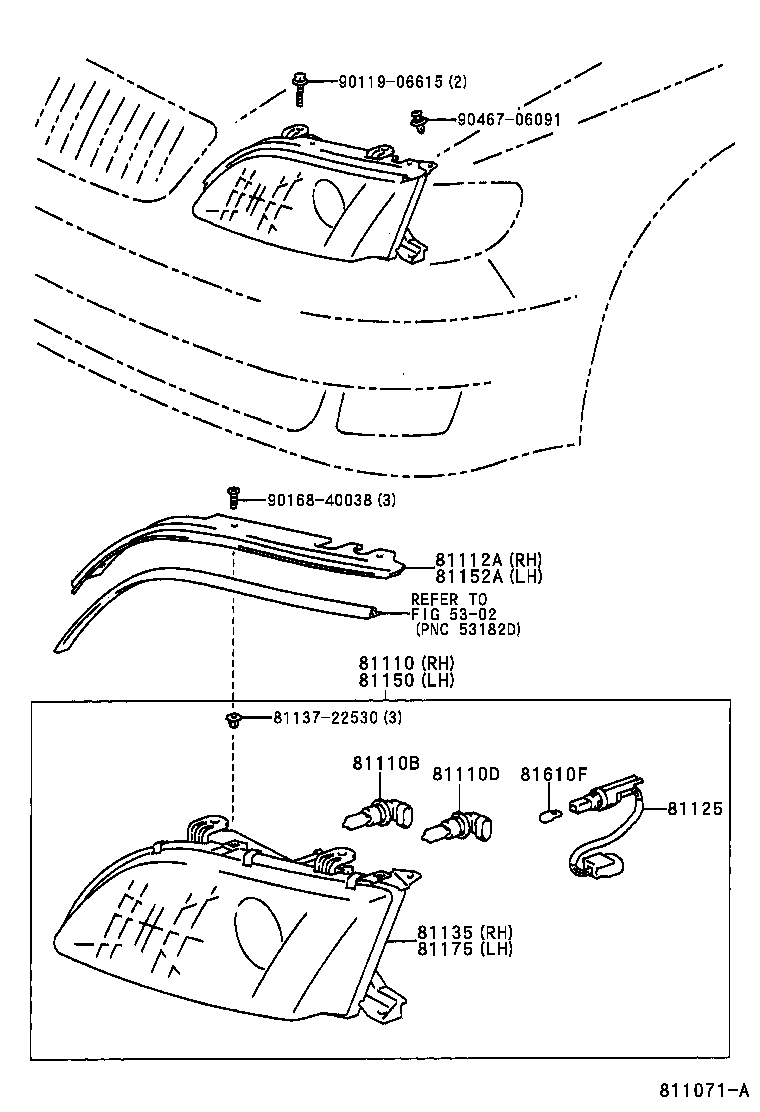

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81120-3A210 |
Headlamp Assy, RH
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 81120-3A220 |
Headlamp Assy, RH
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 81120-3A222 |
Headlamp Assy, RH
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 81120-3A240 |
Headlamp Assy, RH
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 81120-3A242 |
Headlamp Assy, RH
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 note |
Bulb(FOR HEADLAMP, NO.1)
1993-08 → 1997-08
ended
|
JZS147 | — | |
| 90981-13046 note |
Bulb(FOR HEADLAMP, NO.1)
1993-03 → 1993-08
ended
|
JZS147 | — | |
| 81110D — Bulb(FOR HEADLAMP, NO.2) | ||||
| 90080-81040 note |
Bulb(FOR HEADLAMP, NO.2)
1993-08 → 1997-08
ended
|
JZS147 | — | |
| 90981-13047 note |
Bulb(FOR HEADLAMP, NO.2)
1993-03 → 1993-08
ended
|
JZS147 | — | |
| 81112A — Rim, Headlamp, RH | ||||
| 81116-3A210 |
Rim, Headlamp, RH
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 81125 — Cord, Headlamp | ||||
| 81125-3A210 |
Cord, Headlamp
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-3A210 |
Unit Assy, Headlamp, RH
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 81130-3A220 |
Unit Assy, Headlamp, RH
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 81130-3A222 |
Unit Assy, Headlamp, RH
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 81130-3A240 |
Unit Assy, Headlamp, RH
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 81130-3A242 |
Unit Assy, Headlamp, RH
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81160-3A210 |
Headlamp Assy, LH
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 81160-3A220 |
Headlamp Assy, LH
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 81160-3A222 |
Headlamp Assy, LH
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 81160-3A240 |
Headlamp Assy, LH
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 81160-3A242 |
Headlamp Assy, LH
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 81152A — Rim, Headlamp, LH | ||||
| 81156-3A210 |
Rim, Headlamp, LH
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-3A210 |
Unit Assy, Headlamp, LH
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 81170-3A220 |
Unit Assy, Headlamp, LH
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 81170-3A222 |
Unit Assy, Headlamp, LH
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 81170-3A240 |
Unit Assy, Headlamp, LH
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 81170-3A242 |
Unit Assy, Headlamp, LH
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 90083-81004 note |
Bulb(FOR CLEARANCE LAMP)
1993-03 → 1993-08
ended
|
JZS147 | — | |
| 99132-12050 note |
Bulb(FOR CLEARANCE LAMP)
1993-08 → 1997-08
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
