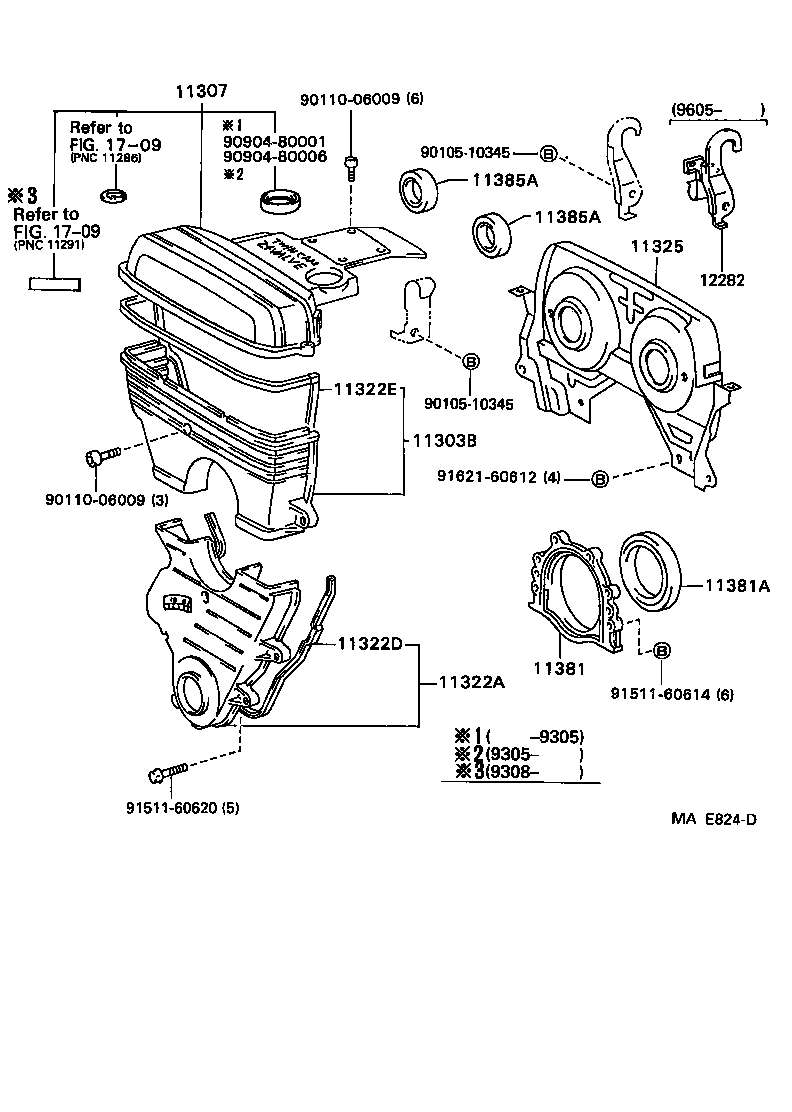

Exploded illustration MAE824D 11307 — COVER, SUB-ASSY, TIMING BELT, NO.3 (2 parts) 9011006009 — not listed in this catalogue 9090480001 — not listed in this catalogue 1709 — not listed in this catalogue 9010510345 — not listed in this catalogue 9090480006 — not listed in this catalogue 11385A — SEAL, OIL(FOR CAMSHAFT) (4 parts) 11385A — SEAL, OIL(FOR CAMSHAFT) (4 parts) 1709 — not listed in this catalogue 11325 — COVER, TIMING BELT, NO.4 (3 parts) 12282 — HANGER, ENGINE, NO.2 (1 parts) 11322E — GASKET, TIMING BELT COVER, NO.2 (1 parts) 9010510345 — not listed in this catalogue 11303B — COVER SUB-ASSY, TIMING BELT, NO.2 (1 parts) 9162160612 — not listed in this catalogue 9011006009 — not listed in this catalogue 11381A — SEAL, ENGINE REAR OIL (1 parts) 11322D — GASKET, TIMING BELT COVER, NO.1 (1 parts) 11381 — RETAINER, ENGINE REAR OIL SEAL (1 parts) 11322A — COVER, TIMING BELT, NO.1 (1 parts) 9151160614 — not listed in this catalogue 9151160620 — not listed in this catalogue
MAE824D · 11 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
11303B — Cover Sub-assy, Timing Belt, NO.2
11303-46011 Cover Sub-assy, Timing Belt, NO.2
1993-03 → 1997-08 ended
2JZGE JZS147 —
11307 — Cover, Sub-assy, Timing Belt, NO.3
11304-46040 Cover, Sub-assy, Timing Belt, NO.3
1993-03 → 1993-05 ended
2JZGE JZS147 —
11304-46041 Cover, Sub-assy, Timing Belt, NO.3
1993-05 → 1997-08 ended
2JZGE JZS147 —
11322A — Cover, Timing Belt, NO.1
11302-46031 Cover, Timing Belt, NO.1
1993-03 → 1997-08 ended
2JZGE JZS147 —
11322D — Gasket, Timing Belt Cover, NO.1
11328-46041 Gasket, Timing Belt Cover, NO.1
1993-03 → 1997-08 ended
2JZGE JZS147 —
11322E — Gasket, Timing Belt Cover, NO.2
11329-46011 Gasket, Timing Belt Cover, NO.2
1993-03 → 1997-08 ended
2JZGE JZS147 —
11325 — Cover, Timing Belt, NO.4
11325-46040 Cover, Timing Belt, NO.4
1993-03 → 1993-06 ended
2JZGE JZS147 —
11325-46041 Cover, Timing Belt, NO.4
1993-06 → 1995-07 ended
2JZGE JZS147 —
11325-46042 Cover, Timing Belt, NO.4
1995-07 → 1997-08 ended
2JZGE JZS147 —
11381 — Retainer, Engine Rear Oil Seal
11381-46010 Retainer, Engine Rear Oil Seal
1993-03 → 1997-08 ended
2JZGE JZS147 —
11381A — Seal, Engine Rear Oil
90311-90006 Seal, Engine Rear Oil
1993-03 → 1997-08 ended
2JZGE JZS147 —
11385A — Seal, Oil(FOR CAMSHAFT)
90311-40014 Seal, Oil(FOR CAMSHAFT)
1993-03 → 1993-10 ended
2JZGE JZS147 —
90311-40014 Seal, Oil(FOR CAMSHAFT)
1993-10 → 1993-11 ended
2JZGE JZS147 EUR —
90311-40014 Seal, Oil(FOR CAMSHAFT)
1993-11 → 1995-09 ended
2JZGE JZS147 —
90311-40020 Seal, Oil(FOR CAMSHAFT)
1995-09 → 1997-08 ended
2JZGE JZS147 —
12282 — Hanger, Engine, NO.2
12282-46012 Hanger, Engine, NO.2
1996-05 → 1997-08 ended
2JZGE JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
