Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

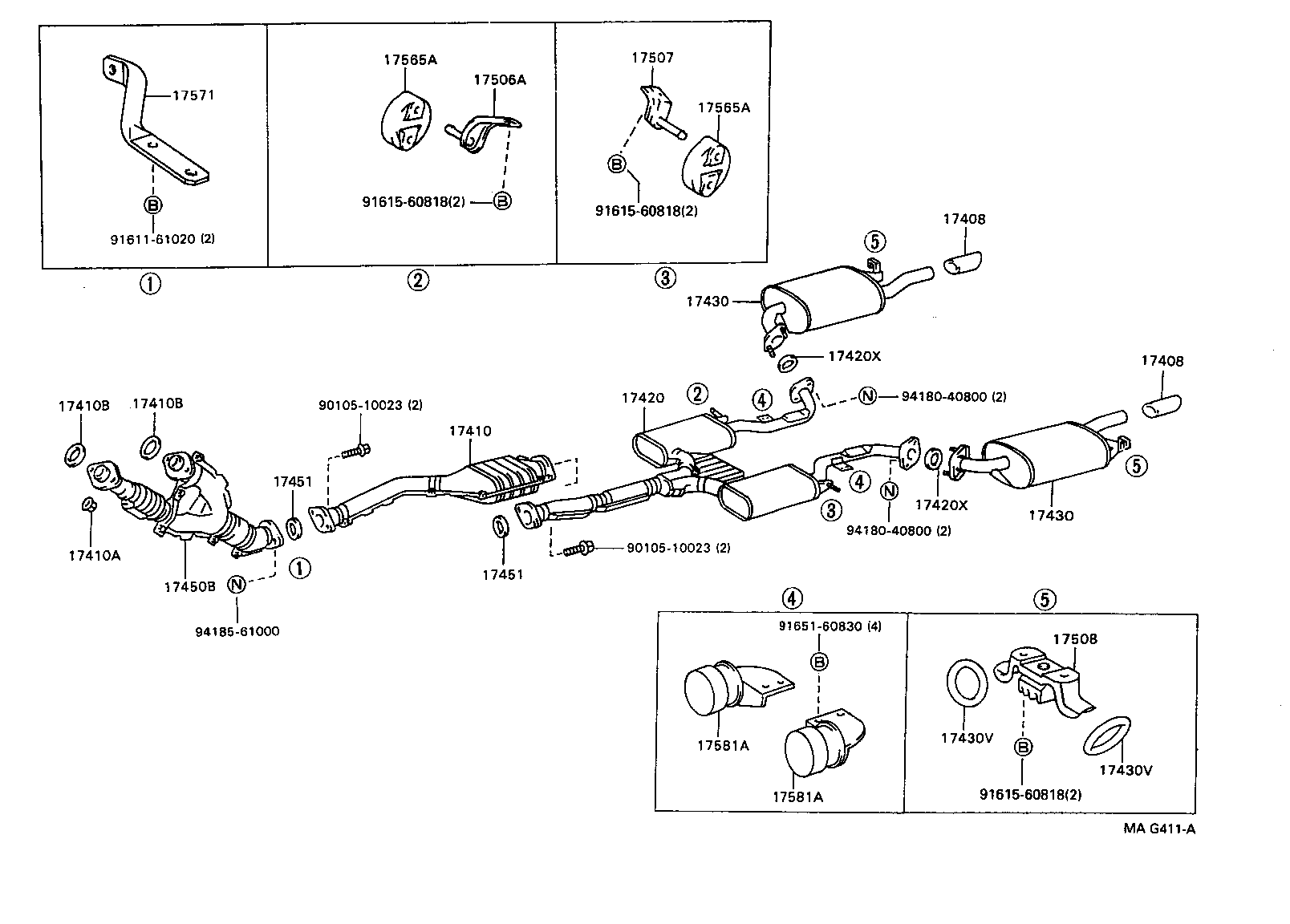

Exploded illustration MAG411A 17507 — BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (1 parts) 17506A — BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT (1 parts) 17571 — BRACKET, EXHAUST PIPE SUPPORT, NO.1 (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (1 parts) 9161560818 — not listed in this catalogue 9161560818 — not listed in this catalogue 17408 — BAFFLE SUB ASSY, EXHAUST TAILPIPE (2 parts) 9161161020 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (2 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (2 parts) 17408 — BAFFLE SUB ASSY, EXHAUST TAILPIPE (2 parts) 9418040800 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (1 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 9010510023 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (3 parts) 17451 — GASKET, EXHAUST PIPE (2 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (2 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (2 parts) 9418040800 — not listed in this catalogue 9010510023 — not listed in this catalogue 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17451 — GASKET, EXHAUST PIPE (2 parts) 17450B — PIPE ASSY, EXHAUST, FRONT NO.2 (3 parts) 9165160830 — not listed in this catalogue 9418561000 — not listed in this catalogue 17508 — SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 (1 parts) 17430V — BOLT OR RING, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17581A — DAMPER, EXHAUST PIPE (1 parts) 17430V — BOLT OR RING, EXHAUST TAILPIPE (FOR REAR) (1 parts) 9161560818 — not listed in this catalogue 17581A — DAMPER, EXHAUST PIPE (1 parts)
MAG411A · 24 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
17408 — Baffle Sub Assy, Exhaust Tailpipe
17408-50010 Baffle Sub Assy, Exhaust Tailpipe
1993-03 → 1993-07 ended
2JZGE JZS147 —
17408-74040 Baffle Sub Assy, Exhaust Tailpipe
1993-07 → 1997-08 ended
2JZGE JZS147 —
17410 — Pipe Assy, Exhaust, Front
17410-46230 Pipe Assy, Exhaust, Front
1993-03 → 1997-08 ended
2JZGE JZS147 GCC —
17410-46260 Pipe Assy, Exhaust, Front
1993-08 → 1995-08 ended
2JZGE JZS147 EUR —
17410-46261 Pipe Assy, Exhaust, Front
1995-08 → 1997-08 ended
2JZGE JZS147 EUR —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1993-03 → 1997-08 ended
2JZGE JZS147 —
17410B — Gasket, Exhaust Pipe
90917-06045 Gasket, Exhaust Pipe
1993-03 → 1997-08 ended
2JZGE JZS147 —
17420 — Pipe Assy, Exhaust, Center
17420-46200 Pipe Assy, Exhaust, Center
1993-03 → 1997-08 ended
2JZGE JZS147 —
17420X — Gasket, Exhaust Pipe, Center
90917-06045 Gasket, Exhaust Pipe, Center
1993-03 → 1993-07 ended
2JZGE JZS147 —
90917-06062 Gasket, Exhaust Pipe, Center
1993-07 → 1997-08 ended
2JZGE JZS147 —
17430 — Pipe Assy, Exhaust, Tail
17430-46170 note Pipe Assy, Exhaust, Tail
1993-03 → 1997-08 ended
2JZGE JZS147 —
17440-46060 note Pipe Assy, Exhaust, Tail
1993-03 → 1997-08 ended
2JZGE JZS147 —
17430V — Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
90301-36001 Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1993-03 → 1997-08 ended
2JZGE JZS147 —
17450B — Pipe Assy, Exhaust, Front NO.2
17450-46180 Pipe Assy, Exhaust, Front NO.2
1993-03 → 1997-08 ended
2JZGE JZS147 GCC —
17450-46190 Pipe Assy, Exhaust, Front NO.2
1993-08 → 1995-08 ended
2JZGE JZS147 EUR —
17450-46191 Pipe Assy, Exhaust, Front NO.2
1995-08 → 1997-08 ended
2JZGE JZS147 EUR —
17451 — Gasket, Exhaust Pipe
90917-06056 note Gasket, Exhaust Pipe
1993-03 → 1997-08 ended
2JZGE JZS147 —
90917-06070 note Gasket, Exhaust Pipe
1993-03 → 1997-08 ended
2JZGE JZS147 —
17506A — Bracket Sub-assy, Exhaust Pipe NO.1 Support
17506-50060 Bracket Sub-assy, Exhaust Pipe NO.1 Support
1993-03 → 1997-08 ended
2JZGE JZS147 —
17507 — Bracket Sub-assy, Exhaust Pipe NO.2 Support
17507-50020 Bracket Sub-assy, Exhaust Pipe NO.2 Support
1993-03 → 1997-08 ended
2JZGE JZS147 —
17508 — Support Sub-assy, Exhaust Pipe, NO.3
17508-50010 Support Sub-assy, Exhaust Pipe, NO.3
1993-03 → 1997-08 ended
2JZGE JZS147 —
17565A — Support, Exhaust Pipe, NO.4
17565-46040 Support, Exhaust Pipe, NO.4
1993-03 → 1997-08 ended
2JZGE JZS147 —
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-46180 Bracket, Exhaust Pipe Support, NO.1
1993-03 → 1997-08 ended
2JZGE JZS147 —
17581A — Damper, Exhaust Pipe
17581-46020 Damper, Exhaust Pipe
1993-03 → 1997-08 ended
2JZGE JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
