Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

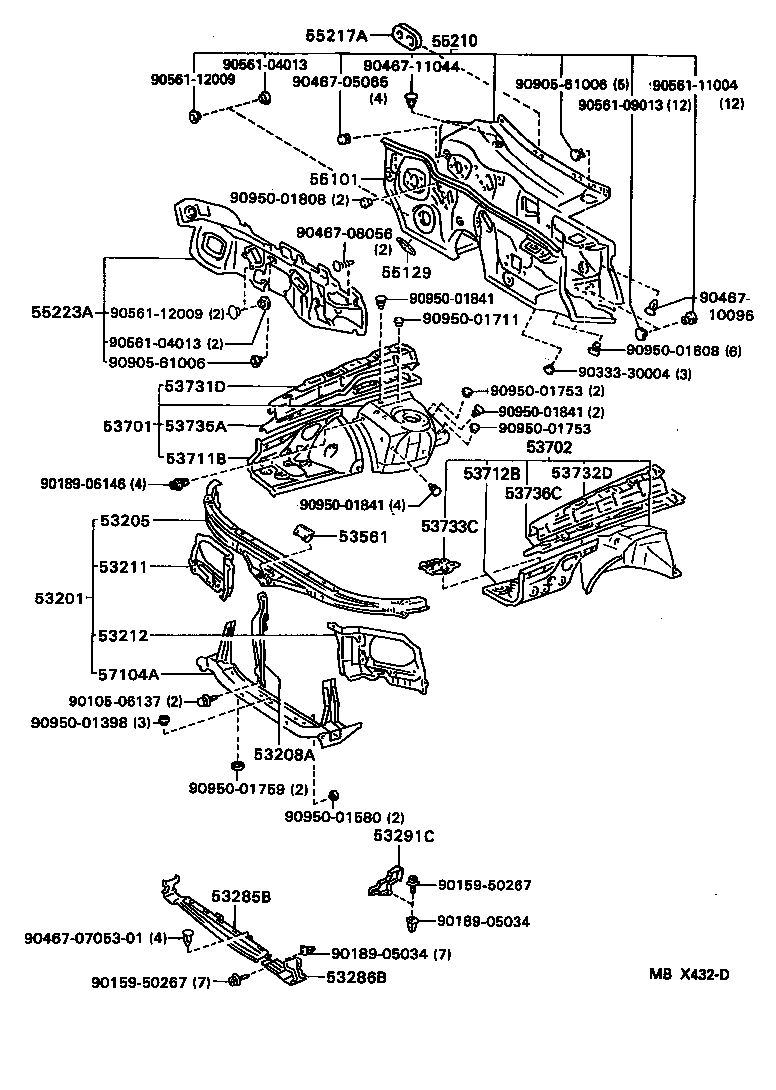

Exploded illustration MBX432D 55217A — RETAINER, DASH PANEL SILENCER (1 parts) 55210 — INSULATOR ASSY, DASH PANEL (3 parts) 9056104013 — not listed in this catalogue 9046711044 — not listed in this catalogue 9056112009 — not listed in this catalogue 9046705065 — not listed in this catalogue 9090561006 — not listed in this catalogue 9056111004 — not listed in this catalogue 9056109013 — not listed in this catalogue 55101 — PANEL SUB-ASSY, DASH (2 parts) 9095001808 — not listed in this catalogue 9046708056 — not listed in this catalogue 55129 — COVER, DASH PANEL HOLE (2 parts) 9046710096 — not listed in this catalogue 9095001841 — not listed in this catalogue 9056112009 — not listed in this catalogue 55223A — INSULATOR, DASH PANEL, OUTER (2 parts) 9095001711 — not listed in this catalogue 9056104013 — not listed in this catalogue 9095001808 — not listed in this catalogue 9090561006 — not listed in this catalogue 9033330004 — not listed in this catalogue 53731D — MEMBER, FRONT APRON TO COWL SIDE, UPPER RH (1 parts) 9095001753 — not listed in this catalogue 9095001841 — not listed in this catalogue 53735A — MEMBER, FRONT APRON TO COWL SIDE, LOWER RH (1 parts) 53701 — APRON SUB-ASSY, FRONT FENDER, RH (2 parts) 9095001753 — not listed in this catalogue 53702 — APRON SUB-ASSY, FRONT FENDER, LH (1 parts) 53711B — APRON, FRONT FENDER, FRONT RH (2 parts) 53712B — APRON, FRONT FENDER, FRONT LH (1 parts) 53732D — MEMBER, FRONT APRON TO COWL SIDE, UPPER LH (1 parts) 9018906146 — not listed in this catalogue 53736C — MEMBER, FRONT APRON TO COWL SIDE, LOWER LH (1 parts) 9095001841 — not listed in this catalogue 53205 — SUPPORT SUB-ASSY, RADIATOR, UPPER (1 parts) 53733C — PATCH, FRONT FENDER APRON (1 parts) 53561 — GUIDE, HOOD AUXILIARY CATCH HOOK (1 parts) 53211 — SUPPORT, RADIATOR, RH (1 parts) 53201 — SUPPORT SUB-ASSY, RADIATOR (1 parts) 53212 — SUPPORT, RADIATOR, LH (1 parts) 57104A — MEMBER SUB-ASSY, FRONT CROSS (1 parts) 9010506137 — not listed in this catalogue 9095001398 — not listed in this catalogue 53208A — SUPPORT SUB-ASSY, HOOD LOCK (1 parts) 9095001759 — not listed in this catalogue 9095001580 — not listed in this catalogue 53291C — SEAL, RADIATOR SUPPORT TO FRAME (2 parts) 9015950267 — not listed in this catalogue 53285B — SEAL, RADIATOR SIDE AIR, NO.1 (1 parts) 9018905034 — not listed in this catalogue 904670705301 — not listed in this catalogue 9018905034 — not listed in this catalogue 53286B — SEAL, RADIATOR SIDE AIR, NO.2 (1 parts) 9015950267 — not listed in this catalogue
MBX432D · 24 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
53201 — Support Sub-assy, Radiator
53201-30320 Support Sub-assy, Radiator
1993-03 → 1997-08 ended
JZS147 —
53205 — Support Sub-assy, Radiator, Upper
53205-30020 Support Sub-assy, Radiator, Upper
1993-03 → 1997-08 ended
JZS147 —
53208A — Support Sub-assy, Hood Lock
53217-30080 Support Sub-assy, Hood Lock
1993-03 → 1997-08 ended
JZS147 —
53211 — Support, Radiator, RH
53211-30210 Support, Radiator, RH
1993-03 → 1997-08 ended
JZS147 —
53212 — Support, Radiator, LH
53212-30140 Support, Radiator, LH
1993-03 → 1997-08 ended
JZS147 —
53285B — Seal, Radiator Side Air, NO.1
53285-30030 Seal, Radiator Side Air, NO.1
1993-03 → 1997-08 ended
JZS147 —
53286B — Seal, Radiator Side Air, NO.2
53286-30020 Seal, Radiator Side Air, NO.2
1993-03 → 1997-08 ended
JZS147 —
53291C — Seal, Radiator Support TO Frame
53291-30050 note Seal, Radiator Support TO Frame
1993-03 → 1997-08 ended
JZS147 —
53292-30070 note Seal, Radiator Support TO Frame
1993-03 → 1997-08 ended
JZS147 —
53561 — Guide, Hood Auxiliary Catch Hook
53561-30010 Guide, Hood Auxiliary Catch Hook
1993-03 → 1997-08 ended
JZS147 —
53701 — Apron Sub-assy, Front Fender, RH
53701-30850 Apron Sub-assy, Front Fender, RH
1993-03 → 1995-08 ended
JZS147 —
53701-30851 Apron Sub-assy, Front Fender, RH
1995-08 → 1997-08 ended
JZS147 —
53702 — Apron Sub-assy, Front Fender, LH
53702-30580 Apron Sub-assy, Front Fender, LH
1993-03 → 1997-08 ended
JZS147 —
53711B — Apron, Front Fender, Front RH
53711-30910 Apron, Front Fender, Front RH
1993-03 → 1995-08 ended
JZS147 —
53711-30914 Apron, Front Fender, Front RH
1995-08 → 1997-08 ended
JZS147 —
53712B — Apron, Front Fender, Front LH
53712-30490 Apron, Front Fender, Front LH
1993-03 → 1997-08 ended
JZS147 —
53731D — Member, Front Apron TO Cowl Side, Upper RH
53731-30902 Member, Front Apron TO Cowl Side, Upper RH
1993-03 → 1997-08 ended
JZS147 —
53732D — Member, Front Apron TO Cowl Side, Upper LH
53732-30902 Member, Front Apron TO Cowl Side, Upper LH
1993-03 → 1997-08 ended
JZS147 —
53733C — Patch, Front Fender Apron
53733-30030 Patch, Front Fender Apron
1993-03 → 1997-08 ended
JZS147 —
53735A — Member, Front Apron TO Cowl Side, Lower RH
53735-30900 Member, Front Apron TO Cowl Side, Lower RH
1993-03 → 1997-08 ended
JZS147 —
53736C — Member, Front Apron TO Cowl Side, Lower LH
53736-30900 Member, Front Apron TO Cowl Side, Lower LH
1993-03 → 1997-08 ended
JZS147 —
55101 — Panel Sub-assy, Dash
55101-3A020 Panel Sub-assy, Dash
1993-08 → 1997-08 ended
JZS147 RHD —
55101-3A150 Panel Sub-assy, Dash
1993-03 → 1997-08 ended
JZS147 LHD —
55129 — Cover, Dash Panel Hole
55129-30020 note Cover, Dash Panel Hole
1993-03 → 1997-08 ended
JZS147 —
55139-30040 note Cover, Dash Panel Hole
1993-03 → 1997-08 ended
JZS147 —
55210 — Insulator Assy, Dash Panel
55210-30220 Insulator Assy, Dash Panel
1993-08 → 1997-08 ended
JZS147 RHD —
55210-30240 Insulator Assy, Dash Panel
1993-03 → 1997-08 ended
JZS147 GCC —
55210-30250 Insulator Assy, Dash Panel
1993-08 → 1997-08 ended
JZS147 LHD EUR —
55217A — Retainer, Dash Panel Silencer
55690-30030 Retainer, Dash Panel Silencer
1993-03 → 1997-08 ended
JZS147 —
55223A — Insulator, Dash Panel, Outer
55223-30090 Insulator, Dash Panel, Outer
1993-08 → 1997-08 ended
JZS147 RHD —
55223-30130 Insulator, Dash Panel, Outer
1993-03 → 1997-08 ended
JZS147 LHD —
57104A — Member Sub-assy, Front Cross
57104-30020 Member Sub-assy, Front Cross
1993-03 → 1997-08 ended
JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
