Exploded illustration MBX439D 64777F — CUSHION, SPARE WHEEL (1 parts) 57652C — MEMBER, REAR FLOOR CROSS, NO.1 (1 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (1 parts) 58113A — PANEL, FRONT FLOOR, CENTER (6 parts) 58351A — BRACKET, SPARE WHEEL CARRIER (1 parts) 57653D — MEMBER, REAR FLOOR CROSS, NO.2 (1 parts) 58313F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH (2 parts) 57407A — MEMBER SUB-ASSY, CENTER FLOOR CROSS (1 parts) 9046710018 — not listed in this catalogue 58209A — REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT (1 parts) 64227 — EXTENSION, CENTER FLOOR TO BRACE (1 parts) 58365A — BRACKET, FUEL TANK SUPPORT, RH (1 parts) 58111 — PAN, FRONT FLOOR (4 parts) 58208 — PAN, CENTER FLOOR (1 parts) 58112A — PANEL, FRONT FLOOR, LH (4 parts) 58366A — BRACKET, FUEL TANK SUPPORT, LH (1 parts) 9011506273 — not listed in this catalogue 9011506273 — not listed in this catalogue 57805 — REINFORCEMENT SUB-ASSY, BELT ANCHOR (2 parts) 9011506243 — not listed in this catalogue 58352A — BRACKET, REAR FLOOR STAY (1 parts) 9011506167 — not listed in this catalogue 9011506053 — not listed in this catalogue 58311 — PAN, REAR FLOOR (1 parts) 64228 — EXTENSION, CENTER FLOOR TO BRACE, NO.2 (1 parts) 58314F — EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH (1 parts) 58265D — BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 (1 parts) 58349 — CUSHION, REAR FLOOR SIDE (2 parts) 58269A — BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 (1 parts) 58131A — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (1 parts) 9095001580 — not listed in this catalogue 58266A — BRACKET, FUEL TUBE CLAMP (1 parts) 9165640620 — not listed in this catalogue 58212C — PAN, CENTER FLOOR, FRONT (2 parts) 9095001354 — not listed in this catalogue 9046706060 — not listed in this catalogue 9095001668 — not listed in this catalogue 9095001684 — not listed in this catalogue 55199 — COVER, DASH PANEL COMPUTER (2 parts) 9095001731 — not listed in this catalogue 9095001580 — not listed in this catalogue 9095001005 — not listed in this catalogue 58285E — COVER, CENTER FLOOR HOLE (1 parts) 9095001478 — not listed in this catalogue 9017906060 — not listed in this catalogue 9033320001 — not listed in this catalogue 9095001667 — not listed in this catalogue 9095001527 — not listed in this catalogue 9095001763 — not listed in this catalogue 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (1 parts) 9095001867 — not listed in this catalogue 9095001580 — not listed in this catalogue 9011906354 — not listed in this catalogue 9095001768 — not listed in this catalogue 9095001552 — not listed in this catalogue 9095001785 — not listed in this catalogue 9095001535 — not listed in this catalogue 9095001808 — not listed in this catalogue 9033330002 — not listed in this catalogue 58136 — COVER, FRONT FLOOR HOLE (1 parts)

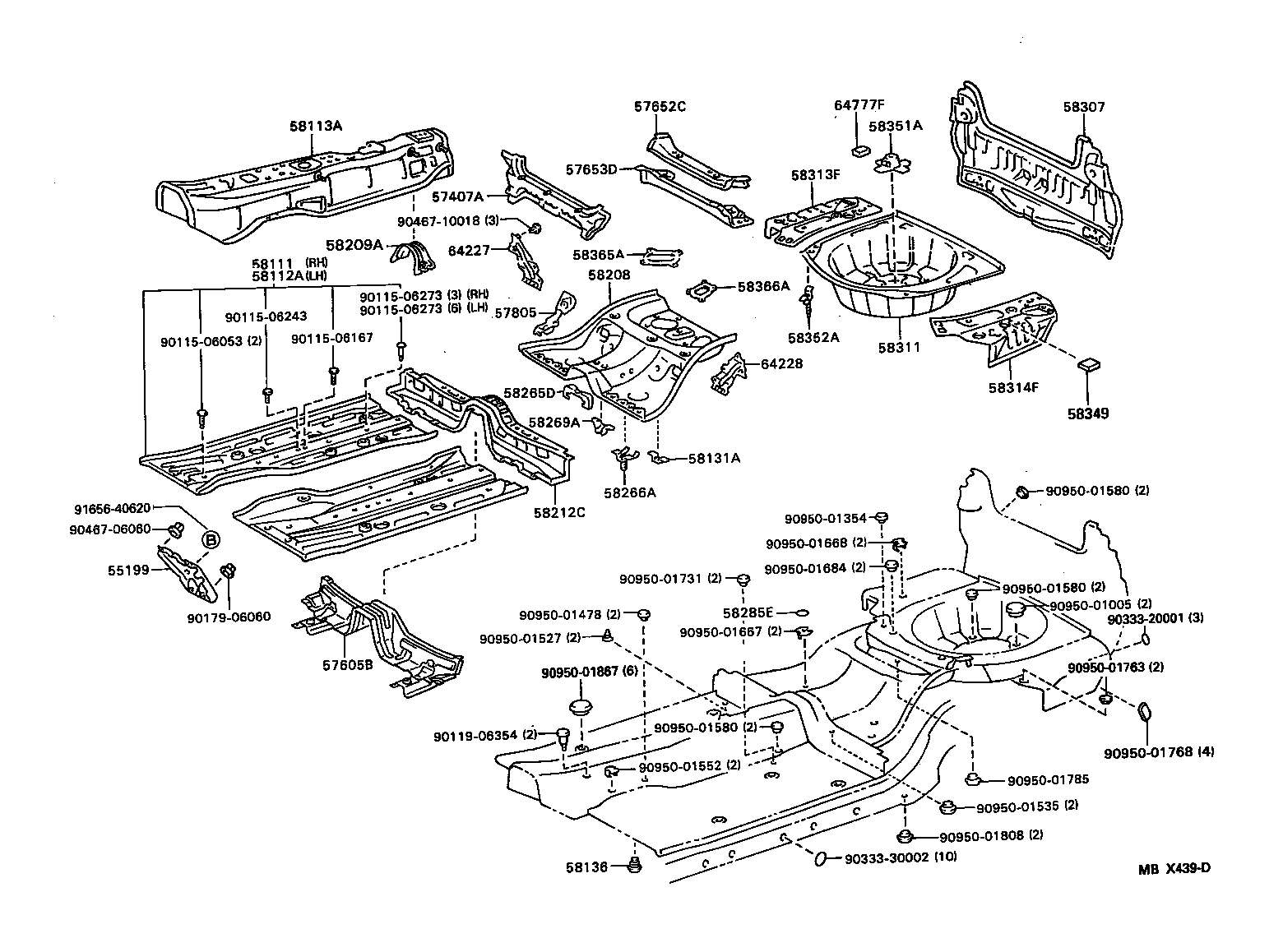

MBX439D · 30 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
55199 — Cover, Dash Panel Computer
55199-30010 Cover, Dash Panel Computer
1993-08 → 1997-08 ended
JZS147 RHD —
55199-30030 Cover, Dash Panel Computer
1993-03 → 1997-08 ended
JZS147 LHD —
57407A — Member Sub-assy, Center Floor Cross
57407-30080 Member Sub-assy, Center Floor Cross
1993-03 → 1997-08 ended
JZS147 —
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-30040 Member Sub-assy, Rear Floor Cross, NO.1
1993-03 → 1997-08 ended
JZS147 —
57652C — Member, Rear Floor Cross, NO.1
57652-30901 Member, Rear Floor Cross, NO.1
1993-03 → 1997-08 ended
JZS147 —
57653D — Member, Rear Floor Cross, NO.2
57653-30900 Member, Rear Floor Cross, NO.2
1993-03 → 1997-08 ended
JZS147 —
57805 — Reinforcement Sub-assy, Belt Anchor
57805-30010 note Reinforcement Sub-assy, Belt Anchor
1993-03 → 1997-08 ended
JZS147 —
57806-30010 note Reinforcement Sub-assy, Belt Anchor
1993-03 → 1997-08 ended
JZS147 —
58111 — Pan, Front Floor
58111-30900 Pan, Front Floor
1993-03 → 1995-08 ended
JZS147 —
58111-30900 Pan, Front Floor
1995-08 → 1997-08 ended
JZS147 RHD —
58111-30905 Pan, Front Floor
1993-08 → 1995-08 ended
JZS147 RHD —
58111-30905 Pan, Front Floor
1995-08 → 1997-08 ended
JZS147 —
58112A — Panel, Front Floor, LH
58112-30900 Panel, Front Floor, LH
1993-03 → 1995-08 ended
JZS147 —
58112-30900 Panel, Front Floor, LH
1995-08 → 1997-08 ended
JZS147 RHD —
58112-30905 Panel, Front Floor, LH
1993-08 → 1995-08 ended
JZS147 RHD —
58112-30905 Panel, Front Floor, LH
1995-08 → 1997-08 ended
JZS147 —
58113A — Panel, Front Floor, Center
58014-30010 Panel, Front Floor, Center
1993-08 → 1995-08 ended
JZS147 RHD —
58014-30011 Panel, Front Floor, Center
1995-08 → 1996-09 ended
JZS147 RHD —
58014-30012 Panel, Front Floor, Center
1996-09 → 1997-08 ended
JZS147 RHD —
58014-30030 Panel, Front Floor, Center
1993-03 → 1995-08 ended
JZS147 LHD —
58014-30031 Panel, Front Floor, Center
1995-08 → 1996-09 ended
JZS147 LHD —
58014-30032 Panel, Front Floor, Center
1996-09 → 1997-08 ended
JZS147 LHD —
58131A — Bracket, Front Floor Heat Insulator, NO.1
58131-24010 Bracket, Front Floor Heat Insulator, NO.1
1993-03 → 1997-08 ended
JZS147 —
58136 — Cover, Front Floor Hole
58136-30020 Cover, Front Floor Hole
1993-03 → 1997-08 ended
JZS147 —
58208 — Pan, Center Floor
58211-30901 Pan, Center Floor
1993-03 → 1997-08 ended
JZS147 —
58209A — Reinforcement Sub-assy, Drive Shaft Center Support
58209-50010 Reinforcement Sub-assy, Drive Shaft Center Support
1993-03 → 1997-08 ended
JZS147 —
58212C — Pan, Center Floor, Front
58202-30100 Pan, Center Floor, Front
1995-08 → 1997-08 ended
JZS147 —
58212-30050 Pan, Center Floor, Front
1993-03 → 1995-08 ended
JZS147 —
58265D — Bracket, Parking Brake Cable Guide, NO.2
58265-30040 Bracket, Parking Brake Cable Guide, NO.2
1993-03 → 1997-08 ended
JZS147 —
58266A — Bracket, Fuel Tube Clamp
58266-30070 Bracket, Fuel Tube Clamp
1993-03 → 1997-08 ended
JZS147 —
58269A — Bracket, Parking Brake Cable Guide, NO.3
58269-30120 Bracket, Parking Brake Cable Guide, NO.3
1993-03 → 1997-08 ended
JZS147 —
58285E — Cover, Center Floor Hole
58285-50010 Cover, Center Floor Hole
1993-03 → 1997-08 ended
JZS147 —
58307 — Panel Sub-assy, Body Lower Back
58307-30640 Panel Sub-assy, Body Lower Back
1993-03 → 1997-08 ended
JZS147 —
58311 — Pan, Rear Floor
58311-24020 Pan, Rear Floor
1993-03 → 1997-08 ended
JZS147 —
58313F — Extension, Rear Floor Pan TO Quarter Panel, RH
57603-30900 Extension, Rear Floor Pan TO Quarter Panel, RH
1993-03 → 1995-12 ended
JZS147 —
57603-30901 Extension, Rear Floor Pan TO Quarter Panel, RH
1995-08 → 1997-08 ended
JZS147 —
58314F — Extension, Rear Floor Pan TO Quarter Panel, LH
57604-30900 Extension, Rear Floor Pan TO Quarter Panel, LH
1993-03 → 1997-08 ended
JZS147 —
58349 — Cushion, Rear Floor Side
58349-30010 note Cushion, Rear Floor Side
1997-02 → 1997-05 ended
JZS147 RHD —
58349-30010 Cushion, Rear Floor Side
1995-08 → 1997-08 ended
JZS147 LHD —
58351A — Bracket, Spare Wheel Carrier
58351-50010 Bracket, Spare Wheel Carrier
1993-03 → 1997-08 ended
JZS147 —
58352A — Bracket, Rear Floor Stay
58352-24010 Bracket, Rear Floor Stay
1993-03 → 1997-08 ended
JZS147 —
58365A — Bracket, Fuel Tank Support, RH
58365-30040 Bracket, Fuel Tank Support, RH
1993-03 → 1997-08 ended
JZS147 —
58366A — Bracket, Fuel Tank Support, LH
58366-30040 Bracket, Fuel Tank Support, LH
1993-03 → 1997-08 ended
JZS147 —
64227 — Extension, Center Floor TO Brace
64227-30050 Extension, Center Floor TO Brace
1993-03 → 1997-08 ended
JZS147 —
64228 — Extension, Center Floor TO Brace, NO.2
64228-30030 Extension, Center Floor TO Brace, NO.2
1993-03 → 1997-08 ended
JZS147 —
64777F — Cushion, Spare Wheel
64777-24040 Cushion, Spare Wheel
1993-03 → 1997-08 ended
JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
