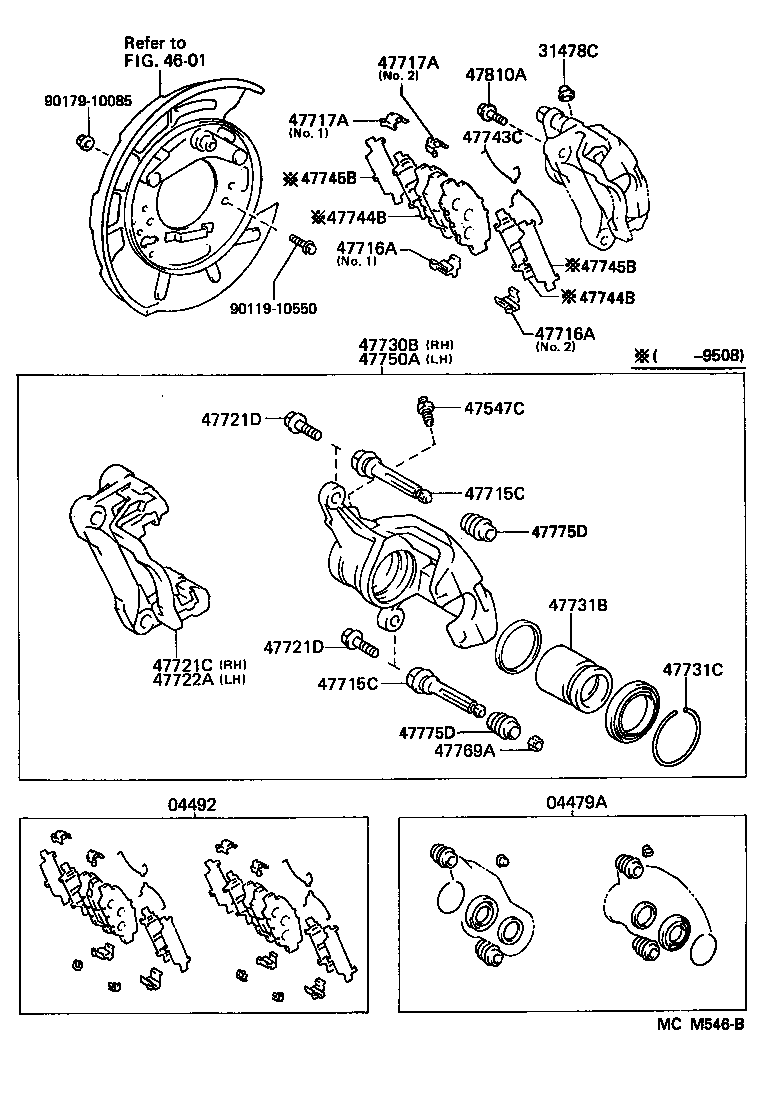

Exploded illustration MCM546B 31478C — CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) (1 parts) 4601 — not listed in this catalogue 47717A — PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) (4 parts) 47810A — BOLT, HEXAGON(FOR REAR CALIPER) (1 parts) 9017910085 — not listed in this catalogue 47717A — PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) (4 parts) 47743C — SPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE) (1 parts) 47745B — SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) (2 parts) 47744B — SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) (2 parts) 47716A — PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) (4 parts) 47745B — SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE) (2 parts) 47744B — SHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE) (2 parts) 9011910550 — not listed in this catalogue 47716A — PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) (4 parts) 47730B — CYLINDER ASSY, REAR DISC BRAKE, RH (3 parts) 47750A — CYLINDER ASSY, DISC BRAKE, REAR LH (3 parts) 47547C — PLUG, BLEEDER(FOR REAR DISC BRAKE) (1 parts) 47721D — BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) (1 parts) 47715C — PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) (6 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (3 parts) 47731B — PISTON, REAR DISC BRAKE (4 parts) 47721D — BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) (1 parts) 47721C — MOUNTING, REAR DISC BRAKE CYLINDER, RH (1 parts) 47731C — RING, SET(FOR REAR DISC BRAKE PISTON) (3 parts) 47722A — MOUNTING, REAR DISC BRAKE CYLINDER, LH (1 parts) 47715C — PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) (6 parts) 47775D — BOOT, BUSH DUST(FOR REAR DISC BRAKE) (3 parts) 47769A — BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) (1 parts) 04479A — CYLINDER KIT, DISC BRAKE, REAR (4 parts) 04492 — PAD KIT, DISC BRAKE, REAR (3 parts)
MCM546B · 27 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
04479A — Cylinder Kit, Disc Brake, Rear
04479-30140 Cylinder Kit, Disc Brake, Rear
1993-03 → 1995-03 ended
JZS147 —
04479-30141 Cylinder Kit, Disc Brake, Rear
1995-03 → 1995-08 ended
JZS147 —
04479-30141 Cylinder Kit, Disc Brake, Rear
1995-08 → 1997-08 ended
JZS147 EUR —
04479-30170 Cylinder Kit, Disc Brake, Rear
1995-08 → 1997-08 ended
JZS147 GCC —
04492 — Pad Kit, Disc Brake, Rear
04492-30160 Pad Kit, Disc Brake, Rear
1993-08 → 1993-10 ended
JZS147 EUR —
04492-30161 Pad Kit, Disc Brake, Rear
1993-10 → 1995-05 ended
JZS147 EUR —
04492-50040 Pad Kit, Disc Brake, Rear
1993-03 → 1995-05 ended
JZS147 GCC —
31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE)
31478-30010 Cap, Bleeder Plug(FOR REAR DISC BRAKE)
1993-03 → 1997-08 ended
JZS147 —
47547C — Plug, Bleeder(FOR REAR DISC BRAKE)
47547-27030 Plug, Bleeder(FOR REAR DISC BRAKE)
1993-03 → 1997-08 ended
JZS147 —
47715C — Pin, Cylinder Slide(FOR REAR DISC BRAKE)
47715-22070 note Pin, Cylinder Slide(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 GCC —
47715-22080 note Pin, Cylinder Slide(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 GCC —
47715-50010 note Pin, Cylinder Slide(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 EUR —
47715-50010 note Pin, Cylinder Slide(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47715-50030 note Pin, Cylinder Slide(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47715-50030 note Pin, Cylinder Slide(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 EUR —
47716A — Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
47716-30200 note Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 —
47716-30210 note Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 —
47716-50020 note Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47716-50040 note Plate, Pad Support, NO.1(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47717A — Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
47717-30090 note Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 —
47717-30100 note Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 —
47717-50020 note Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47717-50040 note Plate, Pad Support, NO.2(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47721C — Mounting, Rear Disc Brake Cylinder, RH
47721-24060 Mounting, Rear Disc Brake Cylinder, RH
1993-03 → 1997-08 ended
JZS147 —
47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164 note Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
1993-03 → 1997-08 ended
JZS147 —
47722A — Mounting, Rear Disc Brake Cylinder, LH
47722-24060 Mounting, Rear Disc Brake Cylinder, LH
1993-03 → 1997-08 ended
JZS147 —
47730B — Cylinder Assy, Rear Disc Brake, RH
47730-30270 Cylinder Assy, Rear Disc Brake, RH
1993-03 → 1995-08 ended
JZS147 —
47730-30270 Cylinder Assy, Rear Disc Brake, RH
1995-08 → 1997-08 ended
JZS147 EUR —
47730-30380 Cylinder Assy, Rear Disc Brake, RH
1995-08 → 1997-08 ended
JZS147 GCC —
47731B — Piston, Rear Disc Brake
47731-30150 Piston, Rear Disc Brake
1995-09 → 1997-08 ended
JZS147 GCC —
47731-50040 Piston, Rear Disc Brake
1993-03 → 1995-08 ended
JZS147 —
47731-50040 Piston, Rear Disc Brake
1995-08 → 1997-08 ended
JZS147 EUR —
47731-50050 Piston, Rear Disc Brake
1995-08 → 1995-09 ended
JZS147 GCC —
47731C — Ring, Set(FOR REAR DISC BRAKE PISTON)
90520-52006 Ring, Set(FOR REAR DISC BRAKE PISTON)
1995-09 → 1997-08 ended
JZS147 GCC —
90522-50002 Ring, Set(FOR REAR DISC BRAKE PISTON)
1993-03 → 1995-09 ended
JZS147 —
90522-50002 Ring, Set(FOR REAR DISC BRAKE PISTON)
1995-09 → 1997-08 ended
JZS147 EUR —
47743C — Spring, Anti-squeal(FOR REAR DISC BRAKE)
47743-50020 Spring, Anti-squeal(FOR REAR DISC BRAKE)
1993-03 → 1997-08 ended
JZS147 —
47744B — Shim, Anti-squeal(FOR REAR DISC BRAKE)
47744-24020 Shim, Anti-squeal(FOR REAR DISC BRAKE)
1993-03 → 1995-08 ended
JZS147 —
47744-24020 Shim, Anti-squeal(FOR REAR DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 EUR —
47745B — Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
47745-24020 Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
1993-03 → 1995-08 ended
JZS147 —
47745-24020 Shim, Anti-squeal, NO.2(FOR REAR DISC BRAKE)
1995-08 → 1997-08 ended
JZS147 EUR —
47750A — Cylinder Assy, Disc Brake, Rear LH
47750-30270 Cylinder Assy, Disc Brake, Rear LH
1993-03 → 1995-08 ended
JZS147 —
47750-30270 Cylinder Assy, Disc Brake, Rear LH
1995-08 → 1997-08 ended
JZS147 EUR —
47750-30380 Cylinder Assy, Disc Brake, Rear LH
1995-08 → 1997-08 ended
JZS147 GCC —
47769A — Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47769-50010 Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
1993-03 → 1997-08 ended
JZS147 —
47775D — Boot, Bush Dust(FOR REAR DISC BRAKE)
47775-30070 Boot, Bush Dust(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 GCC —
47775-50010 Boot, Bush Dust(FOR REAR DISC BRAKE)
1993-03 → 1995-09 ended
JZS147 —
47775-50010 Boot, Bush Dust(FOR REAR DISC BRAKE)
1995-09 → 1997-08 ended
JZS147 EUR —
47810A — Bolt, Hexagon(FOR REAR CALIPER)
90105-12174 Bolt, Hexagon(FOR REAR CALIPER)
1993-03 → 1997-08 ended
JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
