Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

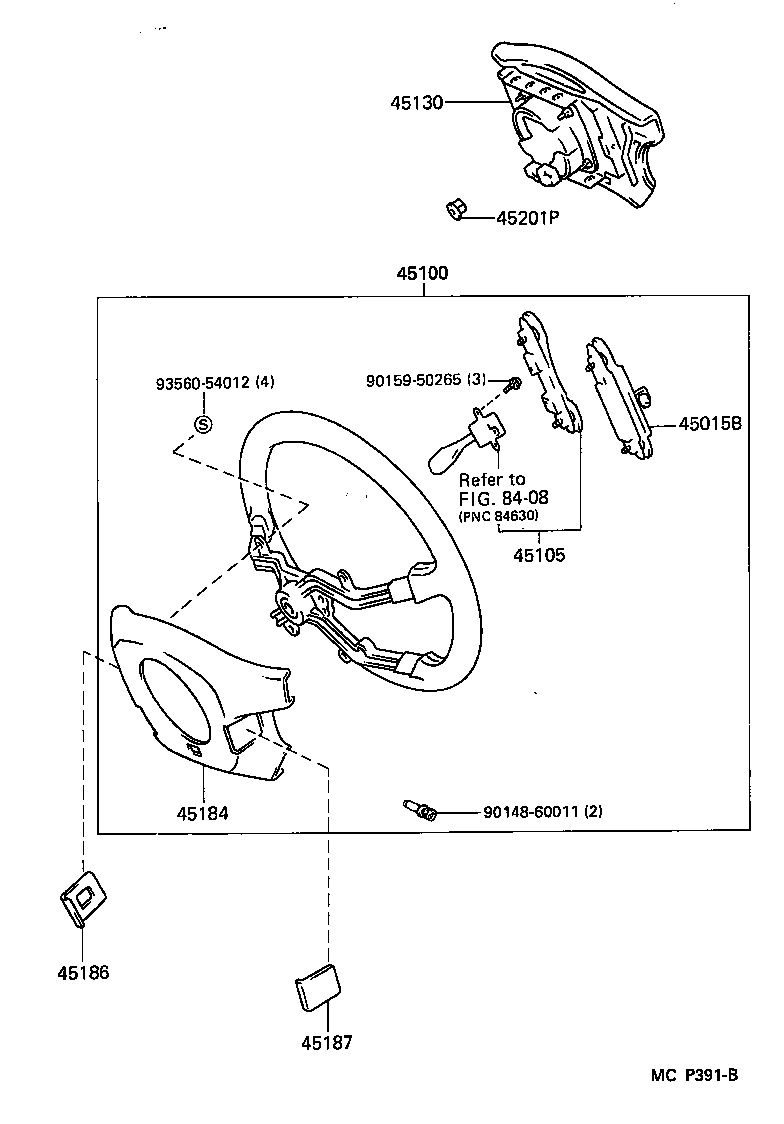

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45015B — Plate Sub-assy, Horn Button Contact, NO.2 | ||||
| 45015-30030 |
Plate Sub-assy, Horn Button Contact, NO.2
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45100 — Wheel Assy, Steering | ||||
| 45100-30630-B0 note |
Wheel Assy, Steering
1993-03 → 1994-08
ended
|
JZS147 | — | |
| 45100-30630-E0 note |
Wheel Assy, Steering
1993-03 → 1994-08
ended
|
JZS147 | — | |
| 45100-30630-G0 note |
Wheel Assy, Steering
1993-03 → 1994-08
ended
|
JZS147 | — | |
| 45100-30670-B0 note |
Wheel Assy, Steering
1994-08 → 1995-08
ended
|
JZS147 | — | |
| 45100-30670-E0 note |
Wheel Assy, Steering
1994-08 → 1995-08
ended
|
JZS147 | — | |
| 45100-30670-G0 note |
Wheel Assy, Steering
1994-08 → 1995-08
ended
|
JZS147 | — | |
| 45100-30671-B0 note |
Wheel Assy, Steering
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45100-30671-E0 note |
Wheel Assy, Steering
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45100-30671-G0 note |
Wheel Assy, Steering
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45105 — Plate Sub-assy, Horn Button Contact, NO.1 | ||||
| 45105-30210 |
Plate Sub-assy, Horn Button Contact, NO.1
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45130 — Button Assy, Horn | ||||
| 45130-30450-B0 note |
Button Assy, Horn
1993-03 → 1994-04
ended
|
JZS147 GCC | — | |
| 45130-30450-B0 note |
Button Assy, Horn
1994-04 → 1995-08
ended
|
JZS147 | — | |
| 45130-30450-E0 note |
Button Assy, Horn
1994-04 → 1995-08
ended
|
JZS147 | — | |
| 45130-30450-E0 note |
Button Assy, Horn
1993-03 → 1994-04
ended
|
JZS147 GCC | — | |
| 45130-30450-G0 note |
Button Assy, Horn
1993-03 → 1994-04
ended
|
JZS147 GCC | — | |
| 45130-30450-G0 note |
Button Assy, Horn
1994-04 → 1995-08
ended
|
JZS147 | — | |
| 45130-30451-B0 note |
Button Assy, Horn
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45130-30451-E0 note |
Button Assy, Horn
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45130-30451-G0 note |
Button Assy, Horn
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45130-30460-B0 note |
Button Assy, Horn
1993-08 → 1994-04
ended
|
JZS147 EUR | — | |
| 45130-30460-E0 note |
Button Assy, Horn
1993-08 → 1994-04
ended
|
JZS147 EUR | — | |
| 45130-30460-G0 note |
Button Assy, Horn
1993-08 → 1994-04
ended
|
JZS147 EUR | — | |
| 45184 — Cover, Steering Wheel Boss, Lower | ||||
| 45184-30240-B0 note |
Cover, Steering Wheel Boss, Lower
1993-03 → 1995-08
ended
|
JZS147 | — | |
| 45184-30240-E0 note |
Cover, Steering Wheel Boss, Lower
1993-03 → 1995-08
ended
|
JZS147 | — | |
| 45184-30240-G0 note |
Cover, Steering Wheel Boss, Lower
1993-03 → 1995-08
ended
|
JZS147 | — | |
| 45184-30241-B0 note |
Cover, Steering Wheel Boss, Lower
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45184-30241-E0 note |
Cover, Steering Wheel Boss, Lower
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45184-30241-G0 note |
Cover, Steering Wheel Boss, Lower
1995-08 → 1997-08
ended
|
JZS147 | — | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-30020-B0 note |
Cover, Steering Wheel, Lower NO.2
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45186-30020-E0 note |
Cover, Steering Wheel, Lower NO.2
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45186-30020-G0 note |
Cover, Steering Wheel, Lower NO.2
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-30020-B0 note |
Cover, Steering Wheel, Lower NO.3
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45187-30020-E0 note |
Cover, Steering Wheel, Lower NO.3
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45187-30020-G0 note |
Cover, Steering Wheel, Lower NO.3
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 45201P — Nut, Steering Wheel Set | ||||
| 90179-12071 |
Nut, Steering Wheel Set
1993-06 → 1997-08
ended
|
JZS147 | — | |
| 90179-12086 |
Nut, Steering Wheel Set
1993-03 → 1993-06
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
