Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

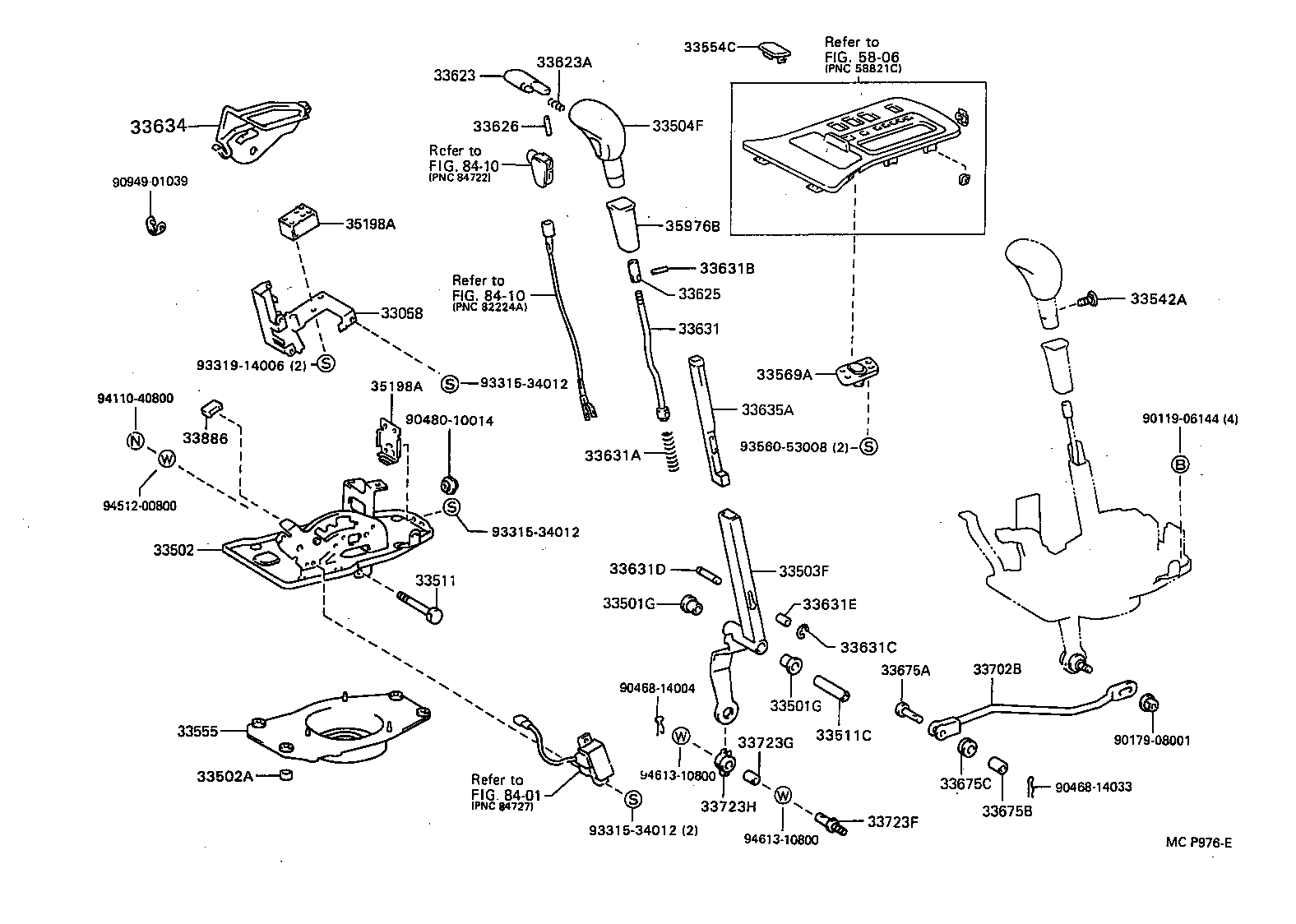

Exploded illustration MCP976E 33554C — COVER, SHIFT LOCK RELEASE BUTTON (1 parts) 5806 — not listed in this catalogue 33623A — SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) (1 parts) 33623 — BUTTON, SHIFT LEVER KNOB (8 parts) 33634 — PROTECTOR, WIRE (2 parts) 33504F — KNOB SUB-ASSY, SHIFT LEVER (10 parts) 33626 — STOPPER, SHIFT LEVER BUTTON (1 parts) 8410 — not listed in this catalogue 9094901039 — not listed in this catalogue 35198A — BRACKET, WIRE HARNESS CLAMP, NO.4 (2 parts) 35976B — COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) (3 parts) 33631B — PIN, SLOTTED SPRING (FOR DETENT ROD) (1 parts) 33625 — SLEEVE, SHIFT LEVER KNOB (1 parts) 8410 — not listed in this catalogue 33542A — SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) (1 parts) 33058 — BRACKET SUB-ASSY, SHIFT LOCK SOLENOID (2 parts) 33631 — ROD, DETENT (2 parts) 9331914006 — not listed in this catalogue 33569A — GUIDE, SHIFT LOCK RELEASE BUTTON (1 parts) 9331534012 — not listed in this catalogue 35198A — BRACKET, WIRE HARNESS CLAMP, NO.4 (2 parts) 9411040800 — not listed in this catalogue 33635A — GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) (2 parts) 9011906144 — not listed in this catalogue 9048010014 — not listed in this catalogue 33886 — STOPPER, SHIFT LEVER (1 parts) 9356053008 — not listed in this catalogue 33631A — SPRING, COMPRESSION (FOR DETENT ROD) (1 parts) 9451200800 — not listed in this catalogue 9331534012 — not listed in this catalogue 33502 — PLATE SUB-ASSY, SHIFT LEVER (2 parts) 33631D — PIN, GROOVED (FOR DETENT ROD) (1 parts) 33503F — LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) (2 parts) 33511 — SHAFT, CONTROL (FOR FLOOR SHIFT) (1 parts) 33501G — BUSH (FOR FLOOR SHIFT CONTROL SHAFT) (1 parts) 33631E — ROLLER (FOR DETENT ROD) (1 parts) 33631C — RING, E (FOR DETENT ROD) (1 parts) 33702B — ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) (2 parts) 33675A — PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) (1 parts) 9046814004 — not listed in this catalogue 33501G — BUSH (FOR FLOOR SHIFT CONTROL SHAFT) (1 parts) 33555 — BOOT, SHIFT LEVER (4 parts) 33511C — COLLAR (FOR CONTROL SHAFT) (1 parts) 9017908001 — not listed in this catalogue 33723G — BUSH (FOR FLOOR SHIFT CONTROL SHAFT) (1 parts) 9461310800 — not listed in this catalogue 33502A — COLLAR (FOR FLOOR SHIFT SETTING) (1 parts) 33675C — GROMMET (FOR TRANSMISSION CONTROL ROD) (1 parts) 9046814033 — not listed in this catalogue 8401 — not listed in this catalogue 33723H — GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) (1 parts) 33675B — BUSH (FOR TRANSMISSION CONTROL ROD) (1 parts) 33723F — SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) (1 parts) 9331534012 — not listed in this catalogue 9461310800 — not listed in this catalogue
MCP976E · 36 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
33058 — Bracket Sub-assy, Shift Lock Solenoid
33581-30020 Bracket Sub-assy, Shift Lock Solenoid
1993-08 → 1997-08 ended
JZS147 RHD —
33581-30050 Bracket Sub-assy, Shift Lock Solenoid
1993-03 → 1997-08 ended
JZS147 LHD —
33501G — Bush (FOR FLOOR SHIFT CONTROL SHAFT)
90385-11020 Bush (FOR FLOOR SHIFT CONTROL SHAFT)
1993-03 → 1997-08 ended
JZS147 —
33502 — Plate Sub-assy, Shift Lever
33502-30280 Plate Sub-assy, Shift Lever
1993-08 → 1997-08 ended
JZS147 RHD —
33502-30330 Plate Sub-assy, Shift Lever
1993-03 → 1997-08 ended
JZS147 LHD —
33502A — Collar (FOR FLOOR SHIFT SETTING)
90387-06061 note Collar (FOR FLOOR SHIFT SETTING)
1993-03 → 1997-08 ended
JZS147 —
33503F — Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33055-30010 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1993-08 → 1997-08 ended
JZS147 RHD —
33055-30060 Lever Sub-assy, Shift(FOR FLOOR SHIFT)
1993-03 → 1997-08 ended
JZS147 LHD —
33504F — Knob Sub-assy, Shift Lever
33542-30230-B0 note Knob Sub-assy, Shift Lever
1993-08 → 1997-08 ended
JZS147 RHD —
33542-30230-E1 note Knob Sub-assy, Shift Lever
1993-08 → 1997-08 ended
JZS147 RHD —
33542-30230-G0 note Knob Sub-assy, Shift Lever
1993-08 → 1995-08 ended
JZS147 RHD —
33542-30230-G2 note Knob Sub-assy, Shift Lever
1995-08 → 1997-08 ended
JZS147 RHD —
33542-30250-B0 note Knob Sub-assy, Shift Lever
1993-03 → 1995-08 ended
JZS147 LHD —
33542-30250-B1 note Knob Sub-assy, Shift Lever
1995-08 → 1997-08 ended
JZS147 LHD —
33542-30250-E0 note Knob Sub-assy, Shift Lever
1993-03 → 1995-08 ended
JZS147 LHD —
33542-30250-E2 note Knob Sub-assy, Shift Lever
1995-08 → 1997-08 ended
JZS147 LHD —
33542-30250-G0 note Knob Sub-assy, Shift Lever
1993-03 → 1995-08 ended
JZS147 LHD —
33542-30250-G1 note Knob Sub-assy, Shift Lever
1995-08 → 1997-08 ended
JZS147 LHD —
33511 — Shaft, Control (FOR FLOOR SHIFT)
33511-50010 Shaft, Control (FOR FLOOR SHIFT)
1993-03 → 1997-08 ended
JZS147 —
33511C — Collar (FOR CONTROL SHAFT)
90387-08098 Collar (FOR CONTROL SHAFT)
1993-03 → 1997-08 ended
JZS147 —
33542A — Screw, W/Washer(FOR SPRING BACK SHIFT LEVER KNOB)
90159-50312 Screw, W/Washer(FOR SPRING BACK SHIFT LEVER KNOB)
1993-03 → 1997-08 ended
JZS147 —
33554C — Cover, Shift Lock Release Button
33554-30020 Cover, Shift Lock Release Button
1993-03 → 1997-08 ended
JZS147 LHD —
33555 — Boot, Shift Lever
33555-30180 Boot, Shift Lever
1993-08 → 1995-08 ended
JZS147 RHD —
33555-30210 Boot, Shift Lever
1993-03 → 1995-08 ended
JZS147 LHD —
33555-30280 Boot, Shift Lever
1995-08 → 1997-08 ended
JZS147 RHD —
33555-30290 Boot, Shift Lever
1995-08 → 1997-08 ended
JZS147 LHD —
33569A — Guide, Shift Lock Release Button
33569-24020 Guide, Shift Lock Release Button
1993-03 → 1997-08 ended
JZS147 LHD —
33623 — Button, Shift Lever Knob
33623-30110-B0 note Button, Shift Lever Knob
1993-08 → 1997-08 ended
JZS147 RHD —
33623-30110-E0 note Button, Shift Lever Knob
1993-08 → 1994-08 ended
JZS147 RHD —
33623-30110-E1 note Button, Shift Lever Knob
1994-08 → 1997-08 ended
JZS147 RHD —
33623-30110-G0 note Button, Shift Lever Knob
1993-08 → 1997-08 ended
JZS147 RHD —
33623-30120-B0 note Button, Shift Lever Knob
1993-03 → 1997-08 ended
JZS147 LHD —
33623-30120-E0 note Button, Shift Lever Knob
1995-08 → 1997-08 ended
JZS147 LHD —
33623-30120-E1 note Button, Shift Lever Knob
1993-03 → 1995-08 ended
JZS147 LHD —
33623-30120-G0 note Button, Shift Lever Knob
1993-03 → 1997-08 ended
JZS147 LHD —
33623A — Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
90501-07009 Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
1993-03 → 1997-08 ended
JZS147 —
33625 — Sleeve, Shift Lever Knob
33625-30030 Sleeve, Shift Lever Knob
1993-03 → 1997-08 ended
JZS147 —
33626 — Stopper, Shift Lever Button
90256-02004 Stopper, Shift Lever Button
1993-03 → 1997-08 ended
JZS147 —
33631 — Rod, Detent
33631-30110 Rod, Detent
1993-03 → 1997-08 ended
JZS147 LHD —
33631-30120 Rod, Detent
1993-08 → 1997-08 ended
JZS147 RHD —
33631A — Spring, Compression (FOR DETENT ROD)
90501-07082 Spring, Compression (FOR DETENT ROD)
1993-03 → 1997-08 ended
JZS147 —
33631B — Pin, Slotted Spring (FOR DETENT ROD)
90256-02003 Pin, Slotted Spring (FOR DETENT ROD)
1993-03 → 1997-08 ended
JZS147 —
33631C — Ring, E (FOR DETENT ROD)
96160-00300 Ring, E (FOR DETENT ROD)
1993-03 → 1997-08 ended
JZS147 —
33631D — Pin, Grooved (FOR DETENT ROD)
90256-04010 Pin, Grooved (FOR DETENT ROD)
1993-03 → 1997-08 ended
JZS147 —
33631E — Roller (FOR DETENT ROD)
90361-06009 note Roller (FOR DETENT ROD)
1993-03 → 1997-08 ended
JZS147 —
33634 — Protector, Wire
33634-30020 Protector, Wire
1993-08 → 1997-08 ended
JZS147 RHD —
33634-30040 Protector, Wire
1993-03 → 1997-08 ended
JZS147 LHD —
33635A — Guide, Wire, NO.1 (FOR SHIFT LEVER)
33635-30060 Guide, Wire, NO.1 (FOR SHIFT LEVER)
1993-08 → 1997-08 ended
JZS147 RHD —
33635-30090 Guide, Wire, NO.1 (FOR SHIFT LEVER)
1993-03 → 1997-08 ended
JZS147 LHD —
33675A — Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33726-35010 Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
1993-03 → 1997-08 ended
JZS147 —
33675B — Bush (FOR TRANSMISSION CONTROL ROD)
90389-08005 Bush (FOR TRANSMISSION CONTROL ROD)
1993-03 → 1997-08 ended
JZS147 —
33675C — Grommet (FOR TRANSMISSION CONTROL ROD)
90480-17023 Grommet (FOR TRANSMISSION CONTROL ROD)
1993-03 → 1997-08 ended
JZS147 —
33702B — Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33702-30270 Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
1993-03 → 1995-08 ended
JZS147 —
33702-30440 Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
1995-08 → 1997-08 ended
JZS147 —
33723F — Swivel, Connecting Rod (FOR FLOOR SHIFT)
33723-30070 Swivel, Connecting Rod (FOR FLOOR SHIFT)
1993-03 → 1997-08 ended
JZS147 —
33723G — Bush (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005 Bush (FOR FLOOR SHIFT CONTROL SHAFT)
1993-03 → 1997-08 ended
JZS147 —
33723H — Grommet (FOR FLOOR SHIFT CONTROL SHAFT)
33572-30040 Grommet (FOR FLOOR SHIFT CONTROL SHAFT)
1993-03 → 1997-08 ended
JZS147 —
33886 — Stopper, Shift Lever
33886-22010 Stopper, Shift Lever
1993-03 → 1997-08 ended
JZS147 —
35198A — Bracket, Wire Harness Clamp, NO.4
35198-30020 note Bracket, Wire Harness Clamp, NO.4
1993-03 → 1997-08 ended
JZS147 —
35198-30100 note Bracket, Wire Harness Clamp, NO.4
1993-03 → 1997-08 ended
JZS147 —
35976B — Cover, Shift Lever Knob (FOR FLOOR SHIFT)
35976-30030-B0 note Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1993-03 → 1997-08 ended
JZS147 —
35976-30030-E0 note Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1993-03 → 1997-08 ended
JZS147 —
35976-30030-G0 note Cover, Shift Lever Knob (FOR FLOOR SHIFT)
1993-03 → 1997-08 ended
JZS147 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
