Toyota Lexus GS300

1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General

Discontinued model Data version 1997-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

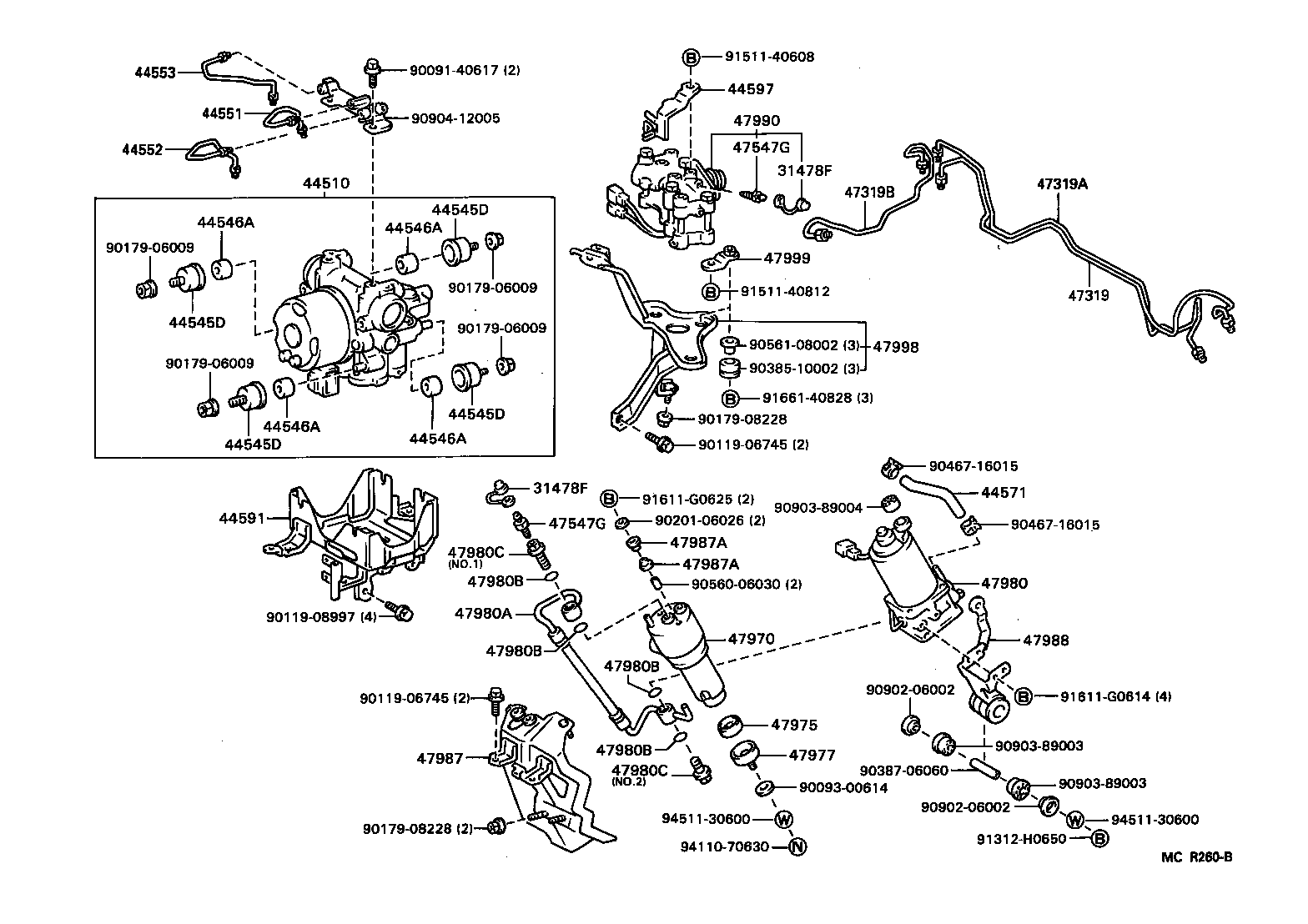

Exploded illustration MCR260B 9151140608 — not listed in this catalogue 9009140617 — not listed in this catalogue 44553 — TUBE, BRAKE ACTUATOR, NO.3 (1 parts) 44597 — CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 (1 parts) 44551 — TUBE, BRAKE ACTUATOR, NO.1 (1 parts) 9090412005 — not listed in this catalogue 47990 — ACTUATOR ASSY, BRAKE TRACTION (1 parts) 47547G — PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) (1 parts) 44552 — TUBE, BRAKE ACTUATOR, NO.2 (1 parts) 31478F — CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) (1 parts) 44510 — ACTUATOR ASSY, BRAKE (3 parts) 47319A — TUBE, FRONT BRAKE, NO.10 (1 parts) 47319B — TUBE, FRONT BRAKE, NO.11 (1 parts) 44545D — HOLDER, BRAKE ACTUATOR BOLT (3 parts) 44546A — CUSHION, BRAKE ACTUATOR BOLT (3 parts) 44546A — CUSHION, BRAKE ACTUATOR BOLT (3 parts) 9017906009 — not listed in this catalogue 47999 — BRACKET, BRAKE TRACTION ACTUATOR, NO.2 (1 parts) 9017906009 — not listed in this catalogue 9151140812 — not listed in this catalogue 47319 — TUBE, FRONT BRAKE, NO.9 (1 parts) 44545D — HOLDER, BRAKE ACTUATOR BOLT (3 parts) 9017906009 — not listed in this catalogue 9056108002 — not listed in this catalogue 47998 — BRACKET, BRAKE TRACTION ACTUATOR, NO.1 (1 parts) 9017906009 — not listed in this catalogue 9038510002 — not listed in this catalogue 9166140828 — not listed in this catalogue 44545D — HOLDER, BRAKE ACTUATOR BOLT (3 parts) 9017908228 — not listed in this catalogue 44546A — CUSHION, BRAKE ACTUATOR BOLT (3 parts) 44546A — CUSHION, BRAKE ACTUATOR BOLT (3 parts) 44545D — HOLDER, BRAKE ACTUATOR BOLT (3 parts) 9011906745 — not listed in this catalogue 9046716015 — not listed in this catalogue 31478F — CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) (1 parts) 44571 — HOSE, BRAKE ACTUATOR (1 parts) 91611G0625 — not listed in this catalogue 9090389004 — not listed in this catalogue 44591 — BRACKET, BRAKE ACTUATOR, NO.1 (3 parts) 47547G — PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) (1 parts) 9020106026 — not listed in this catalogue 9046716015 — not listed in this catalogue 47987A — BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) (1 parts) 47980C — BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) (2 parts) 47987A — BUSH, NO.1(FOR BRAKE TRACTION PUMP BRACKET) (1 parts) 47980B — RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) (1 parts) 47980 — PUMP ASSY, BRAKE TRACTION (1 parts) 9056006030 — not listed in this catalogue 47980A — HOSE, PRESSURE(FOR BRAKE TRACTION PUMP) (1 parts) 9011908997 — not listed in this catalogue 47970 — ACCUMULATOR ASSY, BRAKE TRACTION (2 parts) 47988 — BRACKET, BRAKE TRACTION PUMP, NO.2 (1 parts) 47980B — RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) (1 parts) 47980B — RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) (1 parts) 9090206002 — not listed in this catalogue 91611G0614 — not listed in this catalogue 9011906745 — not listed in this catalogue 47975 — BUSH, BRAKE TRACTION ACCUMULATOR (1 parts) 9090389003 — not listed in this catalogue 47980B — RING, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE) (1 parts) 47977 — BRACKET, BRAKE TRACTION ACCUMULATOR, NO.1 (1 parts) 47987 — BRACKET, BRAKE TRACTION PUMP, NO.1 (1 parts) 47980C — BOLT, UNION(FOR BRAKE TRACTION PUMP PRESSURE HOSE) (2 parts) 9038706060 — not listed in this catalogue 9090389003 — not listed in this catalogue 9009300614 — not listed in this catalogue 9090206002 — not listed in this catalogue 9451130600 — not listed in this catalogue 9451130600 — not listed in this catalogue 9017908228 — not listed in this catalogue 91312H0650 — not listed in this catalogue 9411070630 — not listed in this catalogue
MCR260B · 40 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
31478F — Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
31478-50010 Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44510 — Actuator Assy, Brake
44510-30091 Actuator Assy, Brake
1993-03 → 1997-08 ended
JZS147 RHD;JZS147 GCC —
44510-30091 note Actuator Assy, Brake
1995-08 → 1997-08 ended
JZS147 LHD EUR —
44510-30120 Actuator Assy, Brake
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44545D — Holder, Brake Actuator Bolt
44545-33010 Holder, Brake Actuator Bolt
1993-03 → 1997-08 ended
JZS147 RHD;JZS147 GCC —
44545-33010 Holder, Brake Actuator Bolt
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44545-33010 note Holder, Brake Actuator Bolt
1995-08 → 1997-08 ended
JZS147 LHD EUR —
44546A — Cushion, Brake Actuator Bolt
44546-33010 Cushion, Brake Actuator Bolt
1993-03 → 1997-08 ended
JZS147 RHD;JZS147 GCC —
44546-33010 Cushion, Brake Actuator Bolt
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44546-33010 note Cushion, Brake Actuator Bolt
1995-08 → 1997-08 ended
JZS147 LHD EUR —
44551 — Tube, Brake Actuator, NO.1
44551-30030 Tube, Brake Actuator, NO.1
1993-03 → 1997-08 ended
JZS147 —
44552 — Tube, Brake Actuator, NO.2
44552-30041 Tube, Brake Actuator, NO.2
1993-03 → 1997-08 ended
JZS147 —
44553 — Tube, Brake Actuator, NO.3
44553-30020 Tube, Brake Actuator, NO.3
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44571 — Hose, Brake Actuator
44571-30020 Hose, Brake Actuator
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44591 — Bracket, Brake Actuator, NO.1
44591-30070 Bracket, Brake Actuator, NO.1
1993-03 → 1997-08 ended
JZS147 RHD;JZS147 GCC —
44591-30070 note Bracket, Brake Actuator, NO.1
1995-08 → 1997-08 ended
JZS147 LHD EUR —
44591-30100 Bracket, Brake Actuator, NO.1
1993-08 → 1997-08 ended
JZS147 LHD EUR —
44597 — Clamp, Brake Actuator Connector, NO.1
44597-30050 Clamp, Brake Actuator Connector, NO.1
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47319 — Tube, Front Brake, NO.9
44551-30060 Tube, Front Brake, NO.9
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47319A — Tube, Front Brake, NO.10
44553-30030 Tube, Front Brake, NO.10
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47319B — Tube, Front Brake, NO.11
44552-30050 Tube, Front Brake, NO.11
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47547G — Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47547-27030 Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47970 — Accumulator Assy, Brake Traction
47970-30010 Accumulator Assy, Brake Traction
1993-08 → 1995-06 ended
JZS147 LHD EUR —
47970-30011 Accumulator Assy, Brake Traction
1995-06 → 1997-08 ended
JZS147 LHD EUR —
47975 — Bush, Brake Traction Accumulator
47975-50010 Bush, Brake Traction Accumulator
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47977 — Bracket, Brake Traction Accumulator, NO.1
47977-24010 Bracket, Brake Traction Accumulator, NO.1
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47980 — Pump Assy, Brake Traction
47980-30010 Pump Assy, Brake Traction
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47980A — Hose, Pressure(FOR BRAKE TRACTION PUMP)
90947-06009 Hose, Pressure(FOR BRAKE TRACTION PUMP)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47980B — Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
90301-13011 Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47980C — Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
90401-10039 note Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
90401-10041 note Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47987 — Bracket, Brake Traction Pump, NO.1
47987-30010 Bracket, Brake Traction Pump, NO.1
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47987A — Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
90385-08011 Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47988 — Bracket, Brake Traction Pump, NO.2
47988-30010 Bracket, Brake Traction Pump, NO.2
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47990 — Actuator Assy, Brake Traction
47990-30040 Actuator Assy, Brake Traction
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47998 — Bracket, Brake Traction Actuator, NO.1
47998-30010 Bracket, Brake Traction Actuator, NO.1
1993-08 → 1997-08 ended
JZS147 LHD EUR —
47999 — Bracket, Brake Traction Actuator, NO.2
47999-30030 Bracket, Brake Traction Actuator, NO.2
1993-08 → 1997-08 ended
JZS147 LHD EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
