Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

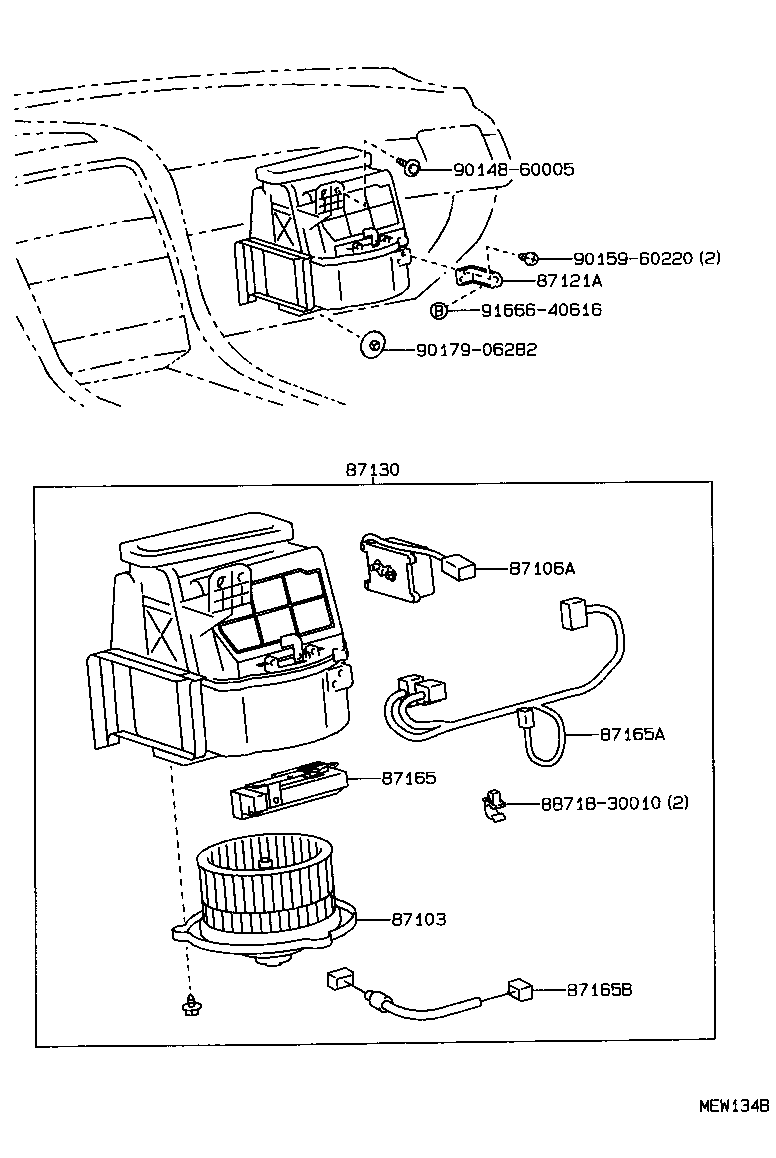

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87103 — Motor Sub-assy, Heater Blower, W/Fan | ||||
| 87103-30310 |
Motor Sub-assy, Heater Blower, W/Fan
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87103-30330 |
Motor Sub-assy, Heater Blower, W/Fan
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87106A — Servo Sub-assy, Damper | ||||
| 87106-30170 note |
Servo Sub-assy, Damper
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87106-30180 note |
Servo Sub-assy, Damper
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87106-30190 note |
Servo Sub-assy, Damper
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87106-30200 note |
Servo Sub-assy, Damper
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87106-30270 note |
Servo Sub-assy, Damper
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87106-30280 note |
Servo Sub-assy, Damper
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87106-30290 note |
Servo Sub-assy, Damper
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87106-30300 note |
Servo Sub-assy, Damper
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87121A — Bracket, Heater | ||||
| 87121-30030 |
Bracket, Heater
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87121-30050 |
Bracket, Heater
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87130 — Blower Assy, Heater, Front | ||||
| 87130-30500 |
Blower Assy, Heater, Front
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87130-30560 |
Blower Assy, Heater, Front
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87165 — Control, Blower Motor, NO.1 | ||||
| 87165-30010 |
Control, Blower Motor, NO.1
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87165-30090 |
Control, Blower Motor, NO.1
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87165A — Control, Blower Motor, NO.2 | ||||
| 87165-30050 |
Control, Blower Motor, NO.2
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 87165-30070 |
Control, Blower Motor, NO.2
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 87165B — Control, Blower Motor, NO.3 | ||||
| 87165-30060 |
Control, Blower Motor, NO.3
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
