Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

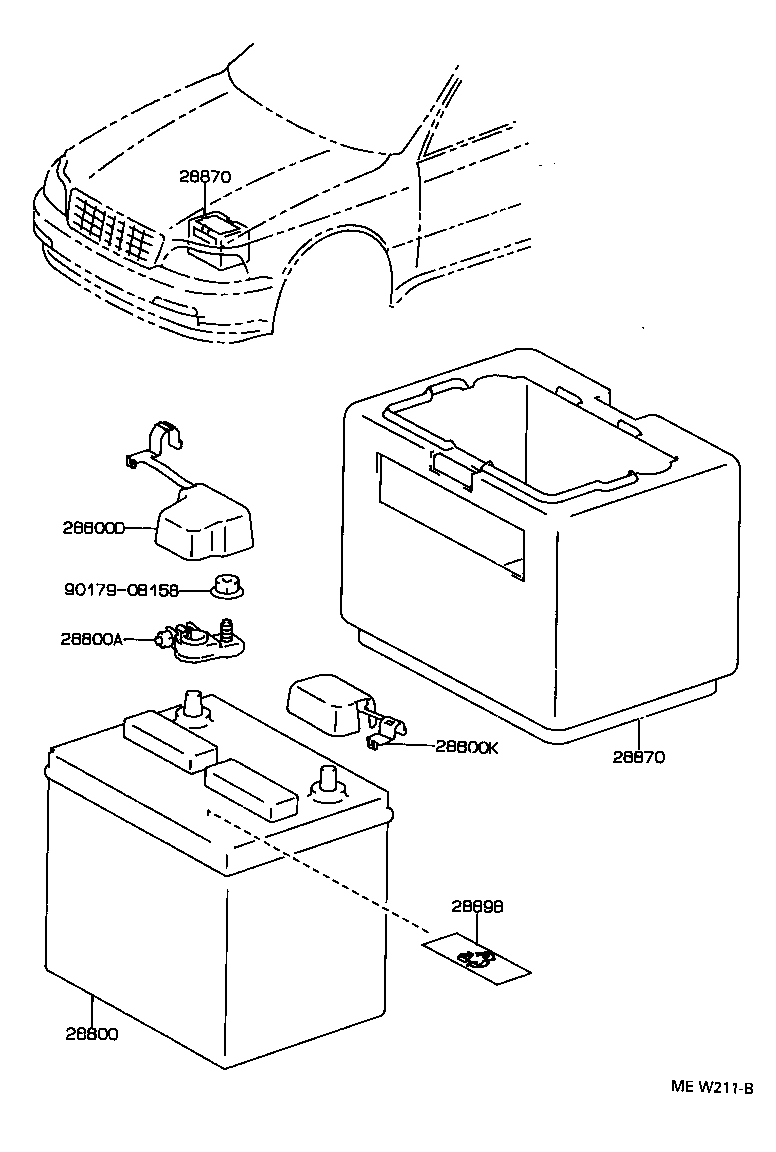

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800 — Battery | ||||
| 28800-64130 note |
Battery
1993-03 → 1997-08
ended
|
2JZGE JZS147 | — | |
| 28800A — Terminal, Battery Positive | ||||
| 90982-05044 |
Terminal, Battery Positive
1993-03 → 1997-08
ended
|
2JZGE JZS147 | — | |
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82821-30270 |
Cover, Connector(FOR BATTERY TERMINAL)
1993-03 → 1997-08
ended
|
2JZGE JZS147 | — | |
| 28800K — Cover, Connector(FOR BATTERY TERMINAL NEGATIVE) | ||||
| 82821-30280 |
Cover, Connector(FOR BATTERY TERMINAL NEGATIVE)
1993-03 → 1997-08
ended
|
2JZGE JZS147 | — | |
| 28870 — Insulator Assy, Battery | ||||
| 28870-46020 |
Insulator Assy, Battery
1993-03 → 1993-10
ended
|
2JZGE JZS147 | — | |
| 28870-46060 |
Insulator Assy, Battery
1993-10 → 1997-08
ended
|
2JZGE JZS147 | — | |
| 28898 — Plate, Battery | ||||
| 28898-46010 note |
Plate, Battery
1994-03 → 1997-08
ended
|
2JZGE JZS147 LHD EUR | — | |
| 28898-50070 note |
Plate, Battery
1993-08 → 1994-03
ended
|
2JZGE JZS147 LHD EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
