Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

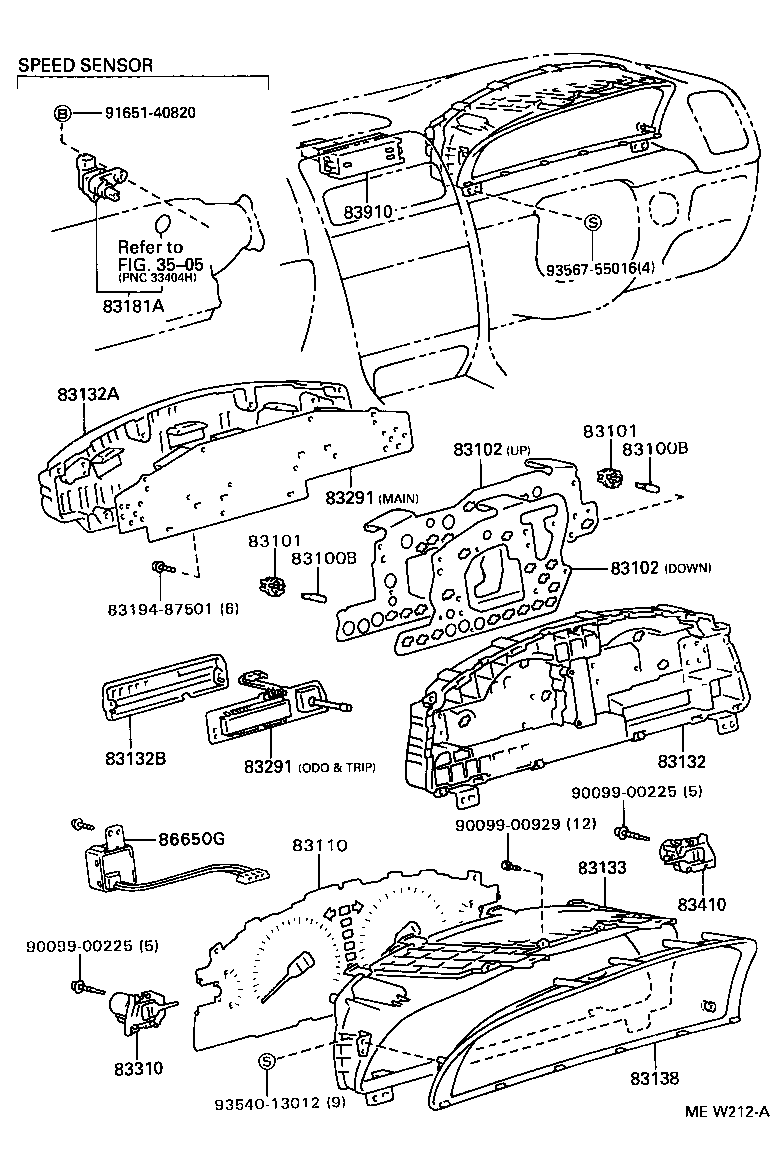

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100B — Bulb, Combination Meter, NO.1 | ||||
| 83109-30070 note |
Bulb, Combination Meter, NO.1
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83109-30070 note |
Bulb, Combination Meter, NO.1
1995-10 → 1997-08
ended
|
JZS147 RHD | — | |
| 83109-30070 note |
Bulb, Combination Meter, NO.1
1995-08 → 1995-10
ended
|
JZS147 RHD | — | |
| 83119-24570 note |
Bulb, Combination Meter, NO.1
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83119-32010 note |
Bulb, Combination Meter, NO.1
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83119-32010 note |
Bulb, Combination Meter, NO.1
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 90099-53007 note |
Bulb, Combination Meter, NO.1
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 90099-53008 note |
Bulb, Combination Meter, NO.1
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 90981-11018 note |
Bulb, Combination Meter, NO.1
1993-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83101 — Socket Sub-assy, Combination Meter Bulb | ||||
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1993-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1995-10 → 1997-08
ended
|
JZS147 RHD | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1995-08 → 1995-10
ended
|
JZS147 RHD | — | |
| 83101-14040 note |
Socket Sub-assy, Combination Meter Bulb
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83101-24010 note |
Socket Sub-assy, Combination Meter Bulb
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 83101-30050 note |
Socket Sub-assy, Combination Meter Bulb
1995-08 → 1995-10
ended
|
JZS147 RHD | — | |
| 83101-30050 note |
Socket Sub-assy, Combination Meter Bulb
1995-10 → 1997-08
ended
|
JZS147 RHD | — | |
| 83101-32020 note |
Socket Sub-assy, Combination Meter Bulb
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83101-32020 note |
Socket Sub-assy, Combination Meter Bulb
1993-03 → 1997-08
ended
|
JZS147 EUR | — | |
| 83101-32020 note |
Socket Sub-assy, Combination Meter Bulb
1995-08 → 1995-10
ended
|
JZS147 RHD | — | |
| 83101-32020 note |
Socket Sub-assy, Combination Meter Bulb
1995-10 → 1997-08
ended
|
JZS147 RHD | — | |
| 83102 — Plate Sub-assy, Combination Meter Circuit, NO.1 | ||||
| 83149-3F090 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1993-03 → 1994-08
ended
|
JZS147 GCC | — | |
| 83149-3F110 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 83149-3F130 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1993-08 → 1994-08
ended
|
JZS147 LHD EUR | — | |
| 83149-3F150 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1993-08 → 1994-08
ended
|
JZS147 RHD | — | |
| 83149-3F170 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83149-3F330 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1994-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 83149-3F350 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1994-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83149-3F410 note |
Plate Sub-assy, Combination Meter Circuit, NO.1
1994-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83110 — Speedometer Assy | ||||
| 83110-3F230 |
Speedometer Assy
1993-03 → 1994-08
ended
|
JZS147 GCC | — | |
| 83110-3F231 |
Speedometer Assy
1994-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 83110-3F240 |
Speedometer Assy
1993-08 → 1994-08
ended
|
JZS147 RHD | — | |
| 83110-3F241 |
Speedometer Assy
1994-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83110-3F250 |
Speedometer Assy
1993-08 → 1994-08
ended
|
JZS147 LHD EUR | — | |
| 83110-3F251 |
Speedometer Assy
1994-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83220-30080 note |
Speedometer Assy
1995-10 → 1997-08
ended
|
JZS147 RHD | — | |
| 83220-30080 note |
Speedometer Assy
1995-08 → 1995-10
ended
|
JZS147 RHD | — | |
| 83132 — Case, Combination Meter | ||||
| 83132-3F030 |
Case, Combination Meter
1993-03 → 1994-08
ended
|
JZS147 GCC | — | |
| 83132-3F090 |
Case, Combination Meter
1993-08 → 1994-08
ended
|
JZS147 LHD EUR | — | |
| 83132-3F110 |
Case, Combination Meter
1993-08 → 1994-08
ended
|
JZS147 RHD | — | |
| 83132-3F250 |
Case, Combination Meter
1994-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 83132-3F290 |
Case, Combination Meter
1994-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83132-3F370 |
Case, Combination Meter
1994-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83132A — Case, Meter | ||||
| 83132-3F050 |
Case, Meter
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 83132-3F150 |
Case, Meter
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83132B — Case, Combination Meter NO.3 | ||||
| 83132-3F070 |
Case, Combination Meter NO.3
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 83132-3F170 |
Case, Combination Meter NO.3
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83133 — Plate, Combination Meter, NO.1 | ||||
| 83133-3A190 |
Plate, Combination Meter, NO.1
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83133-3A330 |
Plate, Combination Meter, NO.1
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 83138 — Glass, Speedometer | ||||
| 83138-3A730 |
Glass, Speedometer
1993-03 → 1997-08
ended
|
JZS147 LHD | — | |
| 83138-3A770 |
Glass, Speedometer
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83181A — Sensor, Speedometer | ||||
| 83181-24040 |
Sensor, Speedometer
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 83291 — Computer, Combination Meter | ||||
| 83149-3F050 note |
Computer, Combination Meter
1993-03 → 1994-08
ended
|
JZS147 LHD | — | |
| 83149-3F070 note |
Computer, Combination Meter
1993-03 → 1994-08
ended
|
JZS147 GCC | — | |
| 83149-3F190 note |
Computer, Combination Meter
1993-08 → 1994-08
ended
|
JZS147 LHD EUR | — | |
| 83149-3F210 note |
Computer, Combination Meter
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83149-3F230 note |
Computer, Combination Meter
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83149-3F470 note |
Computer, Combination Meter
1994-09 → 1997-08
ended
|
JZS147 GCC | — | |
| 83149-3F490 note |
Computer, Combination Meter
1994-09 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83149-3F510 note |
Computer, Combination Meter
1994-09 → 1997-08
ended
|
JZS147 LHD | — | |
| 83149-3F550 note |
Computer, Combination Meter
1994-08 → 1994-09
ended
|
JZS147 LHD | — | |
| 83149-3F610 note |
Computer, Combination Meter
1994-08 → 1994-09
ended
|
JZS147 GCC | — | |
| 83149-3F630 note |
Computer, Combination Meter
1994-08 → 1994-09
ended
|
JZS147 LHD EUR | — | |
| 83864-30250 note |
Computer, Combination Meter
1995-10 → 1997-08
ended
|
JZS147 RHD | — | |
| 83864-30250 note |
Computer, Combination Meter
1995-08 → 1995-10
ended
|
JZS147 RHD | — | |
| 83310 — Gage Assy, Fuel Receiver | ||||
| 83243-3A210 |
Gage Assy, Fuel Receiver
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83243-3A570 |
Gage Assy, Fuel Receiver
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83243-3A650 |
Gage Assy, Fuel Receiver
1993-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83410 — Gage Assy, Water Temperature Receiver | ||||
| 83244-3A030 |
Gage Assy, Water Temperature Receiver
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 83244-3A310 |
Gage Assy, Water Temperature Receiver
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 83244-3A350 |
Gage Assy, Water Temperature Receiver
1993-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 83910 — Clock Assy | ||||
| 83910-30540 |
Clock Assy
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 86650G — Buzzer Assy | ||||
| 86650-30150 |
Buzzer Assy
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
