Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

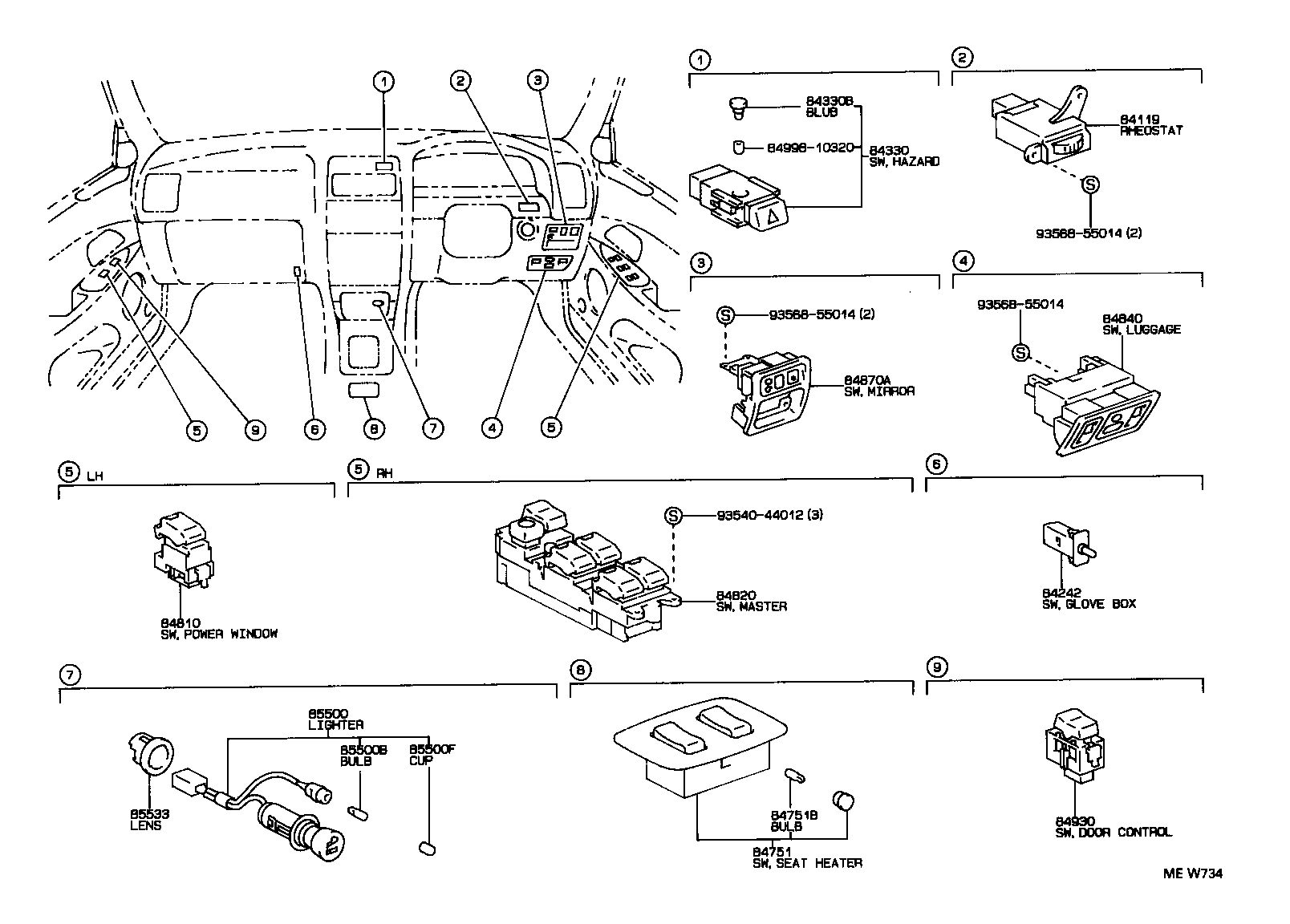

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84119 — Rheostat, Light Control | ||||
| 84119-30200 |
Rheostat, Light Control
1993-03 → 1996-08
ended
|
JZS147 GCC | — | |
| 84119-30210 |
Rheostat, Light Control
1993-08 → 1996-08
ended
|
JZS147 LHD EUR | — | |
| 84119-30210 |
Rheostat, Light Control
1996-08 → 1997-08
ended
|
JZS147 LHD | — | |
| 84119-30220 |
Rheostat, Light Control
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 84242 — Switch, Glove Box Lamp | ||||
| 84242-20030 |
Switch, Glove Box Lamp
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-30250 |
Switch Assy, Hazard Warning Signal
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84330B — Bulb, Hazard Warning Signal Switch | ||||
| 84999-10320 note |
Bulb, Hazard Warning Signal Switch
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-30110-B0 note |
Switch, Seat Heater
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 84751-30110-E0 note |
Switch, Seat Heater
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 84751-30110-G0 note |
Switch, Seat Heater
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 84751B — Bulb, Seat Heater Switch | ||||
| 84999-10130 note |
Bulb, Seat Heater Switch
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 84999-10720 note |
Bulb, Seat Heater Switch
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-30210 |
Switch Assy, Power Window Regulator
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-30400 |
Master Switch Assy, Power Window Regulator
1993-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 84820-30410 |
Master Switch Assy, Power Window Regulator
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 84820-30420 |
Master Switch Assy, Power Window Regulator
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-30150-A0 note |
Switch Assy, Luggage Compartment Door Opening
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84840-30150-B0 note |
Switch Assy, Luggage Compartment Door Opening
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84840-30150-G0 note |
Switch Assy, Luggage Compartment Door Opening
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-30230-A0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 84870-30230-B0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 84870-30230-G0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 84870-30260-A0 note |
Switch Assy, Outer Mirror
1993-03 → 1995-08
ended
|
JZS147 GCC | — | |
| 84870-30260-B0 note |
Switch Assy, Outer Mirror
1993-03 → 1995-08
ended
|
JZS147 GCC | — | |
| 84870-30260-G0 note |
Switch Assy, Outer Mirror
1993-03 → 1995-08
ended
|
JZS147 GCC | — | |
| 84870-30270-A0 note |
Switch Assy, Outer Mirror
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 84870-30270-B0 note |
Switch Assy, Outer Mirror
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 84870-30270-G0 note |
Switch Assy, Outer Mirror
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 84870-30280-A0 note |
Switch Assy, Outer Mirror
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 84870-30280-B0 note |
Switch Assy, Outer Mirror
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 84870-30280-G0 note |
Switch Assy, Outer Mirror
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 84870-30320-A0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 84870-30320-B0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 84870-30320-G0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 84870-30330-A0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 84870-30330-B0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 84870-30330-G0 note |
Switch Assy, Outer Mirror
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-50020 |
Switch Assy, Door Control
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-30460 |
Lighter Assy, Cigarette
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 84999-10440 note |
Bulb, Cigarette Lighter
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 85500F — Cap, Cigarette Lighter Bulb | ||||
| 84998-10530 |
Cap, Cigarette Lighter Bulb
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-50010 |
Lens, Cigarette Lighter Indicator
1993-03 → 1997-08
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
