Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

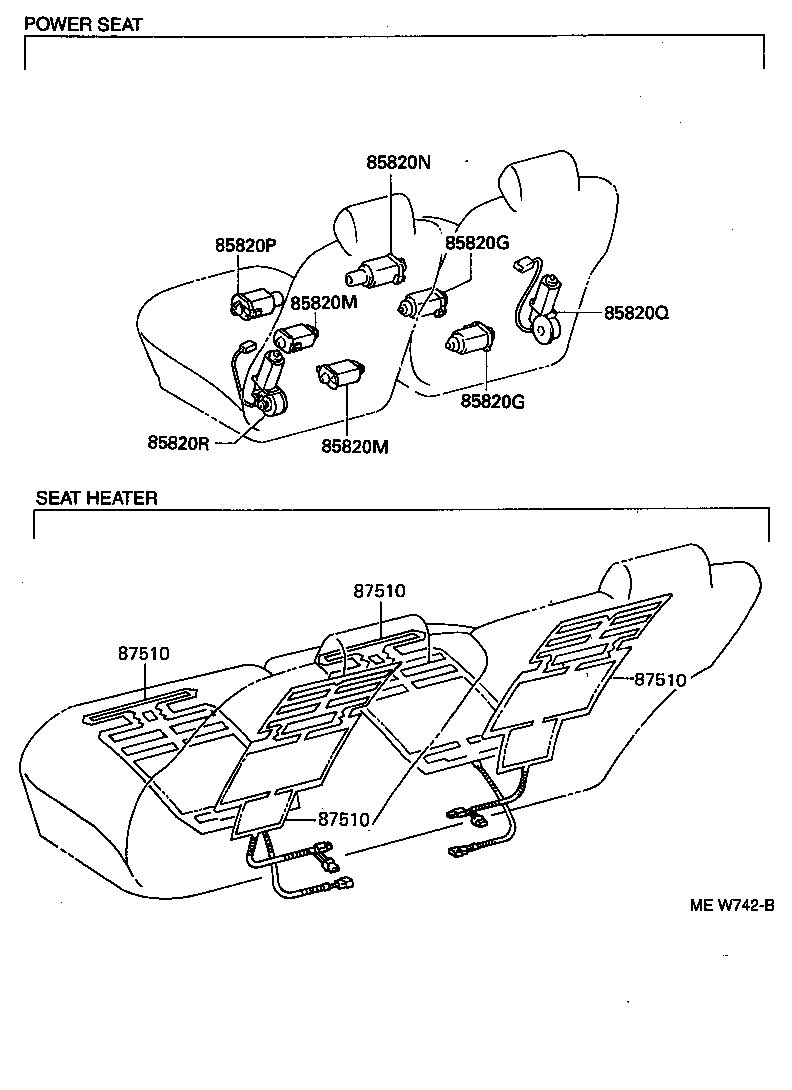

| 85820G — Motor Assy, Power Seat | ||||
| 85820-30230 note |
Motor Assy, Power Seat
1993-03 → 1995-07
ended
|
JZS147 | — | |
| 85820-30240 note |
Motor Assy, Power Seat
1993-03 → 1995-07
ended
|
JZS147 | — | |
| 85820-30590 note |
Motor Assy, Power Seat
1995-07 → 1997-08
ended
|
JZS147 | — | |
| 85820-30600 note |
Motor Assy, Power Seat
1995-07 → 1997-08
ended
|
JZS147 | — | |
| 85820M — Motor Assy, Power Seat (FOR FRONT LH SEAT RECLINING) | ||||
| 85820-30390 note |
Motor Assy, Power Seat (FOR FRONT LH SEAT RECLINING)
1993-03 → 1995-07
ended
|
JZS147 | — | |
| 85820-30400 note |
Motor Assy, Power Seat (FOR FRONT LH SEAT RECLINING)
1993-03 → 1995-07
ended
|
JZS147 | — | |
| 85820-30610 note |
Motor Assy, Power Seat (FOR FRONT LH SEAT RECLINING)
1995-07 → 1997-08
ended
|
JZS147 | — | |
| 85820-30620 note |
Motor Assy, Power Seat (FOR FRONT LH SEAT RECLINING)
1995-07 → 1997-08
ended
|
JZS147 | — | |
| 85820N — Motor Assy, Power Seat (FOR FRONT SLIDE RH) | ||||
| 85820-30220 |
Motor Assy, Power Seat (FOR FRONT SLIDE RH)
1993-03 → 1995-07
ended
|
JZS147 | — | |
| 85820-30650 |
Motor Assy, Power Seat (FOR FRONT SLIDE RH)
1995-07 → 1997-08
ended
|
JZS147 | — | |
| 85820P — Motor Assy, Power Seat (FOR FRONT SLIDE LH) | ||||
| 85820-30290 |
Motor Assy, Power Seat (FOR FRONT SLIDE LH)
1993-03 → 1995-07
ended
|
JZS147 | — | |
| 85820-30680 |
Motor Assy, Power Seat (FOR FRONT SLIDE LH)
1995-07 → 1997-08
ended
|
JZS147 | — | |
| 85820Q — Motor Assy, Power Seat (FOR FRONT RECLINING RH) | ||||
| 85820-30340 |
Motor Assy, Power Seat (FOR FRONT RECLINING RH)
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 85820R — Motor Assy, Power Seat (FOR FRONT RECLINING LH) | ||||
| 85820-30360 |
Motor Assy, Power Seat (FOR FRONT RECLINING LH)
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 87510 — Heater Assy, Seat | ||||
| 87510-30170 note |
Heater Assy, Seat
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 87510-30180 note |
Heater Assy, Seat
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
| 87510-30190 note |
Heater Assy, Seat
1993-08 → 1997-08
ended
|
JZS147 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
