Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

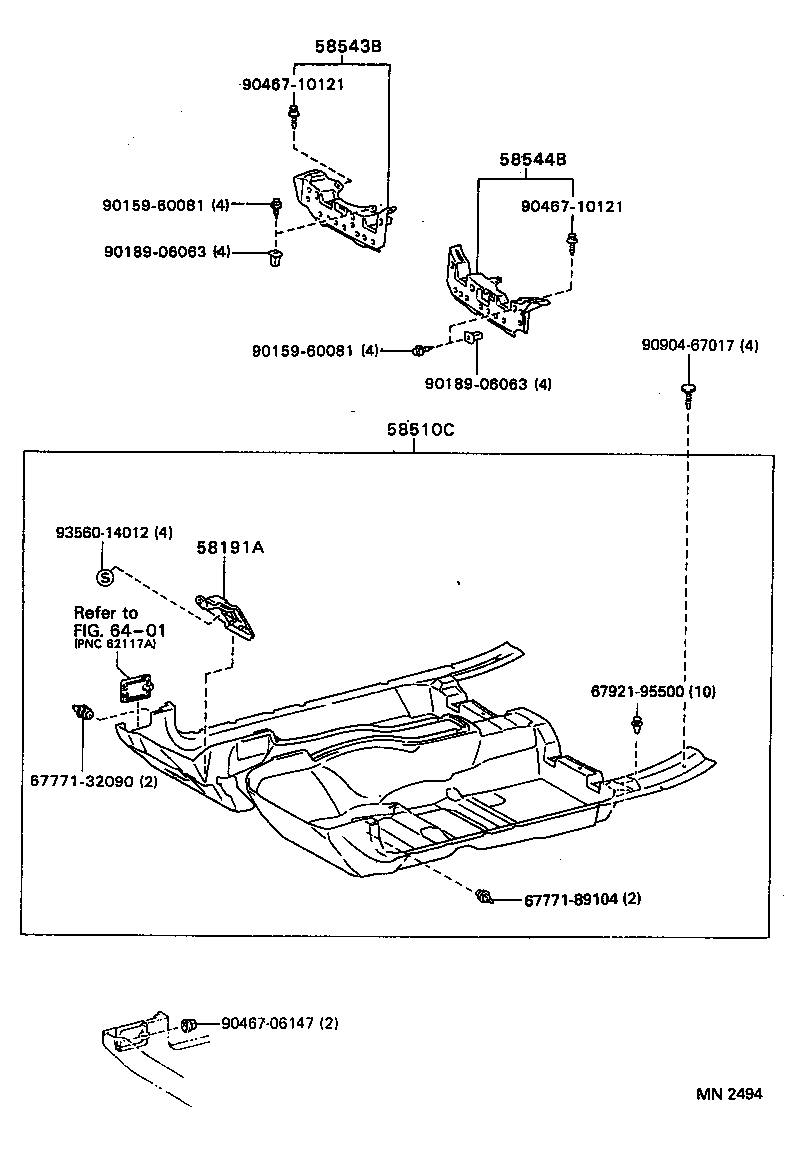

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58191A — Footrest, Front Floor, RH | ||||
| 58191-30030 |
Footrest, Front Floor, RH
1993-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 58510C — Carpet Assy, Front Floor, Front | ||||
| 58510-3F760-A0 note |
Carpet Assy, Front Floor, Front
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 58510-3F760-B0 note |
Carpet Assy, Front Floor, Front
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 58510-3F760-G0 note |
Carpet Assy, Front Floor, Front
1993-08 → 1995-08
ended
|
JZS147 RHD | — | |
| 58510-3F761-A0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 58510-3F761-B0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 58510-3F761-G0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 58510-3F860-A0 note |
Carpet Assy, Front Floor, Front
1993-03 → 1995-08
ended
|
JZS147 GCC | — | |
| 58510-3F860-B0 note |
Carpet Assy, Front Floor, Front
1993-03 → 1995-08
ended
|
JZS147 GCC | — | |
| 58510-3F860-G0 note |
Carpet Assy, Front Floor, Front
1993-03 → 1995-08
ended
|
JZS147 GCC | — | |
| 58510-3F861-A0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 58510-3F861-B0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 58510-3F861-G0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 58510-3K010-A0 note |
Carpet Assy, Front Floor, Front
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 58510-3K010-B0 note |
Carpet Assy, Front Floor, Front
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 58510-3K010-G0 note |
Carpet Assy, Front Floor, Front
1993-08 → 1995-08
ended
|
JZS147 LHD EUR | — | |
| 58510-3K011-A0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 58510-3K011-B0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 58510-3K011-G0 note |
Carpet Assy, Front Floor, Front
1995-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 58543B — Bracket, Floor Carpet, RH | ||||
| 58543-30010 |
Bracket, Floor Carpet, RH
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 58544B — Bracket, Floor Carpet, LH | ||||
| 58544-30010 |
Bracket, Floor Carpet, LH
1993-03 → 1997-08
ended
|
JZS147 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
