Toyota Lexus GS300
1993-03 → 1997-08 · chassis JZS147 · catalogue 332280 · General
Discontinued model
Data version 1997-12

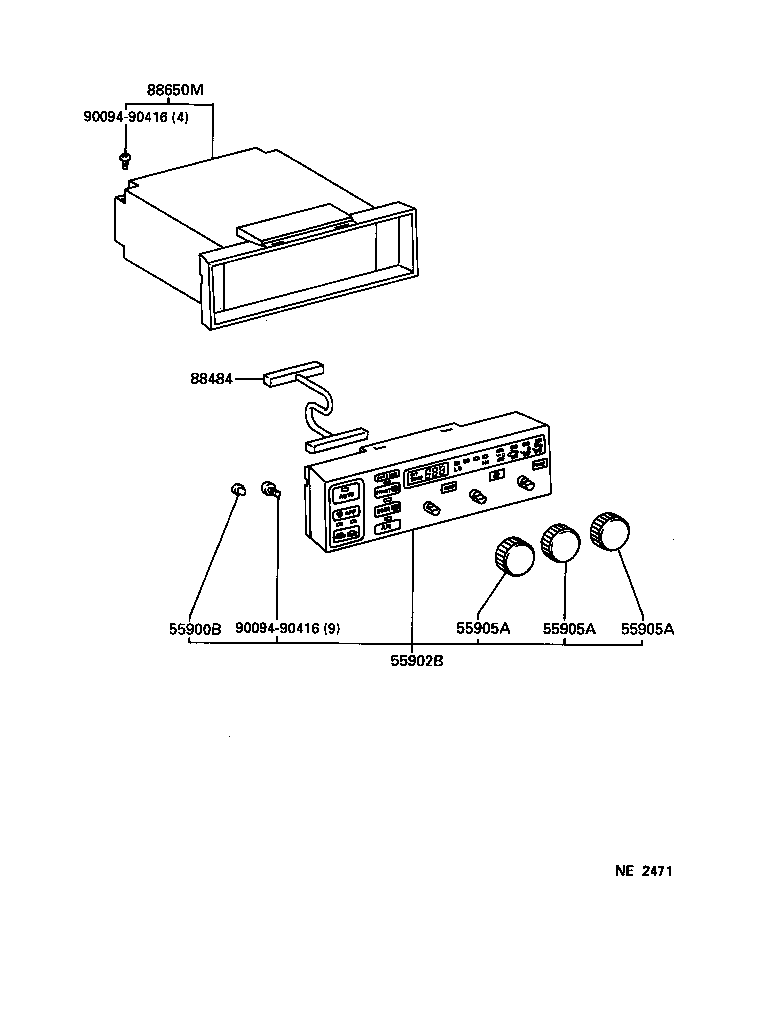

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55900B — Bulb, Air Conditioner Control | ||||
| 84999-60200 note |
Bulb, Air Conditioner Control
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84999-60210 note |
Bulb, Air Conditioner Control
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84999-60220 note |
Bulb, Air Conditioner Control
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 84999-60230 note |
Bulb, Air Conditioner Control
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 55902B — Control Sub-assy, Heater | ||||
| 55902-30070 |
Control Sub-assy, Heater
1993-03 → 1997-08
ended
|
JZS147 GCC | — | |
| 55902-30090 |
Control Sub-assy, Heater
1993-08 → 1994-08
ended
|
JZS147 LHD EUR | — | |
| 55902-30100 |
Control Sub-assy, Heater
1993-08 → 1994-08
ended
|
JZS147 RHD | — | |
| 55902-30110 |
Control Sub-assy, Heater
1994-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 55902-30120 |
Control Sub-assy, Heater
1994-08 → 1997-08
ended
|
JZS147 RHD | — | |
| 55905A — Knob, Heater Control | ||||
| 55905-30210 |
Knob, Heater Control
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 88484 — Wire, Cooler, NO.1 | ||||
| 88484-30010 |
Wire, Cooler, NO.1
1993-03 → 1997-08
ended
|
JZS147 | — | |
| 88650M — Computer Assy, Air Conditioner | ||||
| 88650-30880 |
Computer Assy, Air Conditioner
1993-03 → 1995-09
ended
|
JZS147 GCC | — | |
| 88650-30881 |
Computer Assy, Air Conditioner
1995-09 → 1996-08
ended
|
JZS147 GCC | — | |
| 88650-30882 |
Computer Assy, Air Conditioner
1996-08 → 1997-08
ended
|
JZS147 GCC | — | |
| 88650-30890 |
Computer Assy, Air Conditioner
1993-08 → 1994-08
ended
|
JZS147 LHD EUR | — | |
| 88650-3A010 |
Computer Assy, Air Conditioner
1993-08 → 1994-08
ended
|
JZS147 RHD | — | |
| 88650-3A020 |
Computer Assy, Air Conditioner
1994-08 → 1997-08
ended
|
JZS147 LHD EUR | — | |
| 88650-3A030 |
Computer Assy, Air Conditioner
1994-08 → 1997-08
ended
|
JZS147 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
