Toyota Lexus GS300/430

1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

8 part groups · 7 illustrations

Illustrations

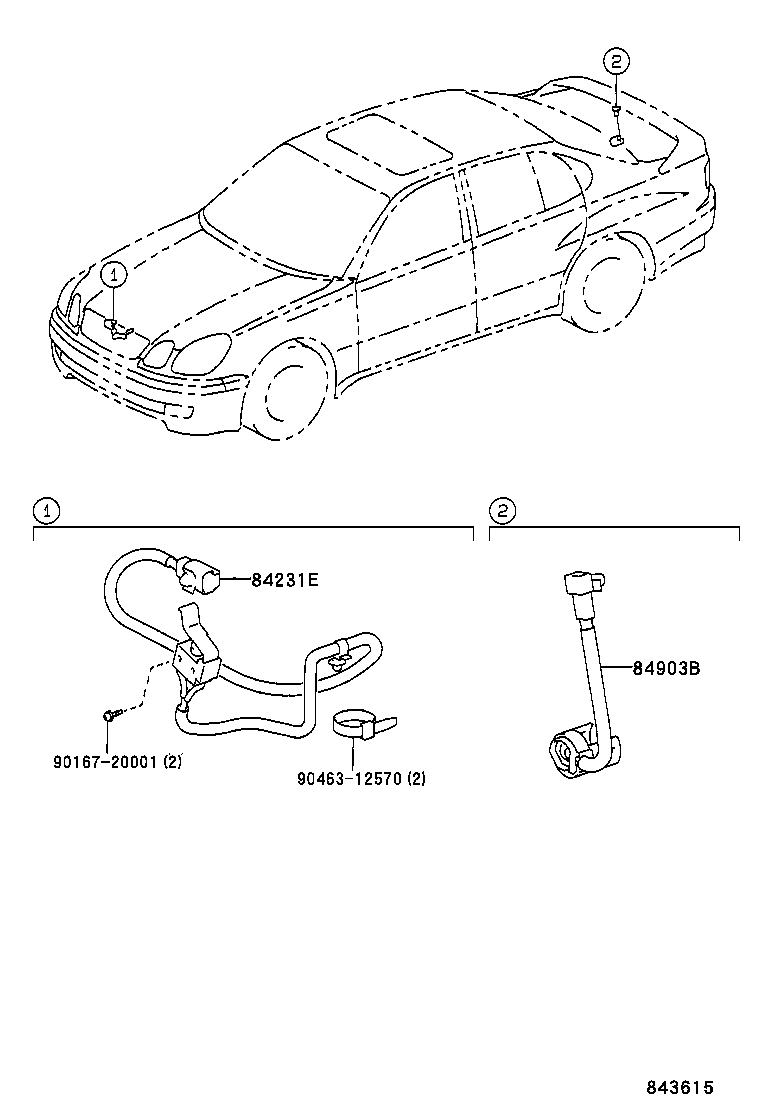

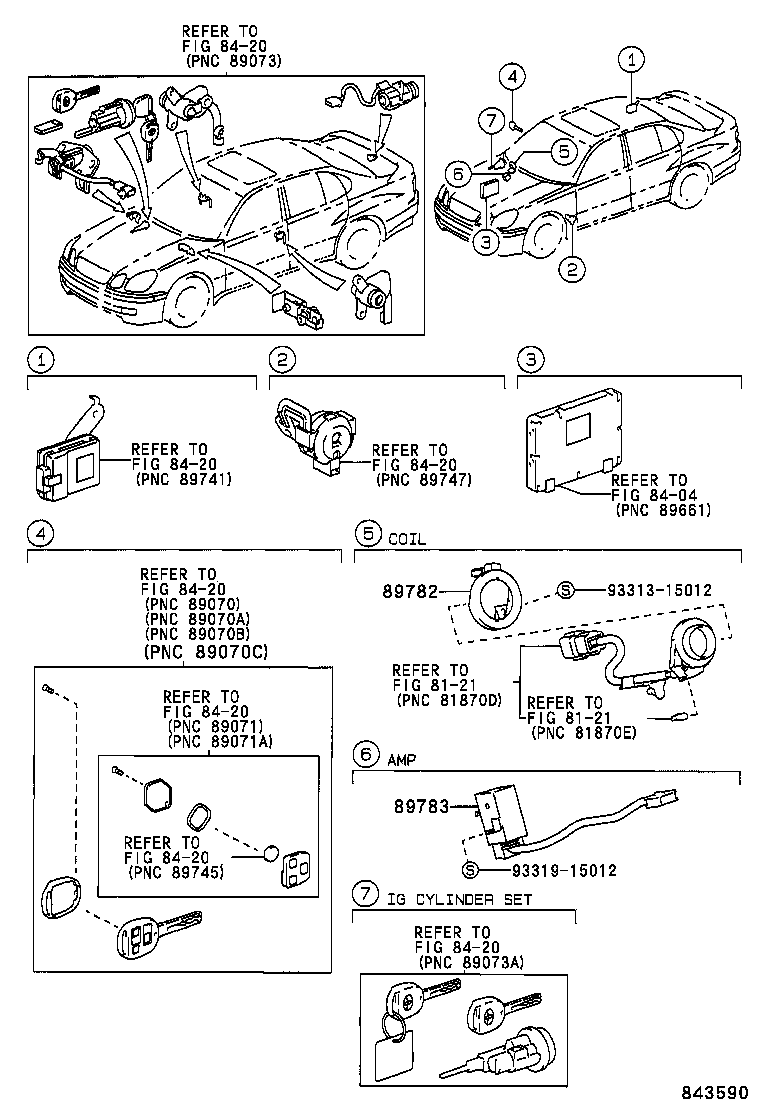

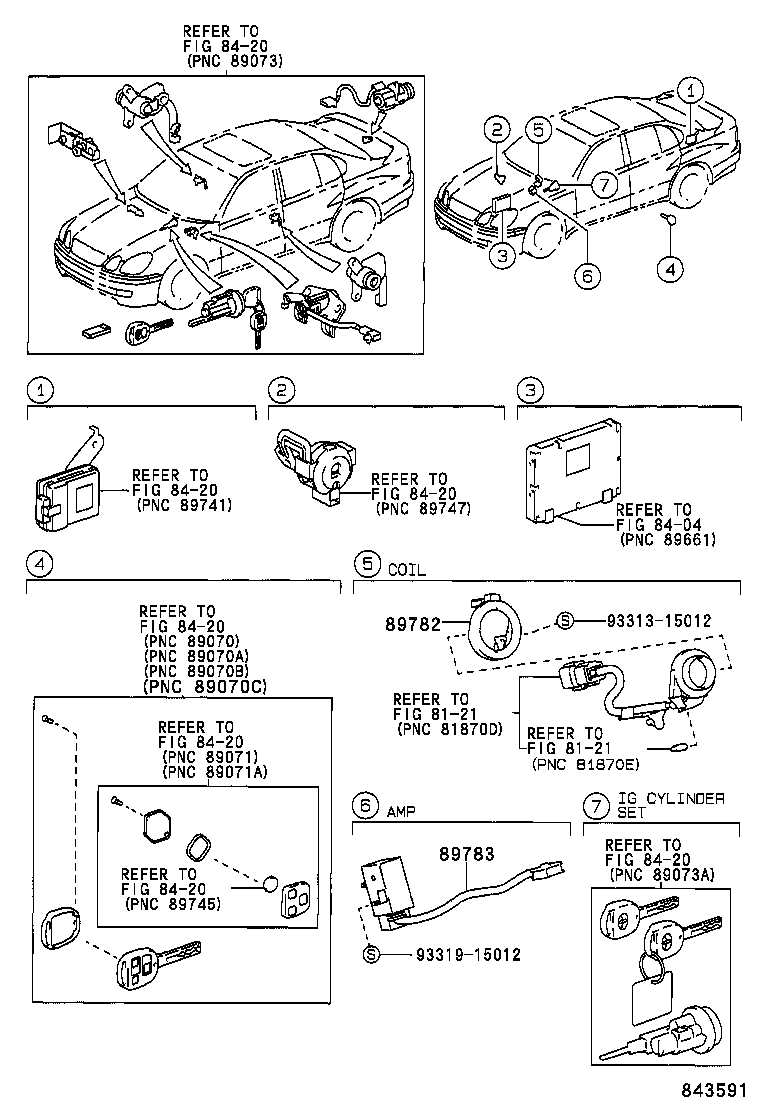

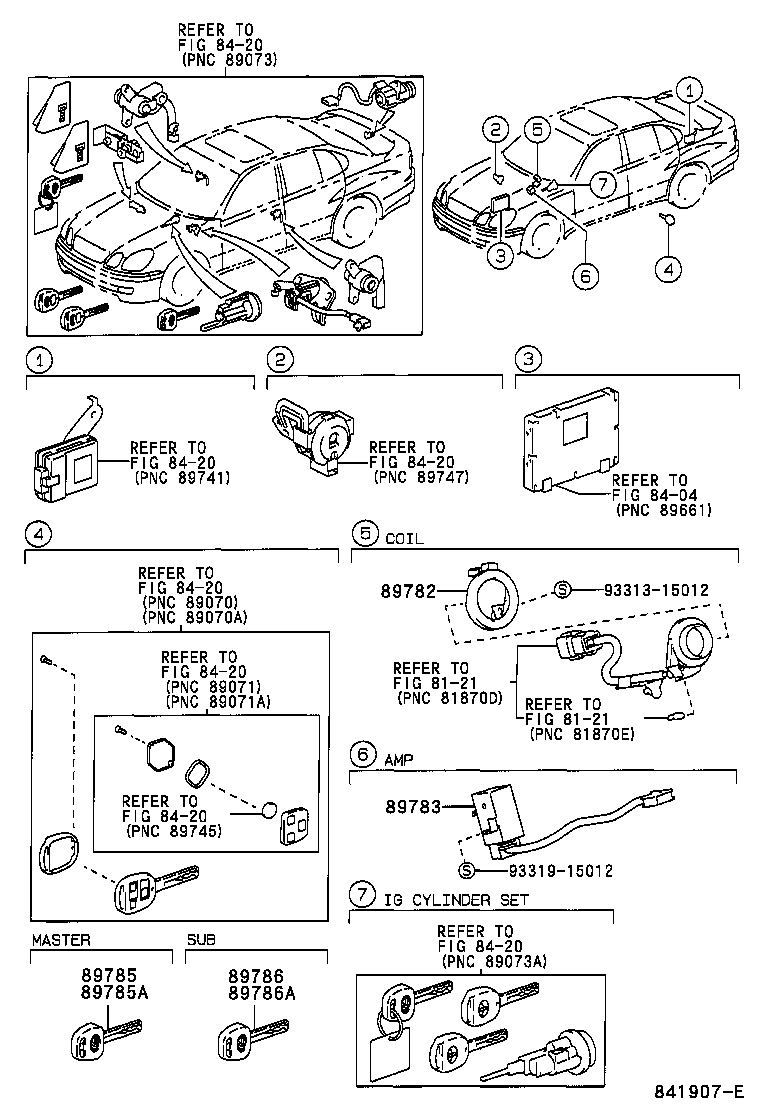

Figure 841906E 841906E 1997-08 → 2000-07 Figure 841906E 841906E 2000-07 → 2005-01 Figure 843590 843590 2000-07 → 2005-01 Figure 841907E 841907E 1997-08 → 2000-07 Figure 841907E 841907E 2000-07 → 2005-01 Figure 843591 843591 2000-07 → 2005-01 Figure 843615 843615 1997-08 → 2005-01

Part groups

PNCDescription
84231E Switch, Courtesy(FOR SECURITY)
84903B Switch Sub-assy, Door Unlock
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
