Toyota Lexus GS300/430
1997-08 → 2005-01 · chassis JZS160,UZS161 · catalogue 332290 · General
Discontinued model
Data version 2005-07

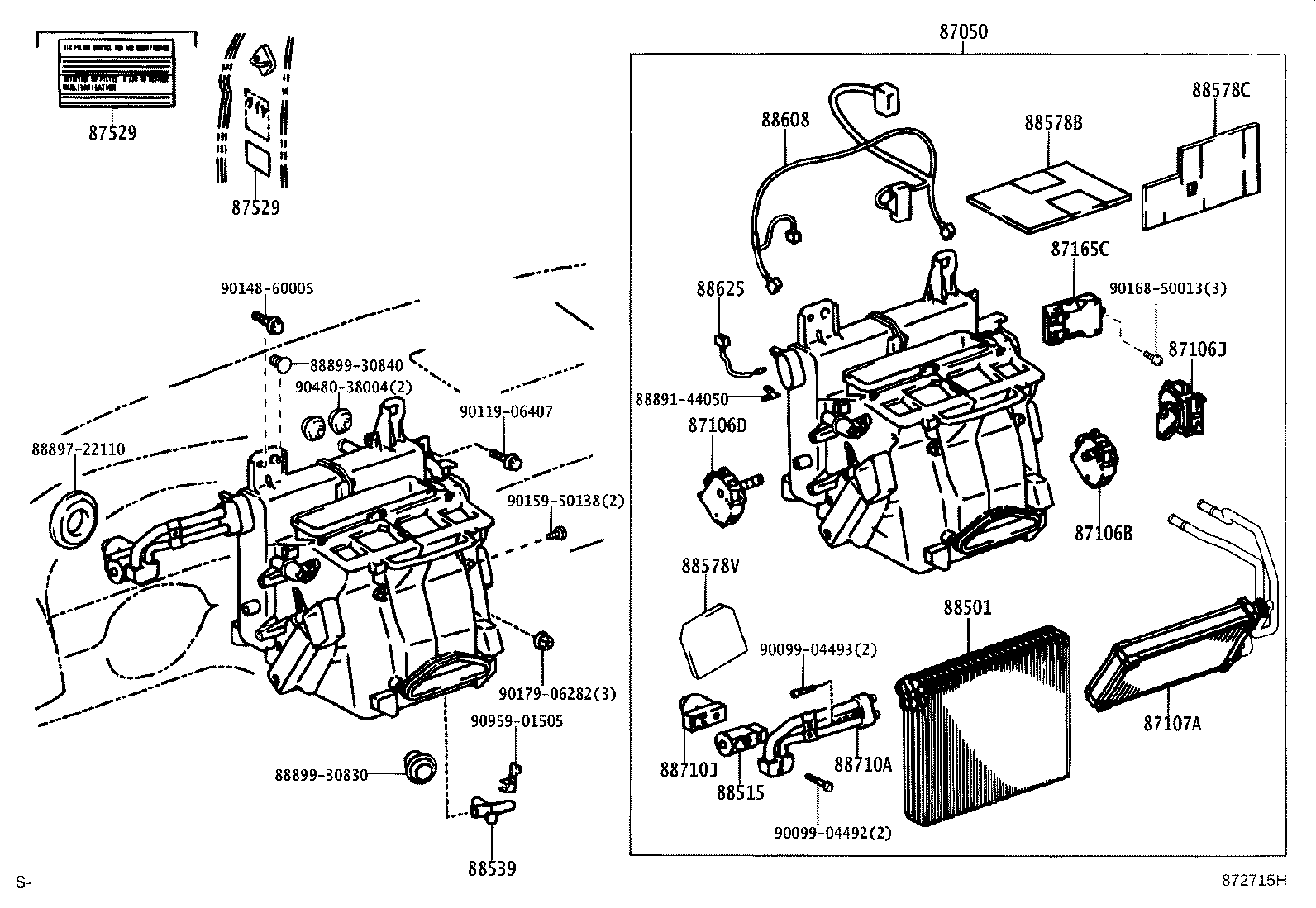

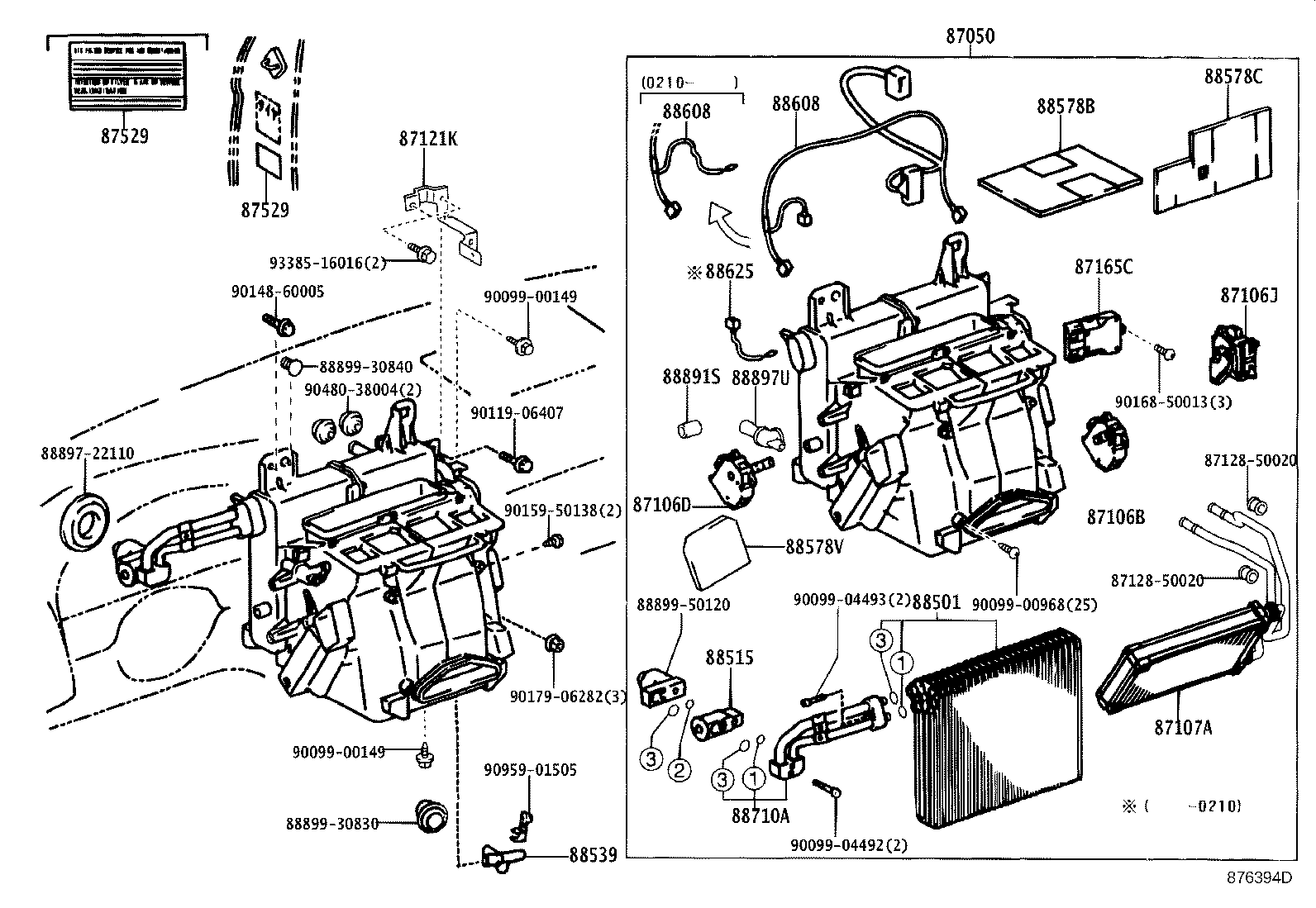

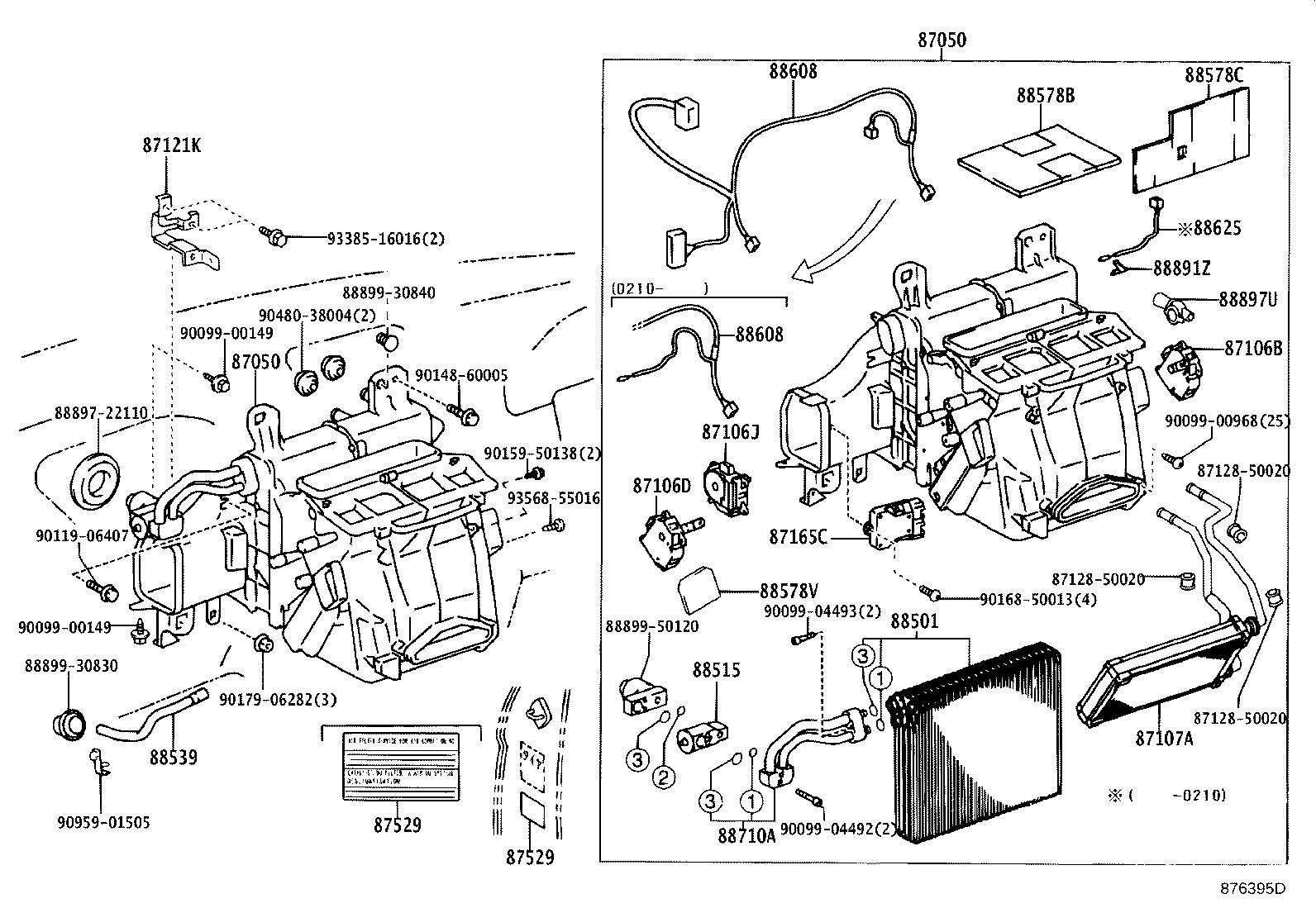

Heating & Air Conditioning - Cooler Unit
21 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87106B | Servo Sub-assy, Damper(FOR COOLING UNIT) |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87121K | Bracket, Heater |
| 87165C | Control, Blower Motor |
| 87529 | Plate, Air Filter Caution |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88608 | Harness Sub-assy, Wiring Air Conditioner |
| 88625 | Thermistor, Cooler, NO.1 |
| 88710A | Tube Assy, Air Conditioner |
| 88710J | Tube, Air Conditioner Connector |
| 88891S | Cover, Cooler, NO.1 |
| 88891Z | Bracket, Cooler Thermistor |
| 88897U | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
