Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

14 part groups · 2 illustrations

Illustrations

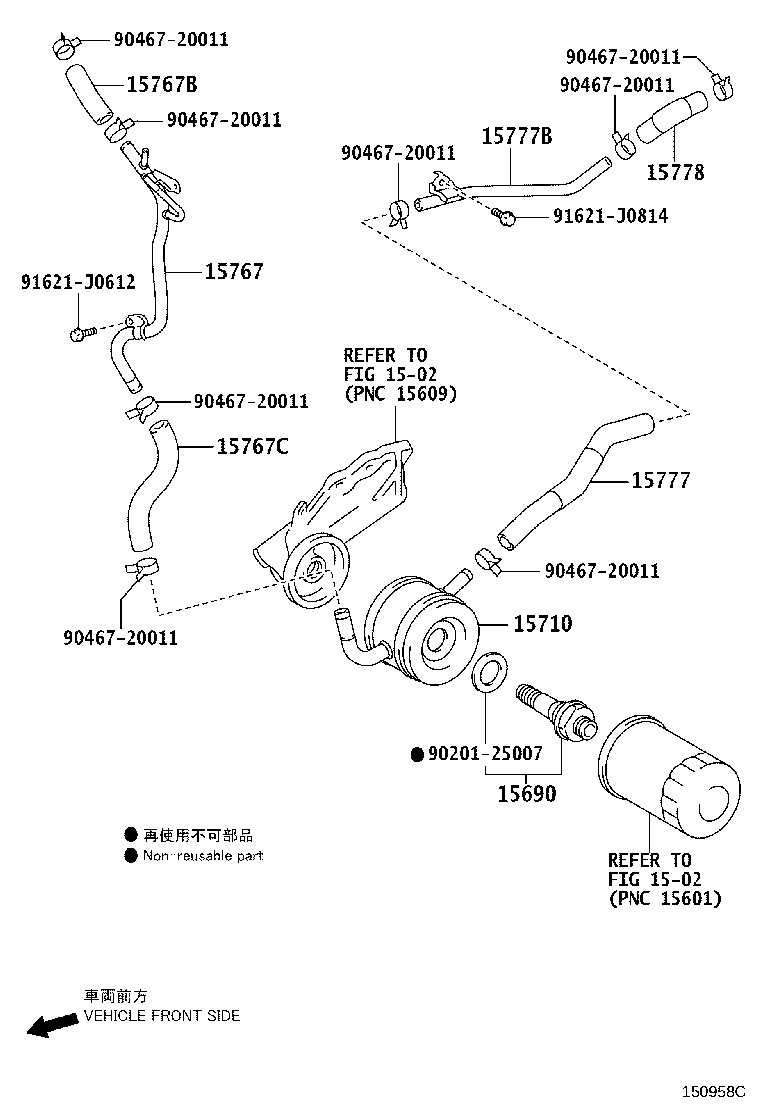

Figure 151650C 151650C 2005-01 → — Figure 150958C 150958C 2005-01 → —

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15710 Cooler Assy, Oil
15767 Pipe, Oil Cooler
15767B Hose, Water By-pass, NO.4
15767C Hose, Water By-pass, NO.5
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777B Pipe, Oil Cooler
15778 Hose, Oil Cooler, NO.2
15797A Bolt, Oil Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
