Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

13 part groups · 2 illustrations

Illustrations

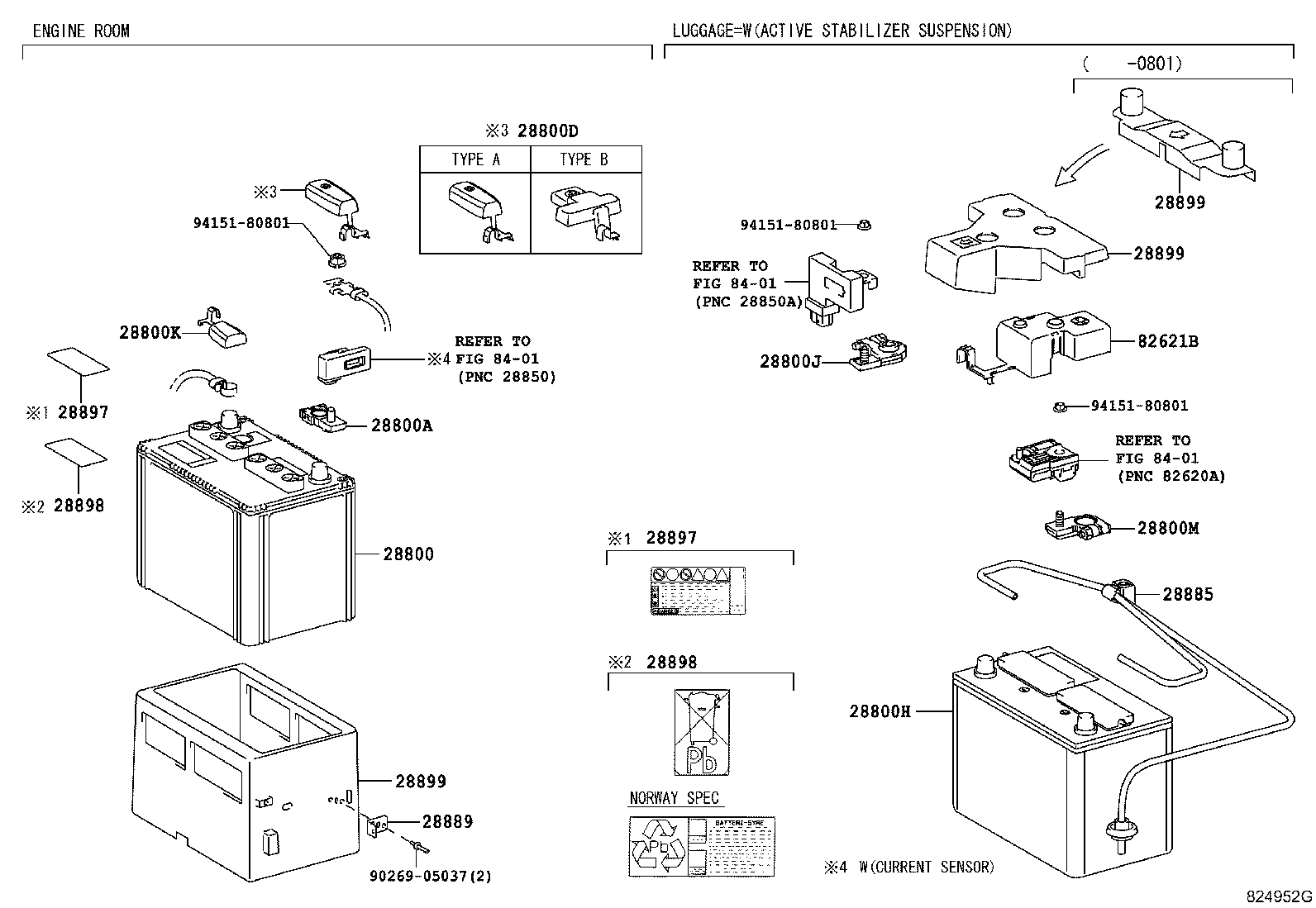

Figure 824232K 824232K 2005-01 → — Figure 824952G 824952G 2005-01 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800H Battery, NO.2
28800J Terminal, Battery Negative
28800K Cover, Connector(FOR BATTERY TERMINAL NEGATIVE)
28800M Terminal, Battery Positive
28885 Hose, Battery Room Ventilation
28889 Bracket, Battery Wire Clamp
28897 Plate, Battery Caution
28898 Plate, Battery
28899 Insulator, Battery
82621B Cover, Fusible Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
