Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · General

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 6 illustrations

Illustrations

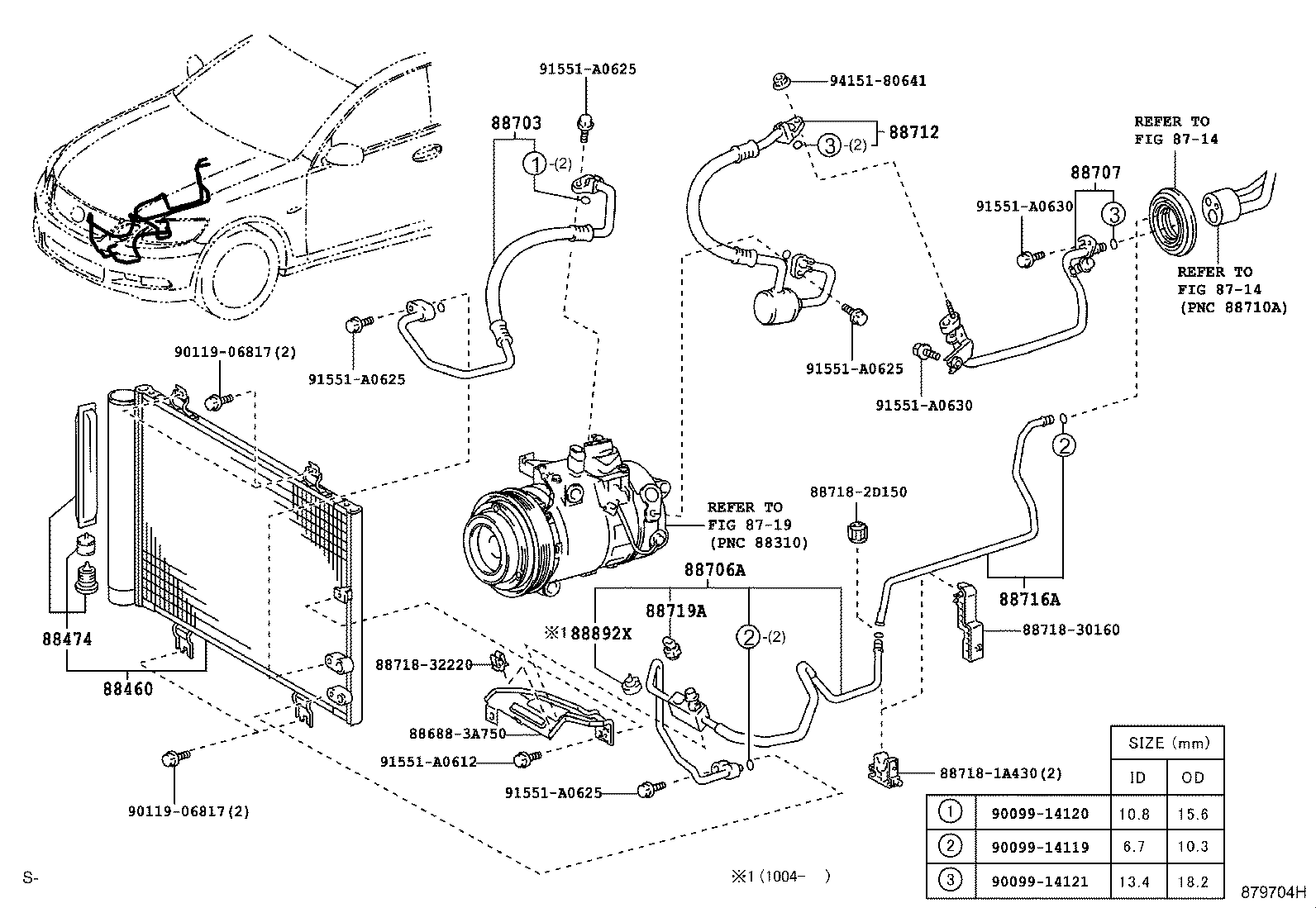

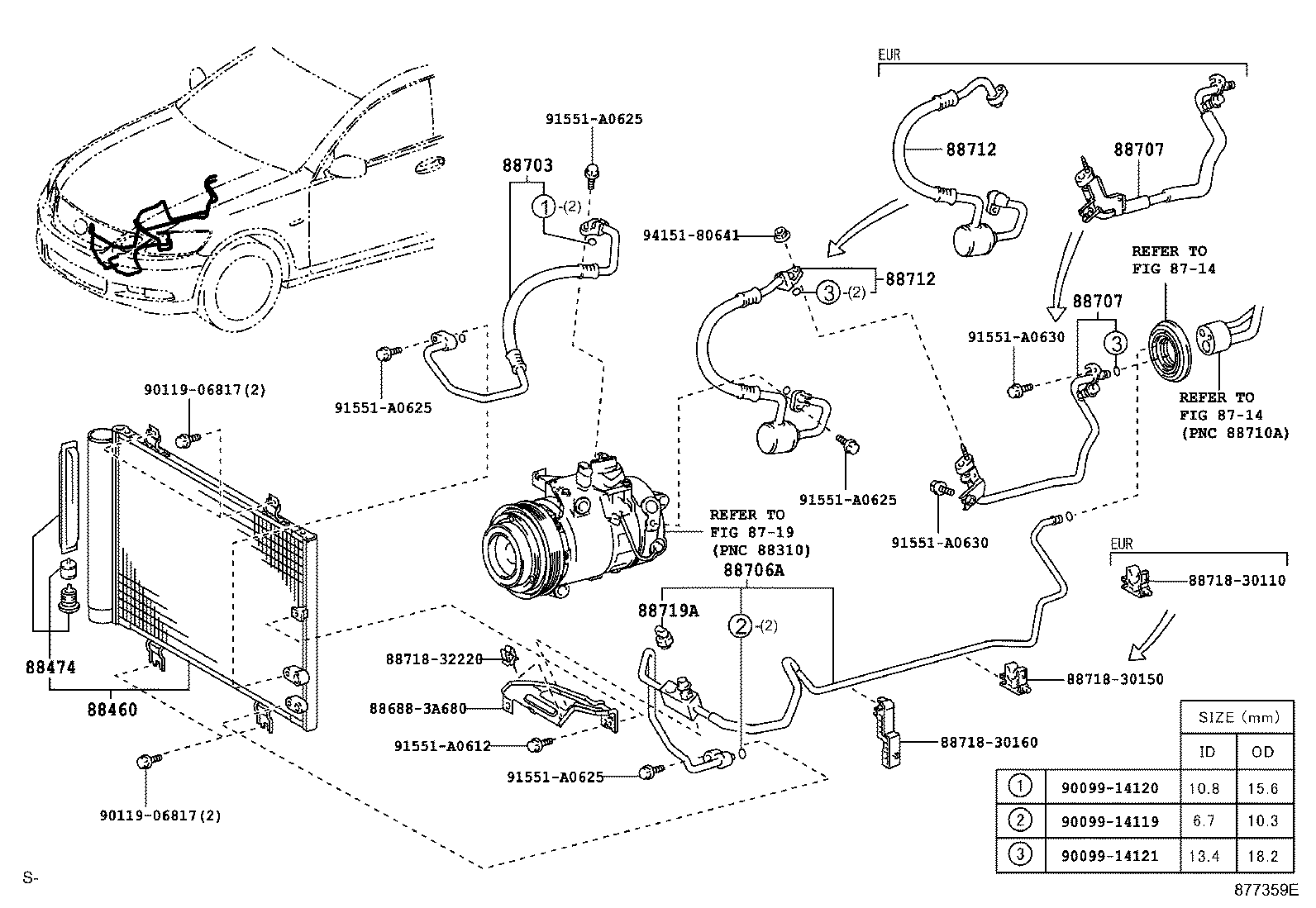

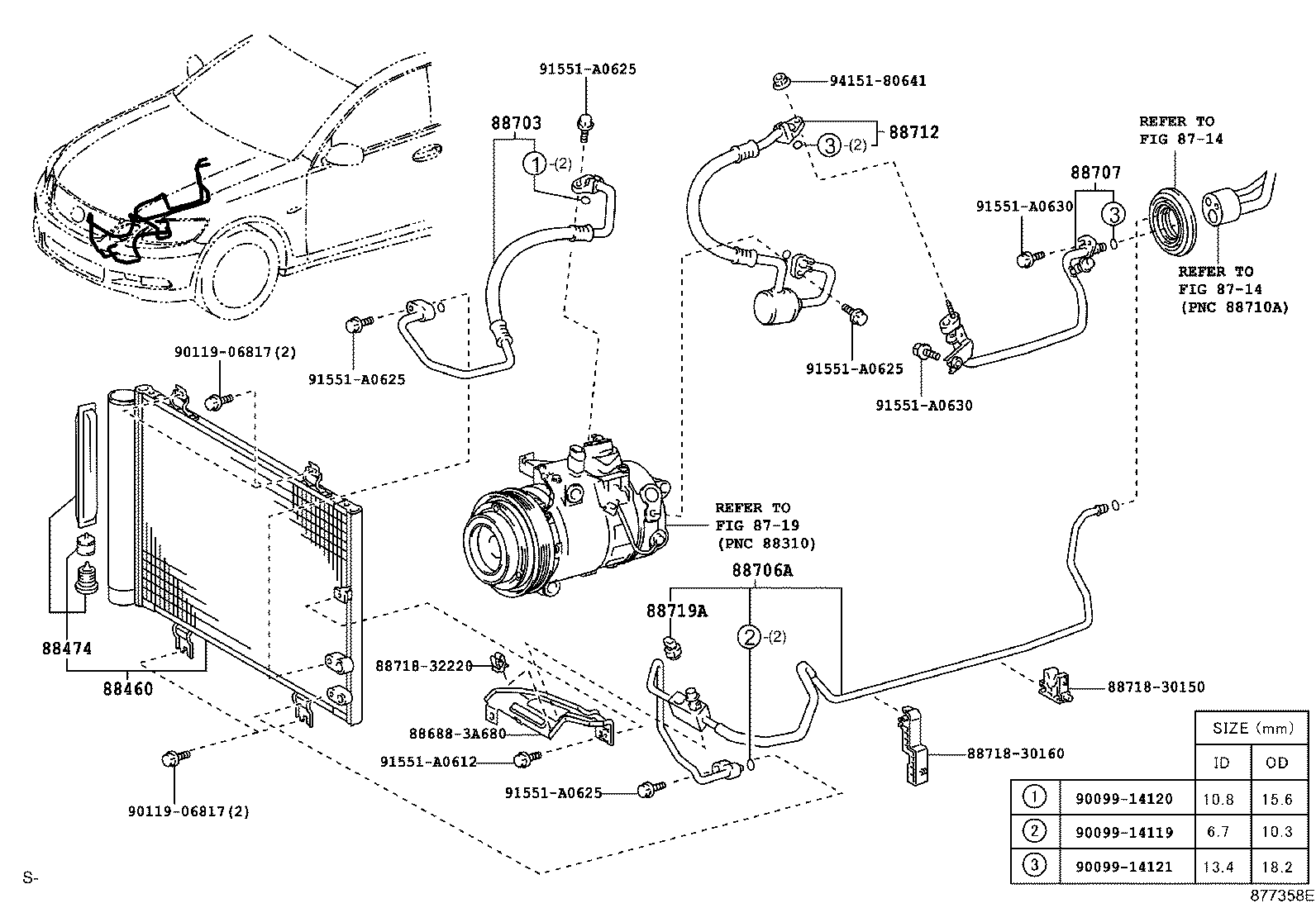

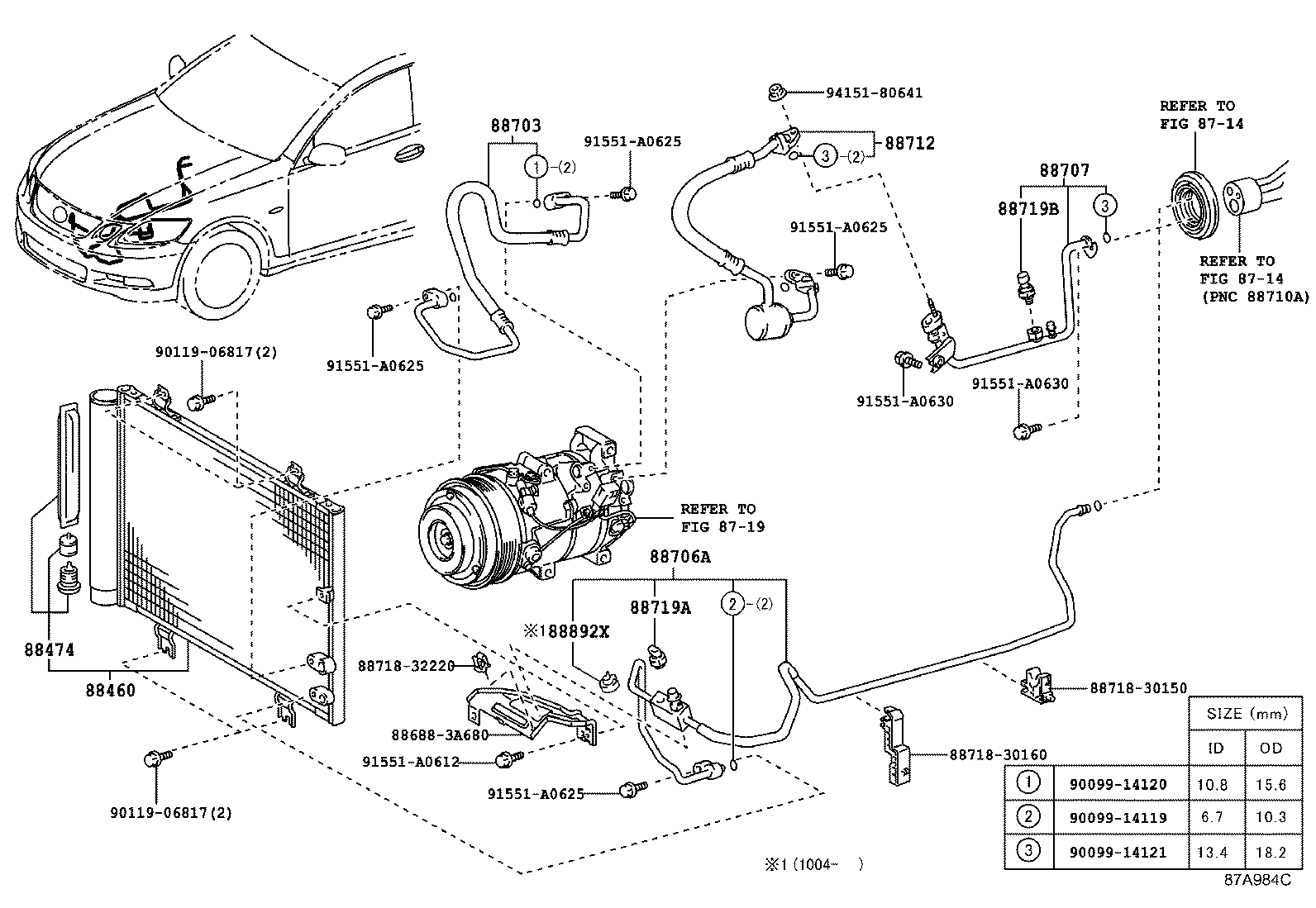

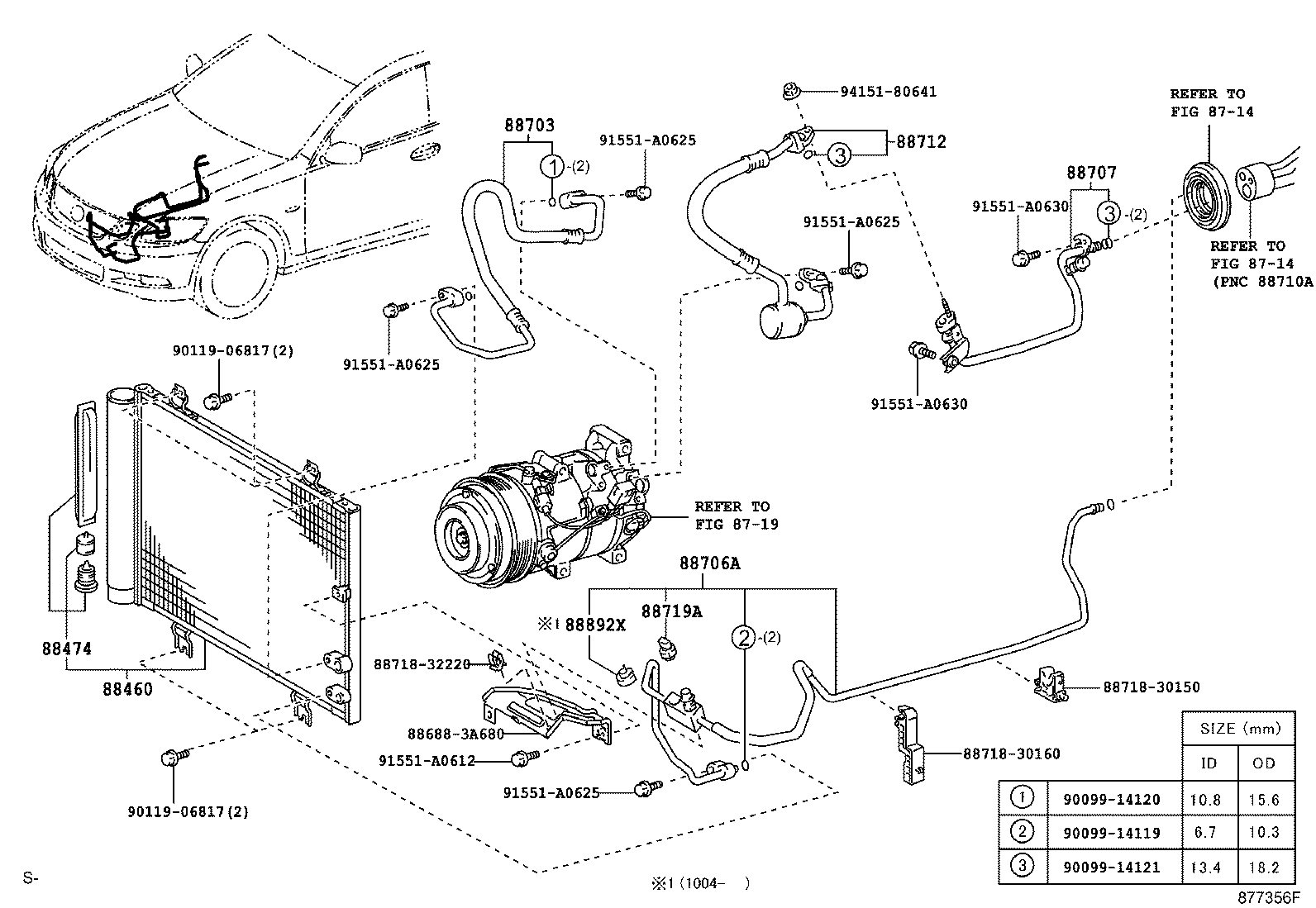

Figure 877357F 877357F 2005-01 → — Figure 877356F 877356F 2005-01 → — Figure 87A984C 87A984C 2009-07 → — Figure 877359E 877359E 2005-01 → 2008-09 Figure 877358E 877358E 2005-01 → 2008-09 Figure 879704H 879704H 2007-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88719B Sensor, Air Conditioner Pressure, NO.2
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
