Toyota Lexus GS Series

2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

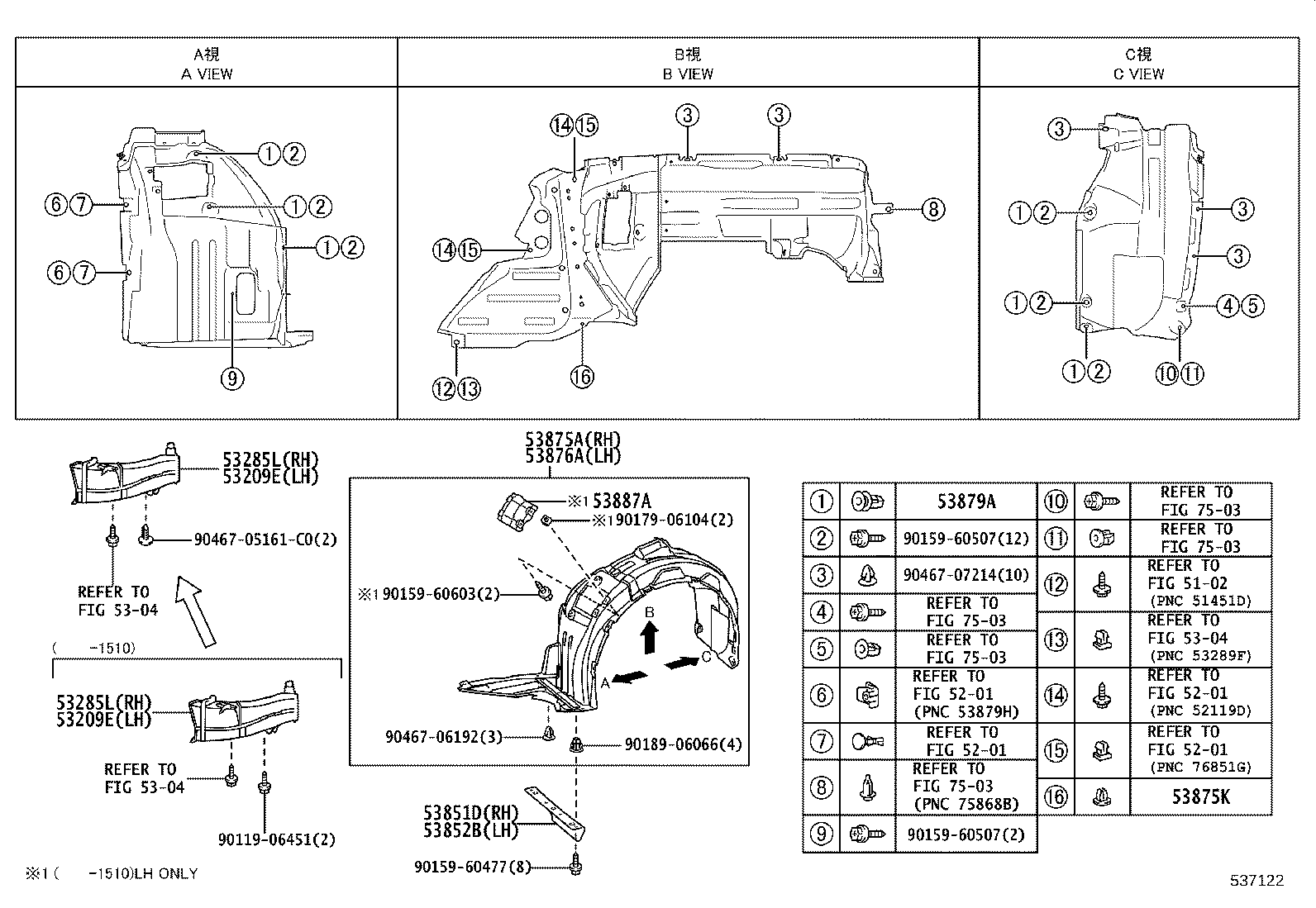

Exploded illustration 537122 5201 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 7503 — not listed in this catalogue 53209E — DUCT SUB-ASSY, COOL AIR INTAKE, NO.3 (6 parts) 53285L — DUCT, COOL AIR INTAKE, NO.2 (6 parts) 53875K — GROMMET, SCREW (2 parts) 53851D — PAD, FRONT WHEEL OPENING EXTENSION, RH (3 parts) 53852B — PAD, FRONT WHEEL OPENING EXTENSION, LH (3 parts) 53875A — LINER, FRONT FENDER, RH (6 parts) 53876A — LINER, FRONT FENDER, LH (6 parts) 53887A — SEAL, FRONT FENDER SPLASH SHIELD, NO.1 (2 parts) 9011906451 — not listed in this catalogue 9015960477 — not listed in this catalogue 9015960507 — not listed in this catalogue 9046707214 — not listed in this catalogue 9018906066 — not listed in this catalogue 9046706192 — not listed in this catalogue 9017906104 — not listed in this catalogue 9015960603 — not listed in this catalogue 5201 — not listed in this catalogue 53209E — DUCT SUB-ASSY, COOL AIR INTAKE, NO.3 (6 parts) 53285L — DUCT, COOL AIR INTAKE, NO.2 (6 parts) 5304 — not listed in this catalogue 5304 — not listed in this catalogue 9046705161C0 — not listed in this catalogue 53879A — RETAINER, FRONT FENDER LINER (3 parts) 9015960507 — not listed in this catalogue 5102 — not listed in this catalogue 5304 — not listed in this catalogue 5201 — not listed in this catalogue 5201 — not listed in this catalogue
537122 · 11 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
53209E — Duct Sub-assy, Cool Air Intake, NO.3
53286-30120 Duct Sub-assy, Cool Air Intake, NO.3
2012-01 → 2013-09 ended
GRL10 —
53286-30120 Duct Sub-assy, Cool Air Intake, NO.3
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53286-30130 note Duct Sub-assy, Cool Air Intake, NO.3
2012-01 → 2013-09 ended
GRL10 —
53286-30130 note Duct Sub-assy, Cool Air Intake, NO.3
2014-09 → 2015-10 ended
GRL10,11,GWL10 GCC —
53286-30130 note Duct Sub-assy, Cool Air Intake, NO.3
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,GWL10 —
53286-30150 Duct Sub-assy, Cool Air Intake, NO.3
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53285L — Duct, Cool Air Intake, NO.2
53285-30110 Duct, Cool Air Intake, NO.2
2012-01 → 2013-09 ended
GRL10 —
53285-30110 Duct, Cool Air Intake, NO.2
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53285-30120 note Duct, Cool Air Intake, NO.2
2012-01 → 2013-09 ended
GRL10 —
53285-30120 note Duct, Cool Air Intake, NO.2
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,GWL10 —
53285-30120 note Duct, Cool Air Intake, NO.2
2014-09 → 2015-10 ended
GRL10,11,GWL10 GCC —
53285-30160 Duct, Cool Air Intake, NO.2
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53851D — Pad, Front Wheel Opening Extension, RH
53851-30110 Pad, Front Wheel Opening Extension, RH
2012-01 → 2013-09 ended
GRL10 —
53851-30110 Pad, Front Wheel Opening Extension, RH
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53851-30110 Pad, Front Wheel Opening Extension, RH
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53852B — Pad, Front Wheel Opening Extension, LH
53852-30110 Pad, Front Wheel Opening Extension, LH
2012-01 → 2013-09 ended
GRL10 —
53852-30110 Pad, Front Wheel Opening Extension, LH
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53852-30110 Pad, Front Wheel Opening Extension, LH
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53875A — Liner, Front Fender, RH
53805-30200 Liner, Front Fender, RH
2012-01 → 2012-10 ended
GRL1#,GWL10 —
53805-30201 Liner, Front Fender, RH
2012-11 → 2013-04 ended
GRL1#,GWL10 —
53805-30202 Liner, Front Fender, RH
2013-05 → 2013-09 ended
GRL10 —
53805-30202 Liner, Front Fender, RH
2013-05 → 2014-11 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53805-30203 Liner, Front Fender, RH
2014-12 → 2015-10 ended
AWL10,GRL1#,GWL10 —
53805-30350 Liner, Front Fender, RH
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53875K — Grommet, Screw
90189-06066 Grommet, Screw
2012-01 → 2015-10 ended
AWL10,GRL1#,GWL10 —
90189-06066 Grommet, Screw
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53876A — Liner, Front Fender, LH
53806-30200 Liner, Front Fender, LH
2012-01 → 2013-04 ended
GRL1#,GWL10 —
53806-30201 Liner, Front Fender, LH
2013-05 → 2014-11 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53806-30201 Liner, Front Fender, LH
2013-05 → 2013-09 ended
GRL10 —
53806-30202 Liner, Front Fender, LH
2014-12 → 2015-01 ended
AWL10,GRL1#,GWL10 —
53806-30203 Liner, Front Fender, LH
2015-02 → 2015-10 ended
AWL10,GRL1#,GWL10 —
53806-30360 Liner, Front Fender, LH
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53879A — Retainer, Front Fender Liner
53879-50010 Retainer, Front Fender Liner
2012-01 → 2013-09 ended
GRL10 —
53879-50010 Retainer, Front Fender Liner
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
53879-50010 Retainer, Front Fender Liner
2015-10 → 2020-07 ended
ARL10,AWL10,GRL12,GWL10 —
53887A — Seal, Front Fender Splash Shield, NO.1
53887-30040 Seal, Front Fender Splash Shield, NO.1
2012-01 → 2013-09 ended
GRL10 —
53887-30040 Seal, Front Fender Splash Shield, NO.1
2012-01 → 2015-10 ended
GRL10 8FC;AWL10,GRL11,15,GWL10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
