Toyota Lexus GS Series
2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General
Supported model
Data version 2021-03

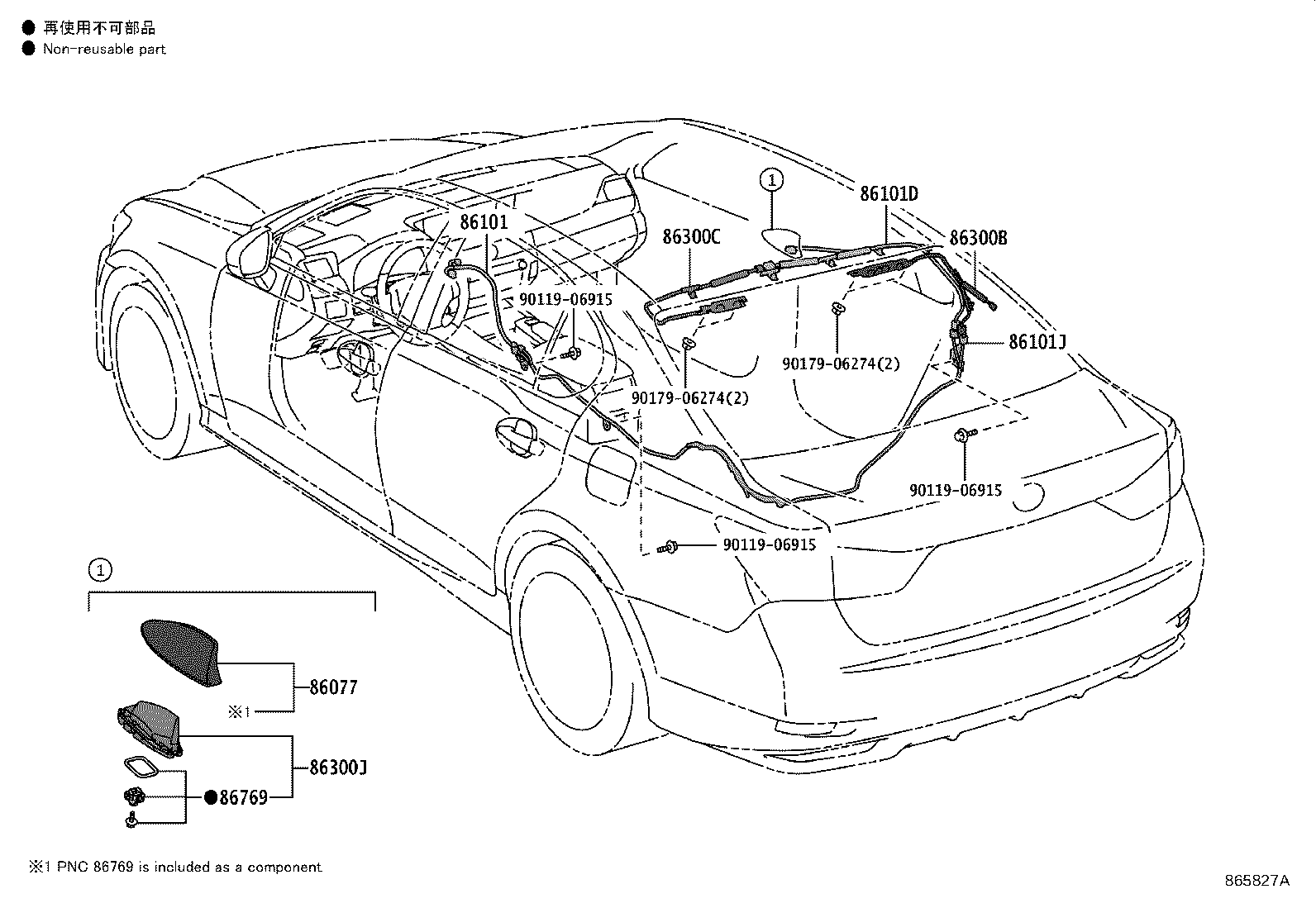

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86077 — Cover Kit, Antenna | ||||
| 86077-53010-A0 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-A1 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
GRL10,11,GWL10 GCC | — | |
| 86077-53010-A1 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 ARL,GEN | — | |
| 86077-53010-B0 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-B2 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-B3 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-C0 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-C1 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-D2 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-E1 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-J1 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-J3 note |
Cover Kit, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86077-53010-A1 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-A2 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-B0 note |
Cover Kit, Antenna
2015-10 → 2016-09
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-B2 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-B3 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-B5 note |
Cover Kit, Antenna
2016-09 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-C0 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-C3 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-D0 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-E3 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-J2 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86077-53010-J4 note |
Cover Kit, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-30L00 |
Cord Sub-assy, Antenna
2012-01 → 2013-09
ended
|
GRL10 GCC,GEN | — | |
| 86101-30L00 |
Cord Sub-assy, Antenna
2012-01 → 2015-10
ended
|
GRL10 8FC (GCC,GEN);AWL10,GRL11,15,GWL10 GCC,GEN | — | |
| 86101-30L10 |
Cord Sub-assy, Antenna
2012-01 → 2013-09
ended
|
GRL10 ARL | — | |
| 86101-30L10 |
Cord Sub-assy, Antenna
2012-01 → 2014-09
ended
|
GRL10 8FC ARL;AWL10,GRL11,GWL10 ARL | — | |
| 86101-30N20 |
Cord Sub-assy, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 ARL | — | |
| 86101-30N20 note |
Cord Sub-assy, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30N20 note |
Cord Sub-assy, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30N20 note |
Cord Sub-assy, Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30P00 |
Cord Sub-assy, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 GCC,GEN | — | |
| 86101-30P40 note |
Cord Sub-assy, Antenna
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 86101-30P40 note |
Cord Sub-assy, Antenna
2015-10 → 2020-07
ended
|
ARL10,GRL12 RHD GEN | — | |
| 86101-30P40 |
Cord Sub-assy, Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 ARL | — | |
| 86101-30P40 note |
Cord Sub-assy, Antenna
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86101-30P40 note |
Cord Sub-assy, Antenna
2015-10 → 2016-09
ended
|
AWL10,GWL10 RHD GEN | — | |
| 86101-30P40 note |
Cord Sub-assy, Antenna
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 86101-30P40 note |
Cord Sub-assy, Antenna
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86101D — Cord Sub-assy, Antenna, NO.3 | ||||
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30G70 |
Cord Sub-assy, Antenna, NO.3
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 ARL | — | |
| 86101-30G80 note |
Cord Sub-assy, Antenna, NO.3
2014-09 → 2015-10
ended
|
GRL15,GWL10 LHD GEN | — | |
| 86101-30G80 note |
Cord Sub-assy, Antenna, NO.3
2014-09 → 2015-10
ended
|
AWL10,GRL11 LHD GEN | — | |
| 86101-30K10 |
Cord Sub-assy, Antenna, NO.3
2012-01 → 2014-09
ended
|
GRL10 8FC ARL;AWL10,GRL11,GWL10 ARL | — | |
| 86101-30K10 |
Cord Sub-assy, Antenna, NO.3
2012-01 → 2013-09
ended
|
GRL10 ARL | — | |
| 86101-30K20 note |
Cord Sub-assy, Antenna, NO.3
2012-01 → 2014-09
ended
|
AWL10,GRL11 LHD GEN | — | |
| 86101-30K20 note |
Cord Sub-assy, Antenna, NO.3
2012-01 → 2014-09
ended
|
GRL15,GWL10 LHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2020-07
ended
|
ARL10,GRL12 RHD GEN | — | |
| 86101-30G70 |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 ARL | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2016-09
ended
|
AWL10,GWL10 RHD GEN | — | |
| 86101-30G70 note |
Cord Sub-assy, Antenna, NO.3
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 86101-30G80 note |
Cord Sub-assy, Antenna, NO.3
2016-02 → 2018-09
ended
|
AWL10 LHD | — | |
| 86101-30G80 note |
Cord Sub-assy, Antenna, NO.3
2016-02 → 2018-09
ended
|
GWL10 LHD GEN | — | |
| 86101-30G80 note |
Cord Sub-assy, Antenna, NO.3
2016-02 → 2020-07
ended
|
ARL10 LHD GEN | — | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-30K60 |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2013-09
ended
|
GRL10 ARL | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30K60 |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2015-10
ended
|
GRL10 8FC ARL;AWL10,GRL11,GWL10 ARL | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 86101-30K70 |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2015-10
ended
|
GRL10 LHD 8FC;AWL10,GRL11,15,GWL10 LHD | — | |
| 86101-30K70 note |
Cord Sub-assy, Antenna, NO.2
2013-09 → 2015-10
ended
|
GRL10 LHD GEN | — | |
| 86101-30K70 |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2013-09
ended
|
GRL10 LHD | — | |
| 86101-30K80 note |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2015-10
ended
|
AWL10,GRL11 LHD GEN | — | |
| 86101-30K80 note |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2015-10
ended
|
GRL15,GWL10 LHD GEN | — | |
| 86101-30K90 |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2013-09
ended
|
GRL10 RHD GEN | — | |
| 86101-30K90 |
Cord Sub-assy, Antenna, NO.2
2012-01 → 2015-10
ended
|
GRL10 RHD 8FC GEN;AWL10,GRL11,GWL10 +2 | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2016-09
ended
|
AWL10,GWL10 RHD GEN | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2020-07
ended
|
ARL10,GRL12 RHD GEN | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86101-30K60 note |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86101-30K60 |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 ARL | — | |
| 86101-30K70 |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 LHD | — | |
| 86101-30K80 note |
Cord Sub-assy, Antenna, NO.2
2016-02 → 2018-09
ended
|
AWL10 LHD | — | |
| 86101-30K80 note |
Cord Sub-assy, Antenna, NO.2
2016-02 → 2020-07
ended
|
ARL10 LHD GEN | — | |
| 86101-30K80 note |
Cord Sub-assy, Antenna, NO.2
2016-02 → 2018-09
ended
|
GWL10 LHD GEN | — | |
| 86101-30K90 |
Cord Sub-assy, Antenna, NO.2
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 RHD GEN | — | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-30C60 |
Antenna Assy, Amplifier, NO.1
2012-01 → 2013-09
ended
|
GRL10 | — | |
| 86300-30C60 |
Antenna Assy, Amplifier, NO.1
2012-01 → 2015-10
ended
|
GRL10 8FC;AWL10,GRL11,15,GWL10 | — | |
| 86300-30C60 |
Antenna Assy, Amplifier, NO.1
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86300C — Antenna Assy, Amplifier, NO.2 | ||||
| 863C0-30010 |
Antenna Assy, Amplifier, NO.2
2012-01 → 2013-09
ended
|
GRL10 ARL | — | |
| 863C0-30010 |
Antenna Assy, Amplifier, NO.2
2012-01 → 2015-10
ended
|
GRL10 8FC ARL;AWL10,GRL11,GWL10 ARL | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2014-09 → 2015-10
ended
|
AWL10,GRL10,11,GWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2015-10 → 2020-07
ended
|
ARL10,GRL12 RHD GEN | — | |
| 863C0-30010 |
Antenna Assy, Amplifier, NO.2
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 ARL | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2015-10 → 2016-09
ended
|
AWL10,GWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2015-10 → 2016-09
ended
|
GRL12,GWL10 RHD GEN | — | |
| 863C0-30010 note |
Antenna Assy, Amplifier, NO.2
2015-10 → 2019-09
ended
|
ARL10,AWL10 RHD GEN | — | |
| 86300J — Antenna Assy, Roof | ||||
| 86760-30220-A0 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-A0 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-A1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
AWL10,GRL10,11,GWL10 ARL,GEN | — | |
| 86760-30220-A1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-A1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10,11,GWL10 GCC | — | |
| 86760-30220-B0 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-B0 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-B1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-B1 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-C0 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-C0 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-C1 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-C1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-C2 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-C2 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-D0 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-D0 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-E0 note |
Antenna Assy, Roof
2012-01 → 2013-09
ended
|
GRL1#,GWL10 | — | |
| 86760-30220-E1 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-E1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-J0 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-J0 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-30220-J1 note |
Antenna Assy, Roof
2012-01 → 2014-09
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-30220-J1 note |
Antenna Assy, Roof
2013-09 → 2014-09
ended
|
GRL10 LHD GEN | — | |
| 86760-53100 |
Antenna Assy, Roof
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86760-53100 note |
Antenna Assy, Roof
2014-09 → 2015-10
ended
|
GRL10 LHD GEN | — | |
| 86760-53100 |
Antenna Assy, Roof
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
| 86769 — Housing, Roof Antenna | ||||
| 86769-53010 |
Housing, Roof Antenna
2014-09 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 86769-53010 note |
Housing, Roof Antenna
2014-09 → 2015-10
ended
|
GRL10 LHD GEN | — | |
| 86769-53010 |
Housing, Roof Antenna
2015-10 → 2020-07
ended
|
ARL10,AWL10,GRL12,GWL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
