Toyota Lexus GS Series

2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 6 illustrations

Illustrations

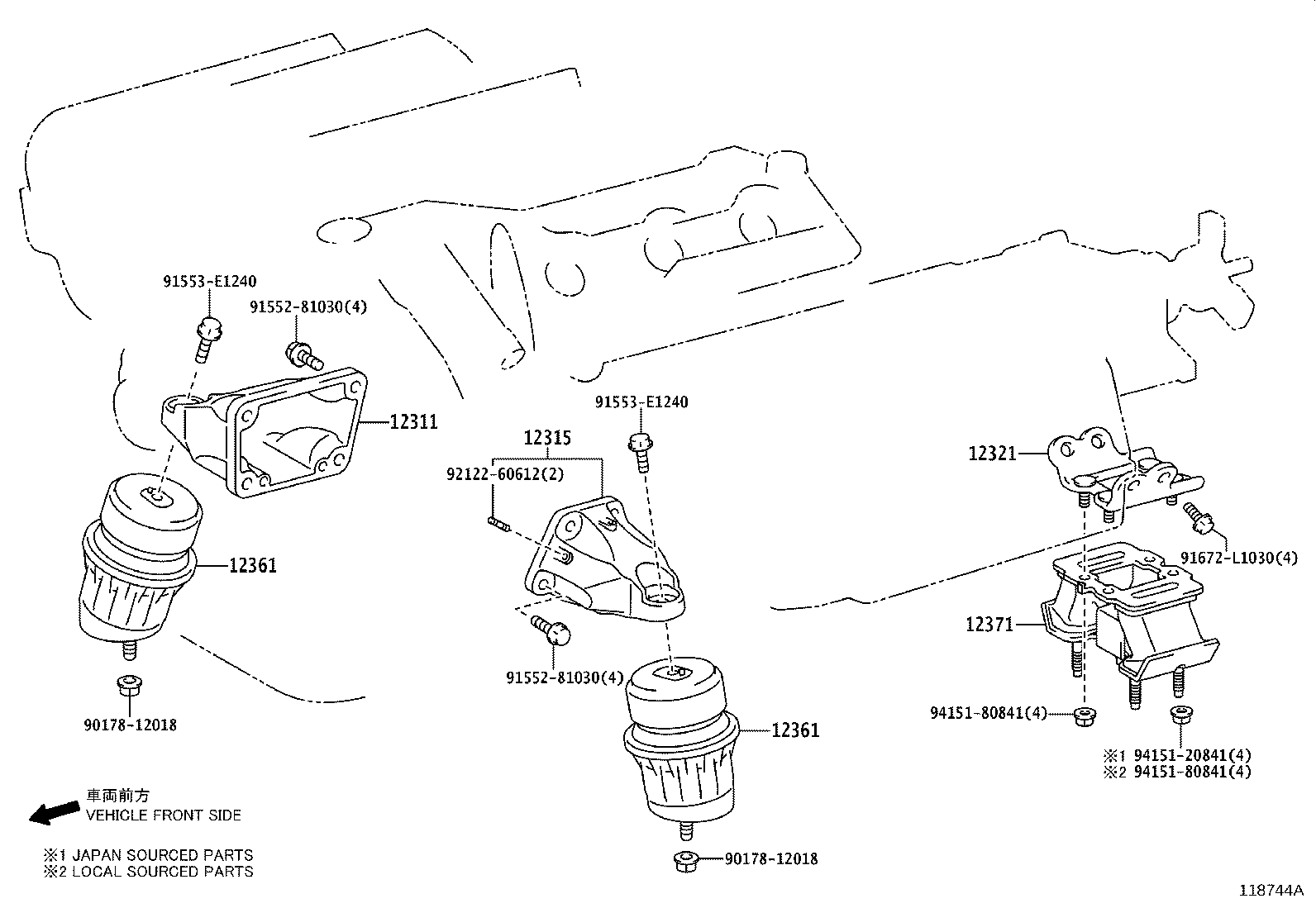

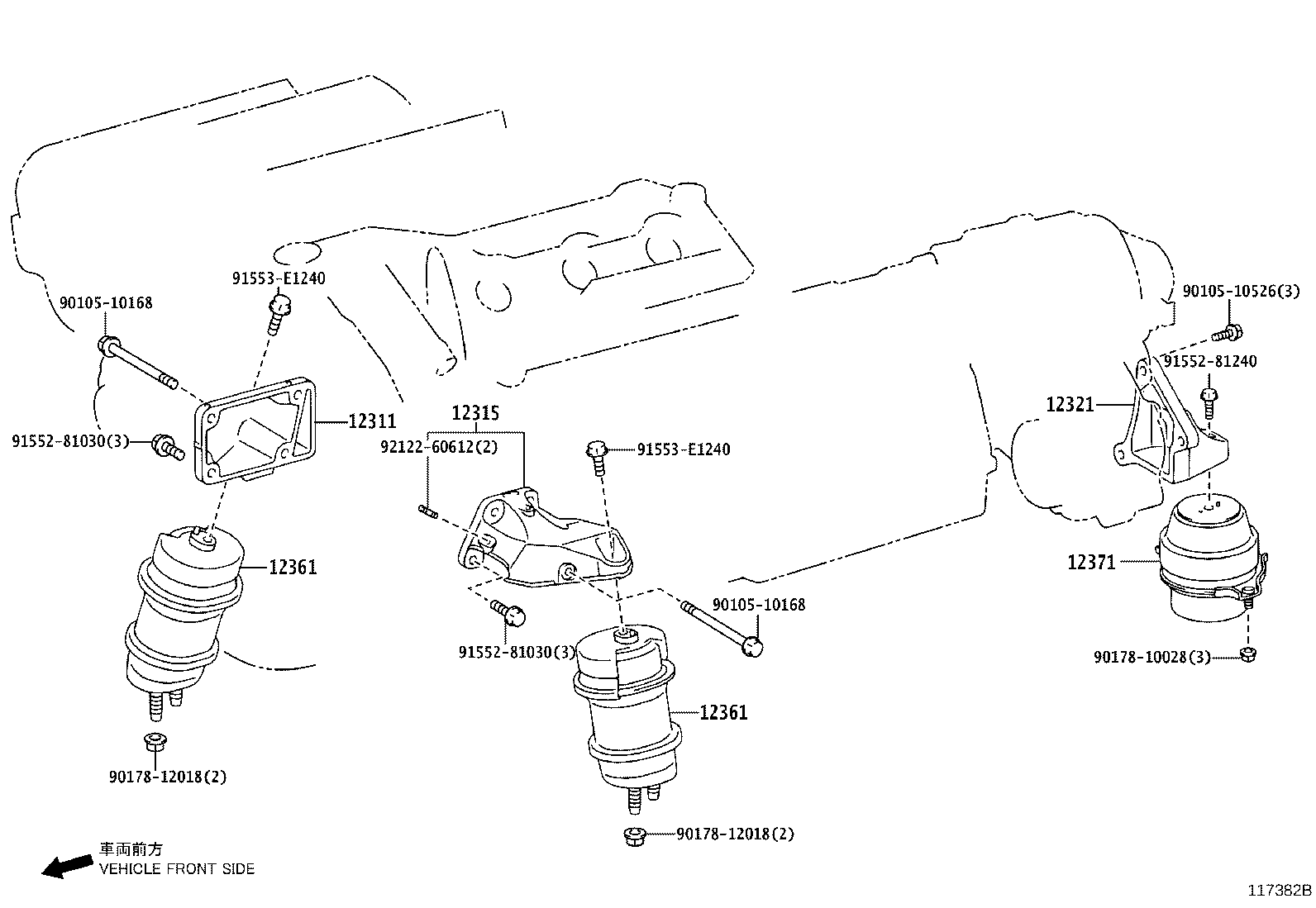

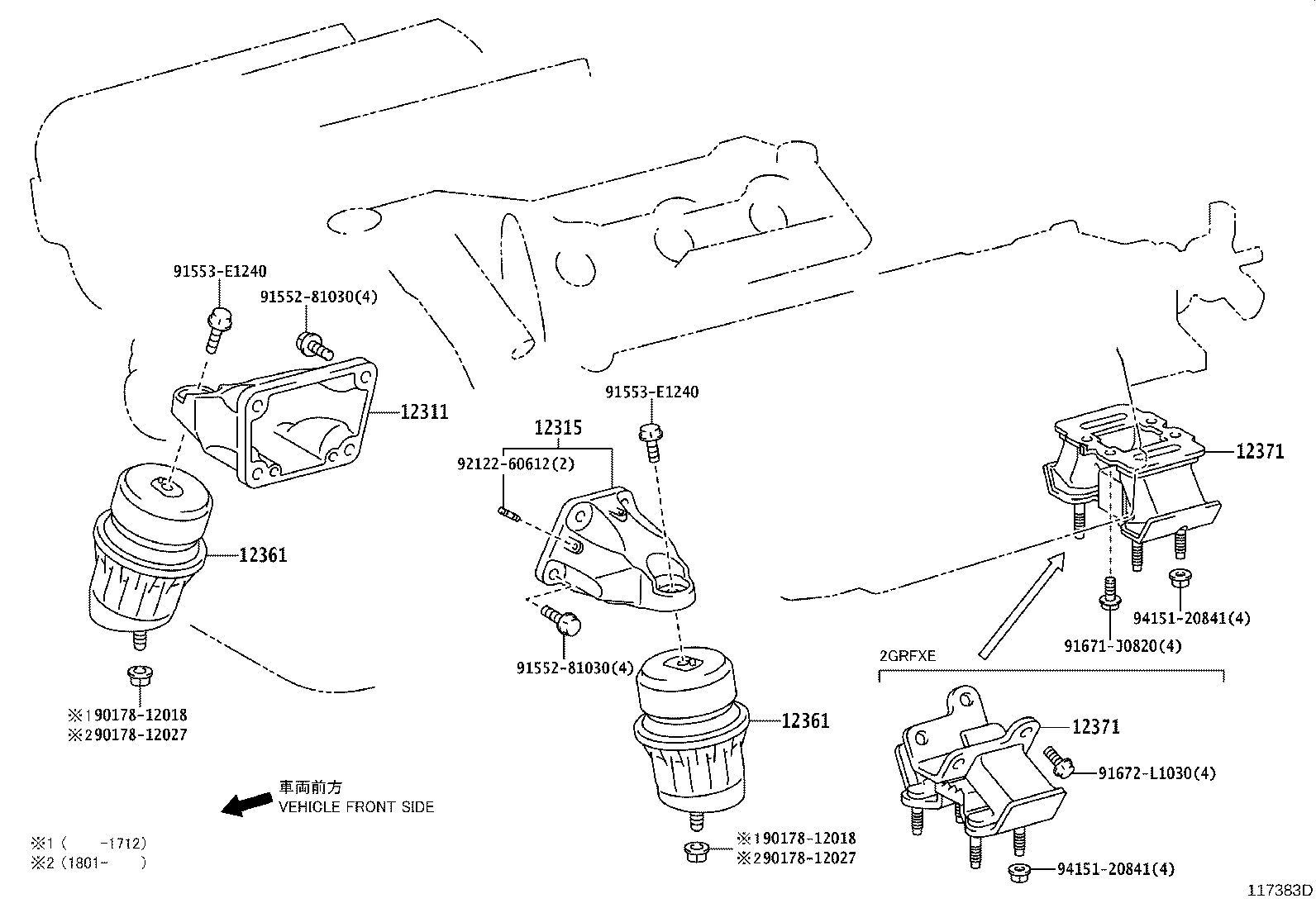

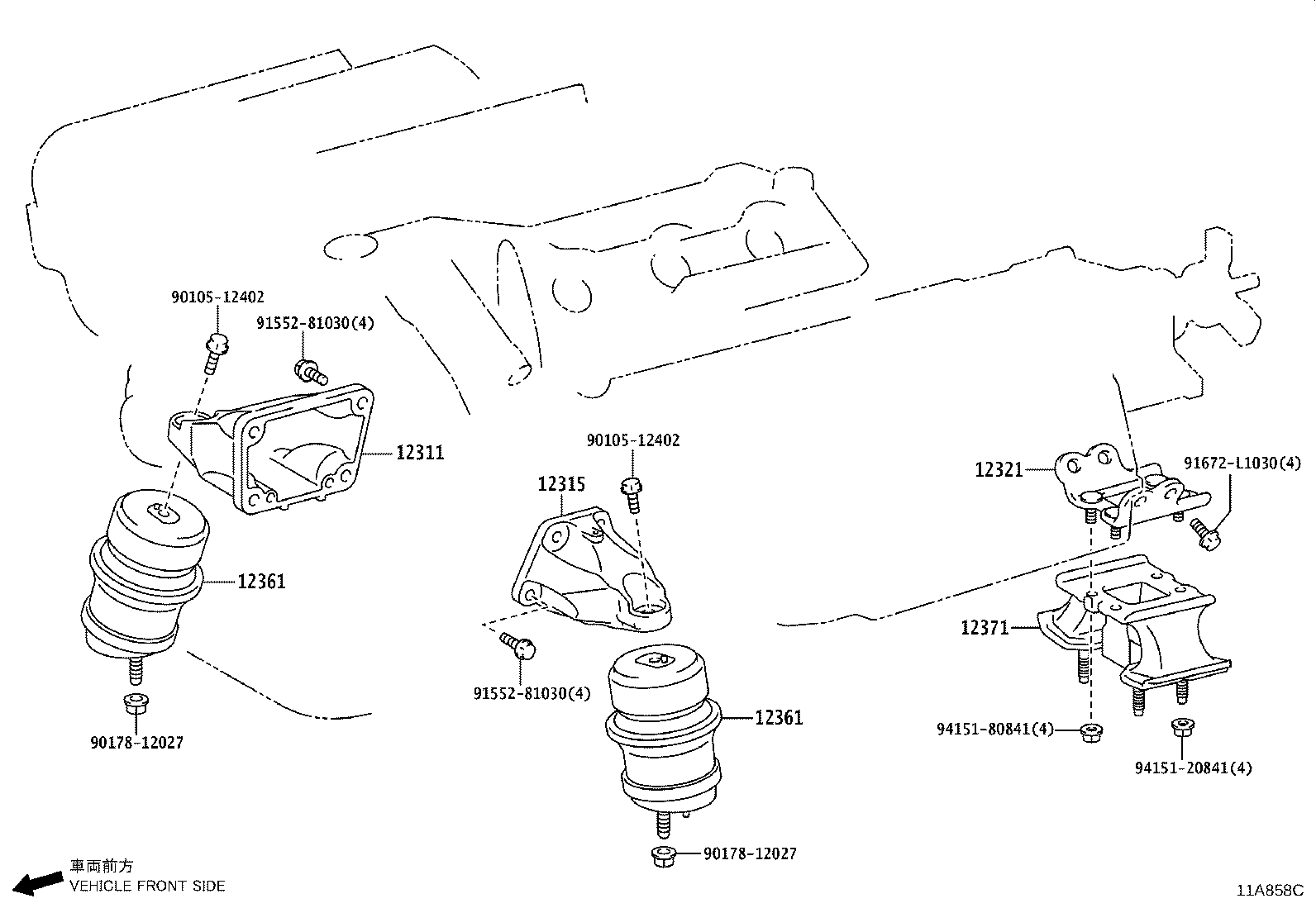

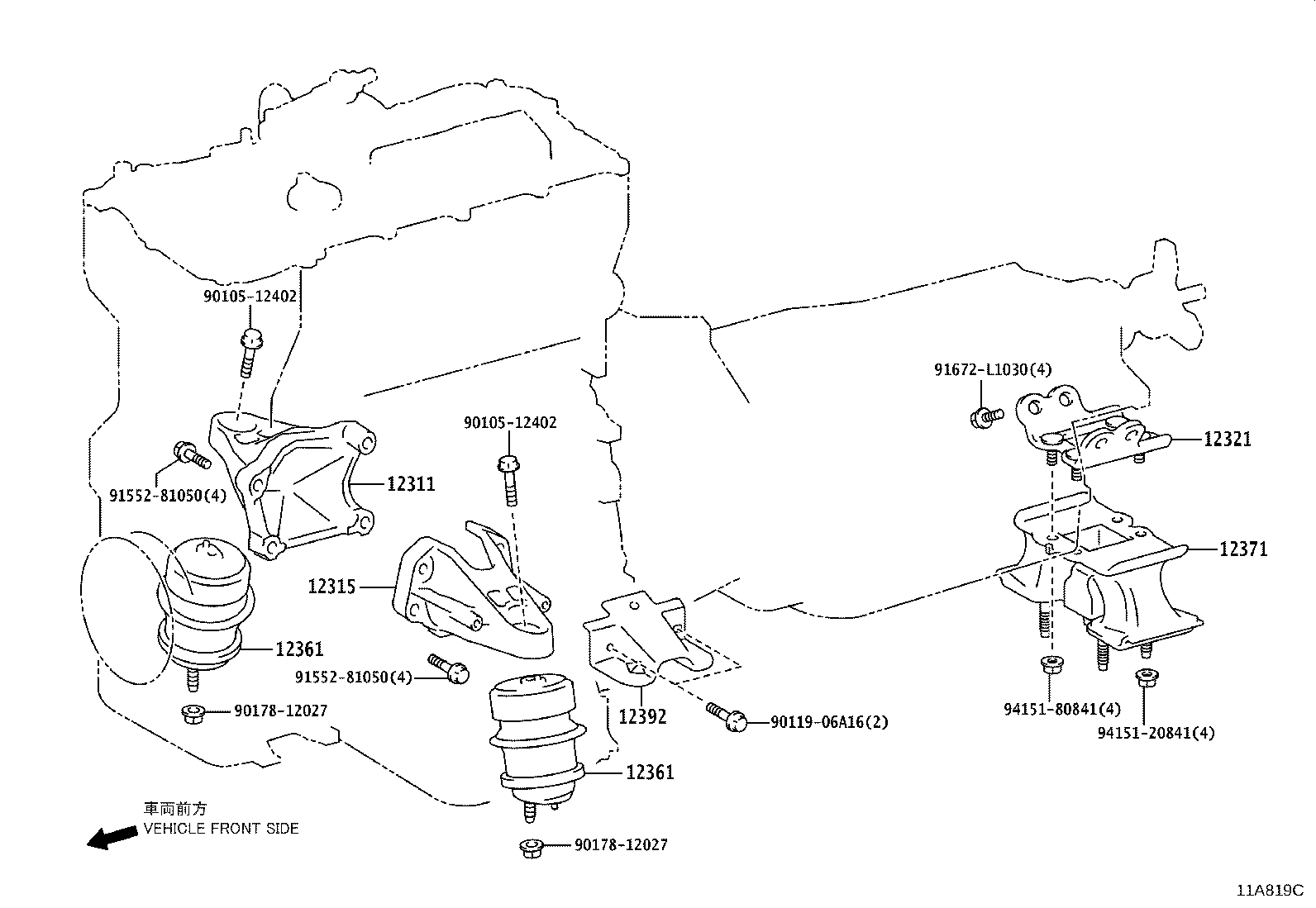

Figure 118665C 118665C 2013-09 → — Figure 11A819C 11A819C 2015-10 → — Figure 118744A 118744A 2013-09 → — Figure 117383D 117383D 2012-01 → — Figure 117382B 117382B 2012-01 → — Figure 11A858C 11A858C 2015-10 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12392 Insulator, Engine Mounting Heat, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
