Toyota Lexus GS Series

2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General

Supported model Data version 2021-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

9 part groups · 4 illustrations

Illustrations

Figure 152101B

152101B 2013-09 → —

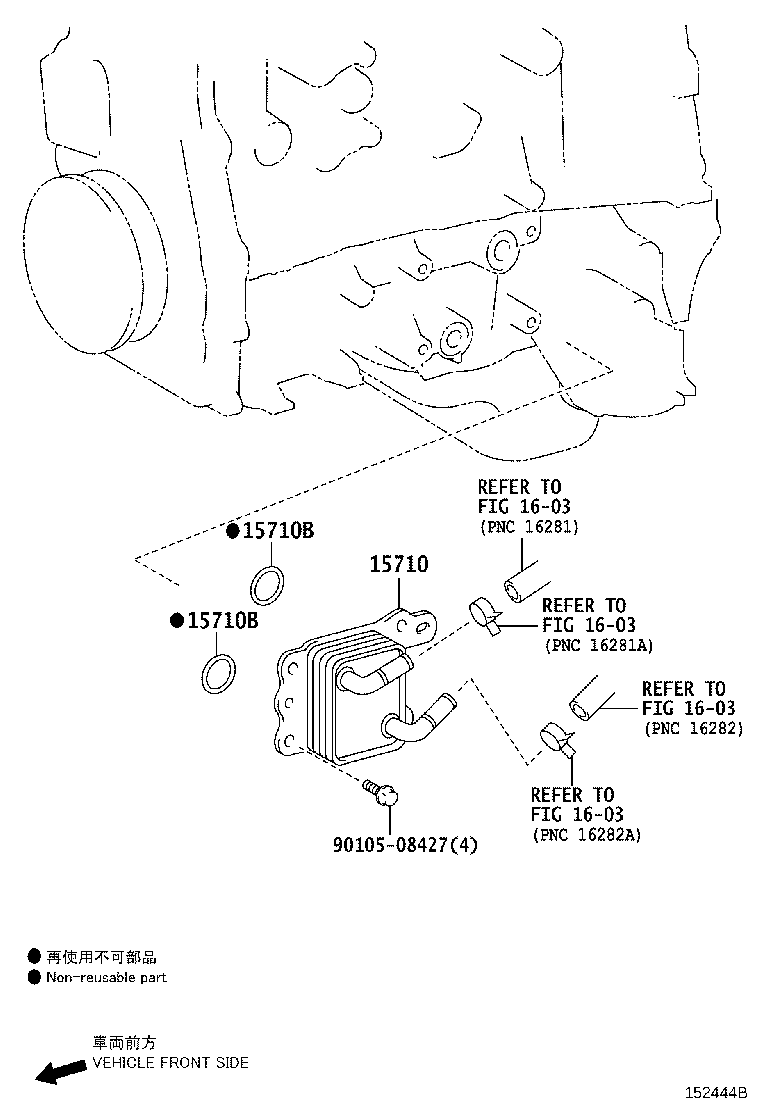

Figure 152444B

152444B 2015-10 → —

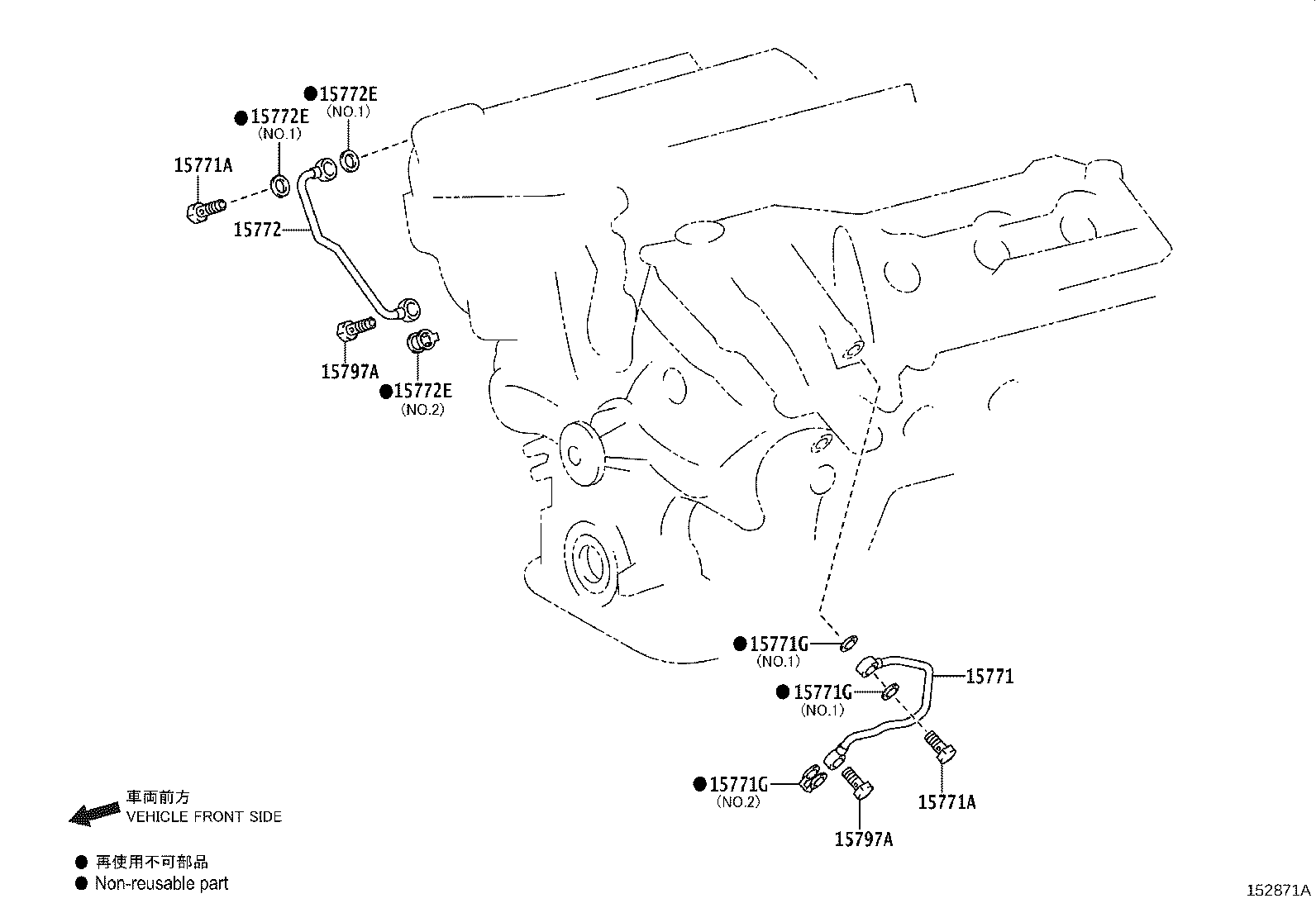

Figure 152871A

152871A 2012-01 → —

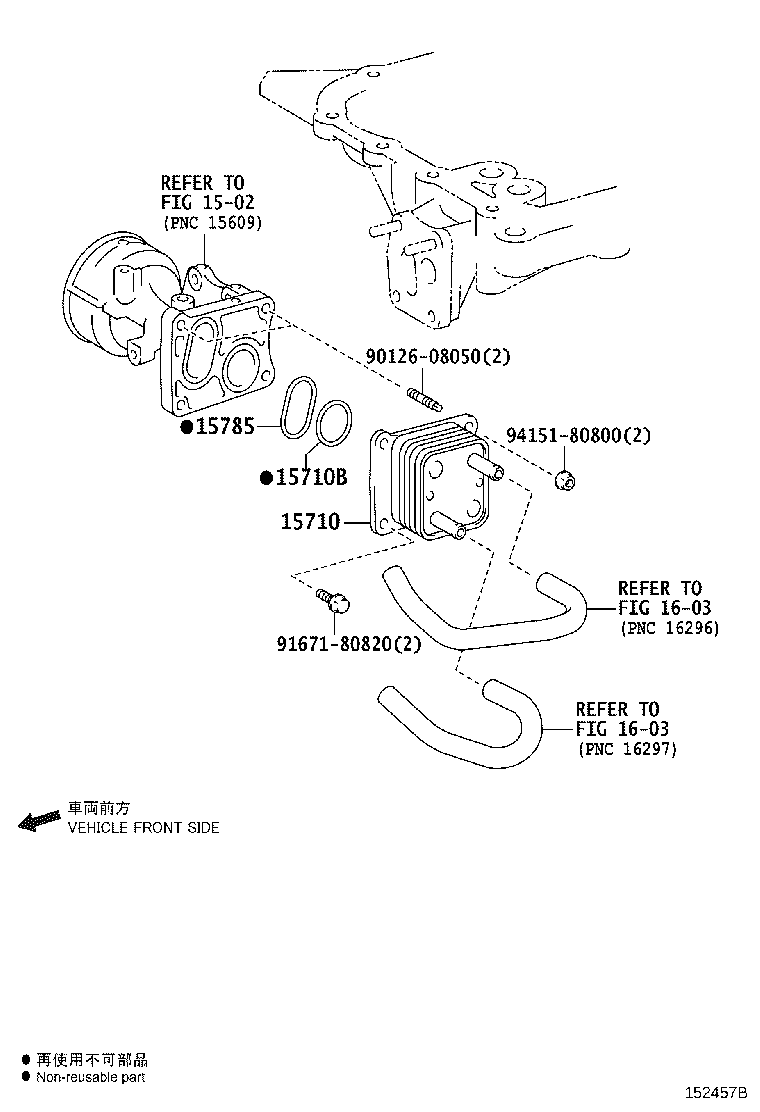

Figure 152457B

152457B 2015-10 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15771	Pipe, Oil, NO.1
15771A	Union(FOR OIL PIPE)
15771G	Gasket
15772	Pipe, Oil, NO.2
15772E	Gasket(FOR OIL PIPE)
15785	Gasket, Oil Cooler
15797A	Bolt, Oil Check Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
