Water Pump

7 part groups · 5 illustrations

Illustrations

Figure 165477B

165477B 2013-09 → —

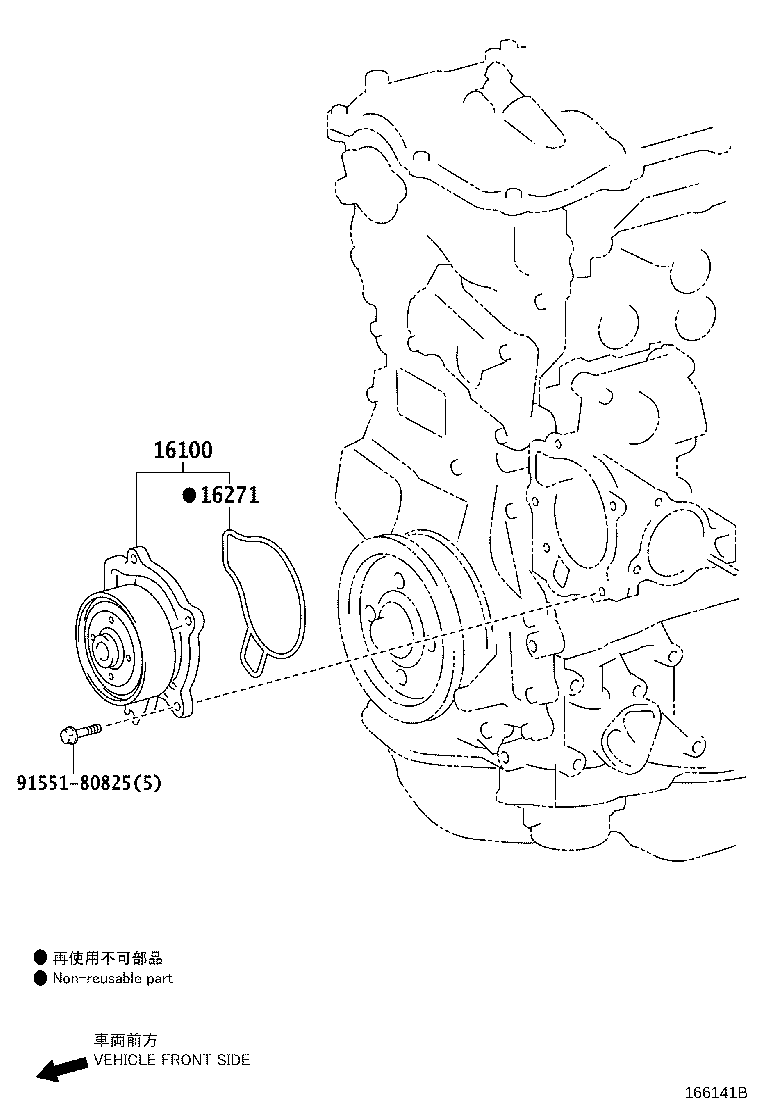

Figure 166141B

166141B 2015-10 → —

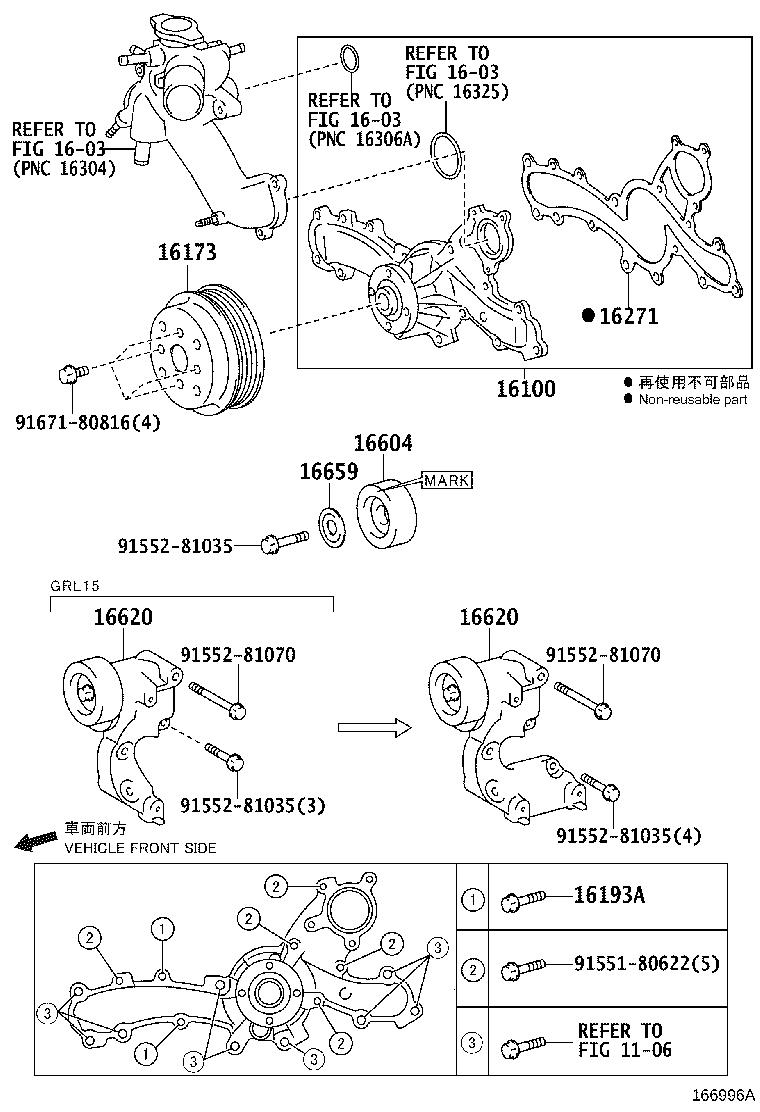

Figure 166996A

166996A 2012-01 → —

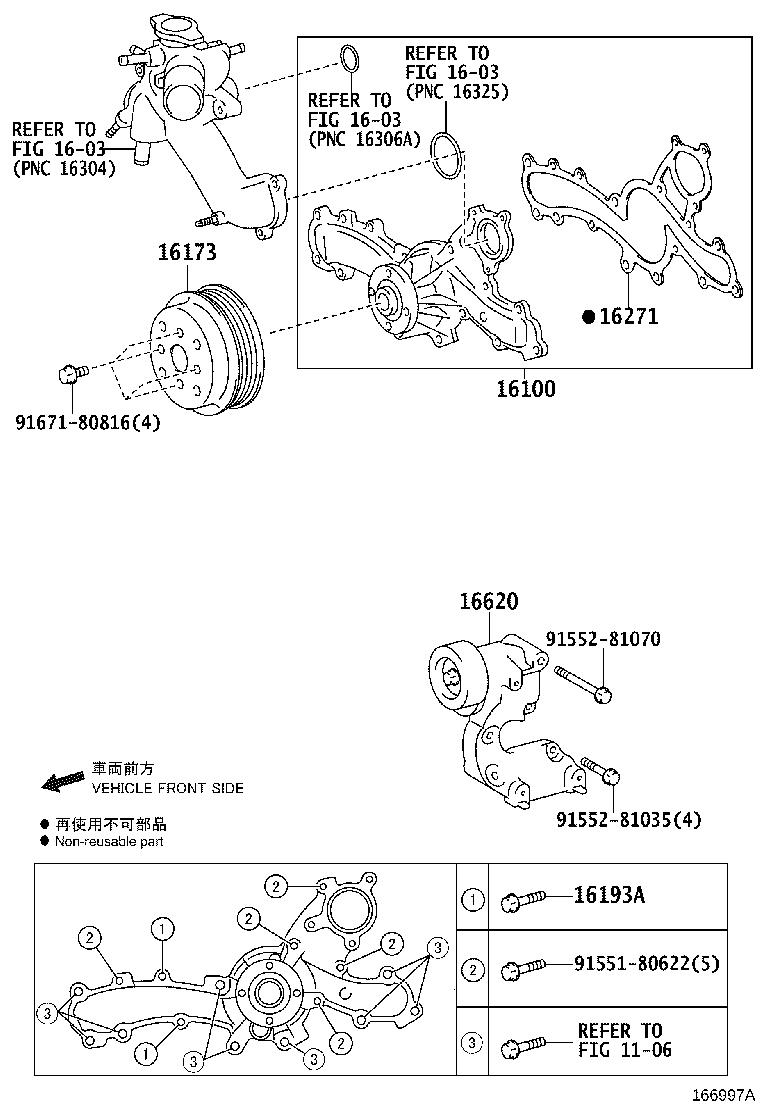

Figure 166997A

166997A 2012-03 → —

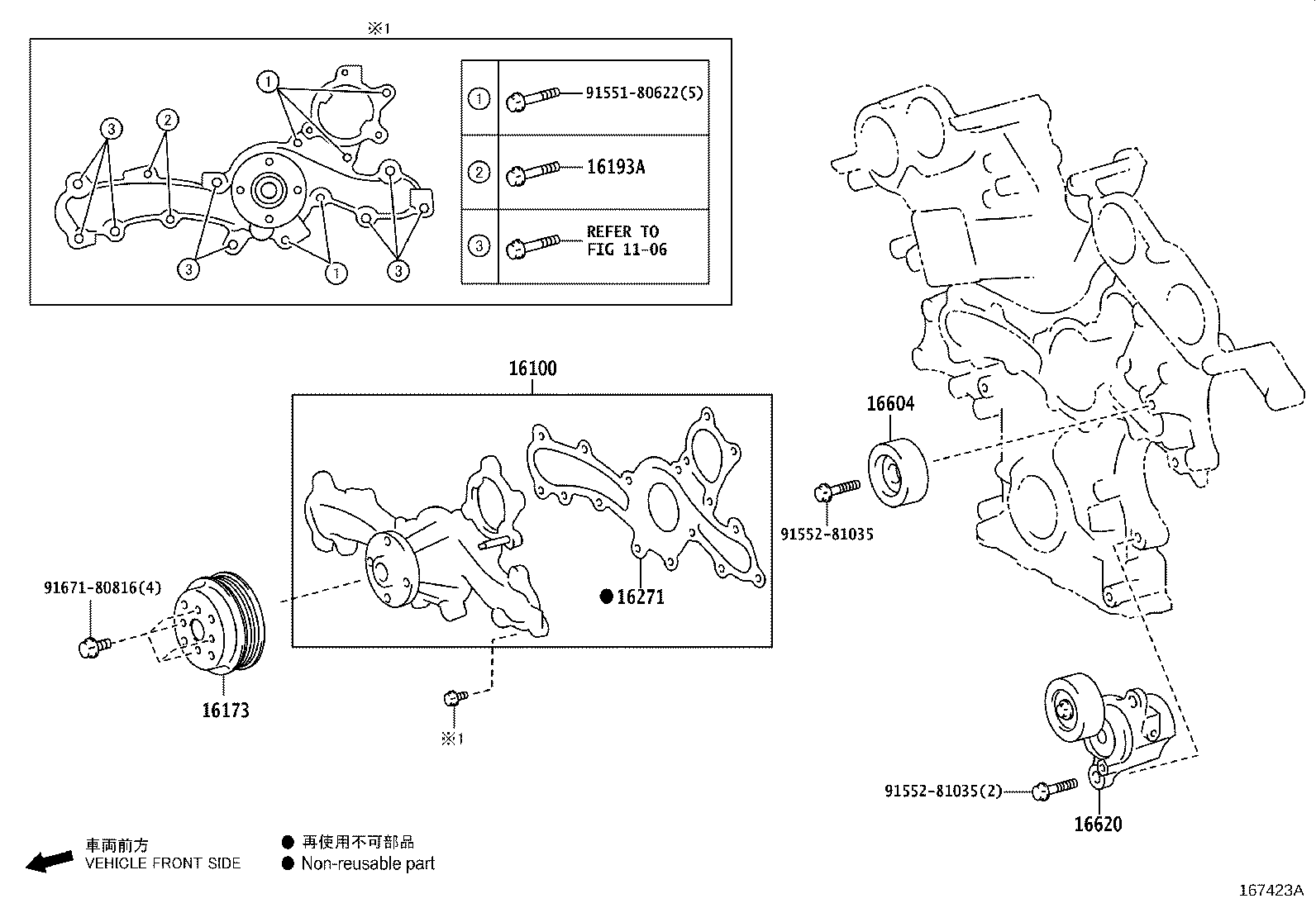

Figure 167423A

167423A 2015-10 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
