Toyota Lexus GS Series

2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

20 part groups · 5 illustrations

Illustrations

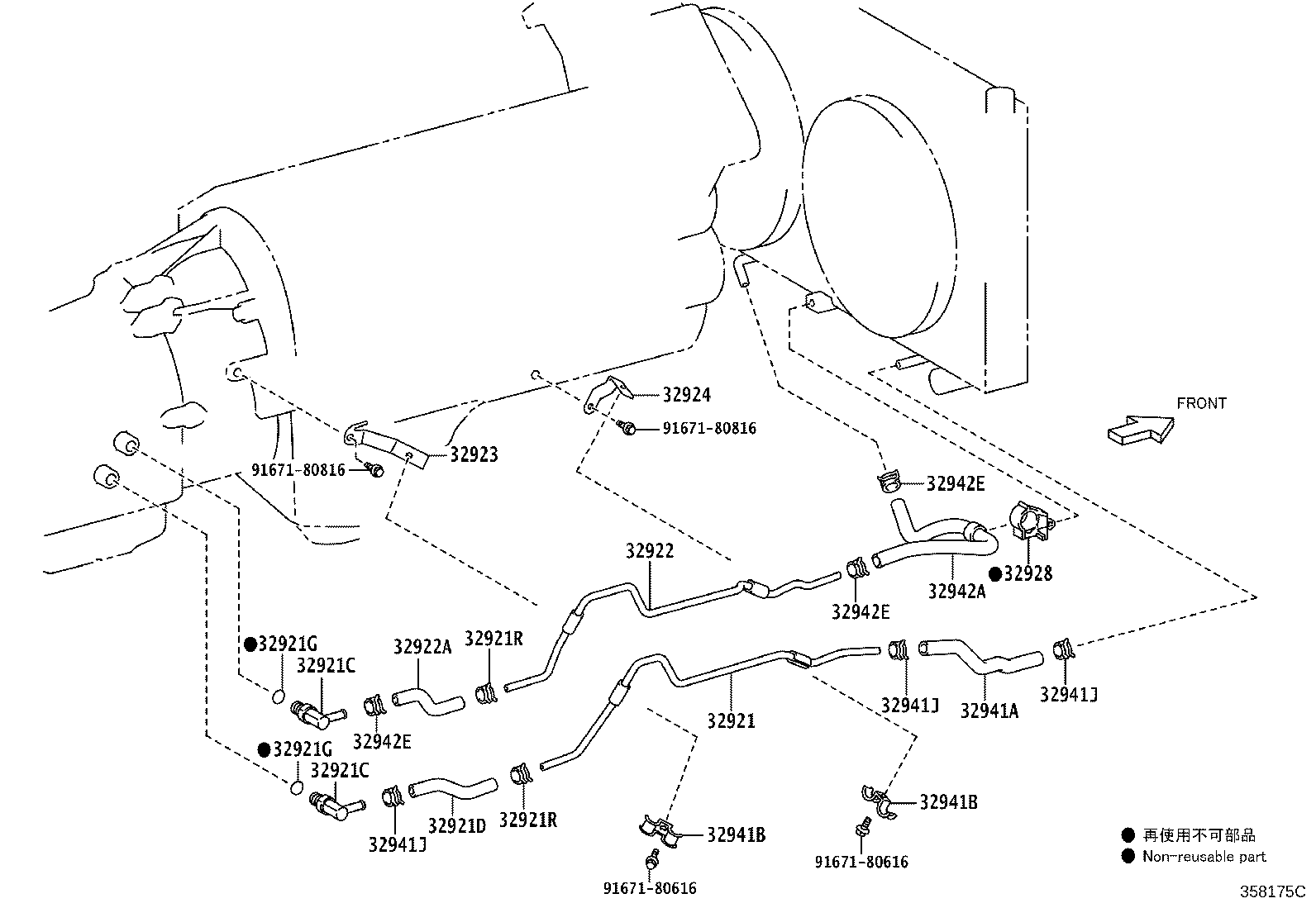

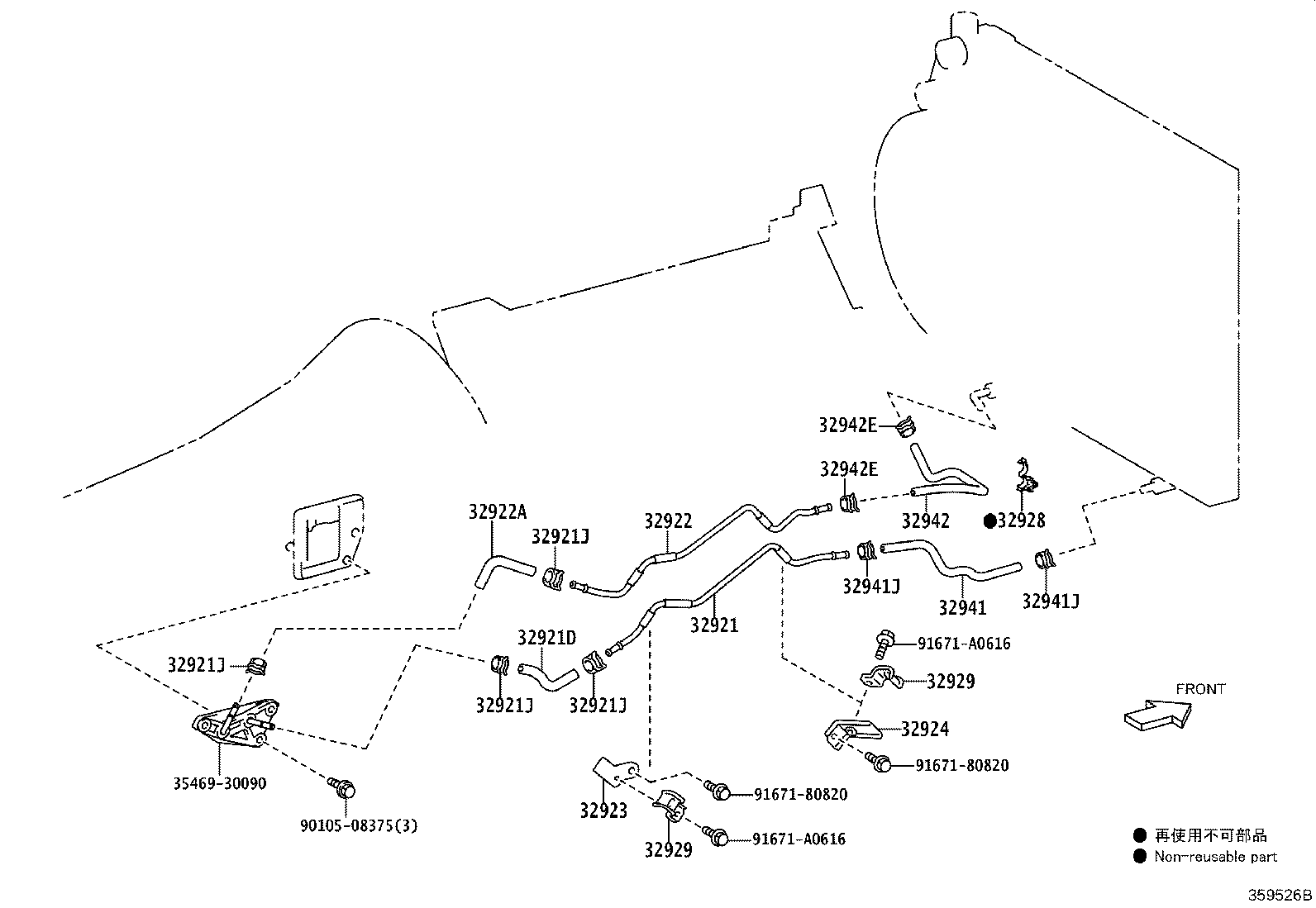

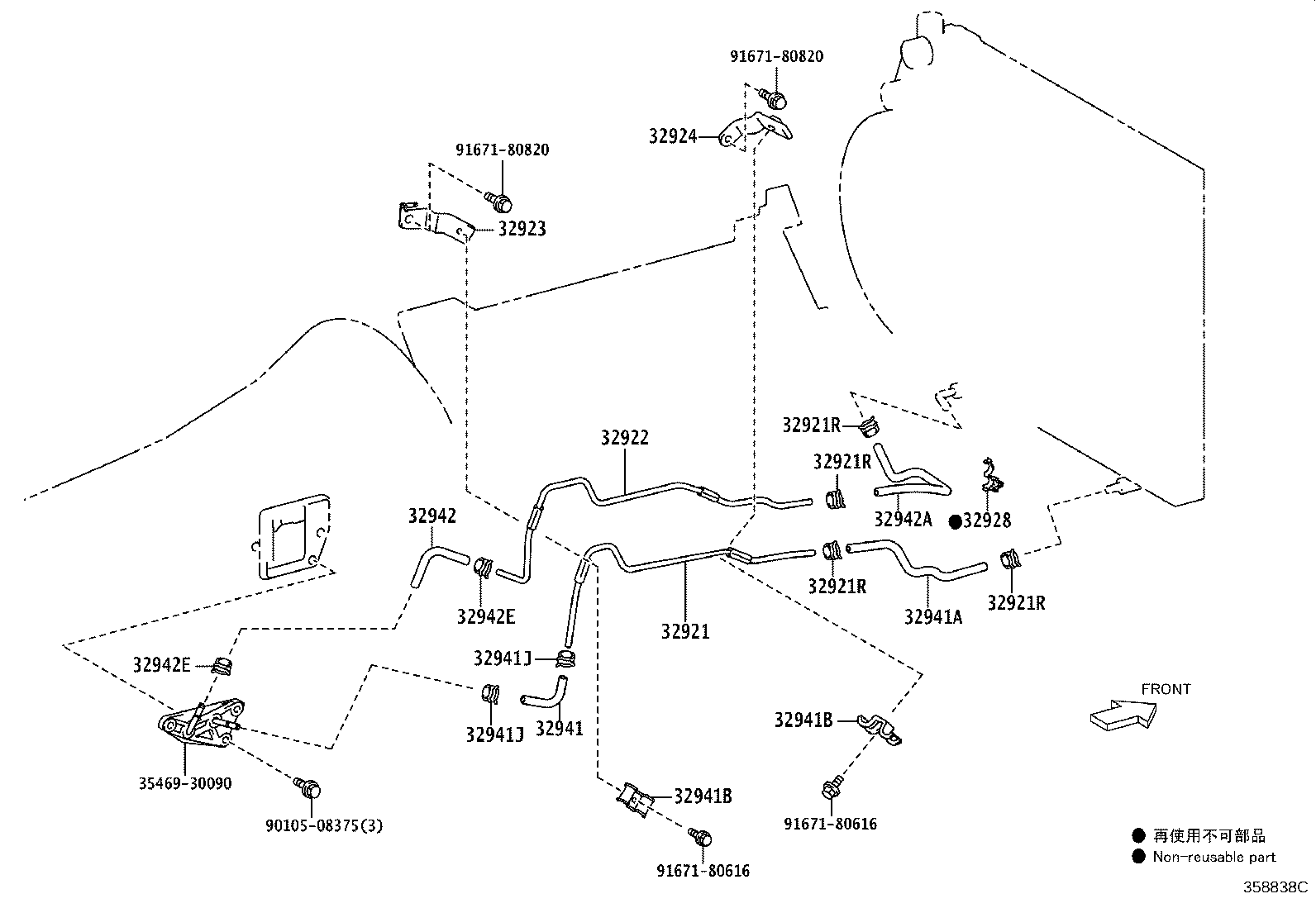

Figure 358171B 358171B 2012-01 → — Figure 358175C 358175C 2012-01 → 2015-10 Figure 358837C 358837C 2013-09 → — Figure 358838C 358838C 2013-09 → 2015-10 Figure 359526B 359526B 2015-10 → —

Part groups

PNCDescription
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921R Clip, NO.2(FOR OIL COOLER HOSE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32928 Clamp, Flexible Hose, NO.1
32929 Clamp, Flexible Hose, NO.2
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941B Clamp(FOR OIL COOLER TUBE)
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
