Toyota Lexus GS Series

2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (HEV OR BEV OR FCEV)

12 part groups · 2 illustrations

Illustrations

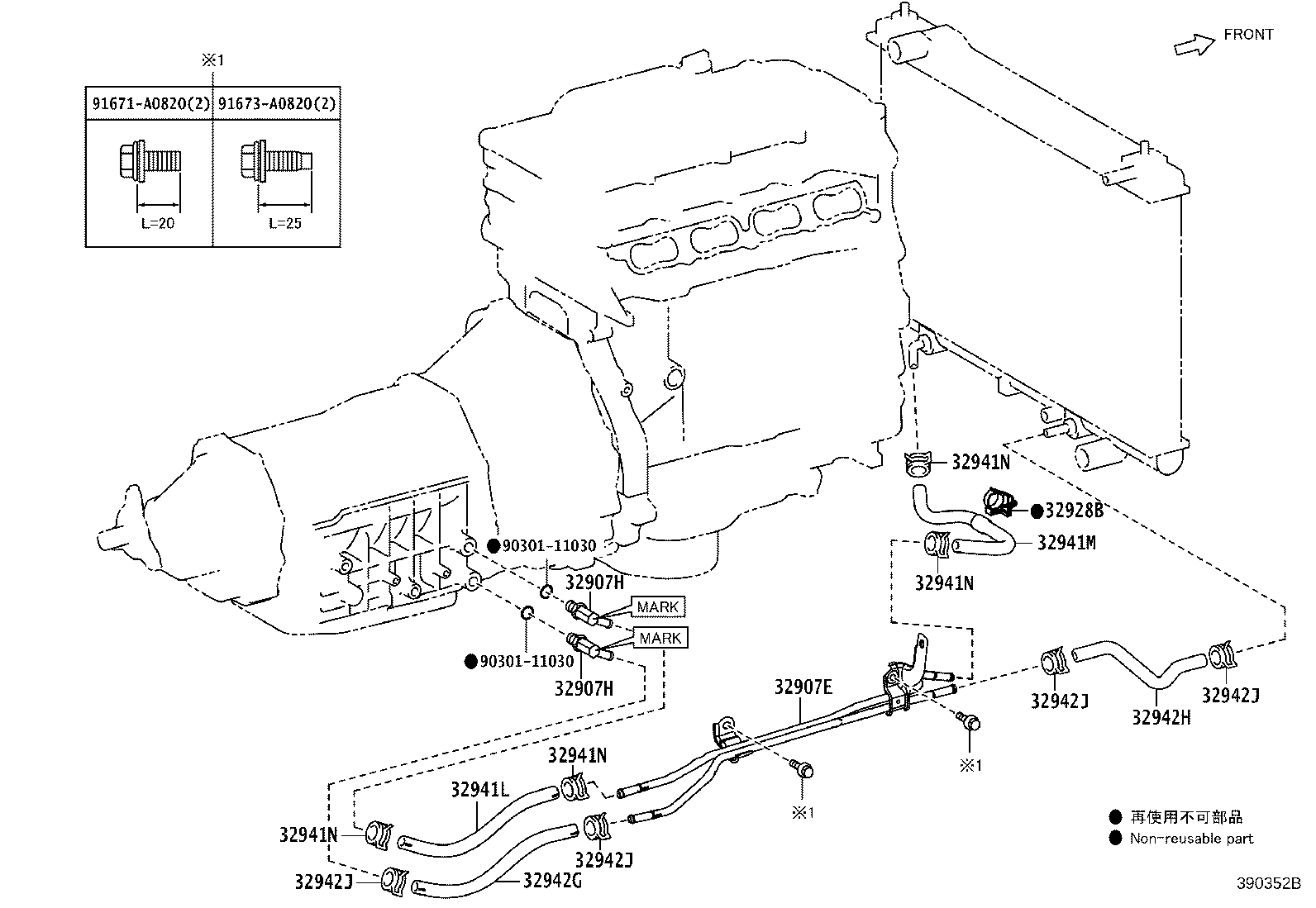

Figure 390228A 390228A 2012-03 → — Figure 390352B 390352B 2013-09 → —

Part groups

PNCDescription
32901 Union Sub-assy, Oil Cooler
32901A Bolt, Union(FOR OIL COOLER)
32901B Gasket(FOR OIL COOLER UNION)
32907E Tube Sub-assy, Oil Cooler W/O Hose
32907H Elbow
32928B Clamp, Flexible Hose, NO.1
32941L Hose, Oil Cooler Inlet, NO.1
32941M Hose, Oil Cooler Inlet, NO.2
32941N Clip, NO.1(FOR OIL COOLER HOSE)
32942G Hose, Oil Cooler Outlet, NO.1
32942H Hose, Oil Cooler Outlet, NO.2
32942J Clip, NO.2(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
