Toyota Lexus GS Series
2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General
Supported model
Data version 2021-03

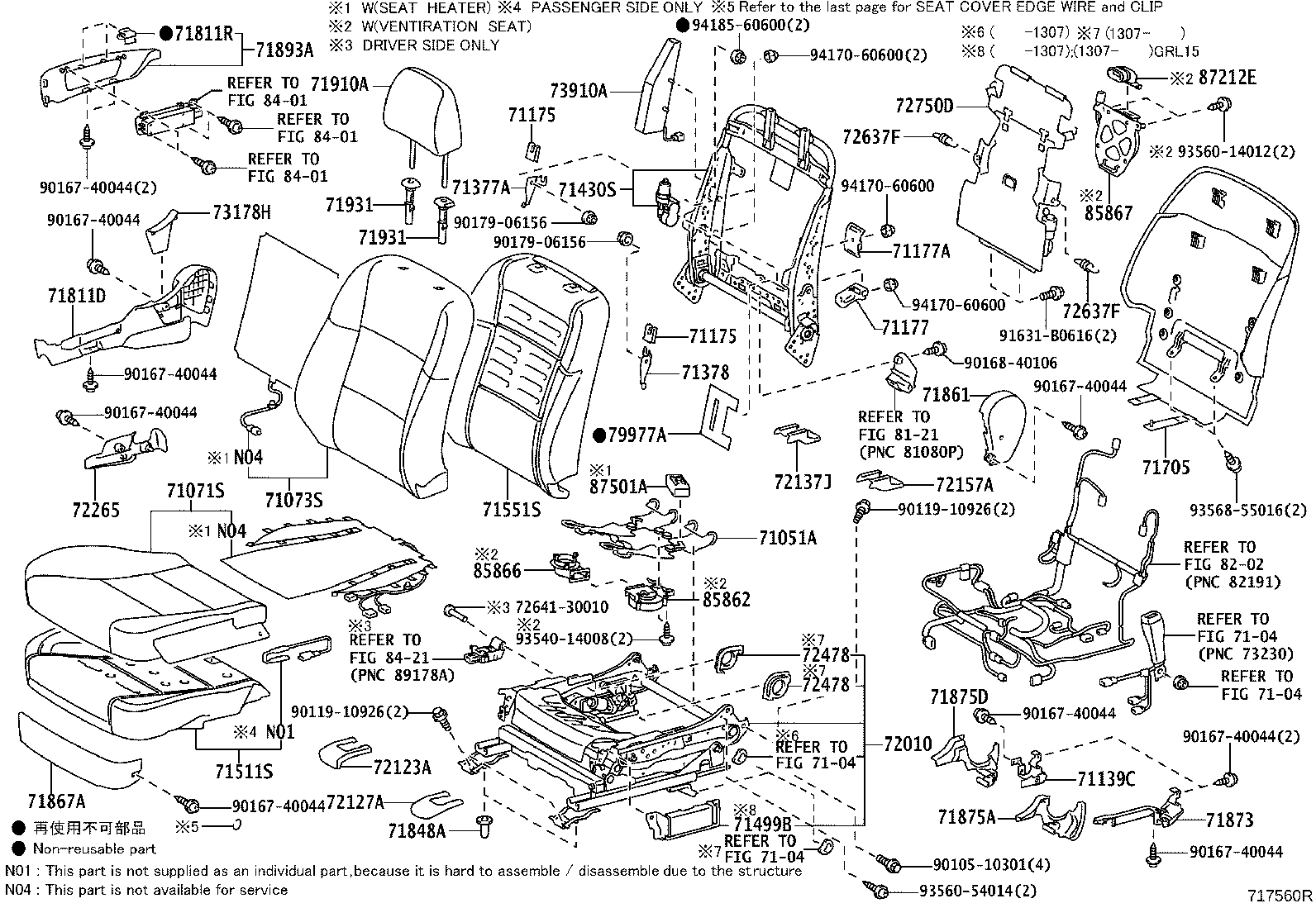

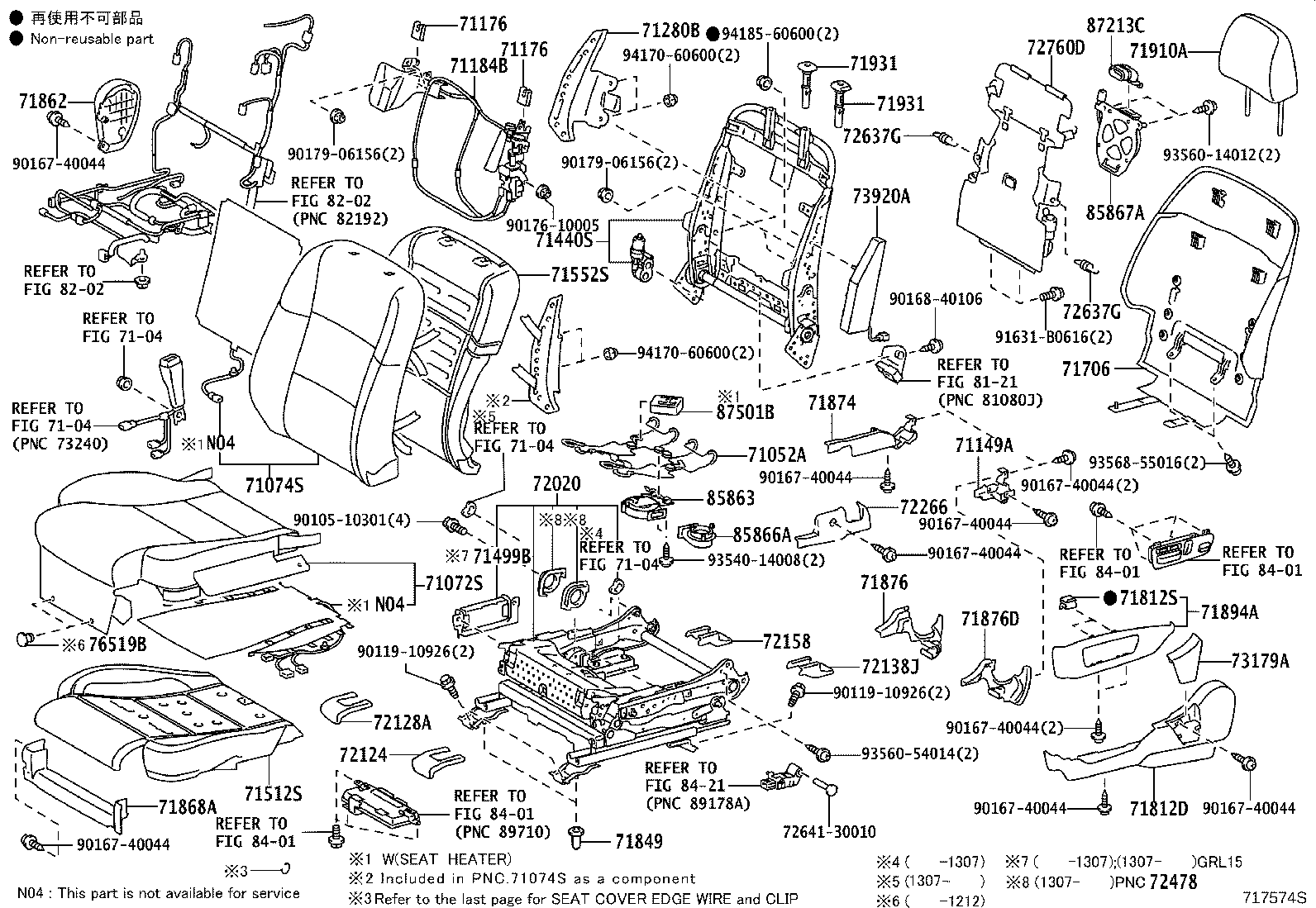

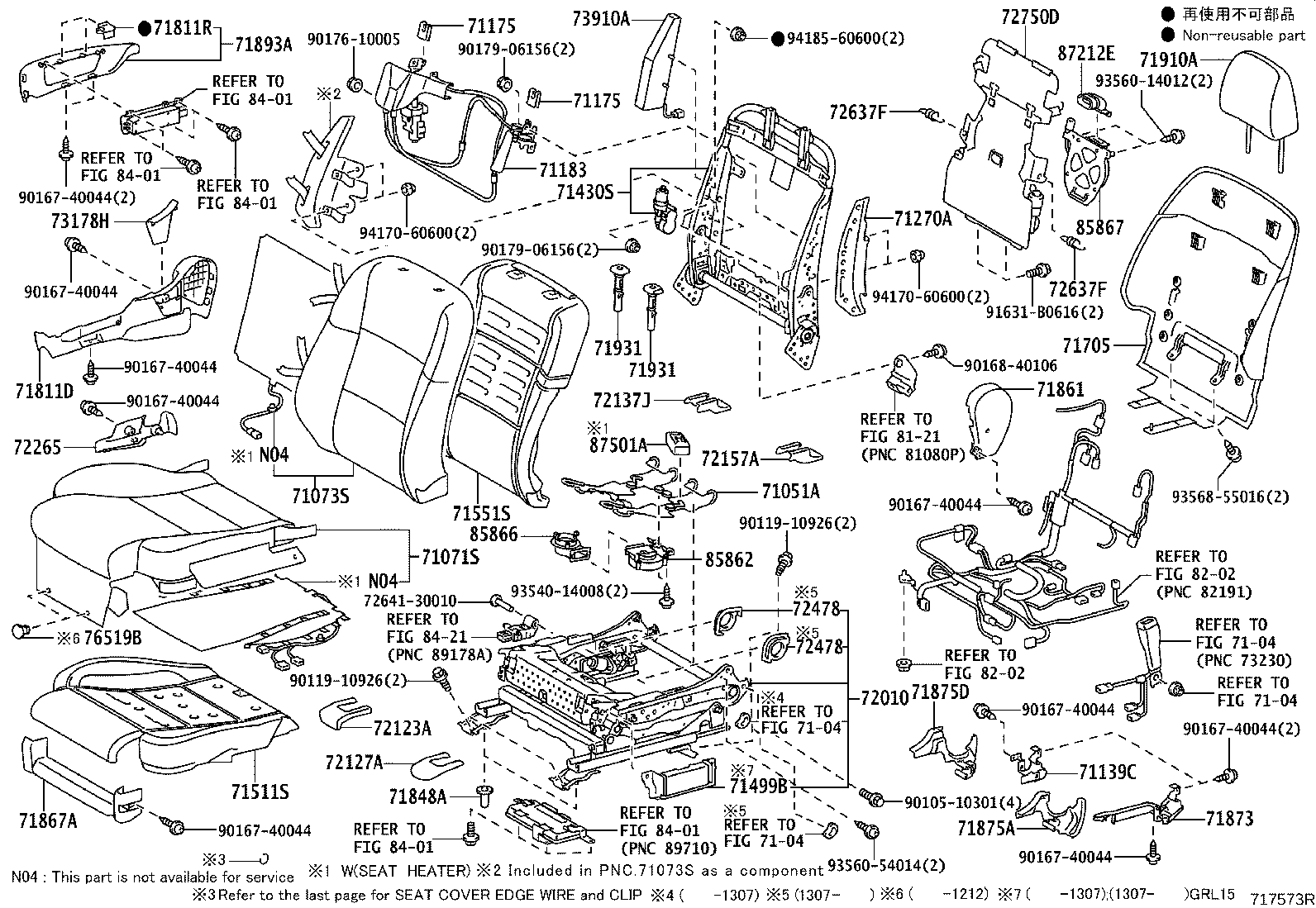

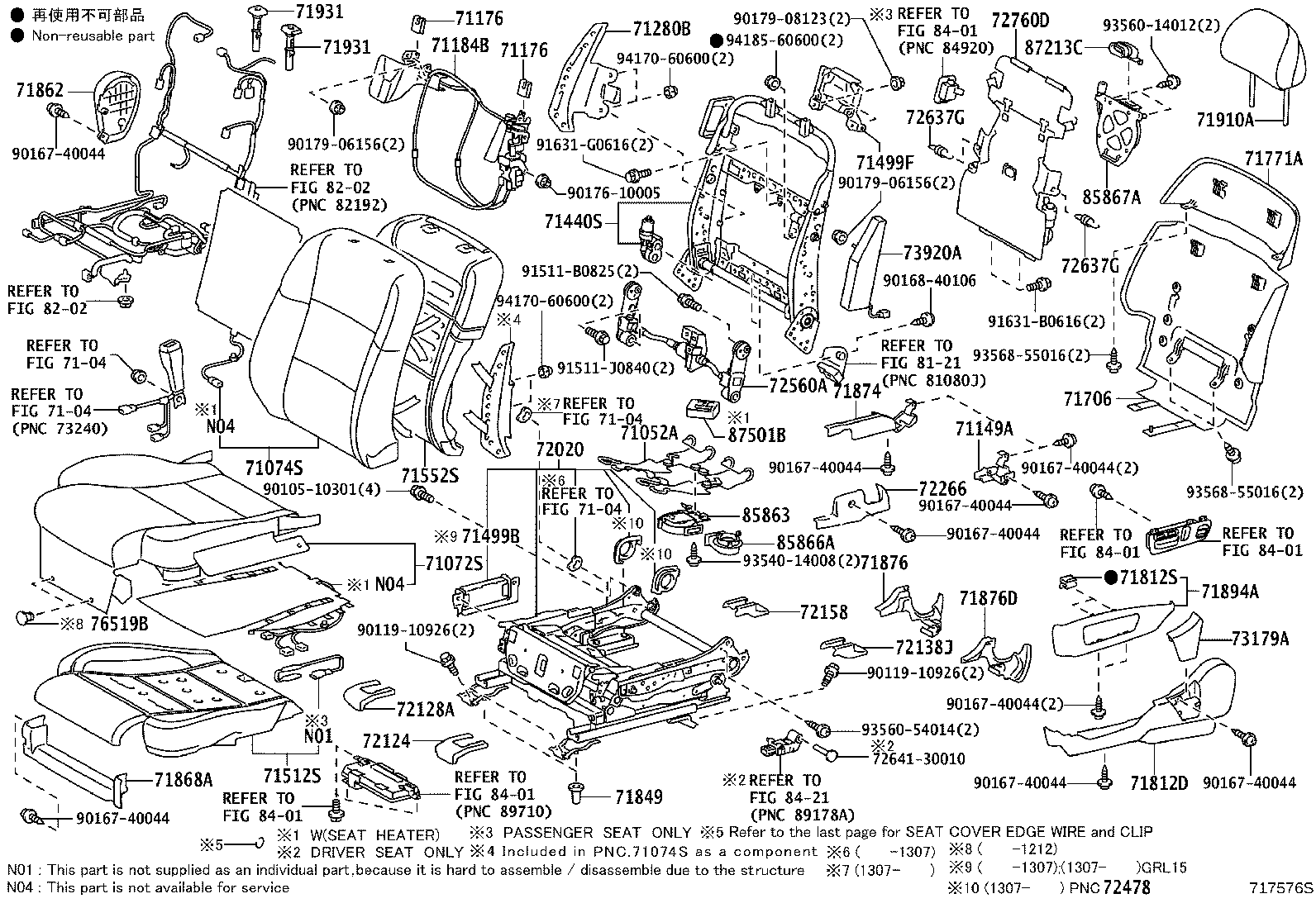

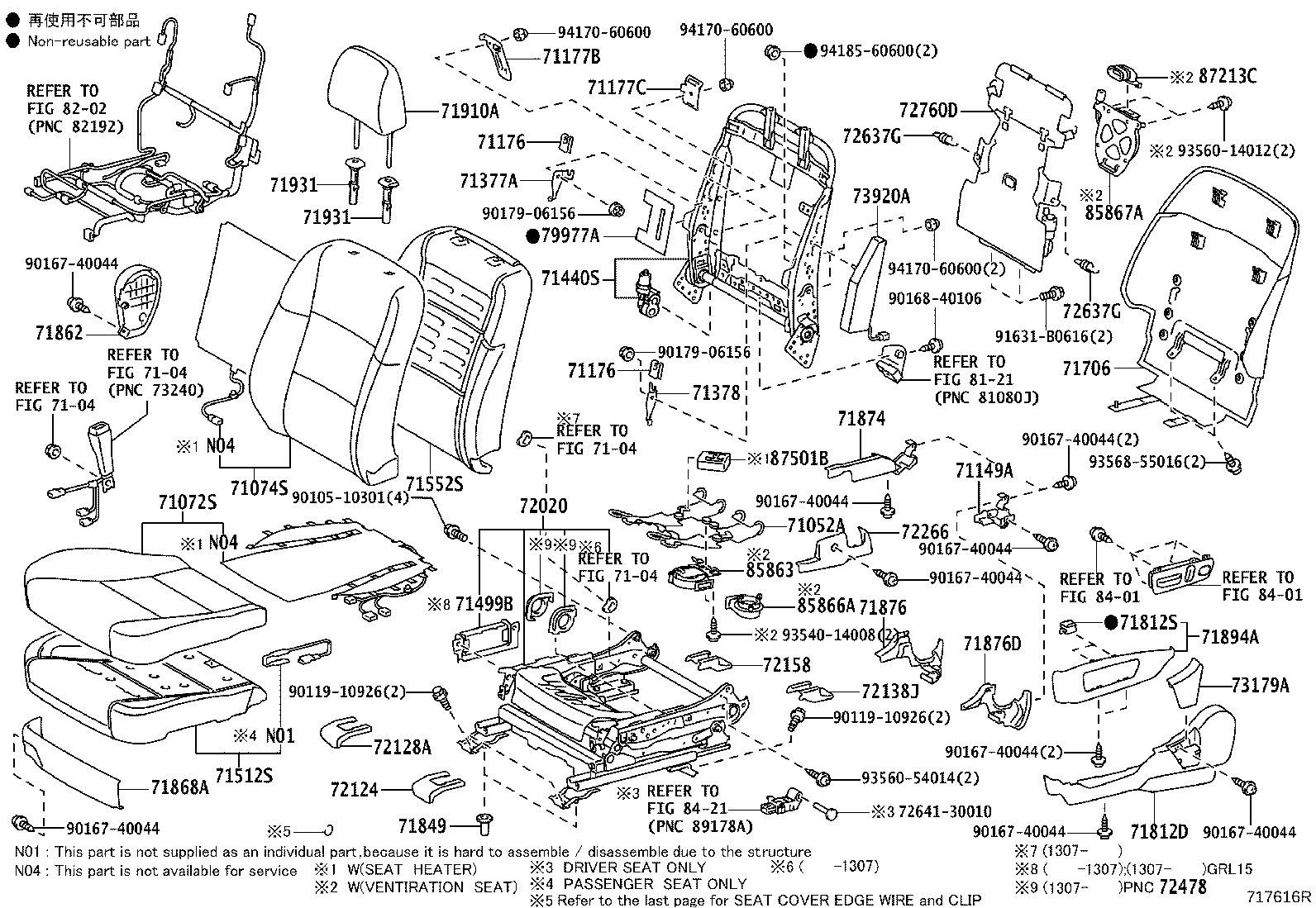

Front Seat & Seat Track
86 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71139C | Cover, Front Seat Leg, RH |
| 71149A | Cover, Front Seat Leg, LH |
| 71175 | Plate, Front Seatback Spring Set, Inside RH |
| 71176 | Plate, Front Seatback Spring Set, Inside LH |
| 71177 | Bracket, Front Seatback Wire Set, NO.1 |
| 71177A | Bracket, Front Seatback Wire Set, NO.2 |
| 71177B | Bracket, Front Seatback Wire Set, NO.3 |
| 71177C | Bracket, Front Seatback Wire Set, NO.4 |
| 71183 | Support, Front Seatback, RH |
| 71184B | Support, Front Seatback, LH |
| 71270A | Bracket Assy, Seat, Inner RH |
| 71280B | Bracket Assy, Seat, Inner LH |
| 71377A | Bracket, Front Seat, RH |
| 71378 | Bracket, Front Seat, LH |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71499B | Damper, Seat Cushion Spring |
| 71499E | Damper, Seatback Spring, RH |
| 71499F | Damper, Seatback Spring, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71771A | Board, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71811R | Clip, Front Seat Cushion Shield, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71812S | Clip, Front Seat Cushion Shield, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875D | Cover, Reclining Adjuster Outside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876D | Cover, Reclining Adjuster Outside, LH |
| 71893A | Shield, Power Adjuster, Front RH |
| 71894A | Shield, Power Adjuster, Front LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72478 | Bush, Vertical Adjuster |
| 72560A | Adjuster Assy, Front Seatback |
| 72637F | Spring, Seatback, RH |
| 72637G | Spring, Seatback, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73178H | Cap, Seat Belt Anchor Cover, RH |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 76519B | Clip, Front Seat Cushion Cover |
| 79977A | Felt, Seatback |
| 85862 | Blower, Seat Climate Control, RH |
| 85863 | Blower, Seat Climate Control, LH |
| 85866 | Duct, Seat Cushion Climate Control, RH |
| 85866A | Duct, Seat Cushion Climate Control, LH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85867A | Blower, Seatback Climate Control, LH |
| 87212E | Duct, Air, Rear RH |
| 87213C | Duct, Air, Rear LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
