Electronic Fuel Injection System

19 part groups · 5 illustrations

Illustrations

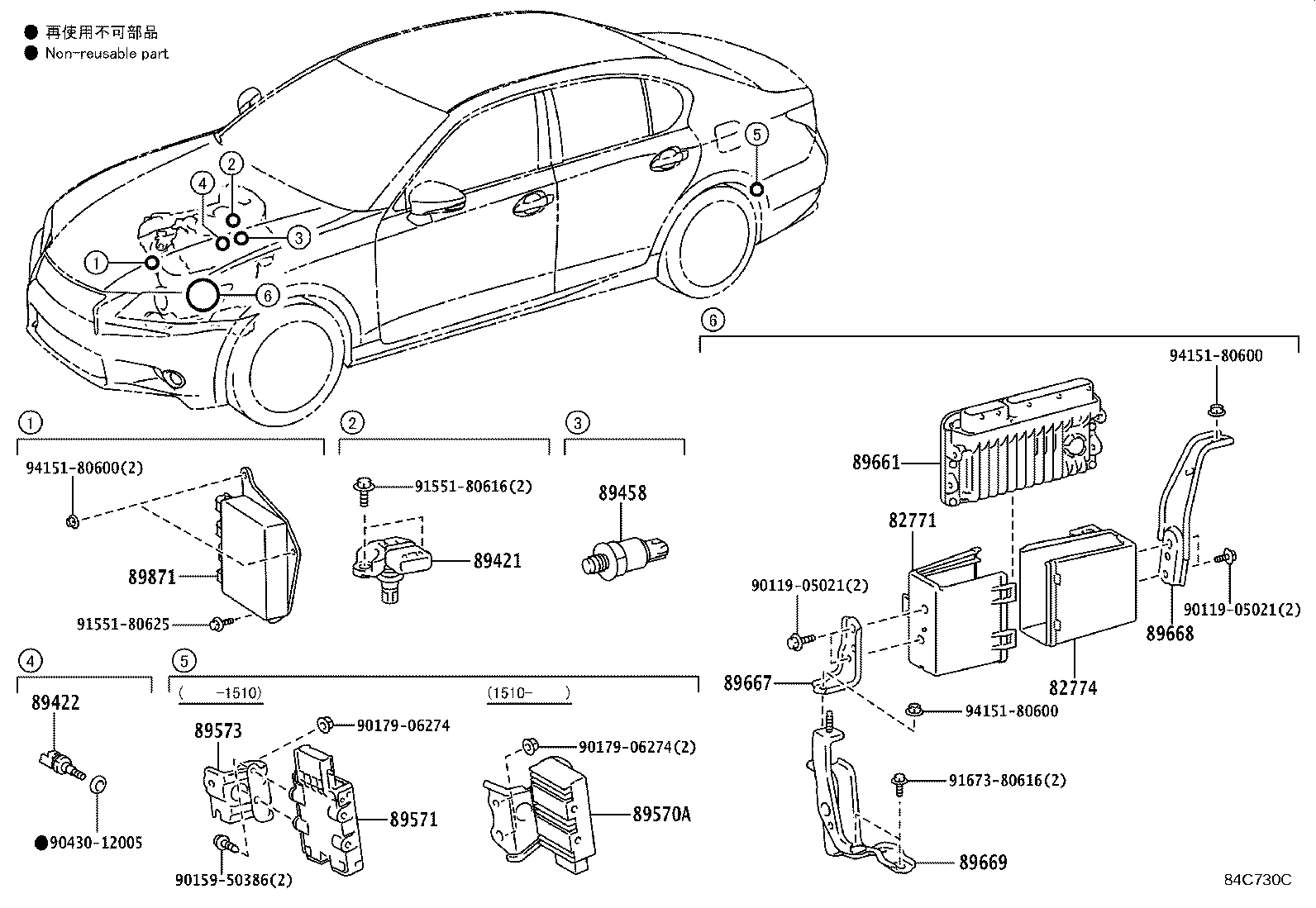

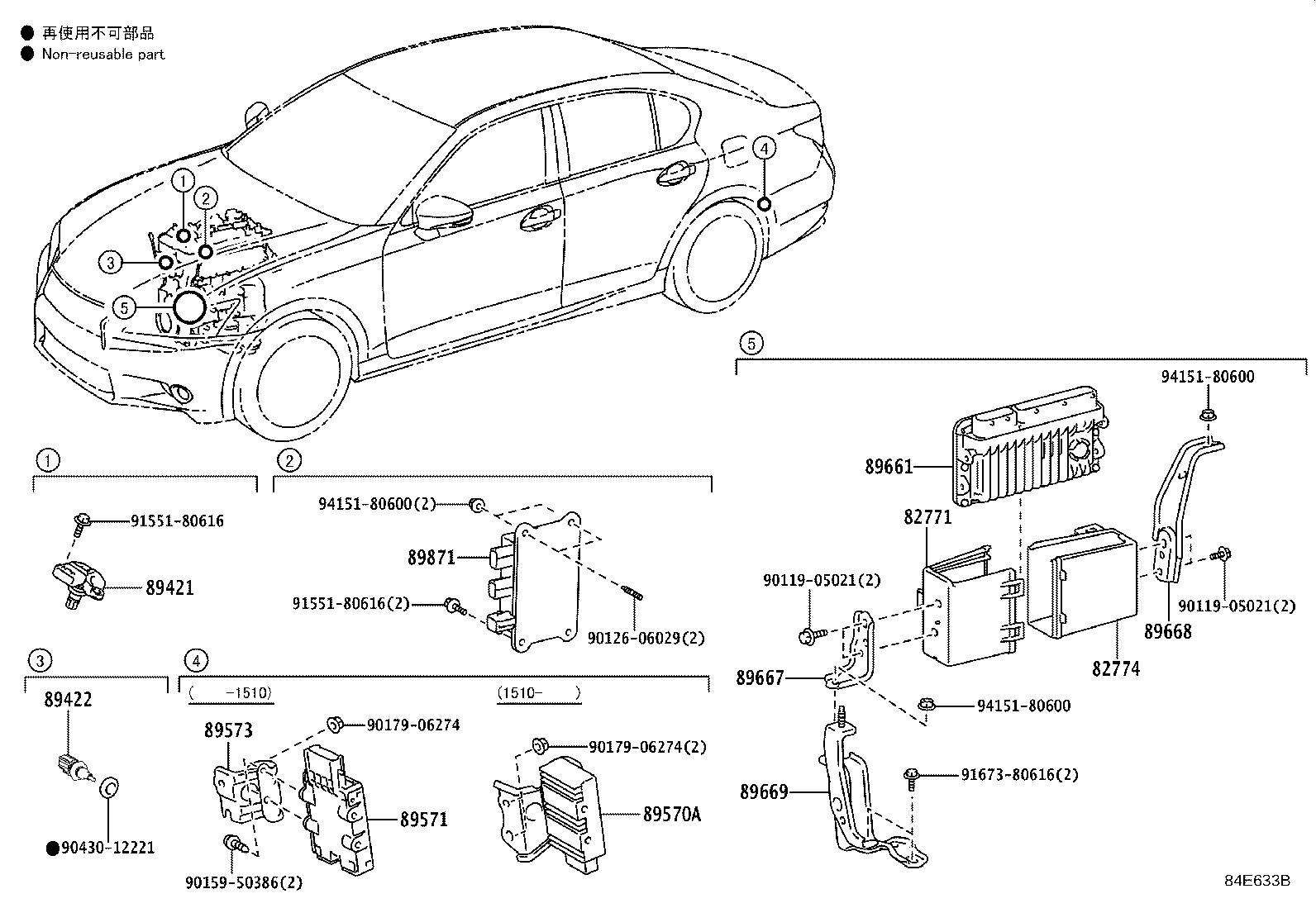

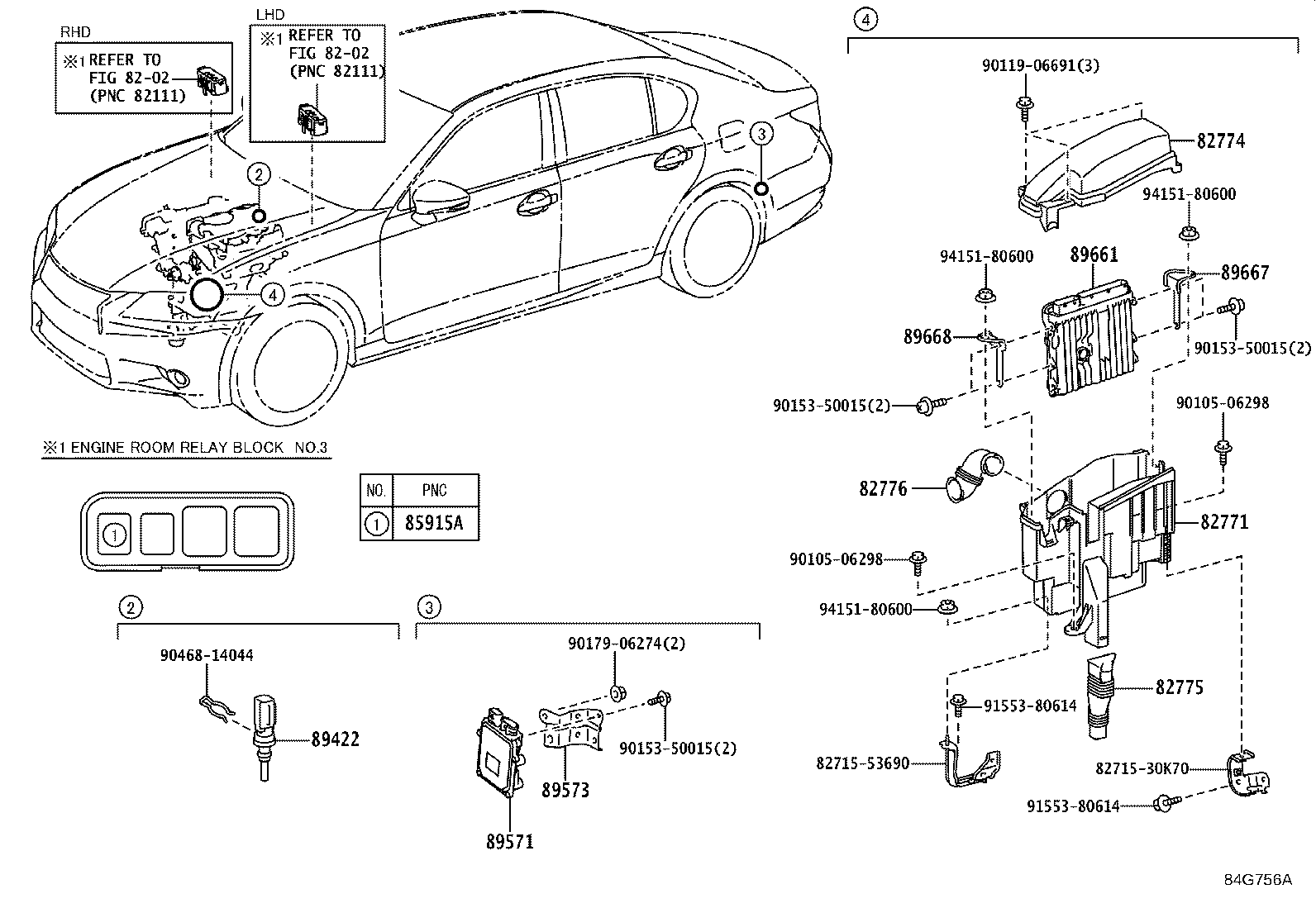

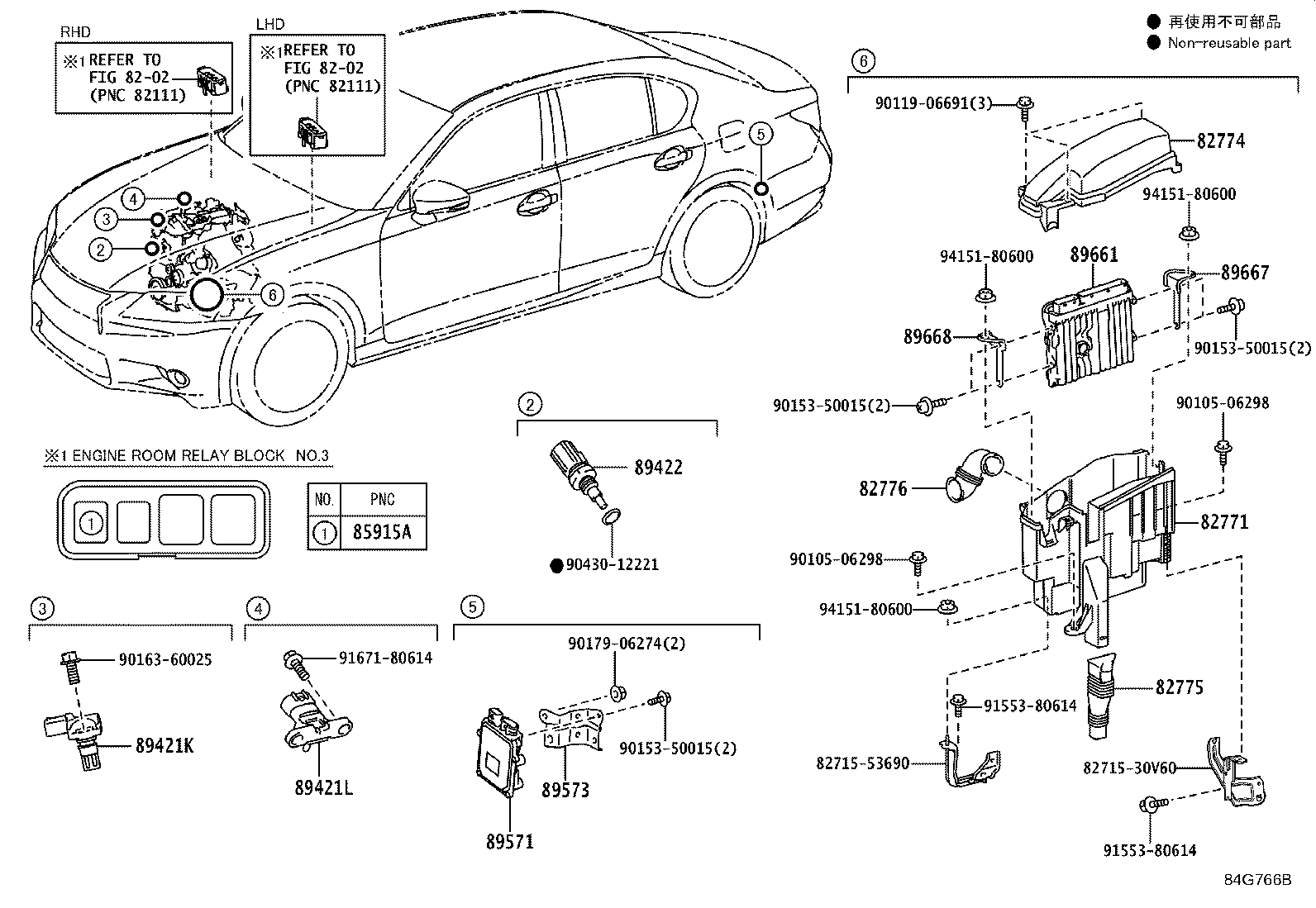

Figure 84C729G 84C729G 2012-01 → 2015-10 Figure 84C730C 84C730C 2012-03 → — Figure 84E633B 84E633B 2013-09 → — Figure 84G766B 84G766B 2015-10 → — Figure 84G756A 84G756A 2015-10 → —

Part groups

PNCDescription
82666U Holder, Connector
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82775 Duct, Engine Room Ecu Inlet
82776 Duct, Engine Room Ecu Outlet
85915A Relay, Main
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89570A Computer Assy, Fuel Pump Control
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
