Toyota Lexus GS Series
2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General
Supported model
Data version 2021-03

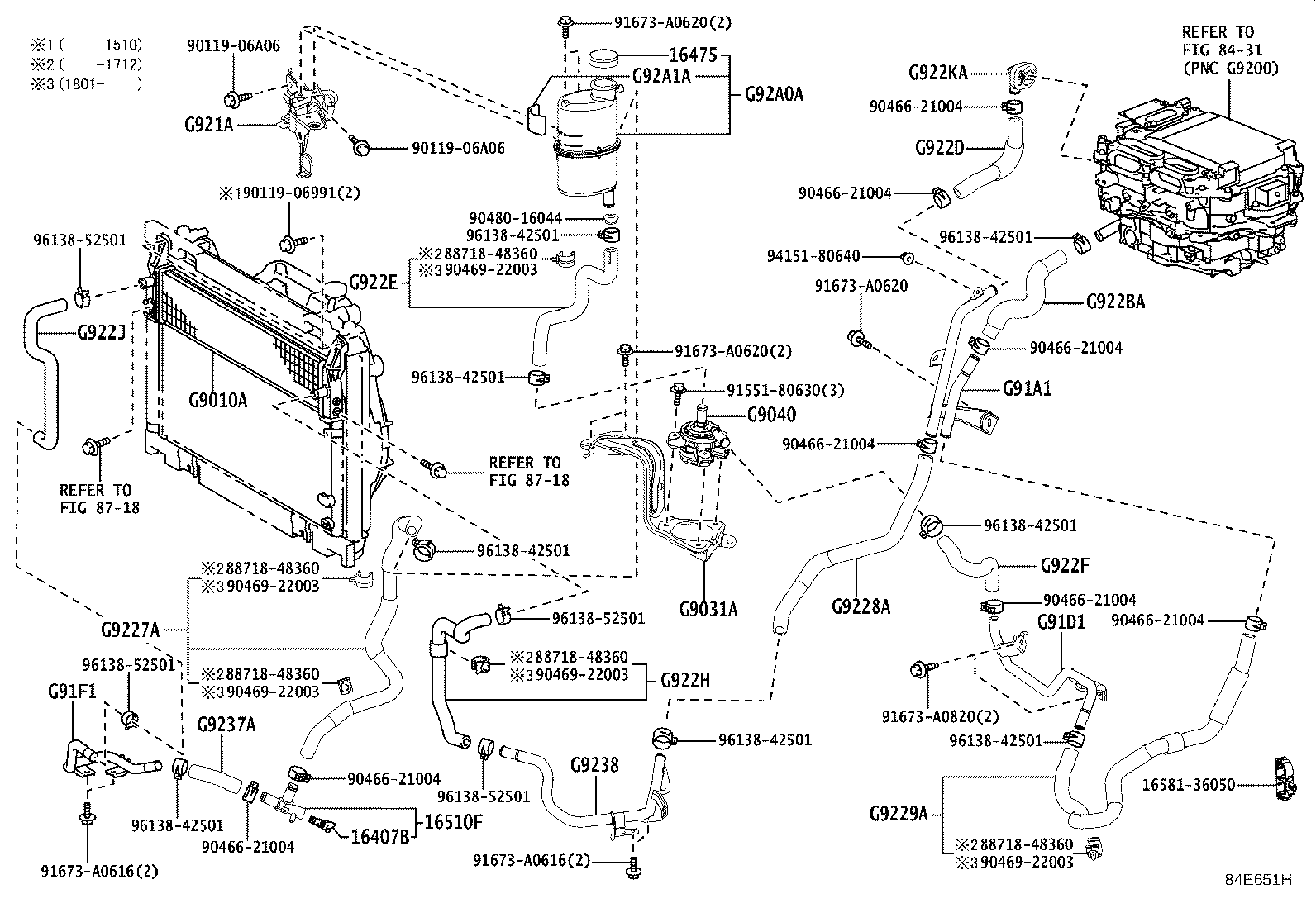

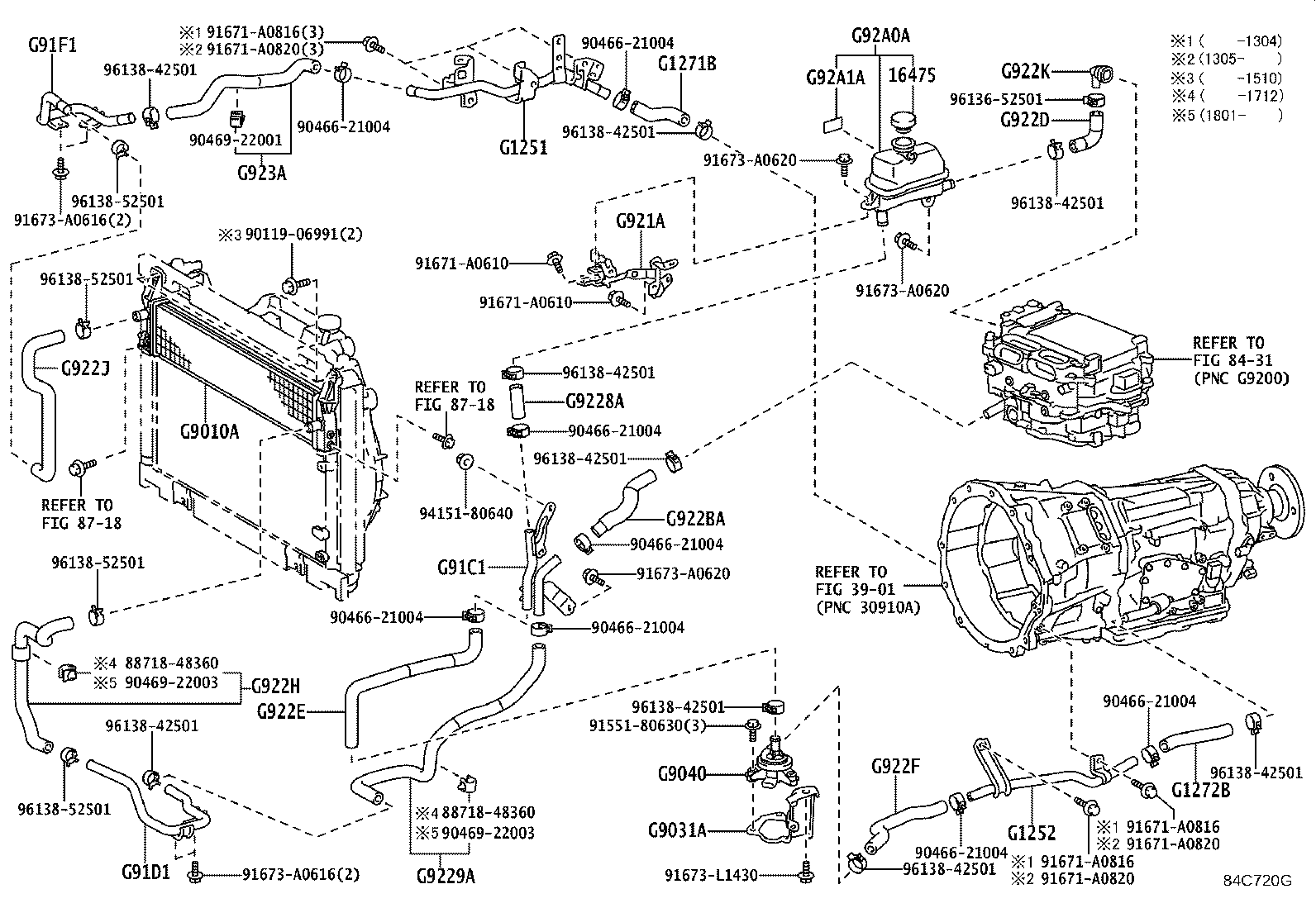

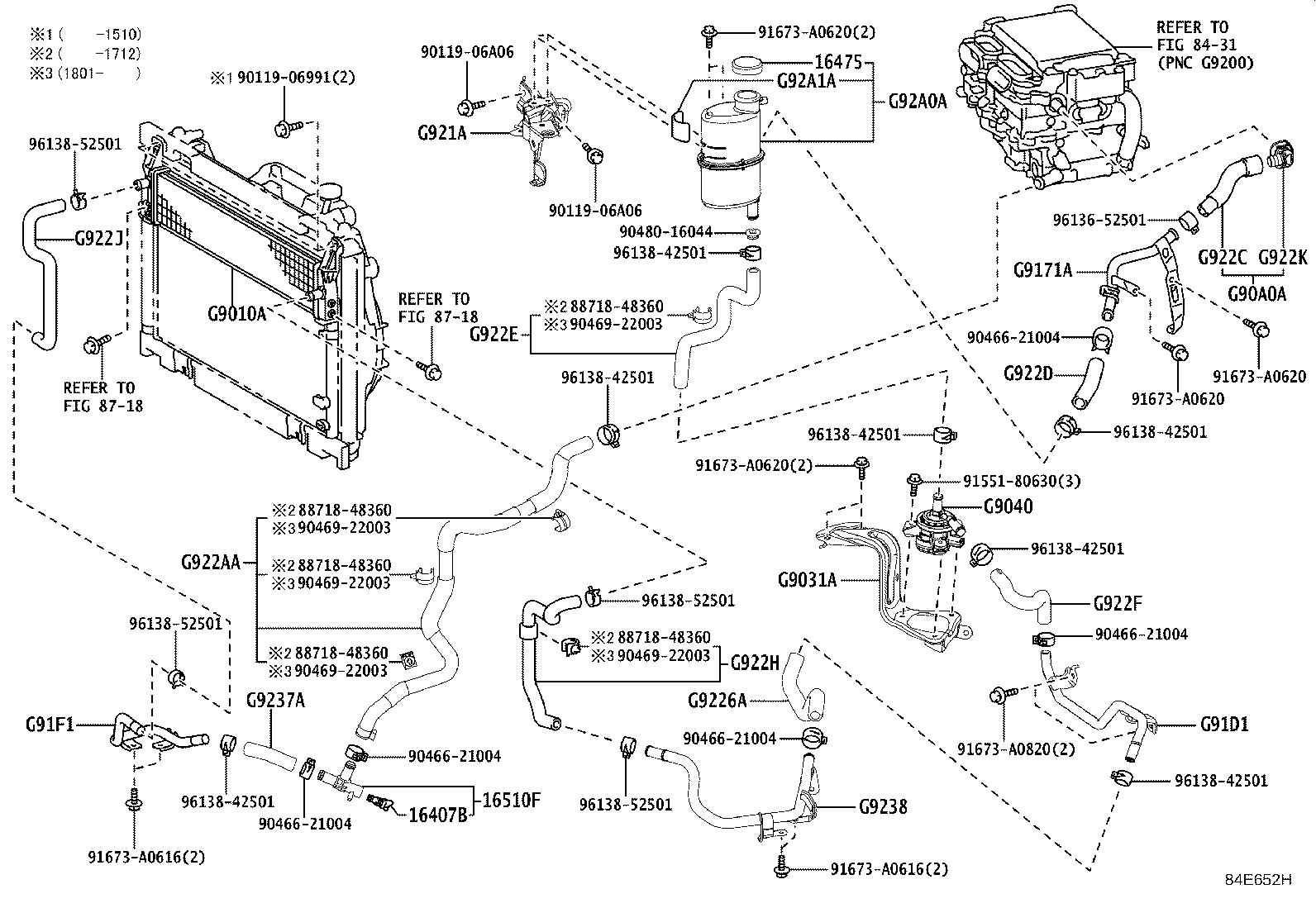

Inverter Cooling
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16407B | Cock Sub-assy, Radiator Drain |
| 16475 | Cap, Reserve Tank |
| 16510F | Cock Assy, Drain |
| G1251 | Pipe, Motor Cooling, NO.1 |
| G1252 | Pipe, Motor Cooling, NO.2 |
| G1271B | Hose, Motor Cooling, NO.1 |
| G1272B | Hose, Motor Cooling, NO.2 |
| G9010A | Radiator Assy |
| G9031A | Bracket Sub-assy, HV Water Pump |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G90A0A | Hose Assy, Inverter Cooling, NO.1 |
| G9171A | Pipe, Inverter Cooling, NO.1 |
| G91A1 | Pipe, Inverter Cooling, Inlet |
| G91C1 | Pipe, HV Water Pump Inlet |
| G91D1 | Pipe, HV Water Pump Outlet, NO.1 |
| G91F1 | Pipe, HV Radiator Outlet |
| G921A | Bracket, Inverter Reserve Tank, NO.1 |
| G9226A | Hose, Inverter Cooling, NO.2 |
| G9227A | Hose, Inverter Cooling, NO.3 |
| G9228A | Hose, Inverter Cooling, NO.4 |
| G9229A | Hose, Inverter Cooling, NO.5 |
| G922AA | Hose, Inverter Cooling Inlet, NO.1 |
| G922BA | Hose, Inverter Cooling Inlet, NO.2 |
| G922C | Hose, Inverter Cooling Outlet, NO.1 |
| G922D | Hose, Inverter Cooling Outlet, NO.2 |
| G922E | Hose, Hybrid Water Pump Inlet |
| G922F | Hose, Hybrid Water Pump Outlet, NO.1 |
| G922H | Hose, Hybrid Radiator Inlet |
| G922J | Hose, Hybrid Radiator Outlet |
| G922K | Connector, Hybrid Water Hose |
| G922KA | Connector, Hybrid Water Hose, NO.1 |
| G9237A | Hose, Inverter Drain |
| G9238 | Pipe, Inverter Cooling |
| G923A | Hose, Inverter Cooling, NO.7 |
| G92A0A | Tank Assy, Inverter Reserve |
| G92A1A | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
