Heating & Air Conditioning - Water Piping

11 part groups · 5 illustrations

Illustrations

Figure 87C553B

87C553B 2012-01 → —

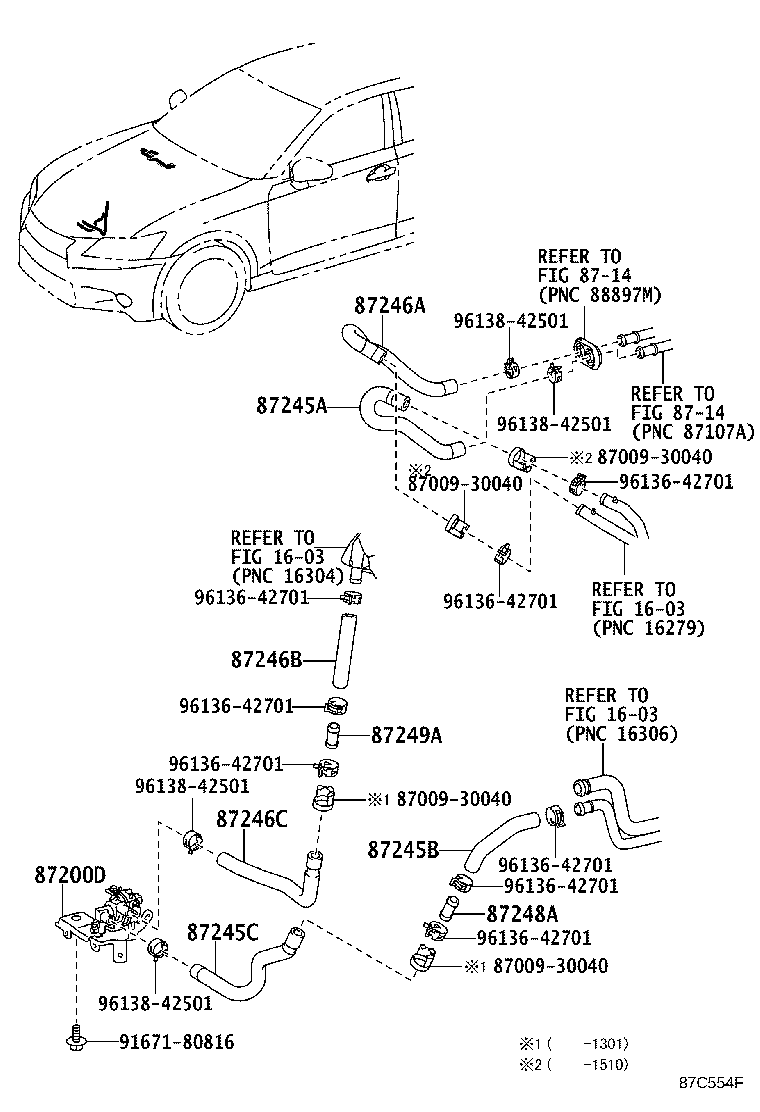

Figure 87C554F

87C554F 2012-03 → —

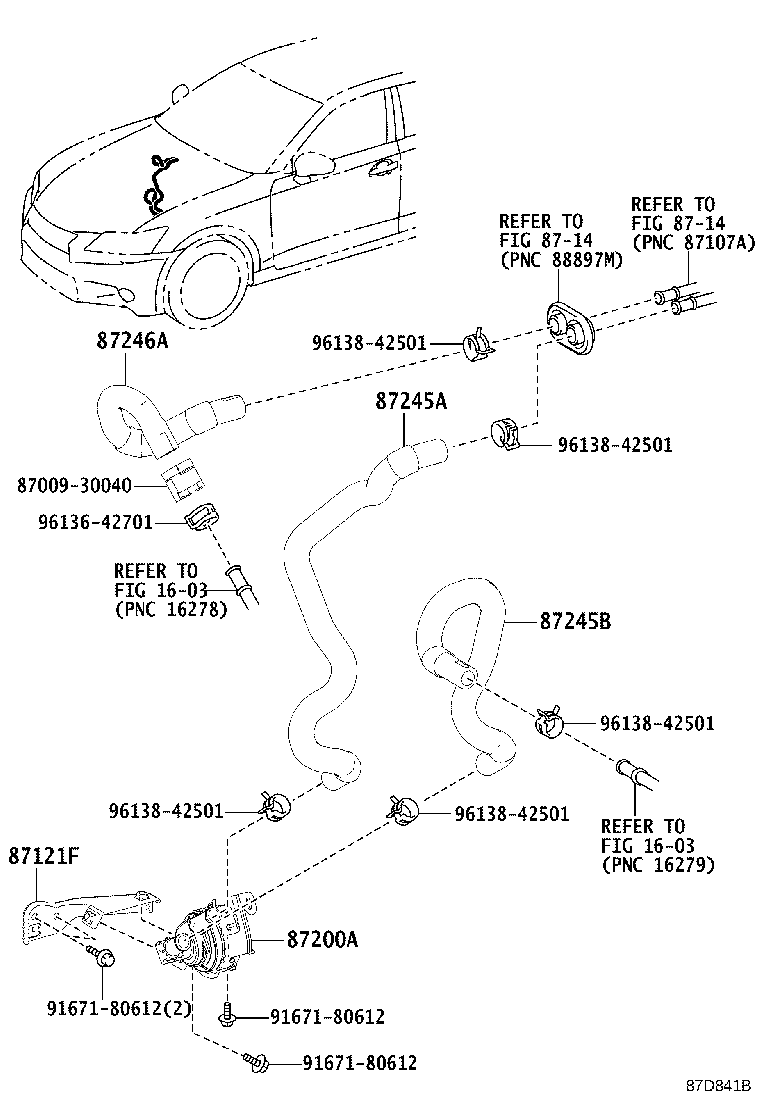

Figure 87D841B

87D841B 2013-09 → —

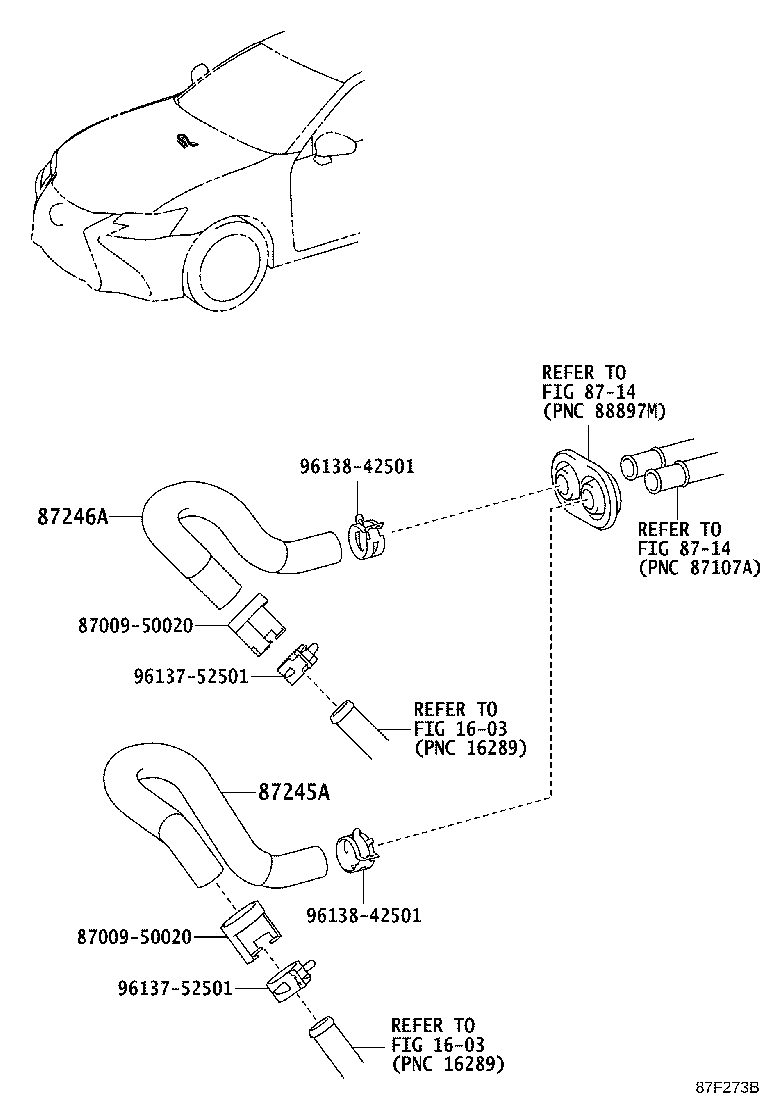

Figure 87F273B

87F273B 2015-10 → —

Figure 87F281B

87F281B 2015-10 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87200A	Pump Assy, Water(FOR HEATER)
87200D	Accessory Assy, Heater
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
