Toyota Lexus GS Series
2012-01 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3323B0 · General
Supported model
Data version 2021-03
Heating & Air Conditioning - Compressor
6 part groups · 5 illustrations

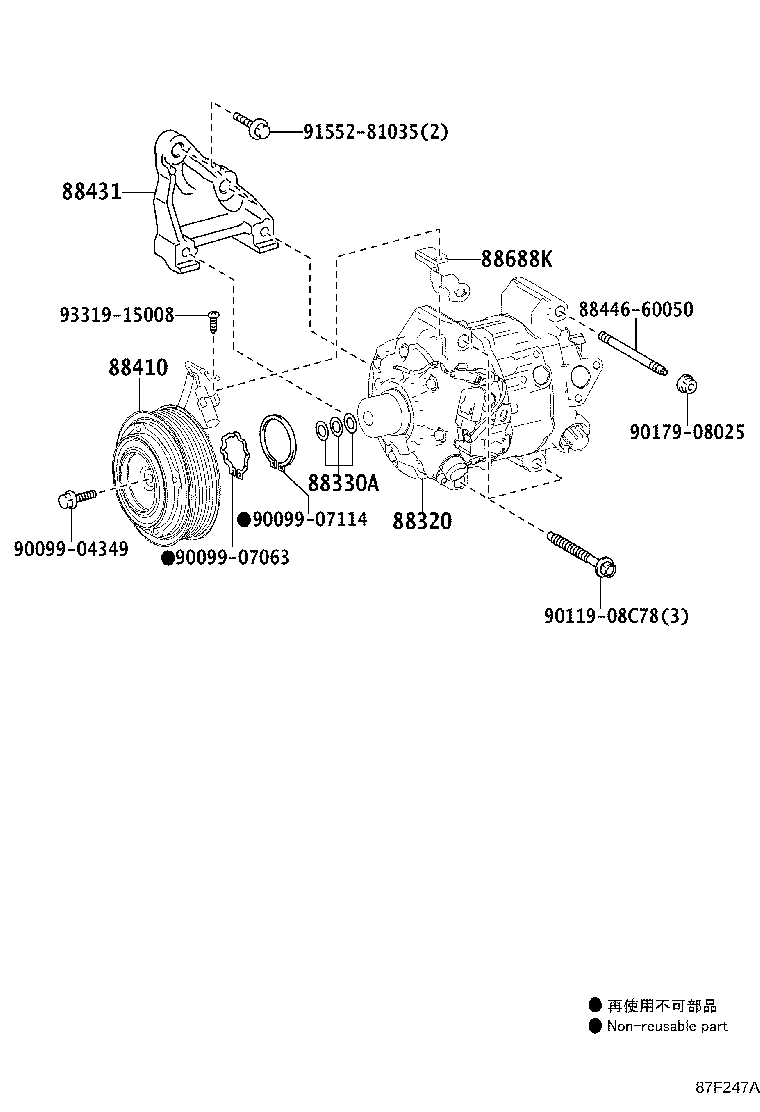

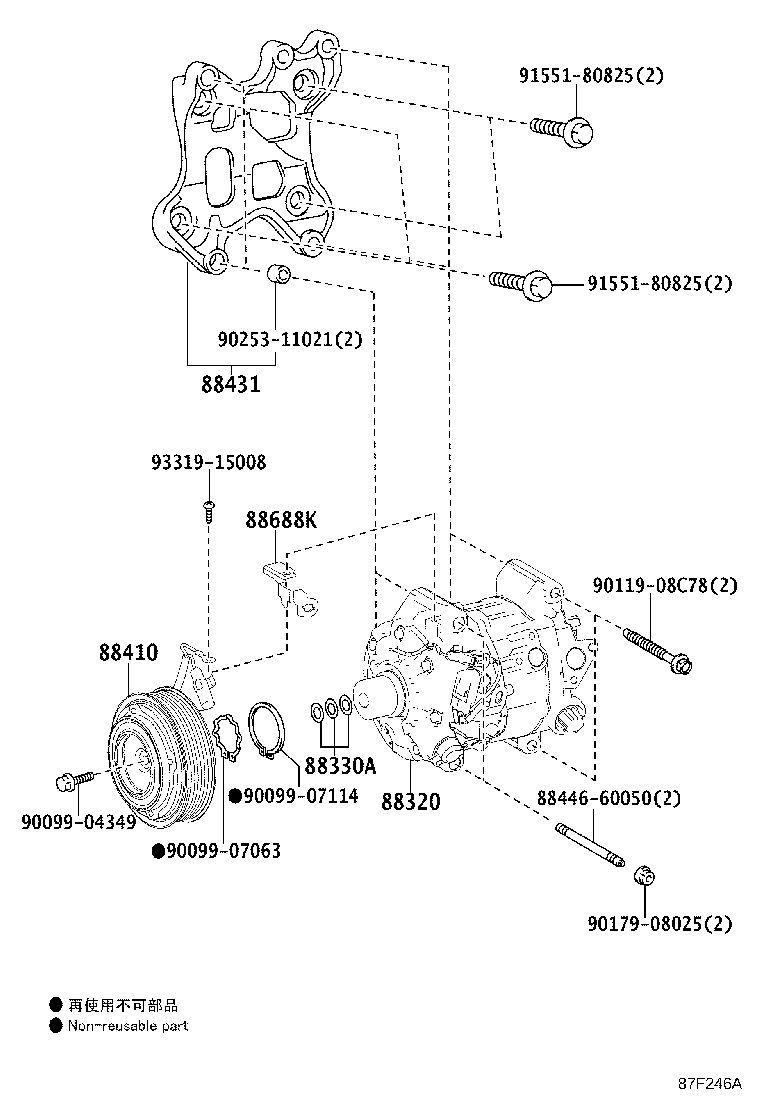

Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
