Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

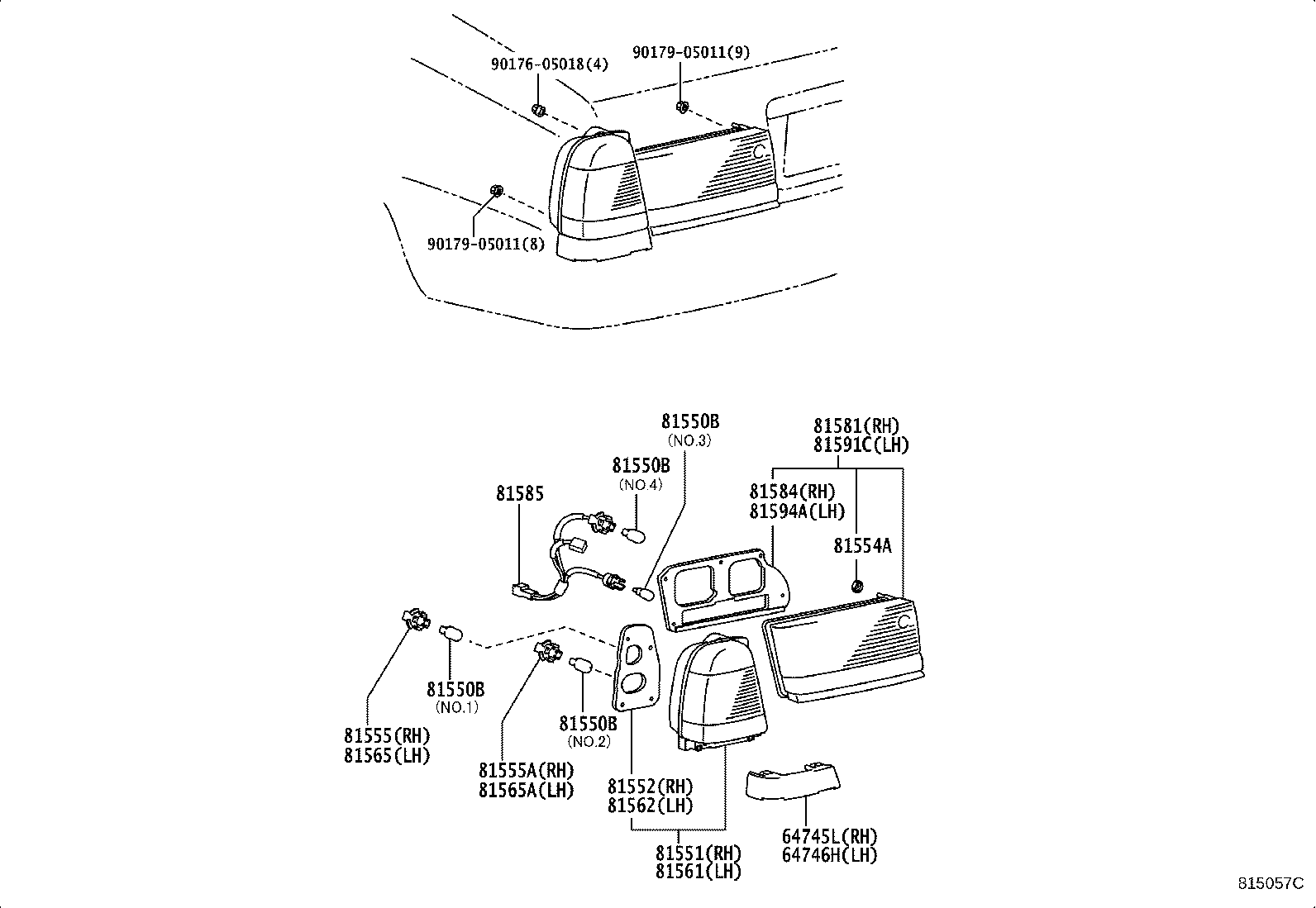

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64745L — Cover, Rear Combination Lamp Service, RH | ||||
| 64745-43020 |
Cover, Rear Combination Lamp Service, RH
2007-09 → —
|
TSS10 | — | |
| 64745-43020 |
Cover, Rear Combination Lamp Service, RH
2007-09 → 2008-08
ended
|
YXS10 | — | |
| 64746H — Cover, Rear Combination Lamp Service, LH | ||||
| 64746-43020 |
Cover, Rear Combination Lamp Service, LH
2007-09 → —
|
TSS10 | — | |
| 64746-43020 |
Cover, Rear Combination Lamp Service, LH
2007-09 → 2008-08
ended
|
YXS10 | — | |
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
2001-08 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
2001-08 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 90981-11059 note |
Bulb(FOR REAR COMBINATION LAMP)
2007-09 → —
|
TSS10,YXS10 | — | |
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
2007-09 → —
|
TSS10,YXS10 | — | |
| 90981-15011 note |
Bulb(FOR REAR COMBINATION LAMP)
2007-09 → —
|
TSS10,YXS10 | — | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-43010 |
Lens, Rear Combination Lamp, RH
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 81551-43010 |
Lens, Rear Combination Lamp, RH
2001-08 → 2004-06
ended
|
LXS12,YXS10 | — | |
| 81551-43011 |
Lens, Rear Combination Lamp, RH
2004-06 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 81551-43021 |
Lens, Rear Combination Lamp, RH
2007-09 → 2010-11
ended
|
TSS10,YXS10 | — | |
| 81551-43030 |
Lens, Rear Combination Lamp, RH
2010-11 → —
|
TSS10 | — | |
| 81552 — Gasket, Rear Combination Lamp Lens, RH | ||||
| 81554-43010 |
Gasket, Rear Combination Lamp Lens, RH
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 81554-43010 |
Gasket, Rear Combination Lamp Lens, RH
2001-08 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 81554-43020 |
Gasket, Rear Combination Lamp Lens, RH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81554A — Gasket, Rear Combination Lamp Body, NO.1 RH | ||||
| 81558-24040 |
Gasket, Rear Combination Lamp Body, NO.1 RH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-43010 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 81555-43010 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2001-08 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 90075-60002 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81555A — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 90075-60026 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81561-43010 |
Lens, Rear Combination Lamp, LH
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 81561-43010 |
Lens, Rear Combination Lamp, LH
2001-08 → 2004-06
ended
|
LXS12,YXS10 | — | |
| 81561-43011 |
Lens, Rear Combination Lamp, LH
2004-06 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 81561-43021 |
Lens, Rear Combination Lamp, LH
2007-09 → 2010-11
ended
|
TSS10,YXS10 | — | |
| 81561-43030 |
Lens, Rear Combination Lamp, LH
2010-11 → —
|
TSS10 | — | |
| 81562 — Gasket, Rear Combination Lamp Lens, LH | ||||
| 81554-43010 |
Gasket, Rear Combination Lamp Lens, LH
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 81554-43010 |
Gasket, Rear Combination Lamp Lens, LH
2001-08 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 81564-43020 |
Gasket, Rear Combination Lamp Lens, LH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-43010 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1996-01 → 2001-08
ended
|
LXS1#,YXS10 | — | |
| 81555-43010 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2001-08 → 2007-09
ended
|
LXS12,YXS10 | — | |
| 90075-60002 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81565A — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 90075-60026 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81581 — Lens, Rear Lamp | ||||
| 81581-43030 |
Lens, Rear Lamp
2007-09 → 2010-11
ended
|
TSS10,YXS10 | — | |
| 81581-43040 |
Lens, Rear Lamp
2010-11 → —
|
TSS10 | — | |
| 81584 — Packing, Rear Lamp RH | ||||
| 81584-43010 |
Packing, Rear Lamp RH
2007-09 → —
|
TSS10,YXS10 | — | |
| 81585 — Socket & Wire, Rear Lamp | ||||
| 81585-43030 |
Socket & Wire, Rear Lamp
2007-09 → —
|
TSS10,YXS10 | — | |
| 81591C — Lens, Rear Lamp, LH | ||||
| 81591-43030 |
Lens, Rear Lamp, LH
2007-09 → 2010-11
ended
|
TSS10,YXS10 | — | |
| 81591-43040 |
Lens, Rear Lamp, LH
2010-11 → —
|
TSS10 | — | |
| 81594A — Gasket, Rear Lamp LH | ||||
| 81594-43010 |
Gasket, Rear Lamp LH
2007-09 → —
|
TSS10,YXS10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
