Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

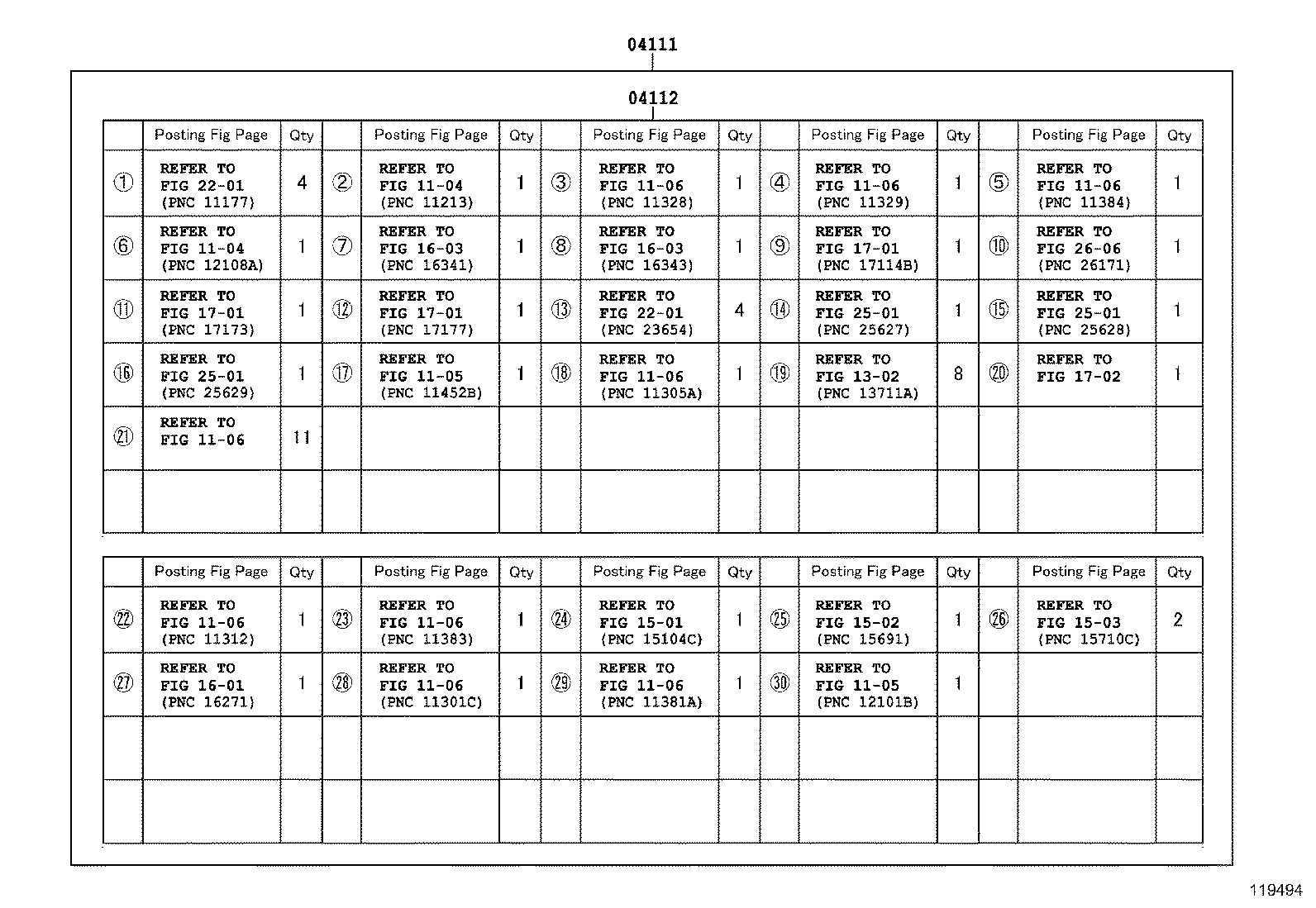

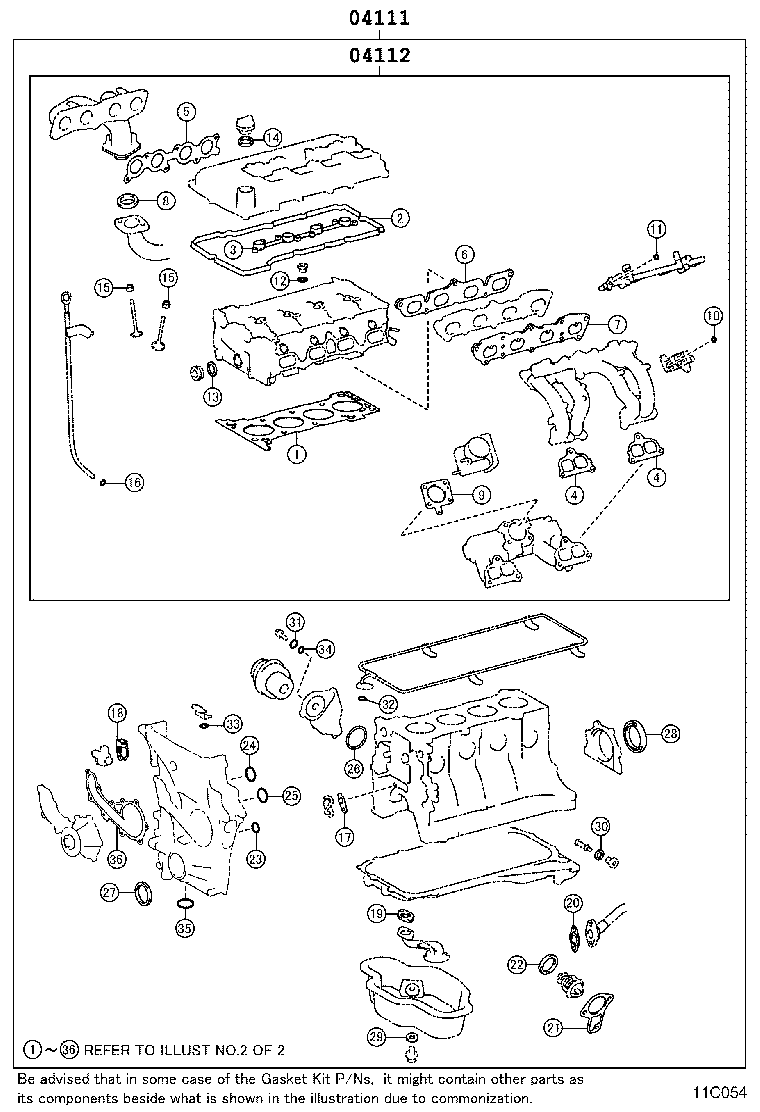

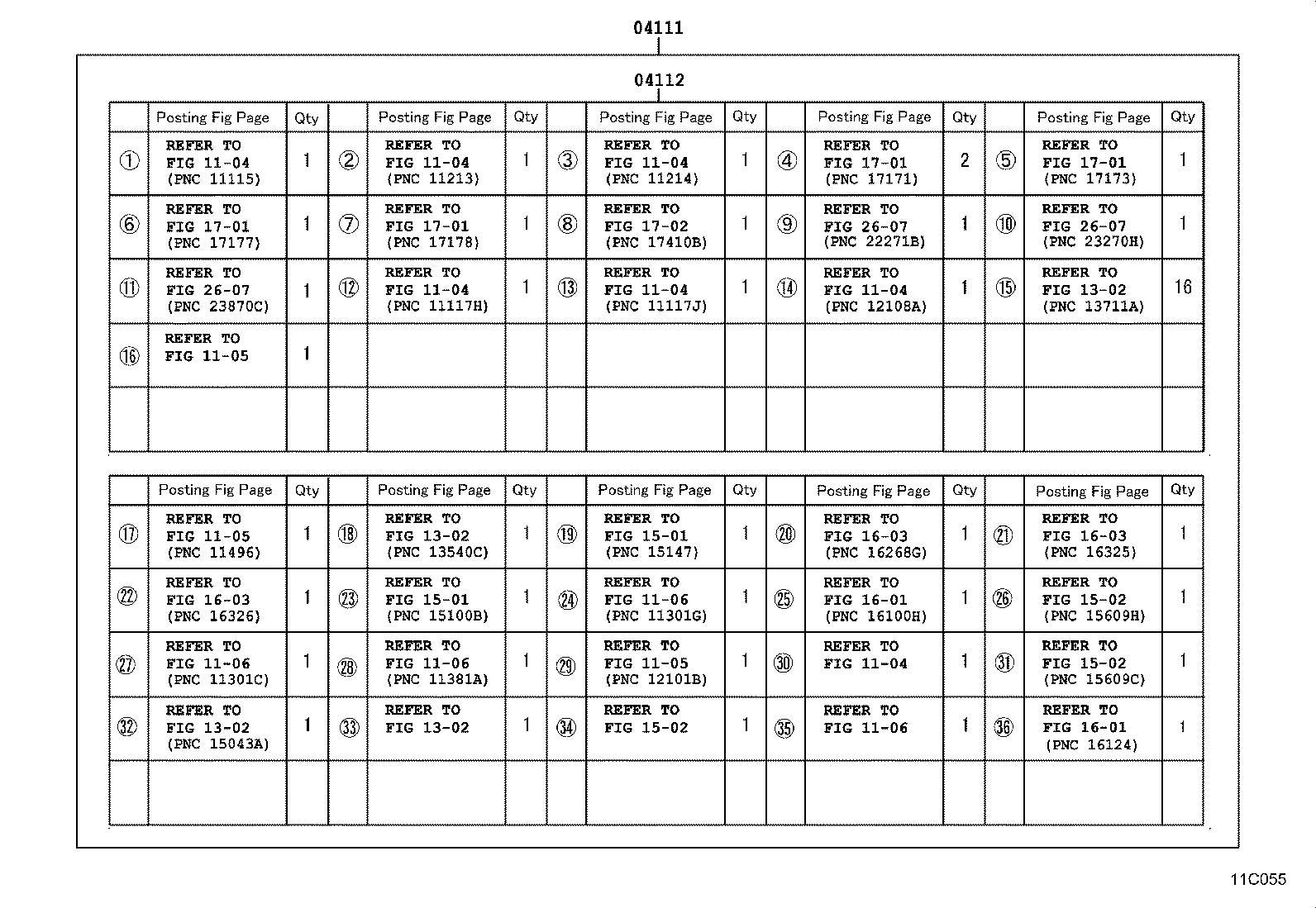

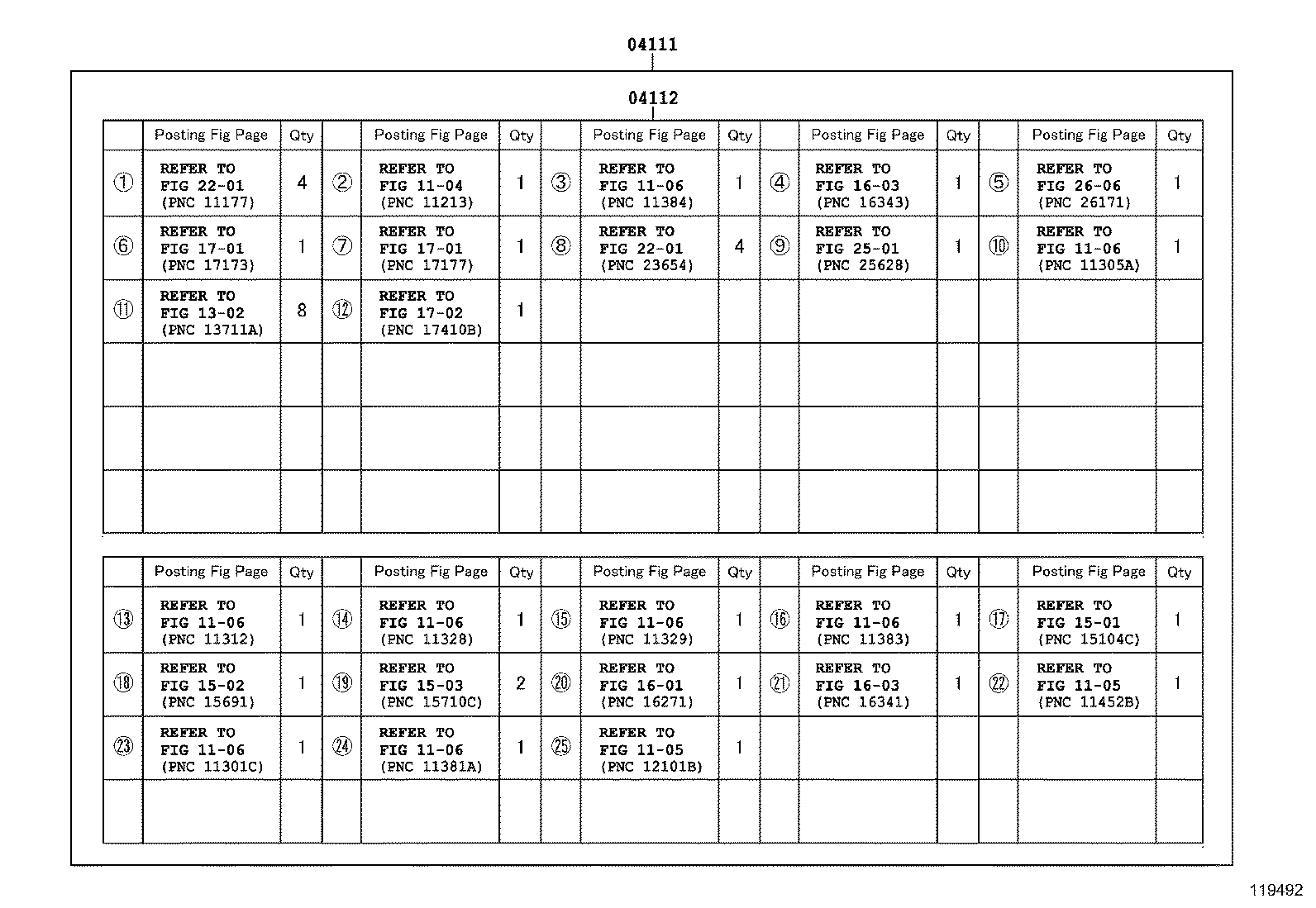

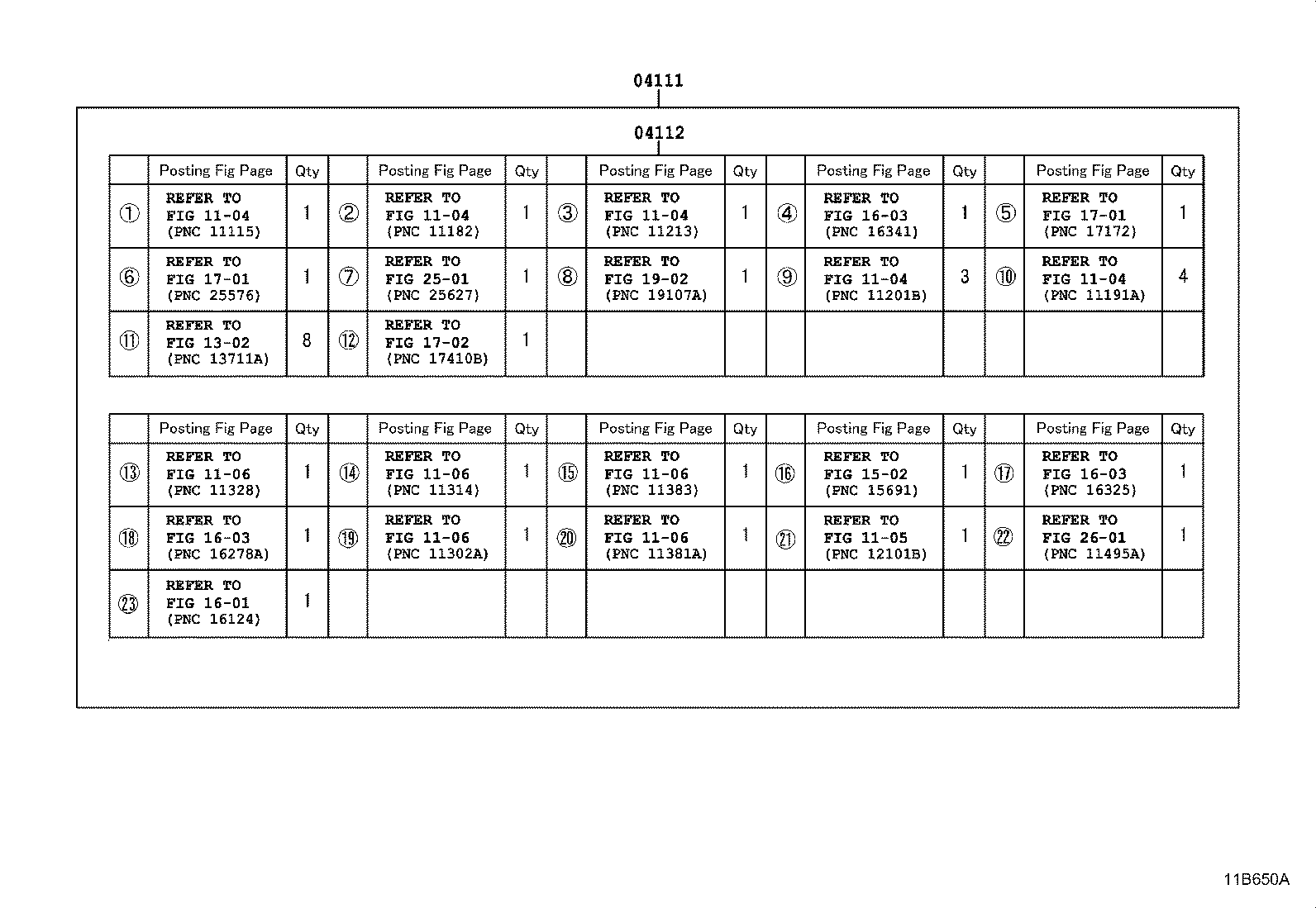

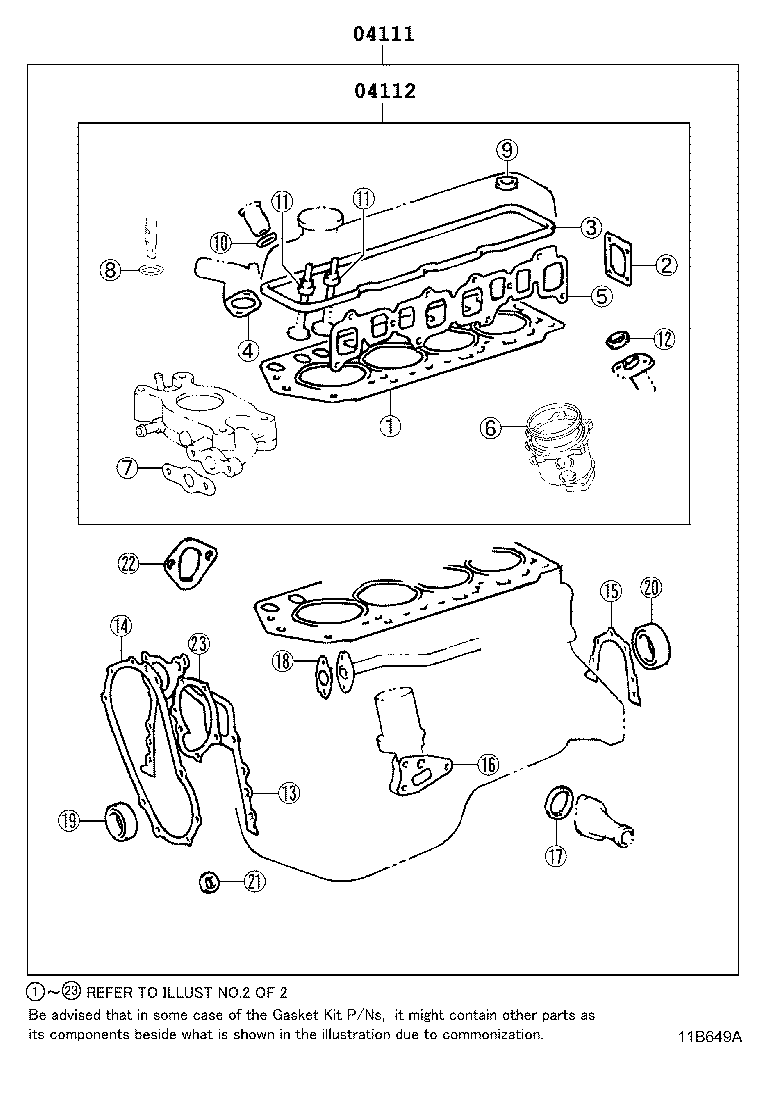

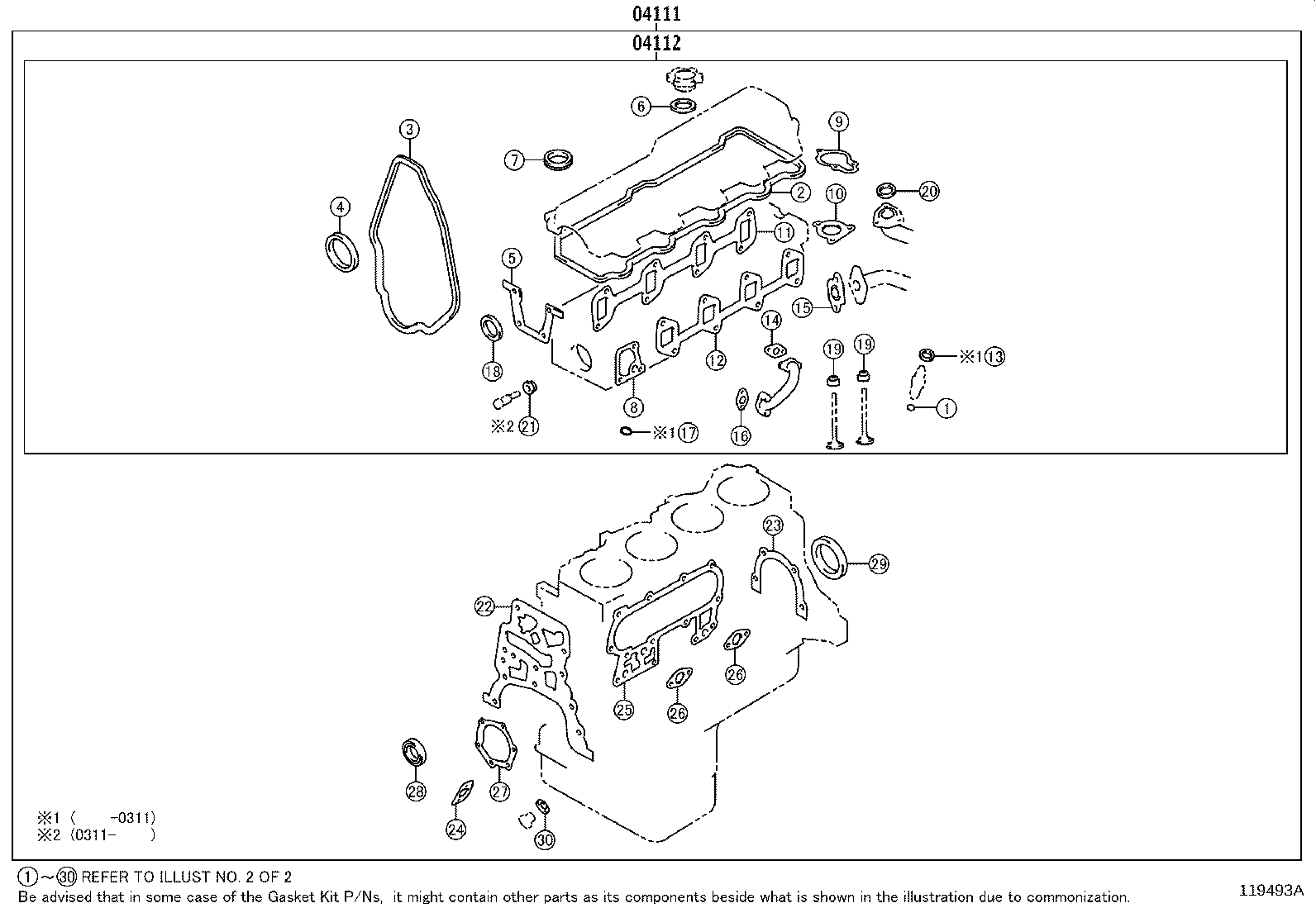

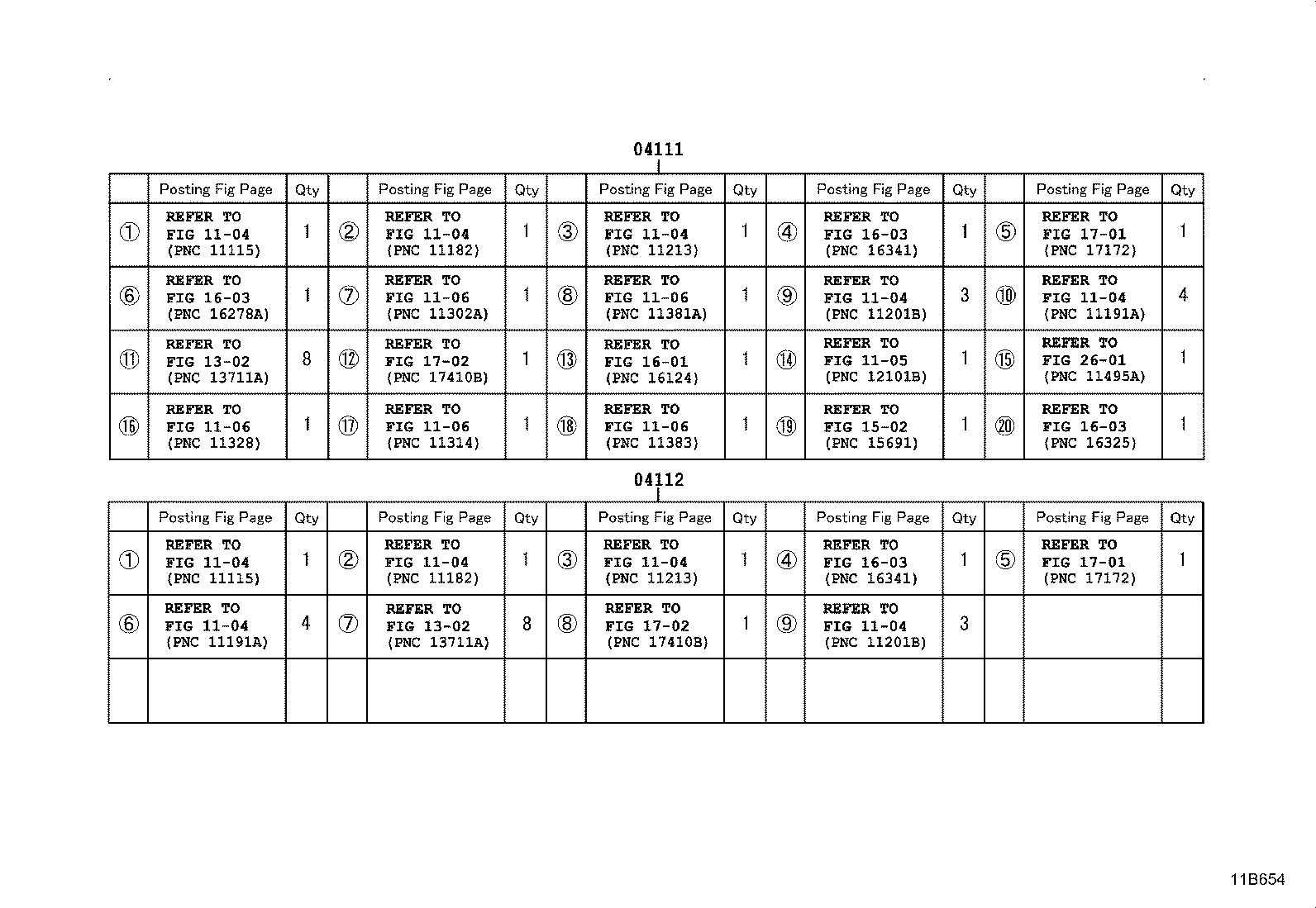

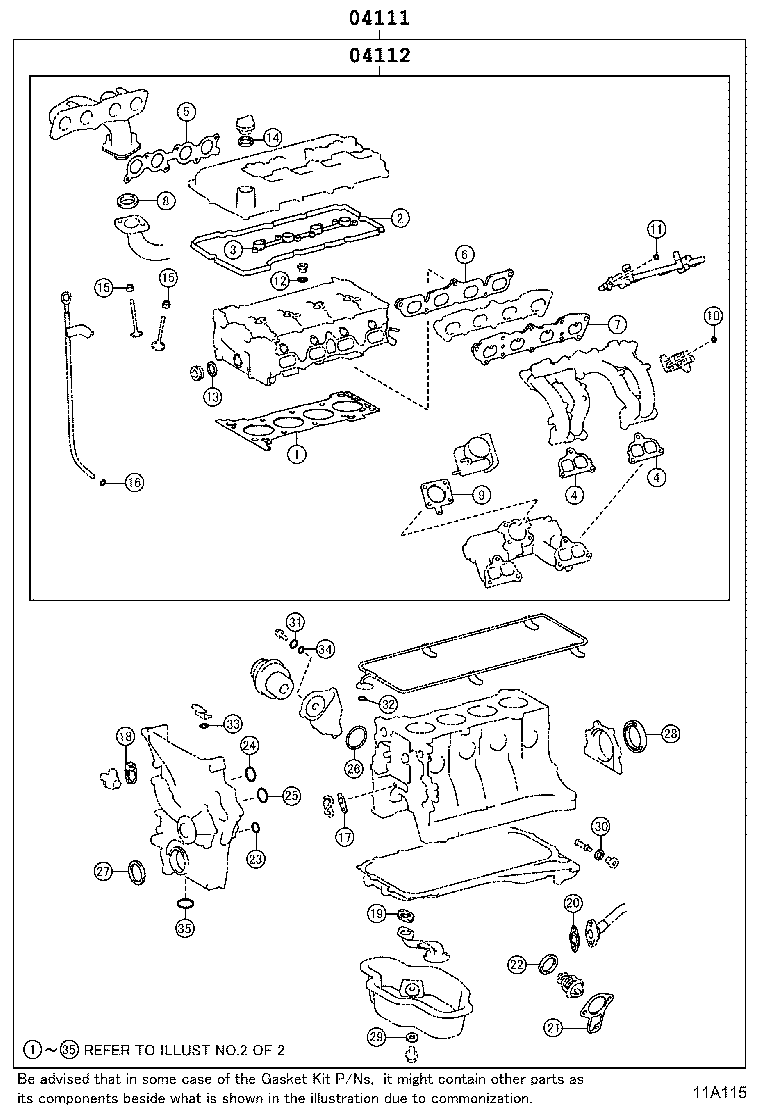

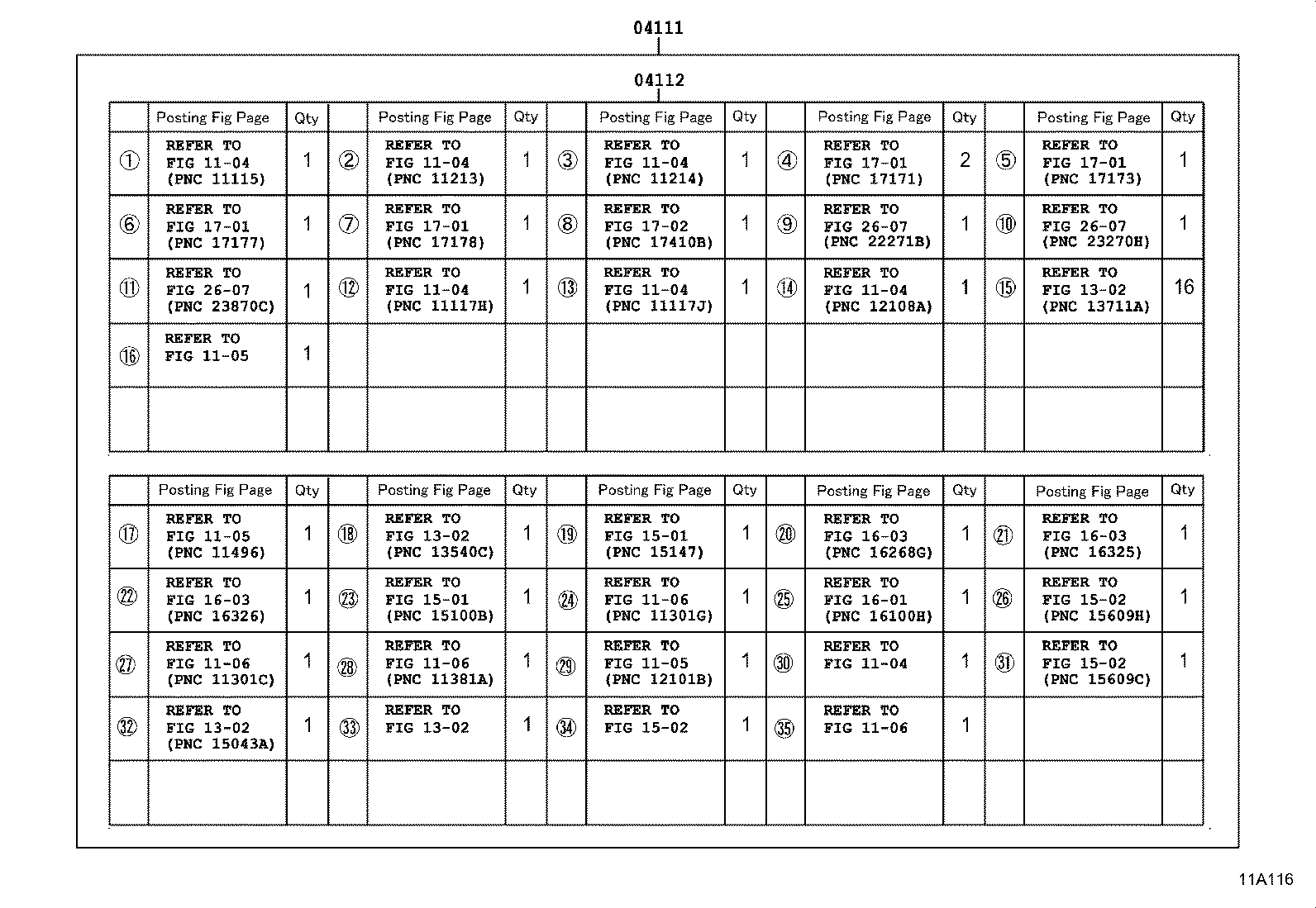

Figure 119491A 119491A 1996-01 → 1999-01 Figure 119492 119492 1996-01 → 1999-01 Figure 119493A 119493A 1998-02 → — Figure 119494 119494 1998-02 → — Figure 11A115 11A115 2008-08 → 2017-01 Figure 11A116 11A116 2008-08 → 2017-01 Figure 11C054 11C054 2017-01 → — Figure 11C055 11C055 2017-01 → — Figure 11B653 11B653 1999-08 → 2003-12 Figure 11B654 11B654 1999-08 → 2003-12 Figure 11B649A 11B649A 2003-12 → 2008-08 Figure 11B650A 11B650A 2003-12 → 2008-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
