Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

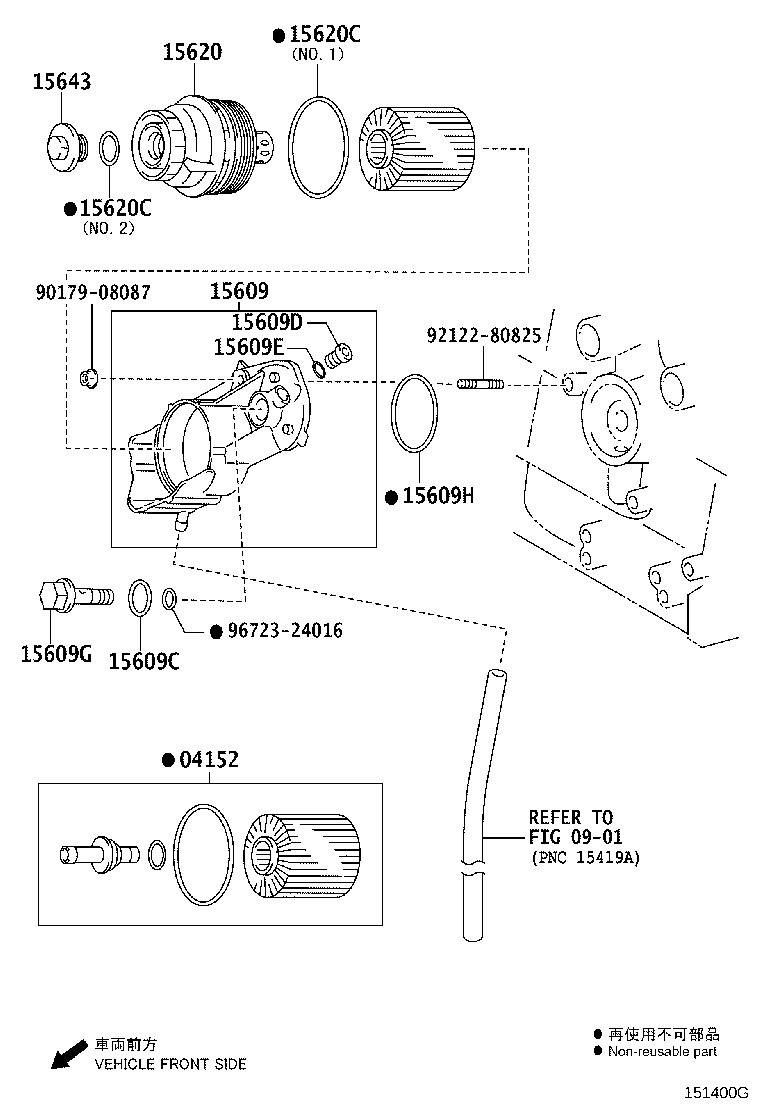

Oil Filter
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15600A | Union(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609C | Gasket(FOR OIL FILTER BRACKET UNION) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609G | Bolt, Union(FOR OIL FILTER BRACKET) |
| 15609H | Ring, O(FOR OIL FILTER BRACKET) |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15691 | Gasket, Oil Filter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
