Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

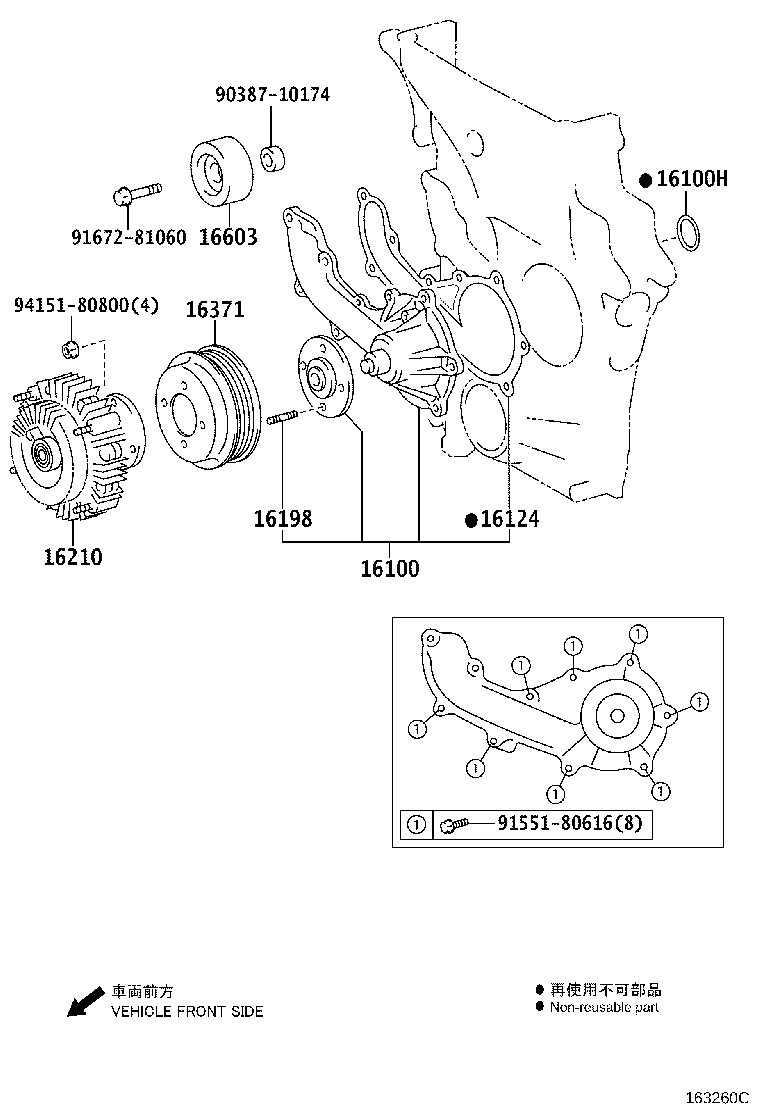

Water Pump
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16124 | Gasket, Water Pump Cover |
| 16171 | Seat, Water Pump Pulley |
| 16198 | Bolt, Stud(FOR WATER PUMP PULLEY SEAT) |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
| 16603 | Pulley Sub-assy, Idler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
