Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

24 part groups · 6 illustrations

Illustrations

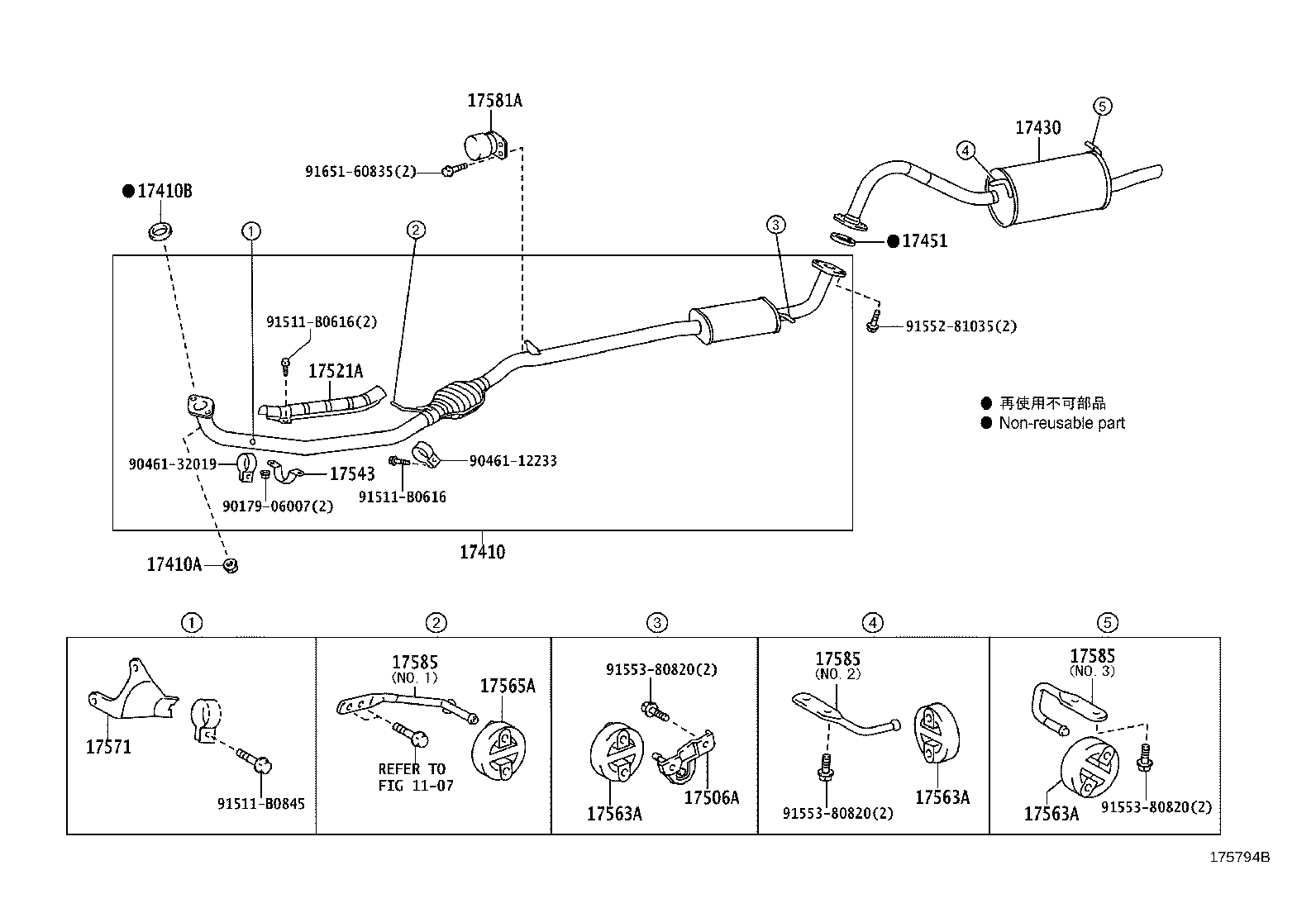

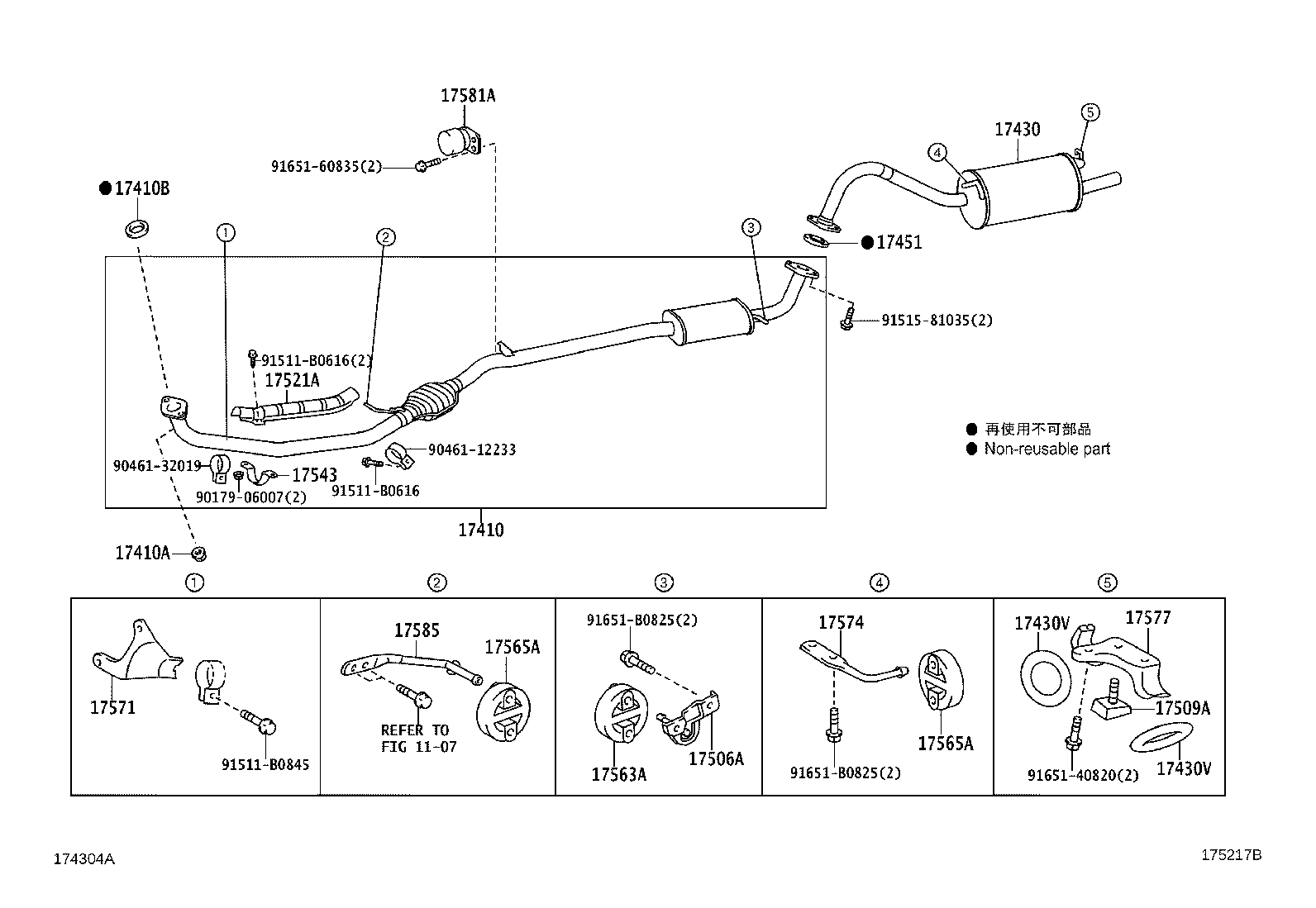

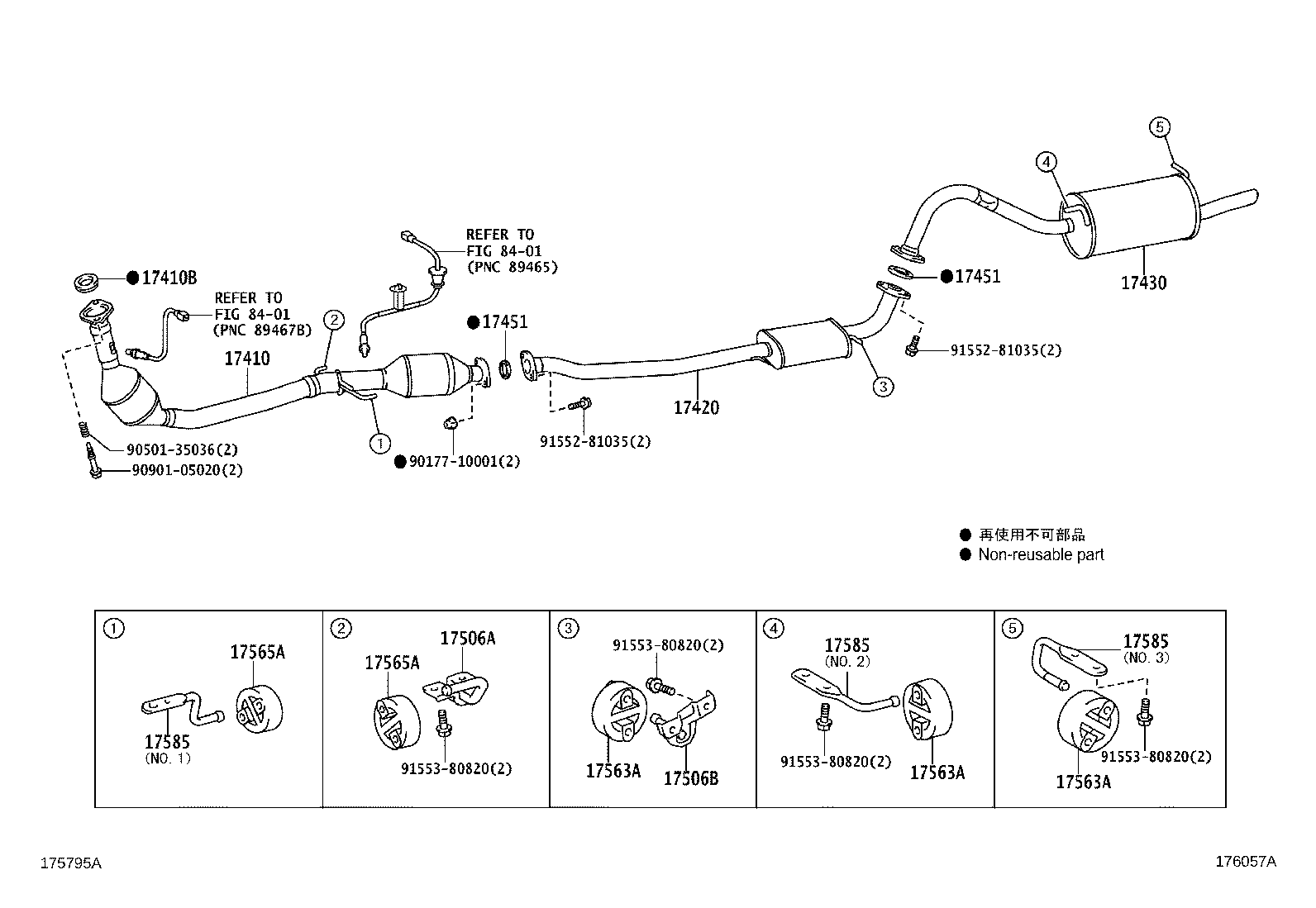

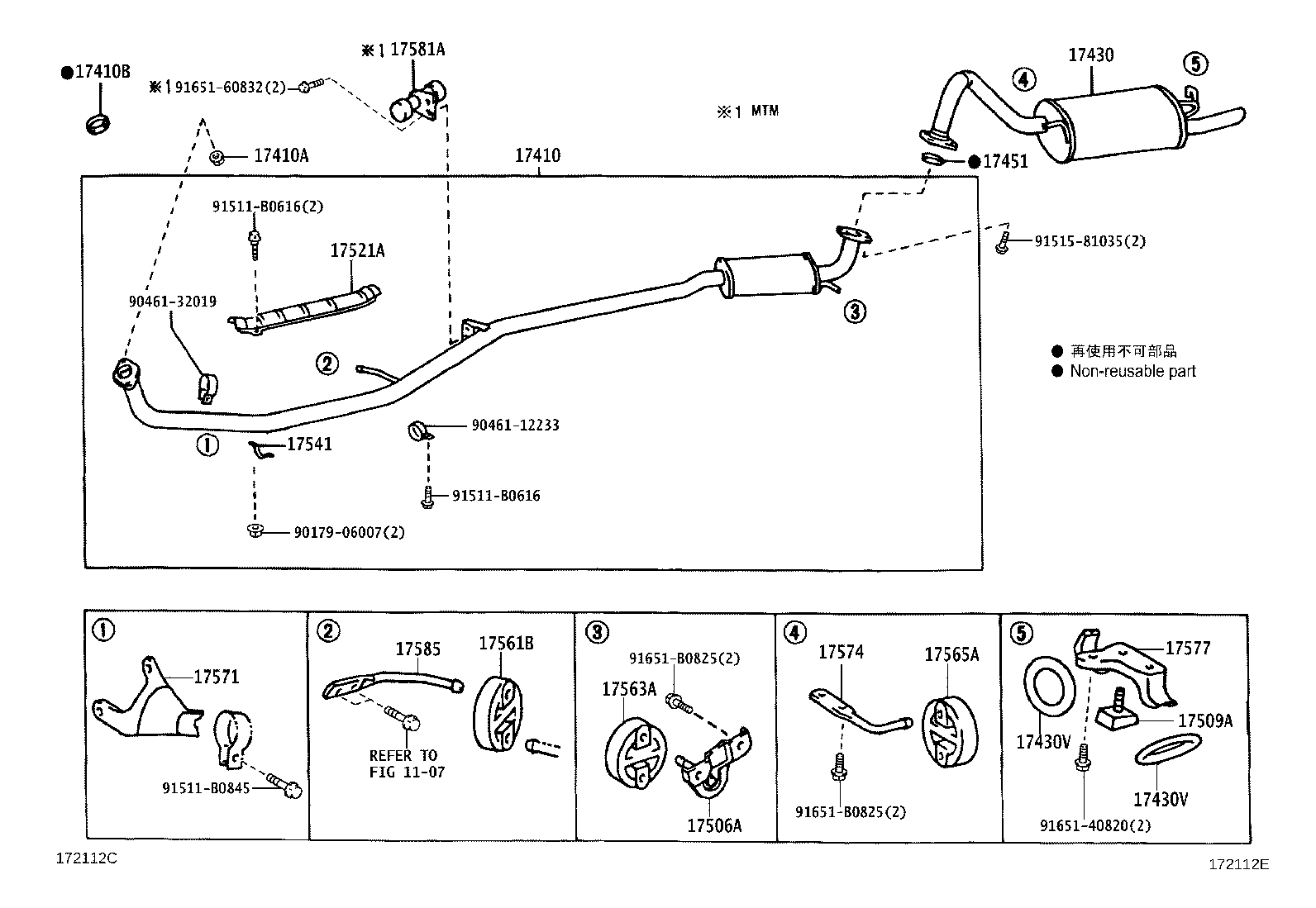

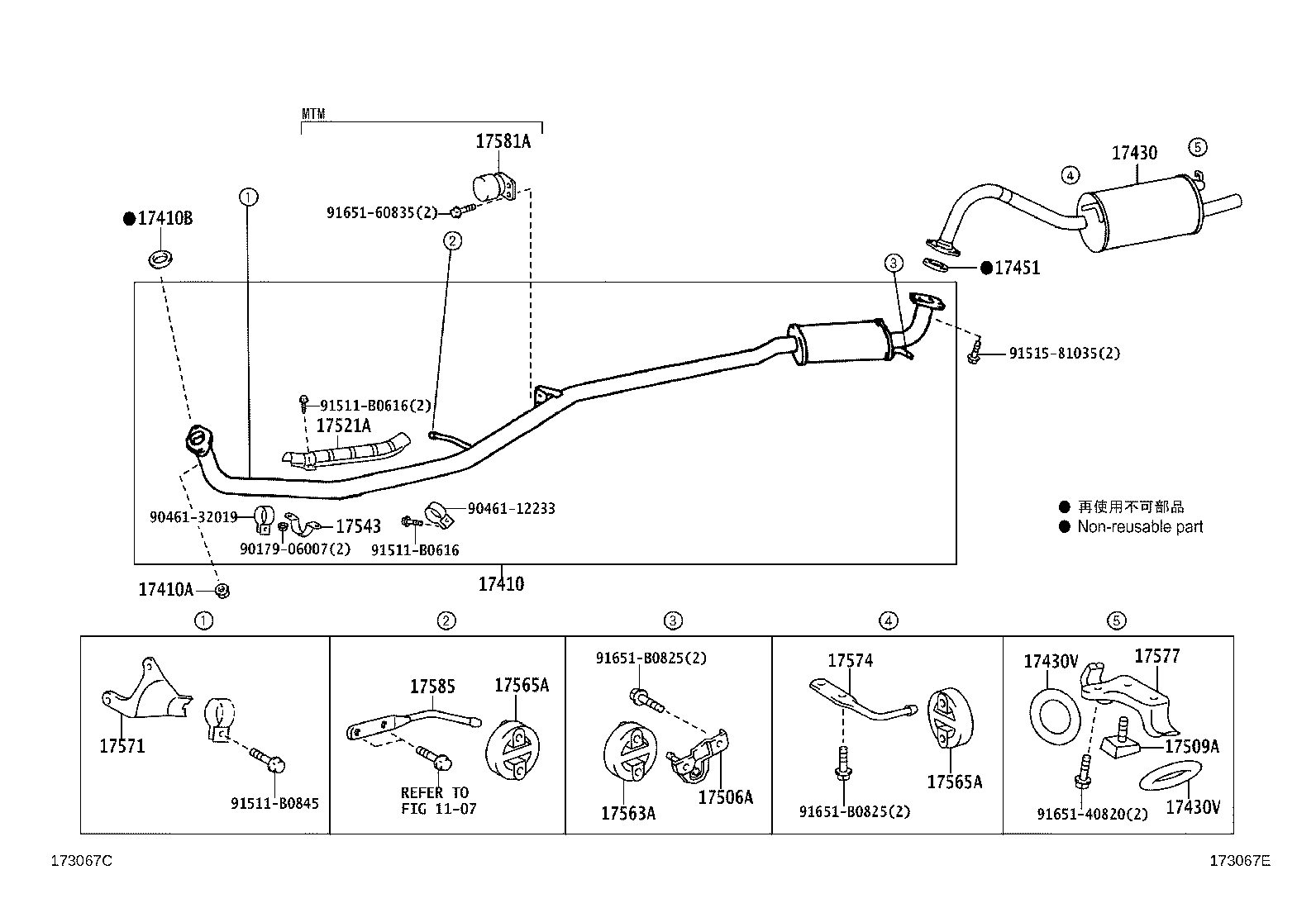

Figure 171571D 171571D 1996-01 → 2006-07 Figure 172112E 172112E 1999-08 → 2001-08 Figure 173067E 173067E 2001-08 → 2004-06 Figure 175217B 175217B 2004-06 → 2007-09 Figure 175794B 175794B 2007-09 → — Figure 176057A 176057A 2008-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17506B Bracket Sub-assy, Exhaust Pipe Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17541 Stay, Exhust Pipe Protector, NO.1
17543 Stay, Exhaust Pipe Protector, NO.3
17561B Support, Exhaust Pipe, NO.1
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17574 Bracket, Exhaust Pipe Support, NO.4
17577 Bracket, Exhaust Pipe Support, NO.7
17581A Damper, Exhaust Pipe
17585 Hanger, Exhaust Pipe
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
