Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

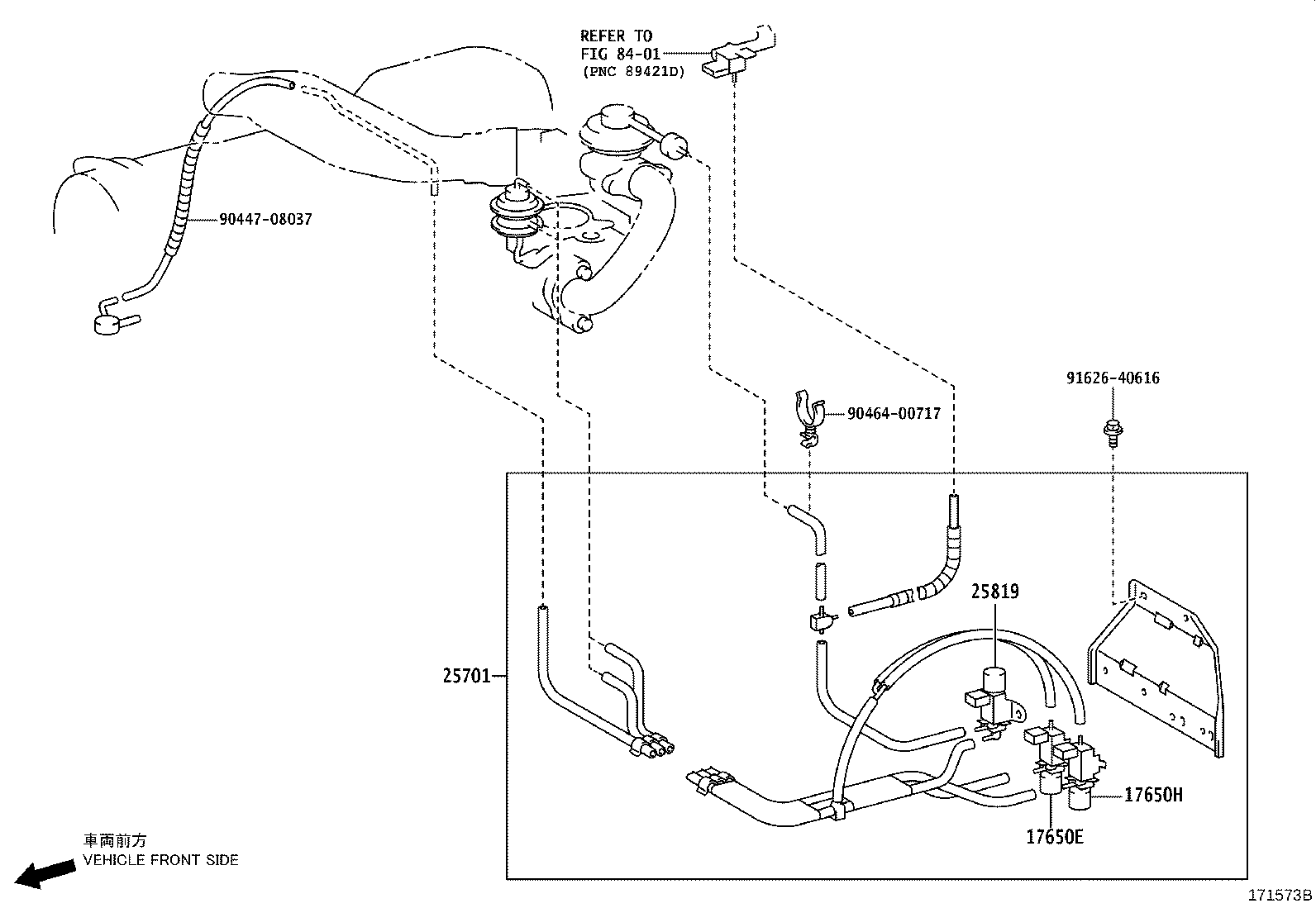

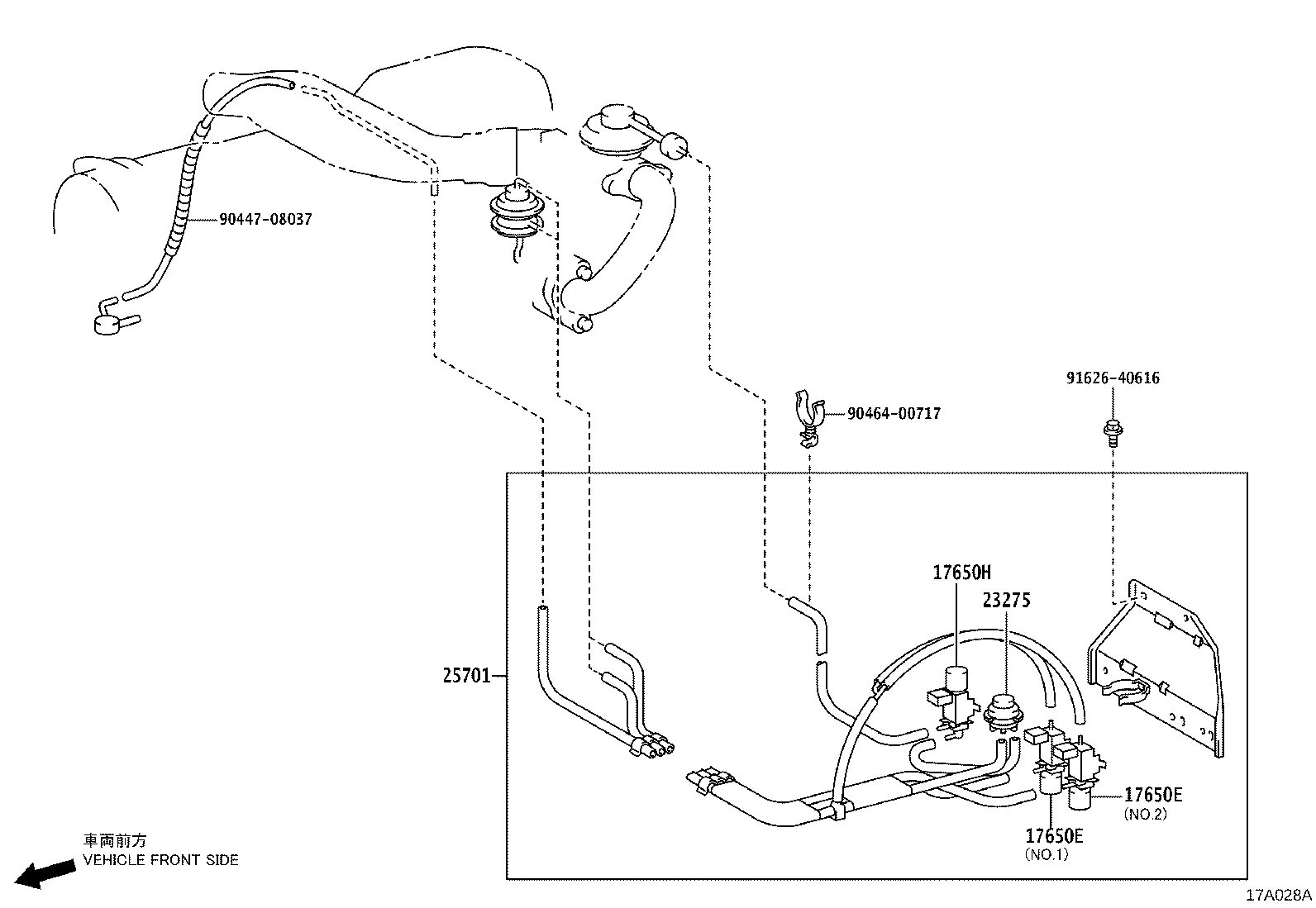

Vacuum Piping
6 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650E | Valve, Vacuum Switching |
| 17650H | Valve, Vacuum Switching |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 25701 | Valve Set, Emission Control |
| 25819 | Valve Assy, Vacuum Regulating |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
