Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lpg(CARBURETOR) Fuel Pipe

11 part groups · 2 illustrations

Illustrations

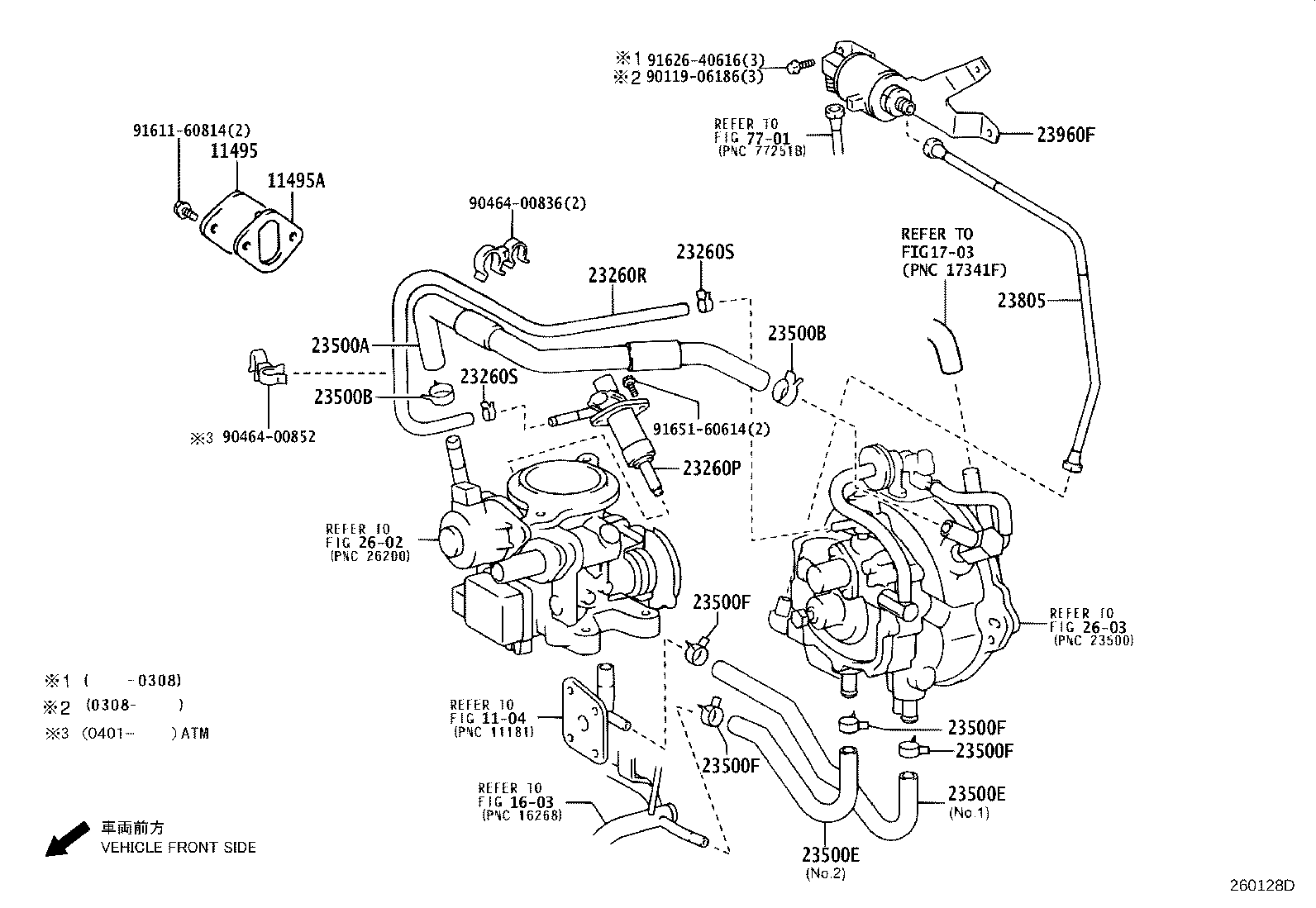

Figure 260063E 260063E 1999-08 → 2002-10 Figure 260128D 260128D 2002-10 → —

Part groups

PNCDescription
11495 Plug, Plate(FOR CYLINDER BLOCK)
11495A Gasket, Fuel Pump(FOR CYLINDER BLOCK PLATE PLUG)
23260P Injector Assy, Lpg
23260R Hose, Lpg Injector
23260S Clamp OR Clip(FOR LPG INJECTOR HOSE)
23500A Hose, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)
23500B Clamp OR Clip, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)
23500E Hose, Water(FOR LPG REGULATOR INLET)
23500F Clamp OR Clip(FOR LPG REGULATOR INLET WATER HOSE)
23805 Pipe Sub-assy, Lpg Regulator
23960F Valve Assy, Solenoid Lpg
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
