Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

11 part groups · 2 illustrations

Illustrations

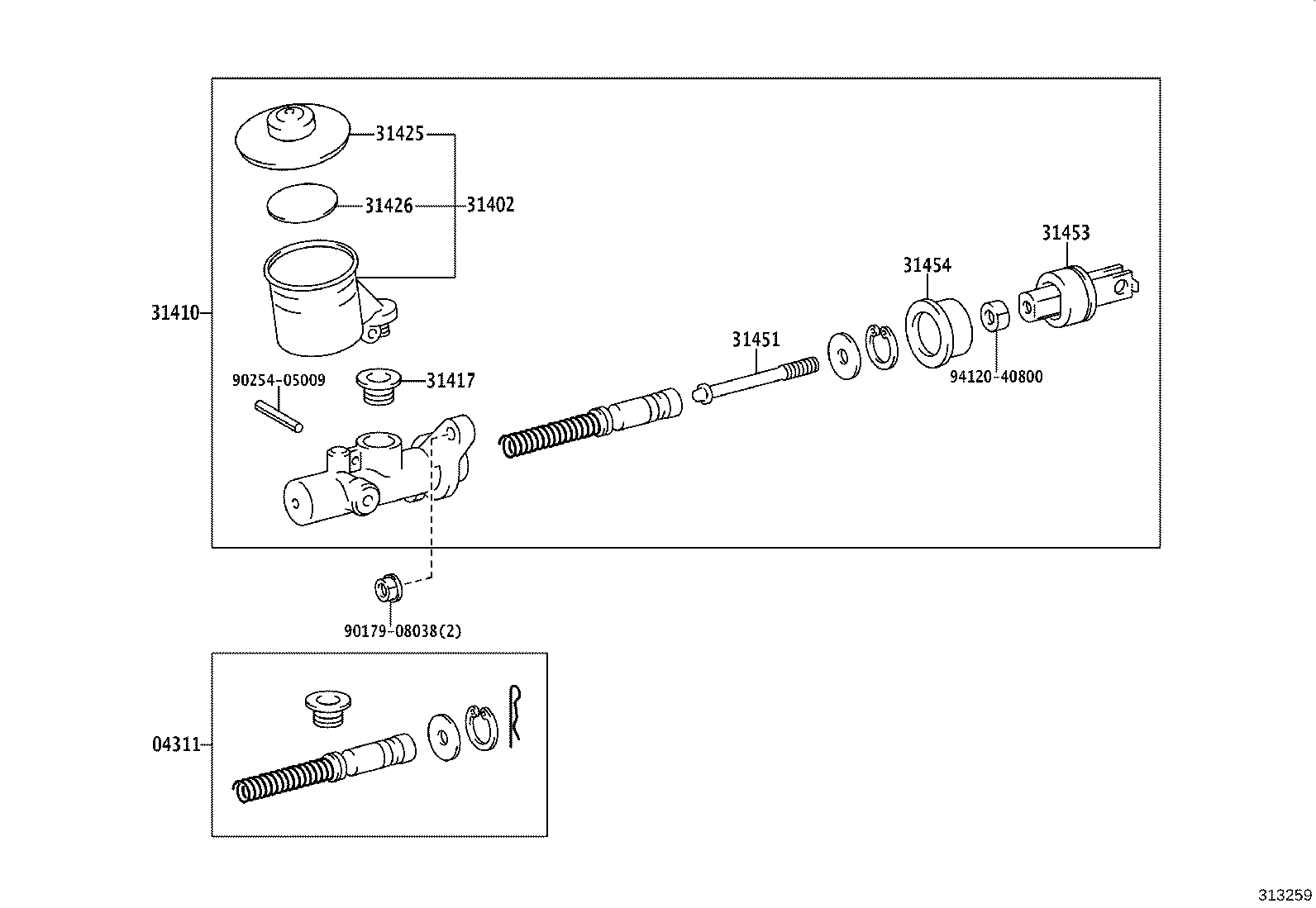

Figure 313258A 313258A 1996-01 → — Figure 313259 313259 1999-08 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31417 Grommet, Clutch Reservoir
31425 Cap, Clutch Master Cylinder Reservoir Filler
31426 Float, Clutch Master Cylinder Reservoir
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
