Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

9 part groups · 2 illustrations

Illustrations

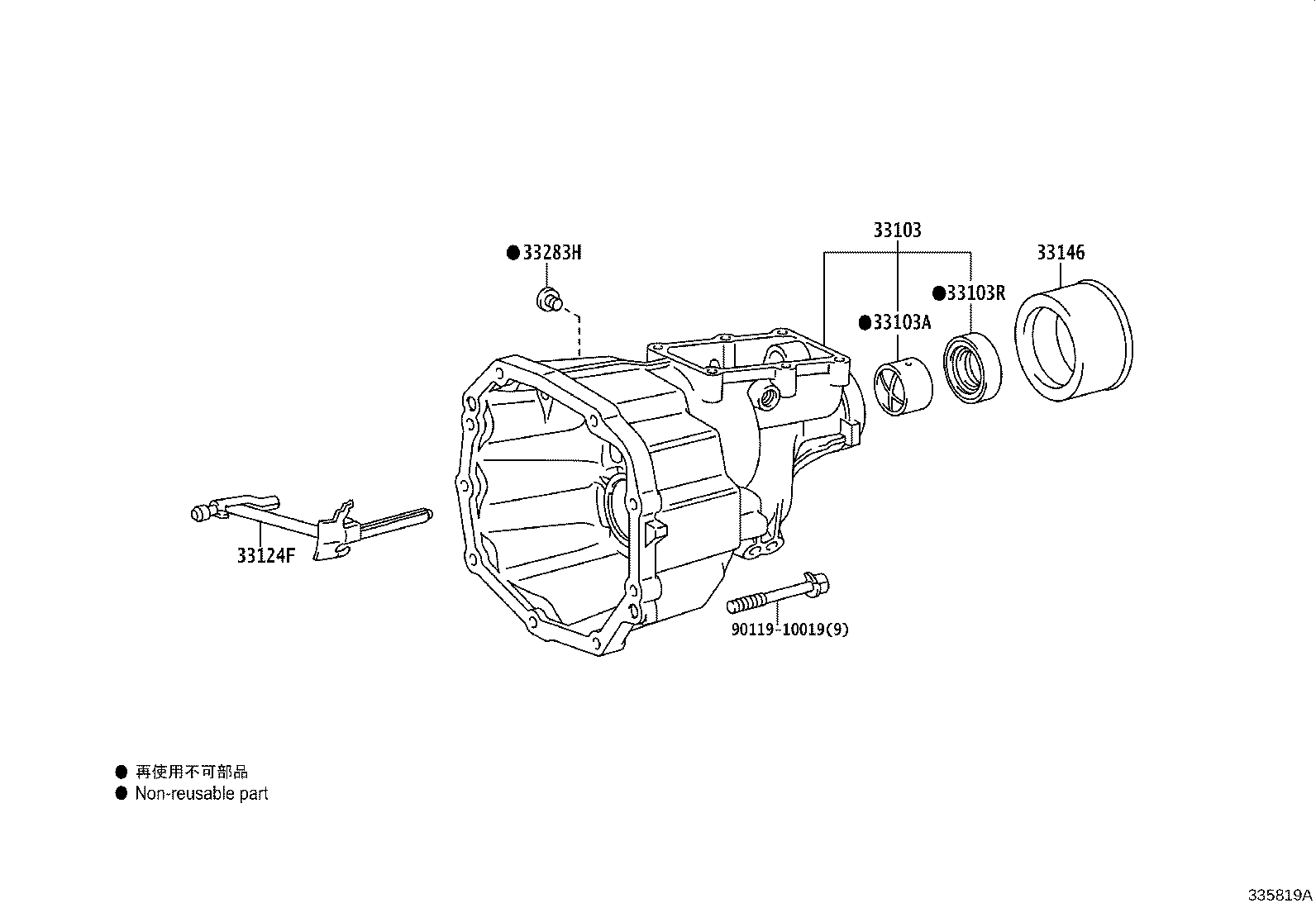

Figure 331092E 331092E 1996-01 → 2003-12 Figure 335819A 335819A 1996-01 → —

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103A Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33103B Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124A Clamp(FOR TRANSMISSION OIL RECEIVER PIPE)
33124F Pipe, Oil Receiver, NO.1(FOR EXTENSION HOUSING)
33124G Pipe, Oil Receiver, NO.2(FOR EXTENSION HOUSING)
33146 Deflector, Extension Housing Dust(MTM)
33283H Plug, W/Head Straight Screw
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
