Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07

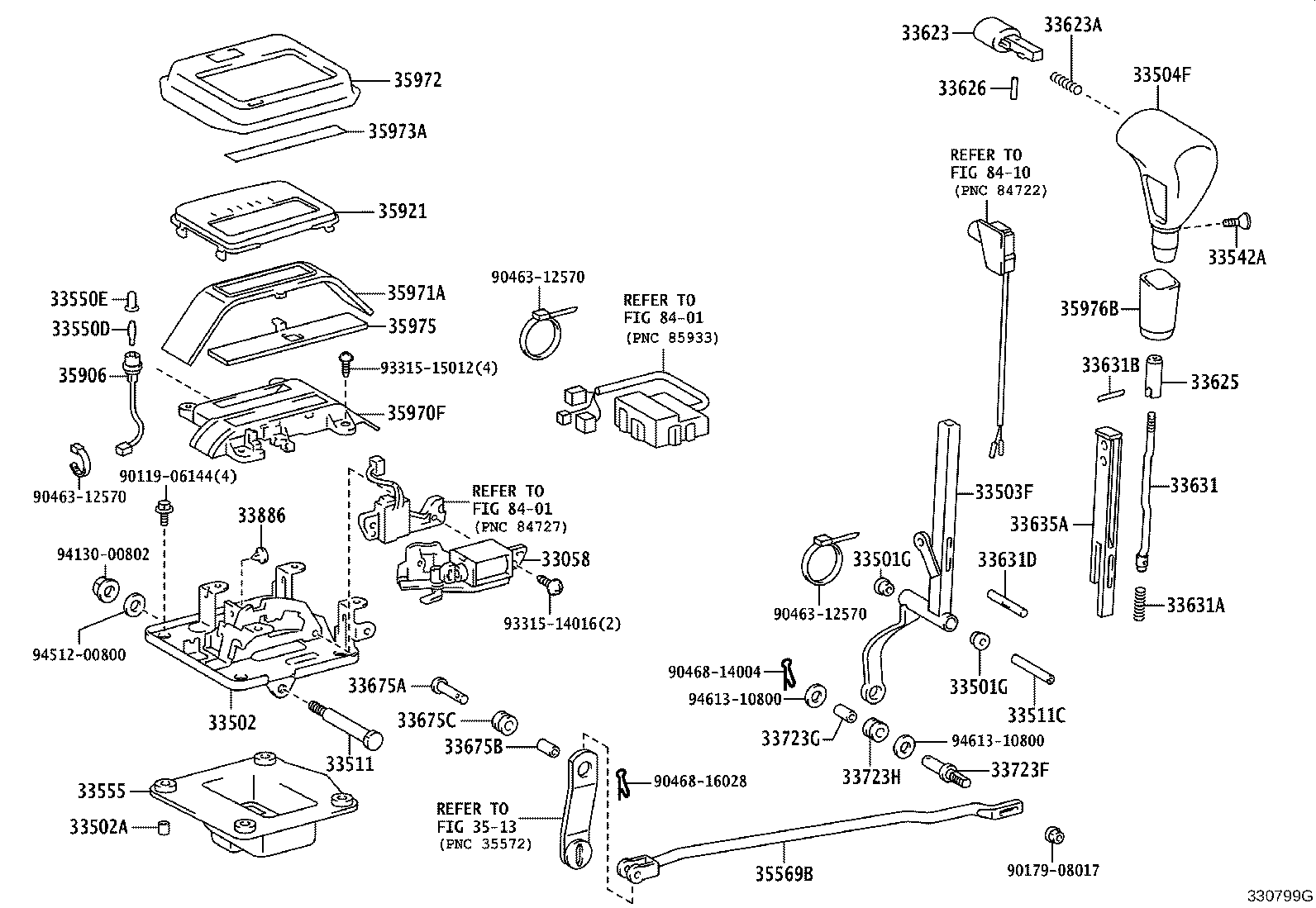

Shift Lever & Retainer
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33058 | Bracket Sub-assy, Shift Lock Solenoid |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511C | Collar (FOR CONTROL SHAFT) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33542A | Screw, W/Washer(FOR SPRING BACK SHIFT LEVER KNOB) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33555B | Boot, Shift & Select Lever |
| 33555H | Boot, Shift & Select Lever, NO.4 |
| 33584G | Gasket, NO.2 (FOR FLOOR SHIFT) |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33626 | Stopper, Shift Lever Button |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631B | Pin, Slotted Spring (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33675B | Bush (FOR TRANSMISSION CONTROL ROD) |
| 33675C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33723H | Grommet (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33886 | Stopper, Shift Lever |
| 35569B | Rod, Transmission Control (FOR FLOOR SHIFT) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35970F | Housing Assy, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35972 | Cover, Position Indicator Housing |
| 35973A | Attachment, Position Indicator Housing Cover |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
