Toyota Crown Comfort

1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General

Discontinued model Data version 2018-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

134 part groups · 7 illustrations

Illustrations

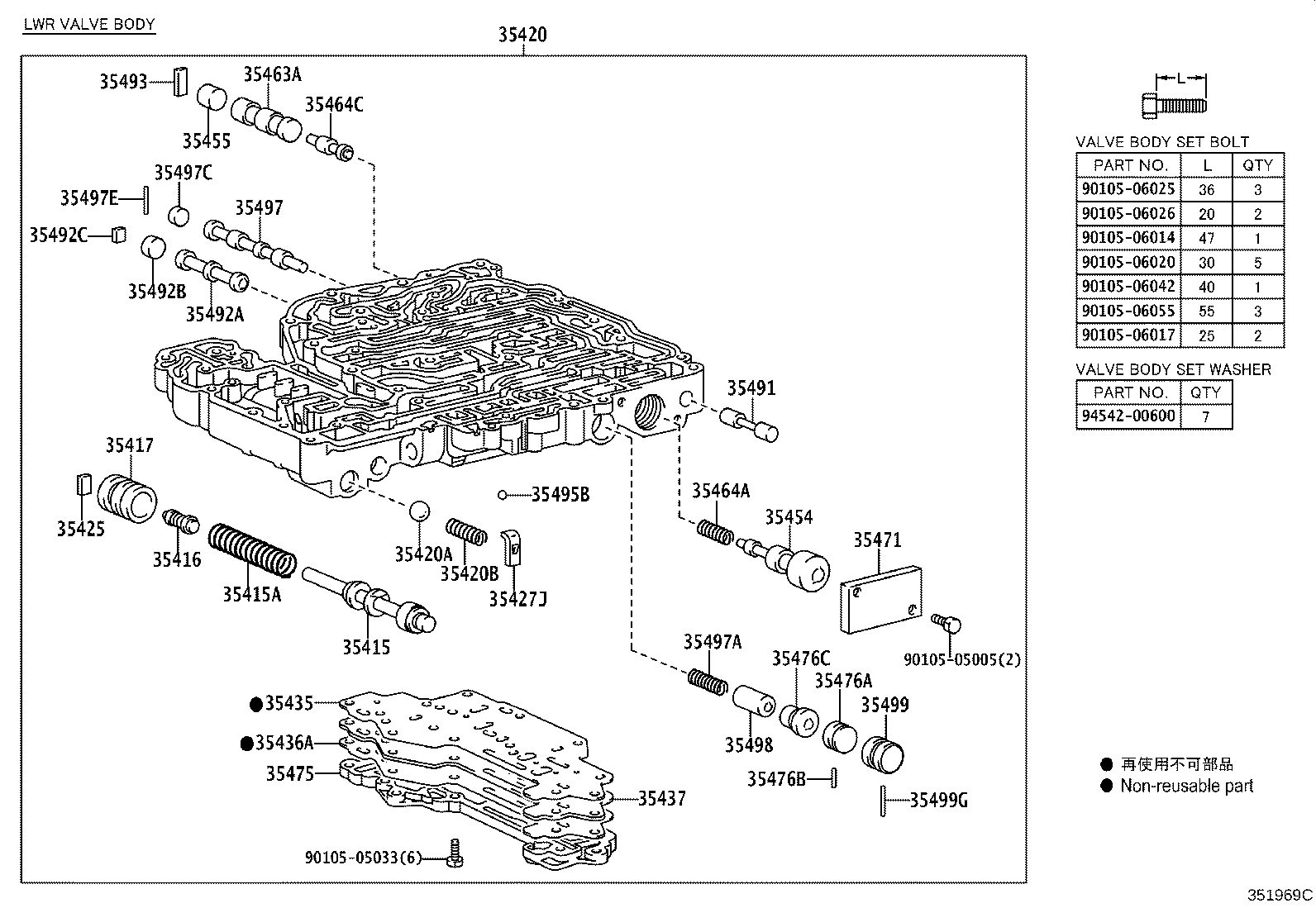

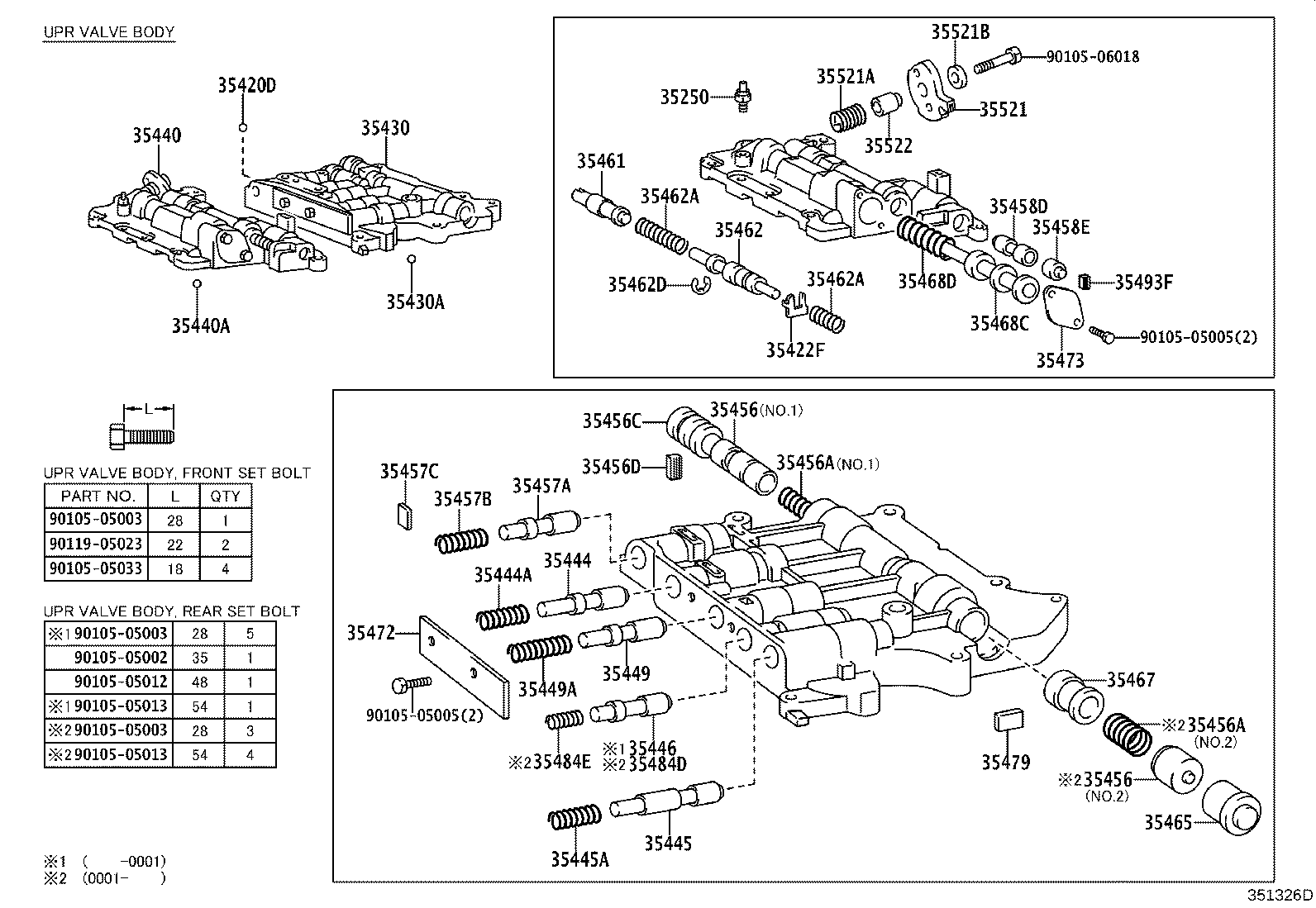

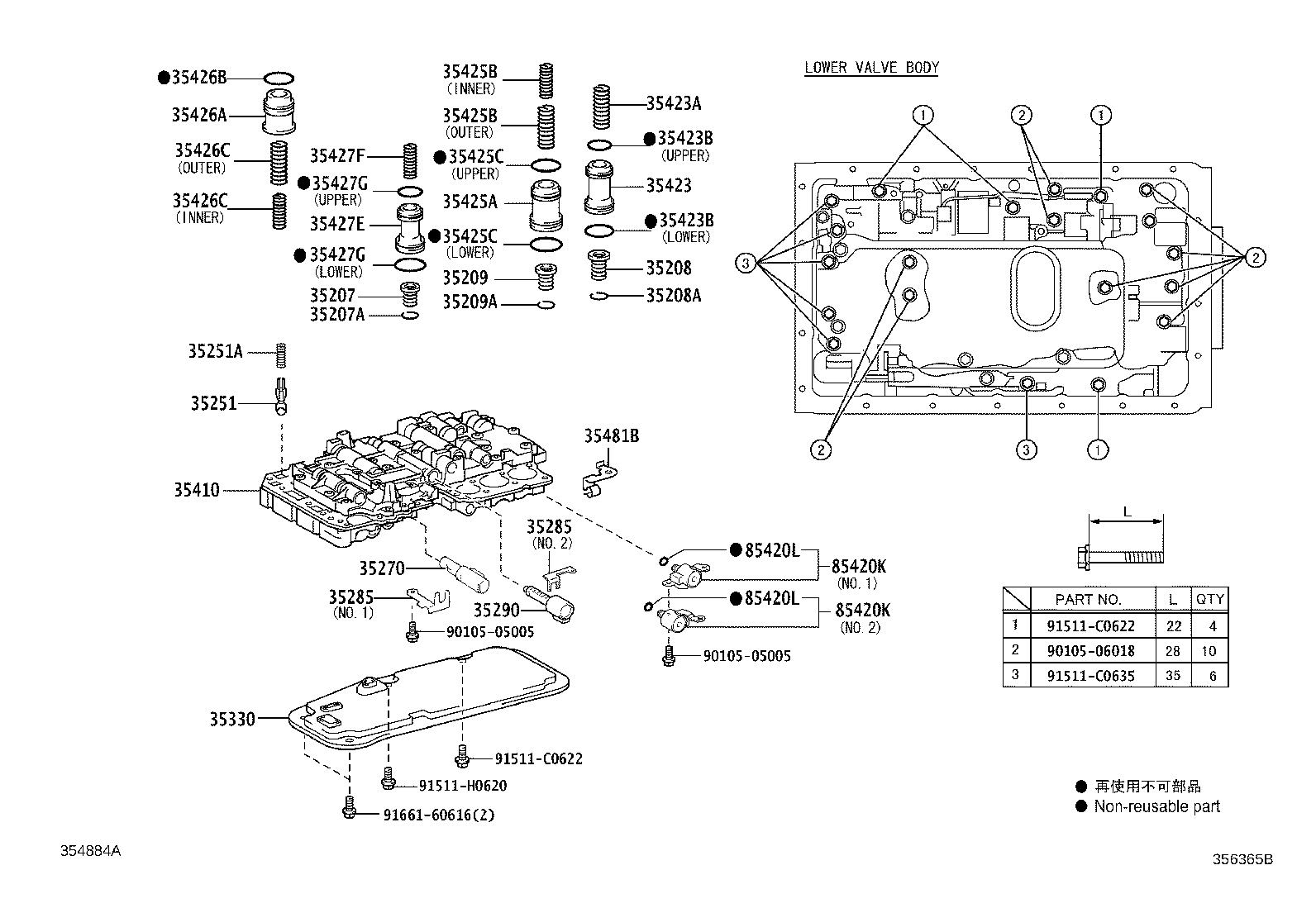

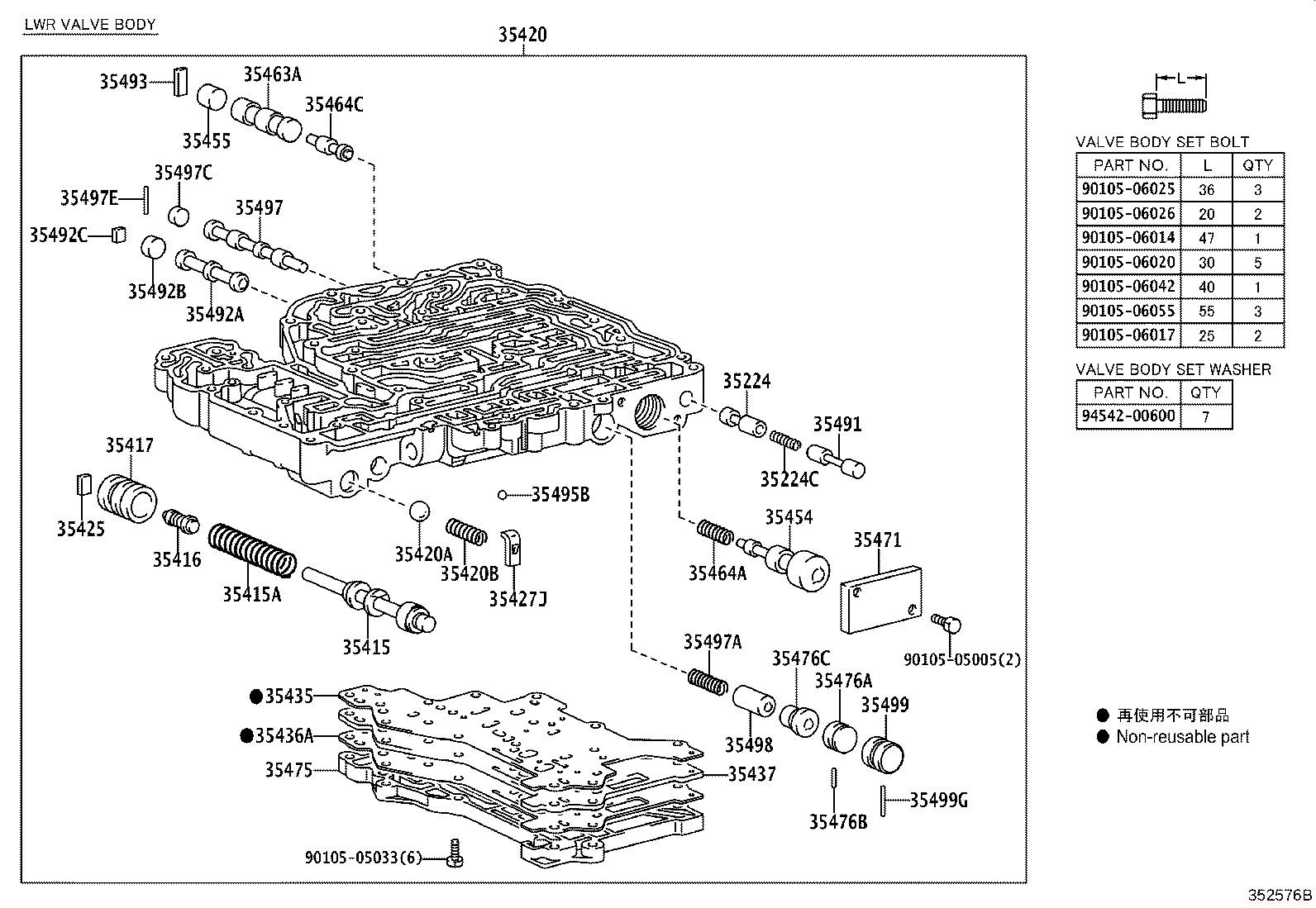

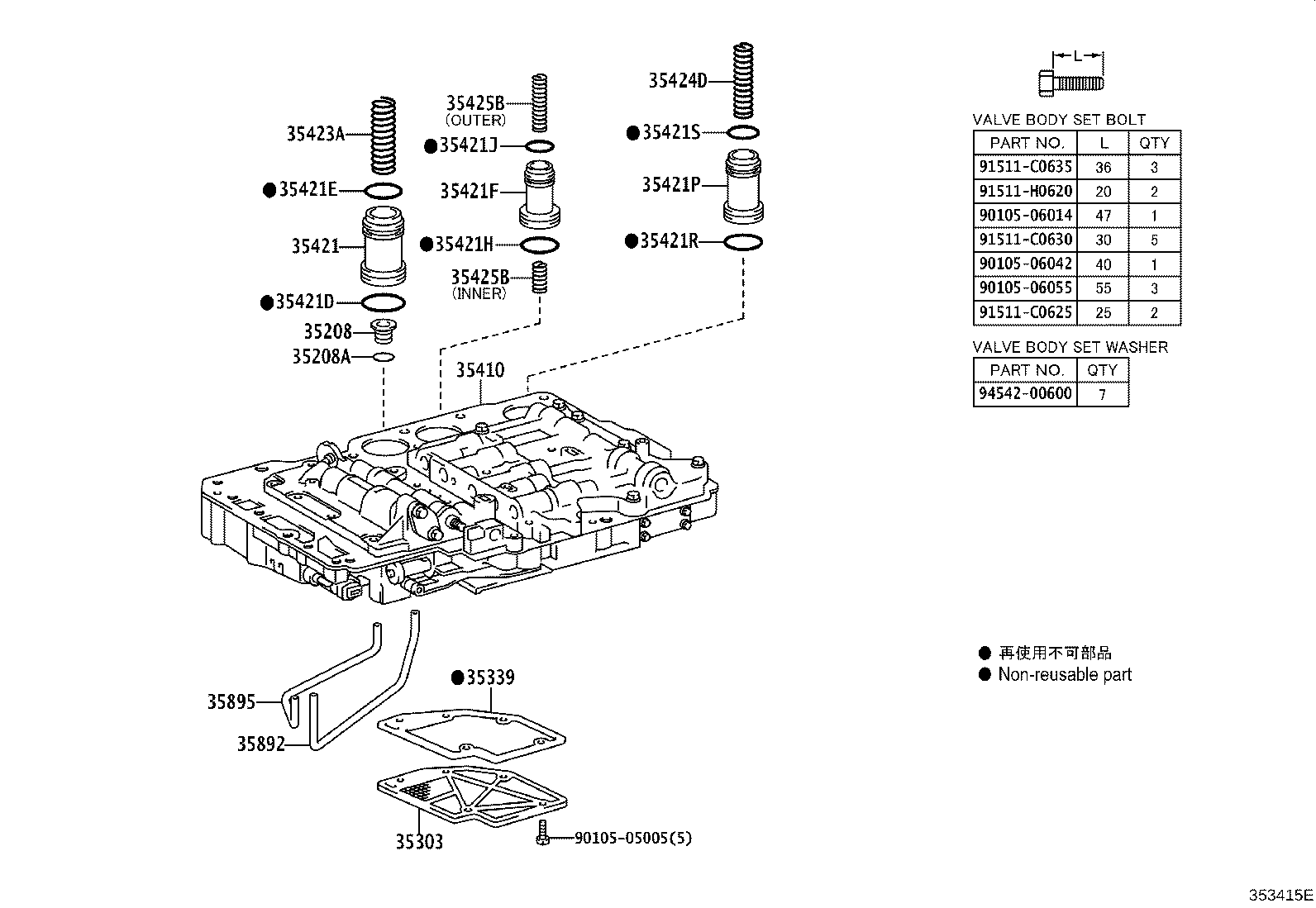

Figure 351968D 351968D 1999-08 → 2001-08 Figure 351326D 351326D 1999-08 → 2001-08 Figure 351969D 351969D 1999-08 → 2000-01 Figure 352576B 352576B 2000-01 → 2001-08 Figure 353415E 353415E 2001-08 → — Figure 356365B 356365B 2008-08 → — Figure 356366E 356366E 2008-08 → —

Part groups

PNCDescription
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35224 Valve, Reverse Control
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35250 Body Assy, Check Ball
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35270 Solenoid Assy, Shift Control
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415 Valve, Pressure Regulator
35415A Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35420 Body Assy, Lower Valve
35420A Ball (FOR PRESSURE RELIEF)
35420B Spring (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35421 Piston, Accumulator, NO.1
35421D Ring (FOR ACCUMULATOR PISTON NO.1)
35421E Ring (FOR ACCUMULATOR PISTON NO.1)
35421F Piston, Accumulator, NO.2
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35421J Ring (FOR ACCUMULATOR PISTON NO.2)
35421P Piston, Accumulator, NO.3
35421R Ring (FOR ACCUMULATOR PISTON NO.3)
35421S Ring (FOR ACCUMULATOR PISTON NO.3)
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35425 Seat, Pressure Regulator Valve Sleeve
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427J Seat, Check Valve Spring (FOR PRESSURE RELIEF)
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436A Gasket, Valve Body Plate, NO.4
35437 Plate, 3-4 Shift Valve Separator
35440 Body Assy, Front Upper Valve
35440A Ball (FOR FRONT UPPER VALVE BODY)
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35446 Valve, Governor Modulator
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35454 Valve, Low Coast Shift
35455 Plug, 1-2 Shift Valve Low
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35457A Valve, Detent Regulator
35457B Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C Seat (FOR DETENT REGULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35465 Plug, Intermediate Shift Valve
35467 Valve, Intermediate Shift
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35471 Cover, Valve Body, NO.1
35472 Cover, Valve Body, NO.2
35473 Cover, Transmission Valve Body
35474 Cover, Valve Body, NO.4
35475 Cover, Valve Body, NO.5
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35476C Valve, 3RD Coast
35479 Seat, Intermediate Shift Valve
35481B Clamp, Valve Body Wire Harness
35484D Valve, B-3 Control
35484E Spring, Compression (FOR B-3 CONTROL VALVE)
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35491 Plug, Reverse Brake
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492C Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35493 Seat, Shift Valve Spring
35493F Seat, Shift Valve Plug
35495B Ball, Check, NO.1
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497E Roller, Needle (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35499 Plug, 3-4 Shift Valve
35499G Pin, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35892 Tube, Overdrive Brake
35895 Tube, Front Clutch Apply
82125L Ring, O(FOR TRANSMISSION WIRE)
82125X Wire, Transmission, With Temperature Sensor
85420K Solenoid Assy, Transmission
85420L Ring, O(FOR TRANSMISSION SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
