Toyota Crown Comfort
1996-01 → 2018-01 · chassis LXS1#,TSS10,YXS1# · catalogue 333310 · General
Discontinued model
Data version 2018-07
Steering Wheel

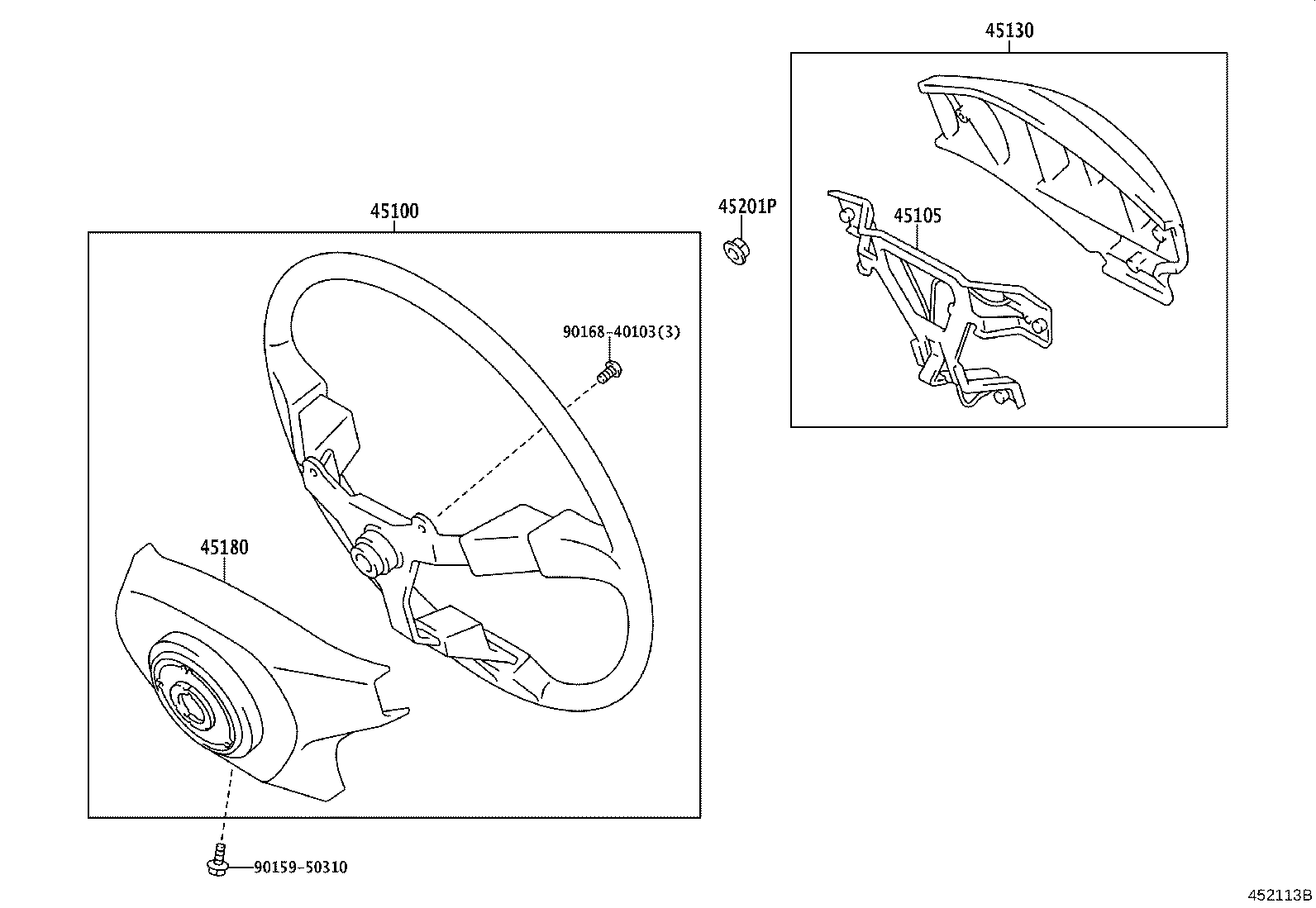

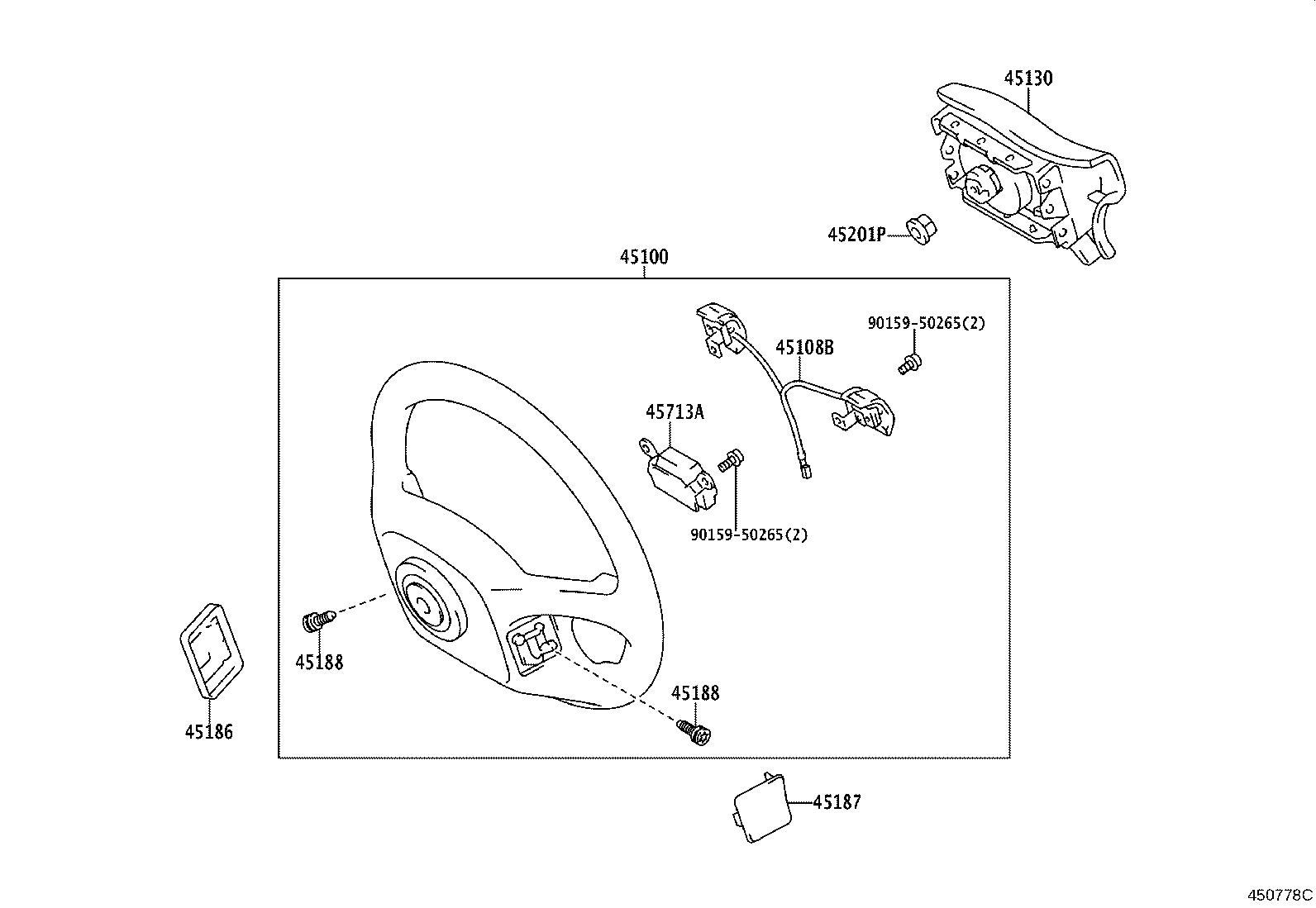

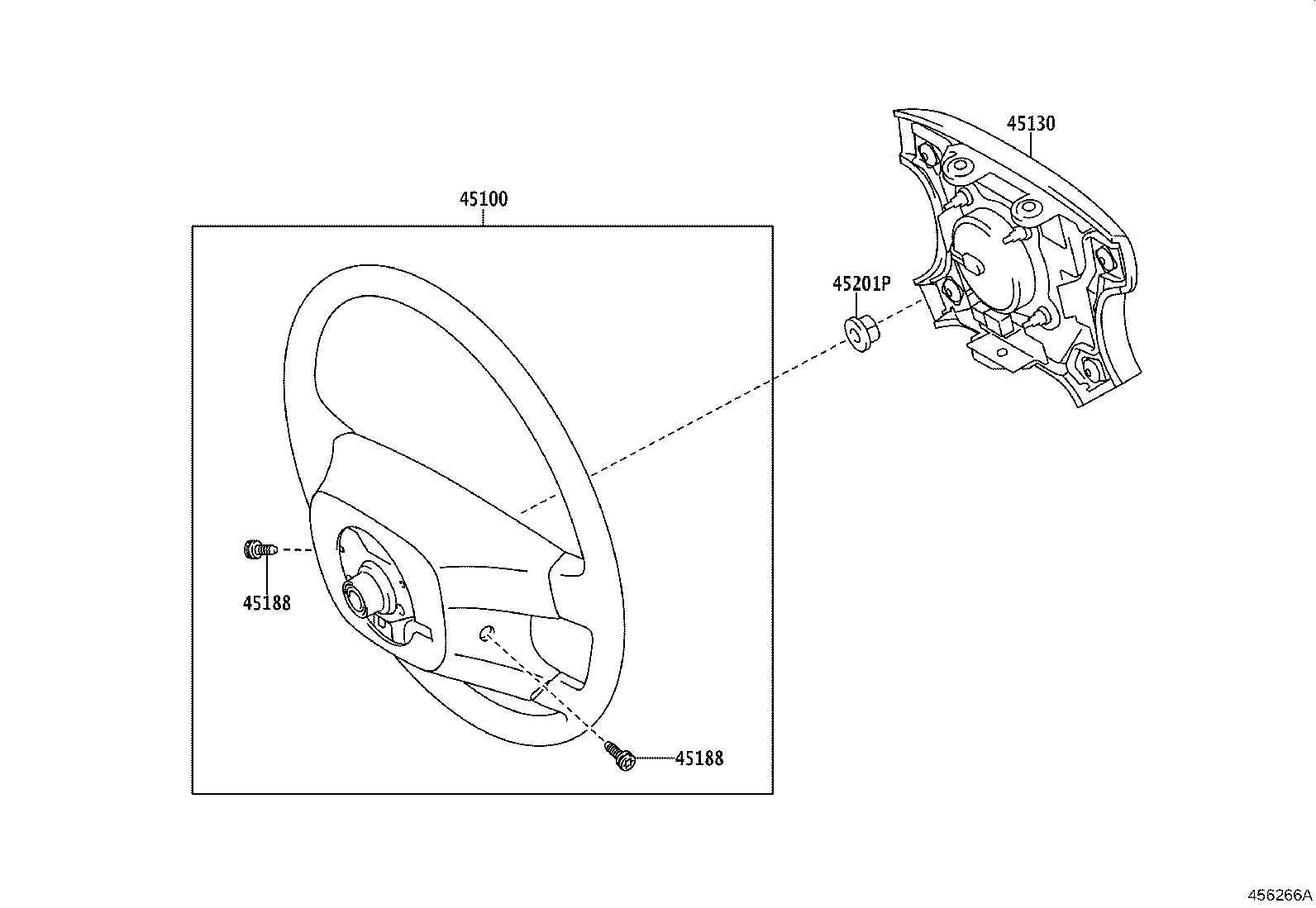

11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45105 | Plate Sub-assy, Horn Button Contact, NO.1 |
| 45108B | Button Sub-assy, Horn(FOR STEERING WHEEL ASSY) |
| 45130 | Button Assy, Horn |
| 45155 | Spacer, Horn Button Contact Plate |
| 45180 | Cover Sub-assy, Steering Wheel |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45188 | Screw, Steering Wheel Pad Attaching |
| 45201P | Nut, Steering Wheel Set |
| 45713A | Damper, Steering Shake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
